2ABN2-RFBMS02Bluetooth 4.0 (BLE) Module

໪ᕲ༪ᅓܵۃଖ৲ቸᄎࣇྲྀ 1  9&&   8$577; 8$575; (1 %576 %&76    *1'    %/(    P1: Bridge mode and Direct mode Diagrams of BLE Module˄V2.20˅  Bluetooth 4.0(BLE) Module This module is designed to get the electronic products together with intelligent For the transplantation and use of Bluetooth Low Energy(BLE) applications in various industry products .SHENZHEN RFSTAR TECHNOLOGY CO.,LTD releases BLE transparent transmission module. The module make the host application development easier as as a bridge of smart phone peripherals. User's’existing products or solutions with this module, can communicate with mobile devices (with Bluetooth 4.0) , realize intelligent control and management under the bridge (serial port) mode. Users can design their own solutions or products to use the module to extend simple peripherals under the direct driving mode,to release new peripherals in lowest cost and efficiency. MCU Application circuit ˄Host˅ RF-BM-S01 Bluetoo th 4.0 ˄BLE˅ Module Peripheral circuit Bridge mode Direct drive mode  RXWSXW  VWDWXV LQGLFDWRUV 3XOVHFDSWXUH&+V .HHSORZIRUVWR 5HVWRUH RULJLQDO VHWWLQJV 3URJUDPPHU ELGLUHFWLRQDO,2V 3:0RXWSXWV $QDORJLQSXW,2V ໪ᕲ༪ᅓܵۃଖ৲ቸᄎࣇྲྀ 2 The RF-BM-S02_v1.1 BLE module use TI CC2540 as the core processor with TI official standard protocol stack, which runs at 2.4 GHz ISM band, GFSK (Gaussian Frequency Shift Keying) modulation mode, with 40 channels in 2 MHz clearances, 3 fixed radio channels, 37 adaptive automatic jump frequency channels according to the passage, the Physical layer with classic Bluetooth are RF dual-mode device, The 2 MHz gap can prevent the adjacent channel interference better. - 93 dBm high-gain receiving sensitivity in 13.7 mm x 17.4 mm x 1.9 mm. mobile devices, which can be widely applied to instruments and meters, logistics tracking, healthcare, intelligent household, sports measurement, automotive electronics, toys. Features: 1.Convenient, do without any Bluetooth protocol stack application experience. 2.Using universal serial to design users’ interface with bi-directional reading and simple operation 3.Dimensional channel design, minimize data packet processing, and maximize the communication efficiency . 4.Ultra low power consumption in standby mode. Applications:  2.4-GHz Bluetooth low energy Systems Mobile Phone Accessories Sports and Leisure Equipment Health Care and Medical Home and Building Automation Consumer Electronics FCC Warning: If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: 2ABN2-RFBMS02 when the module is installed inside another device, the user manual of this device must contain below warning statements; 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2.402-2.48GHz Bluetooth low energy Systems FCC statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

ShenZhen RF-STAR Technology CO., LTD Limited Modular Approval Declaration Letter (Date) 20/May/2014 Bluetooth 4.0 (BLE) Module, FCC ID: 2ABN2-RFBMS02 , is seeking FCC Authorization as a Single Modular transmitter / Limited Modular Approval (Please check one). The EUT meets the requirements for Single Modular approval / Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below: Questions are: 1. “The modular transmitter must have its own RF shielding.” Yes / No 2. “The modular transmitter must have buffered modulation/data inputs.” Yes / No Answer : Yes ,All inputs to the modules are buffered through logic or microprocessor inputs. 3. “The modular transmitter must have its own power supply regulation.” Yes / No Answer : Yes, A low drop out regulator is used for modular power supply regulation. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” Yes / No Answer : Yes, PCB antenna with antenna gain 0dBi is used 5. “The modular transmitter must be tested in a stand-alone configuration.” Yes / No Answer : Yes, at least 10cm distance is keep and setup photos show it 6. “The modular transmitter must be labeled with its own FCC ID number.” Yes / No Answer : Yes , label is “ FCC ID: 2ABN2-RFBMS02” 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements.” Yes / No Answer : Yes, The module comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual . 8. “The modular transmitter must comply with any applicable RF exposure requirements.” Yes / No Answer : Yes, Transmitter meets RF exposure requirements of KDB447498 V05 . Refer to RF exposure evaluations. Note: Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. Client’s signature Client’s name / title：aroowoo / Project Manager Contact information / address Tel: +0755-8632 9829 Fax: 0755-8632 9413 Add: 2F, BLDG.8, Zone A, BaoAn Internet Industry Base, BaoYuan Road, XiXiang, BaoAn DIST, ShenZhen

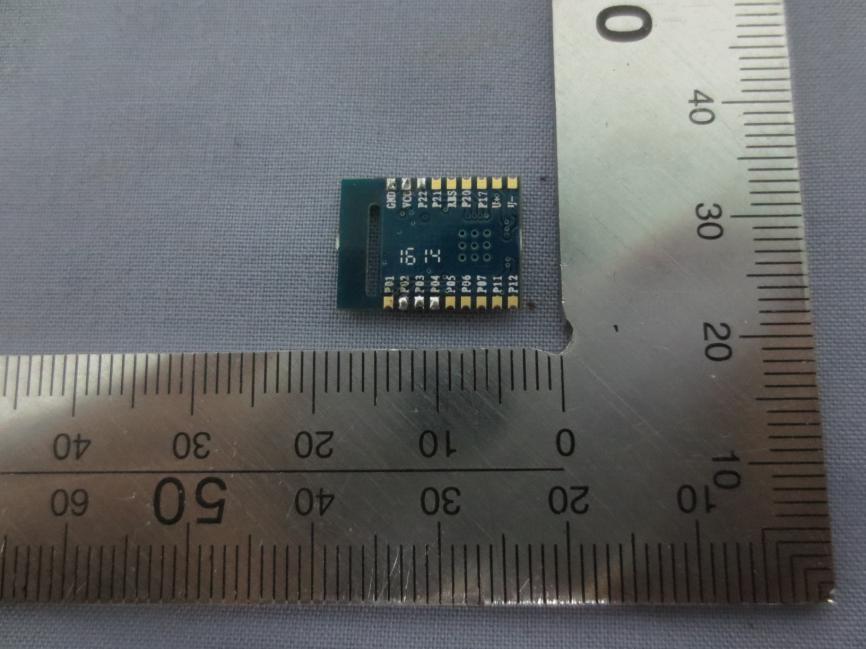

Report No: CCIS14050028901 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140500289RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 42 of 42 8 EUT Constructional Details ------End of report------

Label Specifications: Text is Silver in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. FCC ID: 2ABN2-RFBMS02 Label Location:

Report No: CCIS14050028901 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140500289RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 42 of 42 8 EUT Constructional Details ------End of report------

SAR Evaluation According to 447498 D01 General RF Exposure Guidance v05. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [ f(GHz) ] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison The device was used to near to the head, and the distance between antennas and human is 5mm. The maximum output power of EUT is -1.57dBm =0.70 mW, and the maximum turn-up tolerance is -1dBm =0.79 mW, so the calculated result is: [0.79 mW/ 5 mm] · [ (GHz)44.2 ] = 0.25 < 3.0 for 1-g SAR Then SAR evaluation is not required

Shenzhen Zhongjian Nanfang Testing Co., Ltd. Report No: CCIS14050028901 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the CCIS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page FCC REPORT (BLE) Applicant: Shenzhen RF-STAR Technology CO., LTD Address of Applicant: 2F,BLDG.8,Zone A, BaoAn Internet Industry Base, BaoYuan Road, XiXiang, BaoAn DIST, Shenzhen, China Equipment Under Test (EUT) Product Name: Bluetooth 4.0 (BLE) Module Model No.: RF-BM-S02, RF-BM-S02A FCC ID: 2ABN2-RFBMS02 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: 08 May., 2014 Date of Test: 09 May., to 16 May., 2014 Date of report issued: 19 May., 2014 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No: CCIS14050028901 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140500289RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 2 of 42 2 Version Version No. Date Description 00 19 May., 2014 Original Prepared by: Date: 19 May., 2014 Report Clerk Reviewed by: Date: 19 May., 2014 Project Engineer Report No: CCIS14050028901 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140500289RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 42 3 Contents Page 1 COVER PAGE ..................................................................................................................................................... 1 2 VERSION .............................................................................................................................................................. 2 3 CONTENTS .......................................................................................................................................................... 3 4 TEST SUMMARY ................................................................................................................................................ 4 5 GENERAL INFORMATION ............................................................................................................................... 5 5.1 CLIENT INFORMATION ................................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF E.U.T. .............................................................................................................. 5 5.3 TEST ENVIRONMENT AND MODE .................................................................................................................... 7 5.4 DESCRIPTION OF SUPPORT UNITS ............................................................................................................... 7 5.5 LABORATORY FACILITY ................................................................................................................................. 8 5.6 LABORATORY LOCATION ............................................................................................................................... 8 5.7 TEST INSTRUMENTS LIST .............................................................................................................................. 9 6 TEST RESULTS AND MEASUREMENT DATA .......................................................................................... 10 6.1 ANTENNA REQUIREMENT............................................................................................................................. 10 6.2 CONDUCTED EMISSIONS ............................................................................................................................. 11 6.3 CONDUCTED OUTPUT POWER .................................................................................................................... 14 6.4 OCCUPY BANDWIDTH .................................................................................................................................. 16 6.5 POWER SPECTRAL DENSITY ....................................................................................................................... 19 6.6 BAND EDGE ................................................................................................................................................. 21 6.6.1 Conducted Emission Method ............................................................................................................. 21 6.6.2 Radiated Emission Method ................................................................................................................ 23 6.7 SPURIOUS EMISSION .................................................................................................................................. 28 6.7.1 Conducted Emission Method ................................................................…

Text truncated - open the document above for the full version.

Report No: CCIS14050028901 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140500289RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 40 of 42 7 Test Setup Photo Radiated Spurious Emission Report No: CCIS14050028901 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140500289RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 41 of 42 Conducted Emission
