2ABNBHX-P120Bluetooth Speaker

Por manual de instrucciones e información de garantía en español visítenos en www.hmdxaudio.com HMDX is pretty much short for awesome. Because you’re rocking out to one tonight and every night from now on, prepare for an awesome night too, you awesome you. The HMDX Neutron has friends—like lots of them. Invite them along next time for an even more epic night. You can check out all their online profiles at www.hmdxaudio.com. Setup is pretty easy, but we put a manual together just in case you need it. It’s full of information and sarcasm—just like that English teacher you had that crazy semester. Charging the speakers is so easy you’ve probably figured it out by now, but just in case, you’ve got two options: your computer or a wall outlet. 1. The cord that came with the speaker—the one with the USB on one end and the Micro USB on the other—will work with your computer. 2. If you want to use the wall outlet, you’ll need to pick up a power cord with a Micro USB the next time you’re at the store, or use any USB AC adapter, including the one for your cell. Now go get ready for an epic night while your speaker does too. It needs about 3 hours of me time for 4 hours of party time. For a longer party, plug it in using the aux cord for 12 hours of play. Package Contents Just Charge It User ManualCharging Cord Speaker Control Your Destiny...or at Least Your Speaker Allow Us to Shed Some Light 1. That’s the power button. 2. Push it to play, push it again to pause. 3. Turn the music up or down. (Wait, why do you need to turn it down?) 4. That light lets you know when Bluetooth has the hook-up. 5. That’s the mic. 6. The power cord goes here. 7. Hook it up old-school. 8. Easy pull tab. Like any amazing couple, this one starts with a connection—one between your device and the speaker’s Bluetooth. Here’s how it works: 1. We know you’re probably going to think, “derp” with this one, but we have to say it: Make sure the smartphone, tablet or computer you want to hook up to the speaker has Bluetooth. (There. We got that out of the way.) 2. Turn on the speaker and look for the little blinking light. 3. Do whatever your device needs you to do on its end. (We don’t know what you’re using. We’re not spies.) 4. Look for HMDX NEUTRON in your device’s Bluetooth list or click YES—whatever pops up on your device—and BAM! you’re connected. 5. Now hit PLAY on your speaker and crank it up—or down if you’re lame. You’re probably only going to have to do this once, unless your device goes through a major I-just-dropped-it-in-the-pool kind of reboot. The device and Bluetooth will find each other every time just as long as the speaker is set to Bluetooth and your device’s Bluetooth is, you know—on. If you’re connecting to a computer, you may have some extra steps on that end. You’ll have to get that information from the computer company. Depending on your device you may be prompted to enter a pairing code. If prompted enter “0000” as the code. To clear the pairing history hold the PLAY/PAUSE button for 5 seconds. Bluetooth ® Connection: It’s a Setup CHARGE Flashing REDLow Battery Charging Fully Charged RED (when plugged in) Light turns off (when plugged in) Quick Flash BLUEPairing Mode Slow Flash BLUEConnected RED Line-in Mode What It Looks Like What it Means HX-P120 Hey. Have we seen you here before? Register your speaker at www.hmdxaudio.com. Information like where you bought it and how you’re using it is like gold for the people who make these speakers. Do them a solid, will ya? USER GUIDE AND WARRANTY INFORMATION CHARGE AUX-IN 6 8 7 1 2 3 3 4 5 When friends call to interrupt your party of one—and you know they will—answer the phone without disconnecting from your HMDX Neutron. Yes, that’s right. Your speaker is a speakerphone too. How amazing is that? Here’s how it works: 1. Make sure your phone and the speaker are connected through Bluetooth and not on a “break.” 2. Answering and ending a call works the same way: simply click the PLAY/PAUSE button on your Neutron. 3. If you’d rather not talk, hold down the PLAY/PAUSE button on your Neutron for three seconds to ignore the call. THE COOLEST PART: The Neutron knows when a call is coming in and pauses the music before ringing. When you hang up, the music starts where it left off—and so does the party. If it’s you making the call, just start dialing from your phone, and the Neutron automatically does its hands-free thing. Isn’t it refreshing to know your speaker totally gets you? A soft, dry towel is all you need to clean off your speaker. Using water, harsh cleaners or anything else only starts messing with the mechanics inside. So, yeah, don’t do it. The smart folks who made this speaker designed it to keep the party going through just about anything (they call it IPX4). But those designers aren’t miracle workers. Doing something like sending your speaker for a swim in the deep end will, at some point, fill those holes you need for incredible sound with water–and that’s just not going to bode well for anyone or anything. Also, remember to keep the back flap flush with the speaker for the best protection. WARNING: This product has an internal, non-replaceable lithium battery. Please dispose in accordance with your local state, province and country guidelines. For detailed Warranty Instructions and Information visit: http://www.hmdxaudio.com/customer-support/warranty-1yr To obtain warranty service on your HMDX product, contact a Consumer Relations Representative by telephone at 1-800-753-3000 or email [email protected] for assistance. Please make sure to have the model number of the product available. Representatives are available 8:30am - 7:00pm EST Monday-Friday. FCC Disclaimer: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equip…

Text truncated - open the document above for the full version.

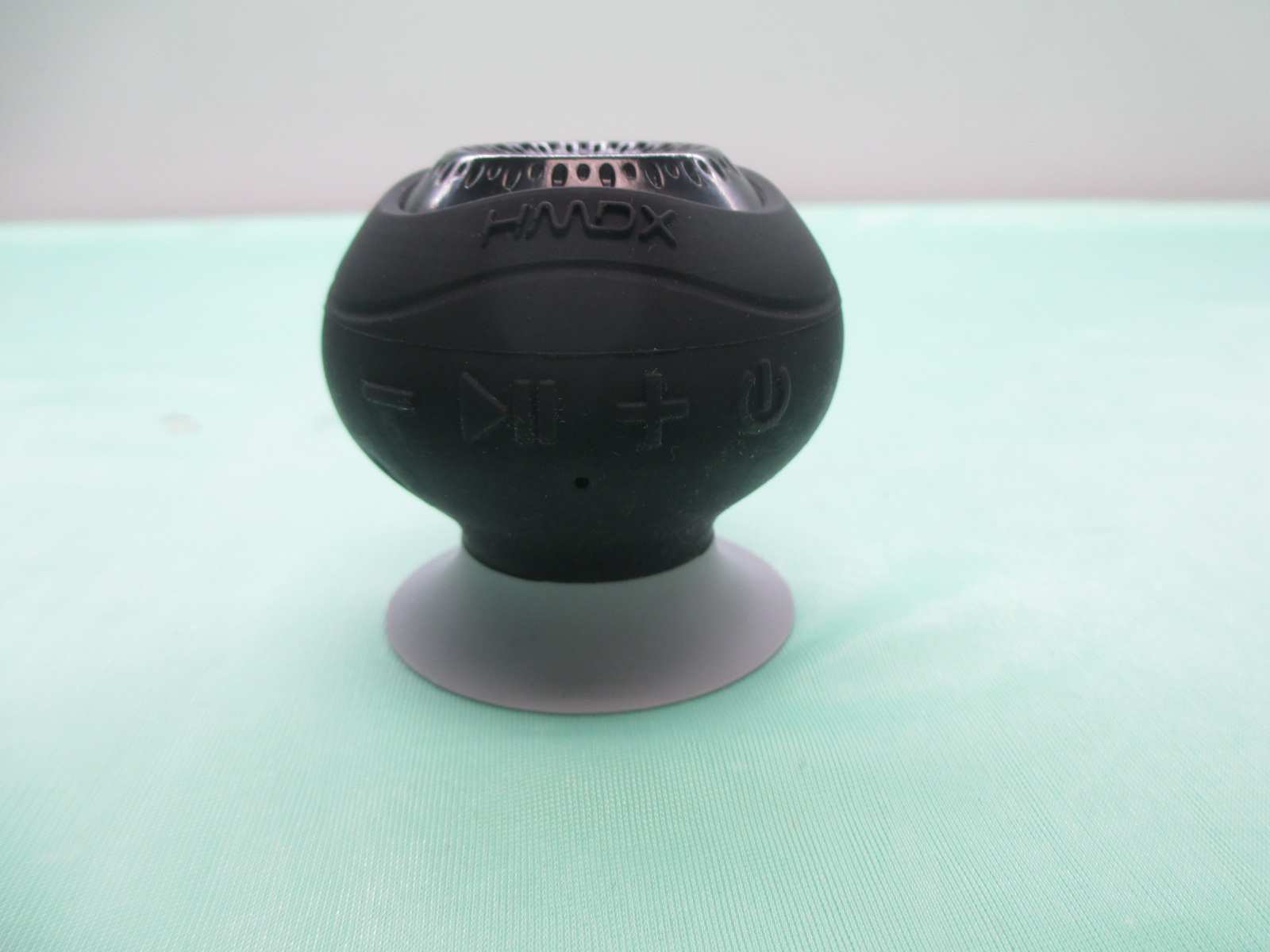

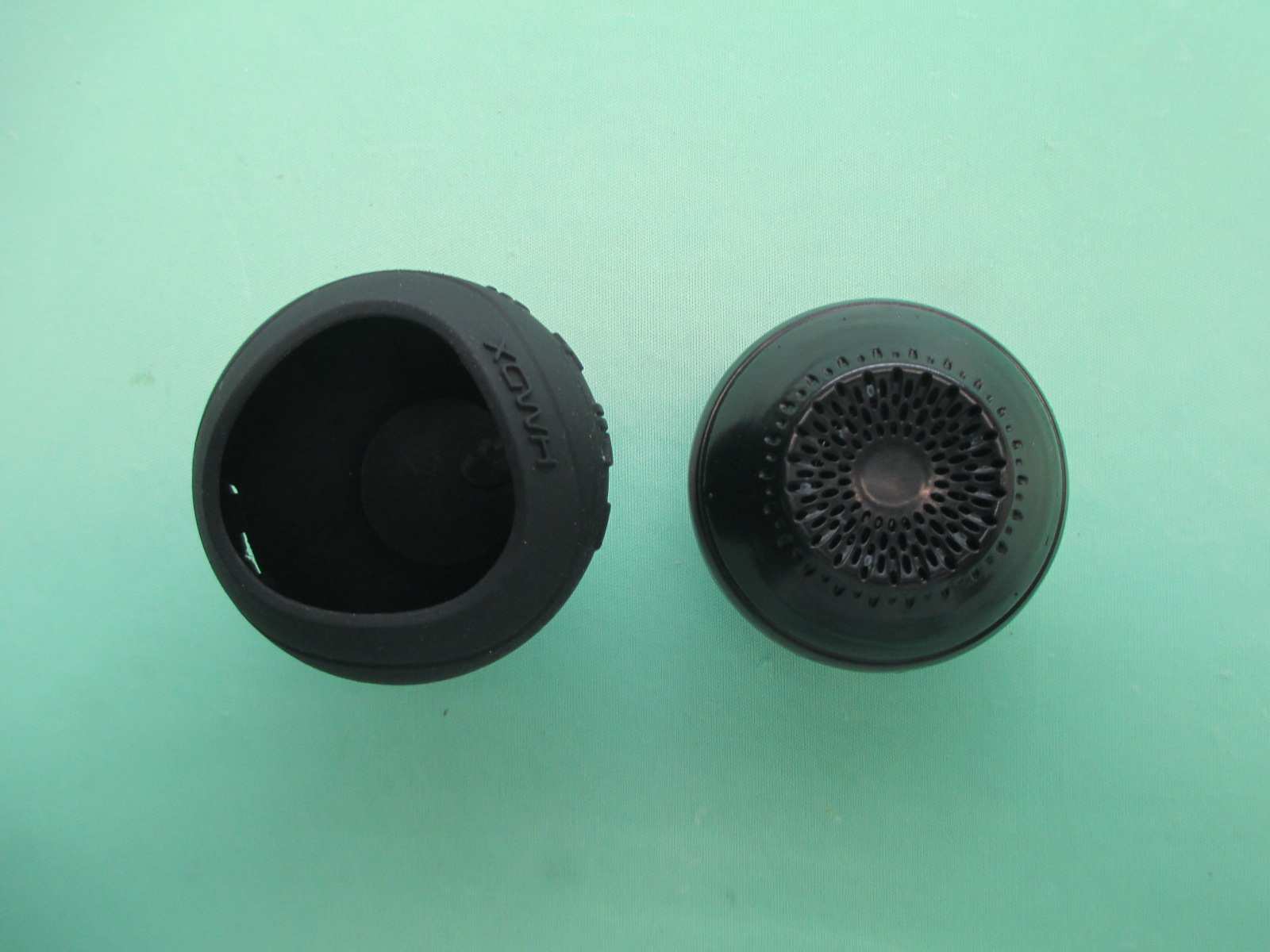

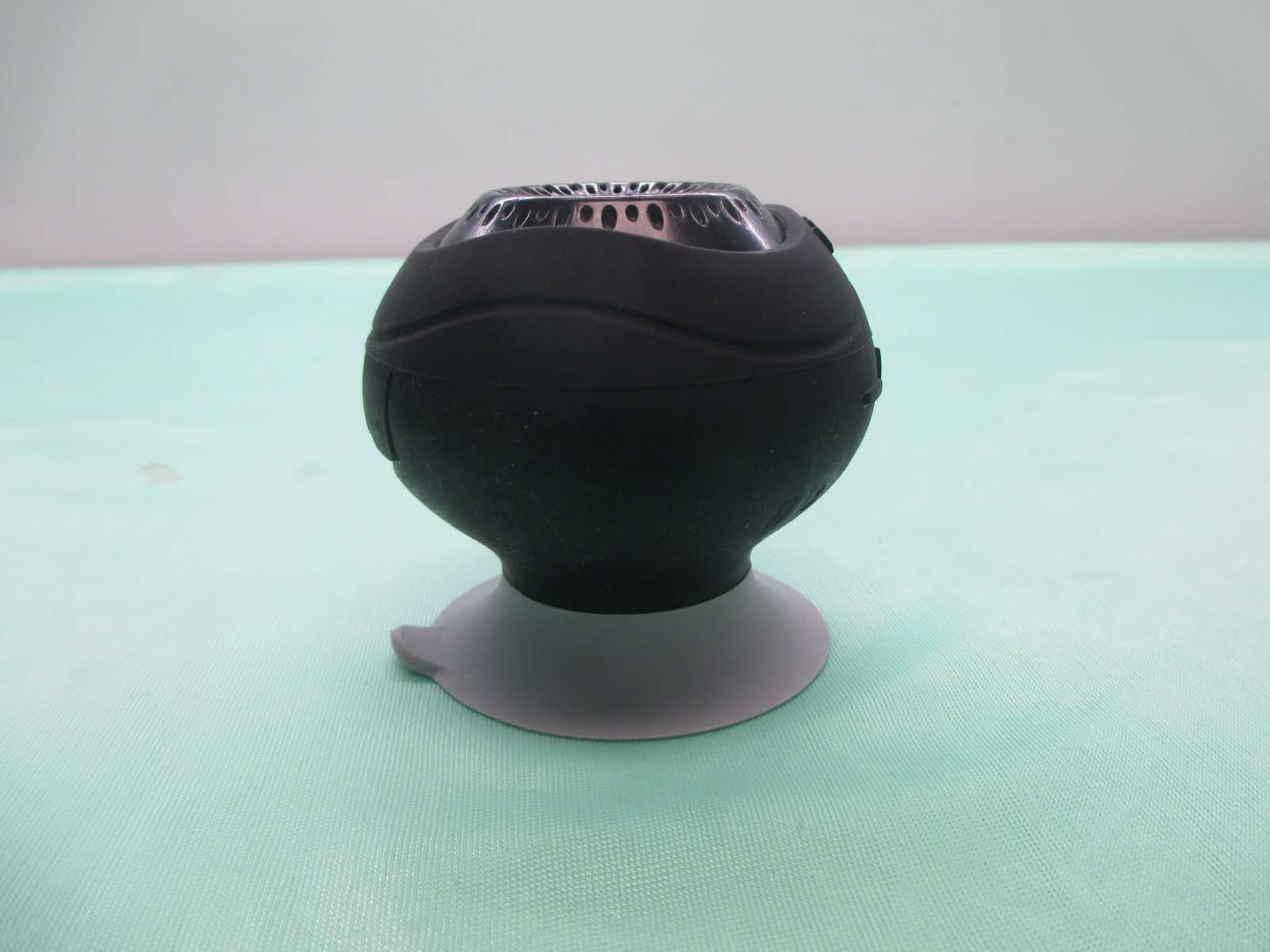

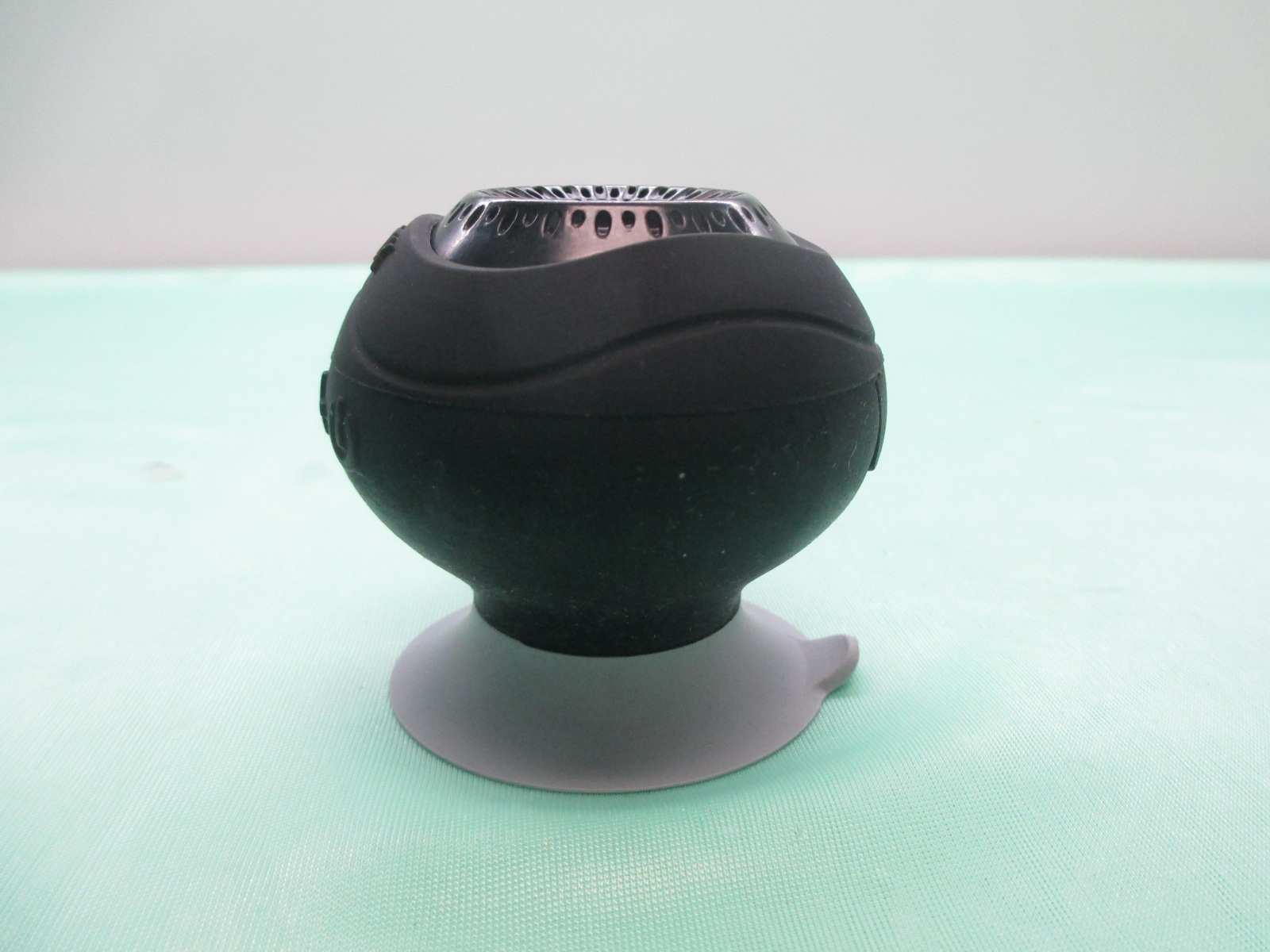

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT RIGHT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT TOP VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT

STC Test Report Date: 2014-01-02 Page 1 of 87 No.: DM113697 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (SZJ012): GOLDEN CHINA AUDIO (HK) PRODUCT LIMITED (AOK) UNIT 2509, 25/F HO KING COMM CTR 2-16 FA YUEN ST KLN HONG KONG Manufacturer: GOLDEN CHINA AUDIO (HK) PRODUCT LIMITED (AOK) UNIT 2509, 25/F HO KING COMM CTR 2-16 FA YUEN ST KLN HONG KONG Description of Sample(s): Product: bluetooth speaker Brand Name: HMDX Model Number: HX-P120 FCC ID: 2ABNBHX-P120 Date Sample(s) Received: 2013-12-17 Date Tested: 2013-12-19 to 2013-12-27 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2012 and ANSI C63.4: 2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- LONG Yun Jian, Along Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of STC (Dongguan) Company Limited STC Test Report Date: 2014-01-02 Page 2 of 87 No.: DM113697 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 87 Content Page 2 of 87 1.0 General Details 1.1 Test Laboratory Page 3 of 87 1.2 Equipment Under Test [EUT] Page 3 of 87 Description of EUT operation 1.3 Date of Order Page 3 of 87 1.4 Submitted Sample Page 3 of 87 1.5 Test Duration Page 3 of 87 1.6 Country of Origin Page 3 of 87 1.7 RF Module Details Page 4 of 87 1.8 Antenna Details Page 4 of 87 2.0 Technical Details 2.1 Investigations Requested Page 5 of 87 2.2 Test Standards and Results Summary Page 5 of 87 2.3 Table for Test Modes Page 6 of 87 3.0 Test Results 3.1 Emission Page 7 - 80 of 87 Appendix A List of Measurement Equipment Page 81 of 87 Appendix B Ancillary Equipment Page 82 of 87 Appendix C Photographs Page 83- 87 of 87 STC Test Report Date: 2014-01-02 Page 3 of 87 No.: DM113697 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory STC (Dongguan) Company Limited EMC Laboratory 68 Fumin Nan Road, Dalang, Dongguan, China Telephone: (86 769) 81119888 Fax: (86 769) 81116222 1.2 Equipment Under Test [EUT] Description of Sample(s) Product: bluetooth speaker Manufacturer: GOLDEN CHINA AUDIO (HK) PRODUCT LIMITED (AOK) Brand Name: HMDX Model Number: HX-P120 Rating: 5Vd.c. (Powered by PC USB port) / 3.7Vd.c. (rechargeable battery x 1) 1.2.1 Description of EUT Operation The Equipment Under Test (EUT) is a bluetooth speaker of GOLDEN CHINA AUDIO (HK) PRODUCT LIMITED (AOK), it is Audio System, modulation by IC; and type is frequency hopping speed spectrum Modulation. 1.3 Date of Order 2013-12-17 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2013-12-19 to 2013-12-27 1.6 Country of Origin China STC Test Report Date: 2014-01-02 Page 4 of 87 No.: DM113697 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.7 RF Module Details Module Model Number: BT_Module_V1.1.1 Spotlight10C_AK1055C Module FCC ID: Module Transmission Type: Bluetooth V2.1+EDR Modulation: FHSS (GFSK / π/4-DQPSK / 8DPSK) Data Rates: 1MBps: GFSK 2 MBps: π/4-DQPSK 3 MBps: 8DPSK Frequency Range: 2400-2483.5MHz Carrier Frequencies: 2402MHz – 2480MHz Module Specification (specification provided by manufacturer) 1.8 Antenna Details Antenna Type: PCB antenna Antenna Gain: 0dBi STC Test Report Date: 2014-01-02 Page 5 of 87 No.: DM113697 T h e H o n g K o n g S t a n d a r d s a n d T e s t i n g C e n t r e L t d . 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2012 Regulations. FCC Pubic Notice DA 00-705 and ANSI C63.4: 2009 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Maximum Peak Conducted Output …

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP PHOTOGRAPH OF THE PRODUCT (Bluetooth Communication with (Charging mode, USB port connected to PC) PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF CONDUCTED EMISSION TEST SET UP
