2ABNBHX-P320Jam Thrill

Manual Function instruction z Bluetooth play/SD paly/LINE IN mode/U memory card z time Bluetooth play and LINE IN play z Long Press the“-” or“+” button on the unit to adjust the volume; z Short press to next or previous song. z USB charge cord z Hands-free z Voice prompt function 1. User manual 1. make sure the smartphone，tablet or computer you want to hook up to speaker has Bluetooth. 2. Turn on the speaker and look for the little blinking light 3. make sure Bluetooth speaker is power on, then you can choose other way player, needing put in the TF memory card. 4. look for C1 in your device’s Bluetooth list or click 5. Depending on your device you may be prompted to enter a pairing code. 6. when the audio device is in play model，the music will sound from the C1 speakers. Long Press the“-” or“+” button on the C1 to adjust the volume If you want to change another music，short press“-” or “+” button on the C1 to adjust the music Depending on your device you may be prompted to enter a pairing code. If prompted enter “0000” as the code. Hello? Speakerphone? Yes! Here’s how it works: 1. Make sure your phone and the speaker are connected through Bluetooth and not on a “break.” 2. Answering and ending a call works the same way: simply click the PLAY/PAUSE button on your C1 3. If you’d rather not talk, hold down the PLAY/PAUSE button on your C1 for three seconds to ignore the call. THE COOLEST PART: The C1 knows when a call is coming in and pauses the music before ringing. When you hang up, the music starts where it left off—and so does the party. If it’s you making the call, just start dialing from your phone, and C1 automatically does its hands-free thing. Isn’t it refreshing to know your speaker totally gets you? Charging the speakers is so easy you’ve probably figured it out by now, but just in case, you’ve got two options: your computer or a wall outlet. 1. The cord that came with the speaker—the one with the USB on one end and the Micro USB on the other—will work with your computer. 2. If you want to use the wall outlet, you’ll need to pick up a power cord with a Micro USB the next time you’re at the store, or use any USB AC adapter, including the one for your cell. Now go get ready for an epic night while your speaker does too. It needs about 2 hours of me time for 4 hours of party time. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IC Statement - English: " This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device." - French:" Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement."

Example of Hopping Sequence in Data Mode Example of a 79 pseudorandom hopping frequency list: 04, 11, 77, 55, 48, 33, 52, 35, 50, 65, 54, 67, 47, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 15, 00, 64, 49, 66, 53, 68, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 56, 37, 60, 39, 58, 69, 40, 21, 44, 23, 42, 53, 46, 01, 51, 03, 55, 05, 31, 74, 61, 02, 70, 06, 09, 45, 13, 76, Signature Tom Gao / General Manager GOLDEN CHINA AUDIO (HK) PRODUCT LIMITED (AOK)

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 5.0 GOLDEN CHINA AUDIO (HK) PRODUCT LIMITED (AOK) 2015-03-18 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ GOLDEN CHINA AUDIO (HK) PRODUCT LIMITED (AOK)_____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Jam Thrill, HX-P320) FCC ID: 2ABNBHX-P320 Sincerely, Client’s signature Client’s name / title Tom Gao / General Manager Contact information / address UNIT 2509, 25/F HO KING COMM CTR 2-16 FA YUEN ST KLN , HONG KONG

GOLDEN CHINA AUDIO (HK) PRODUCT LIMITED (AOK) SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 GOLDEN CHINA AUDIO (HK) PRODUCT LIMITED (AOK) SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2015-03-18 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ABNBHX-P320 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title Tom Gao / General Manager Contact information / address UNIT 2509, 25/F HO KING COMM CTR 2-16 FA YUEN ST KLN , HONG KONG

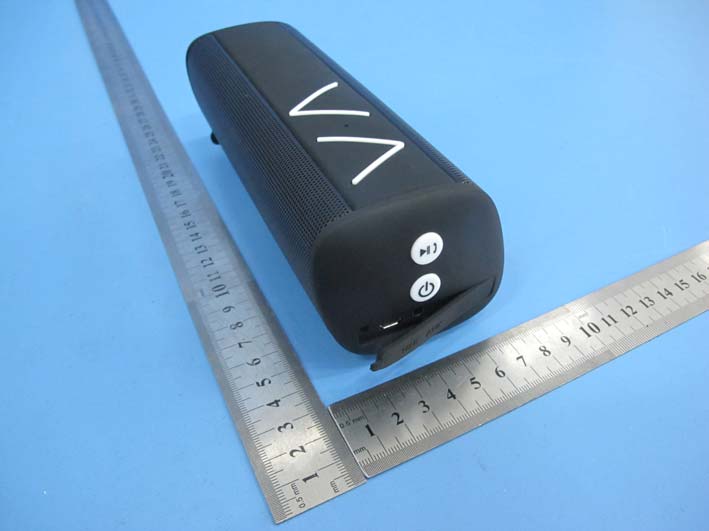

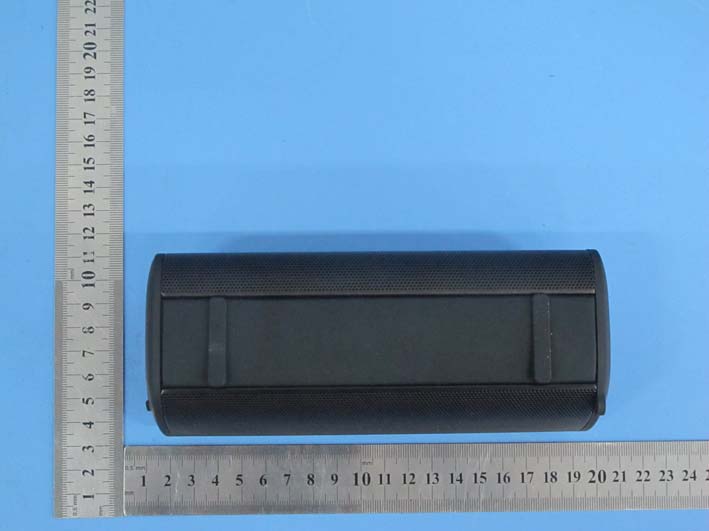

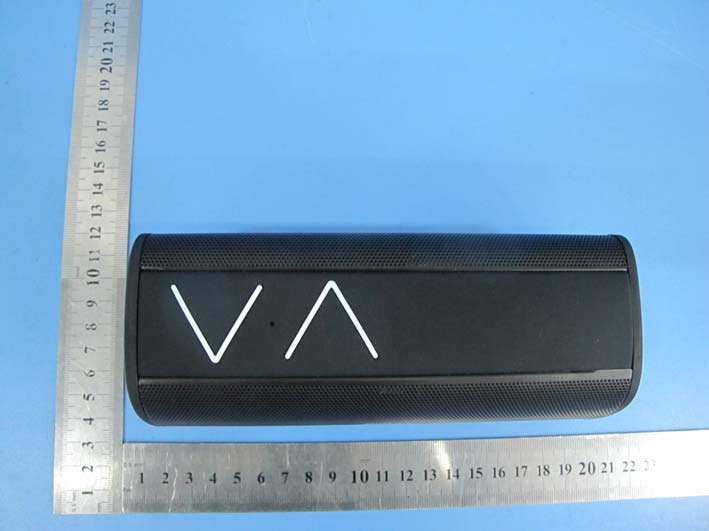

Report No.: TB-FCC143499 Page: 3 of 11 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-FCC143499 Page: 4 of 11 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT

Report No.: TB-FCC143499 Page: 1 of 11 TB-RF-074-1.0 Appendix IFCC ID Label FCC ID : 2ABNBHX-P320 Jam Thrill GOLDEN CHINA AUDIO (HK) PRODUCT LIMITED (AOK) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Model: HX-P320

Report No.: TB-FCC143499 Page: 5 of 11 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 5 Internal of EUT Photo 6 Internal of EUT Report No.: TB-FCC143499 Page: 6 of 11 TB-RF-075-1.0 Photo 7 Appearance of PCB Photo 8 Appearance of PCB 2.4G Antenna Report No.: TB-FCC143499 Page: 7 of 11 TB-RF-075-1.0 Photo 9 Appearance of PCB Photo 10 Appearance of PCB Report No.: TB-FCC143499 Page: 8 of 11 TB-RF-075-1.0 Photo 11 Appearance of PCB Photo 12 Appearance of PCB Report No.: TB-FCC143499 Page: 9 of 11 TB-RF-075-1.0 Photo 13 Appearance of Battery

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE143500 Page: 1 of 3 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2ABNBHX-P320 1. Client Information Applicant : GOLDEN CHINA AUDIO (HK) PRODUCT LIMITED (AOK) Address : UNIT 2509, 25/F HO KING COMM CTR 2-16 FA YUEN ST KLN, HONG KONG Manufacturer : Dong Guan Jin Wen hua Audio Product Ltd. Address : No.1, Hua da Road, Longbei ling, tang xia town, dongguan, China 2. General Description of EUT EUT Name : Jam Thrill Models No. : HX-P320 Model difference : N/A Product Description : Operation Frequency: Bluetooth:2402~2480MHz Number of Channel: Bluetooth:79 Channels Max Peak Output Power:8-DPSK: 4.167dBm Antenna Gain: 0 dBi PCB Antenna Modulation Type: GFSK 1Mbps(1 Mbps) π/4-DQPSK(2 Mbps) 8-DPSK(3 Mbps) Power Supply : DC power by USB cable form Host System DC power by Li-ion battery Power Rating : DC 5V by USB Cable from PC system. DC 3.7V by Li-ion Battery. Connecting I/O Port(S) : Please refer to the User's Manual Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE143500 Page: 2 of 3 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v05r02. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR Report No.: TB-MPE143500 Page: 3 of 3 TB-RF-074-1.0 2. Calculation: Test separation: 5mm Bluetooth Mode (GFSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 3.115 ±0.5 2.299 0.713 3.0 2.441 3.609 ±0.5 2.576 0.805 3.0 2.480 4.034 ±0.5 2.841 0.895 3.0 Bluetooth Mode (π/4-DQPSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 3.919 ±0.5 2.766 0.857 3.0 2.441 3.926 ±0.5 2.771 0.866 3.0 2.480 3.919 ±0.5 2.766 0.871 3.0 Bluetooth Mode (8-DPSK) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 3.327 ±0.5 2.414 0.748 3.0 2.441 3.694 ±0.5 2.627 0.821 3.0 2.480 4.167 ±0.5 2.929 0.922 3.0 So standalone SAR measurements are not required.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC143499 Page: 1 of 92 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2ABNBHX-P320 Original Grant Report No. : TB-FCC143499 Applicant : GOLDEN CHINA AUDIO (HK) PRODUCT LIMITED (AOK) Equipment Under Test (EUT) EUT Name : Jam Thrill Model No. : HX-P320 Brand Name : N/A Receipt Date : 2015-03-11 Test Date : 2015-03-11 to 2015-03-16 Issue Date : 2015-03-17 Standards : FCC Part 15: 2014, Subpart C(15.247) Test Method : ANSI C63.4:2009 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC143499 Page: 2 of 92 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 7 1.6 Description of Test Software Setting ................................................................................ 8 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility ........................................................................................................................... 9 2. TEST SUMMARY ..................................................................................................................... 10 3. CONDUCTED EMISSION TEST ........................................................................................... 11 3.1 Test Standard and Limit .................................................................................................... 11 3.2 Test Setup ........................................................................................................................... 11 3.3 Test Procedure ................................................................................................................... 11 3.4 Test Equipment Used ........................................................................................................ 12 3.5 EUT Operating Mode ........................................................................................................ 12 3.6 Test Data ............................................................................................................................. 12 4. RADIATED EMISSION TEST ................................................................................................ 15 4.1 Test Standard and Limit .................................................................................................... 15 4.2 Test Setup ........................................................................................................................... 16 4.3 Test Procedure ................................................................................................................... 17 4.4 EUT Operating Condition ................................................................................................. 18 4.5 Test Equipment .................................................................................................................. 18 5. RESTRICTED BANDS REQUIREMENT ............................................................................. 37 5.1 Test Standard and Limit .................................................................................................... 37 5.2 Test Setup ........................................................................................................................... 37 5.3 Test Procedure ................................................................................................................... 37 5.4 EUT Operating Condition ................................................................................................. 38 5.5 Test Equipment .................................................................................................................. 38 6. NUMBER OF HOPPING CHANNEL .................................................................................... 51 6.1 Test Standard and Limit .................................................................................................... 51 6.2 Test Setup ........................................................................................................................... 51 6.3 Test Procedure ................................................................................................................... 51 6.4 EUT Operating Condition ................................................................................................. 51 6.5 Test Equipment .................................................................................................................. 51 6.6 Test Data .................................…

Text truncated - open the document above for the full version.

Report No.: TB-FCC143499 Page: 10 of 11 TB-RF-075-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) Report No.: TB-FCC143499 Page: 11 of 11 TB-RF-075-1.0 Photo of Setup for Conducted Emission
