2ABOU5008mobile phone

ShenZhen Hipad Telecommunication Technology Co., LTD. USER MANUAL MM5008A/ Olé! Precautions 1. This user manual has been specially designed to guide you through the functions of your mobile phone. 2. The company follows the strategy of sustainable development ， so we will reserve the right to modify the product function, interface and the shape without informing the user. 3. When there are some discrepancies between the description and the actual product, the actual product shall prevail. 4. Please power off following the correct steps, do not remove the battery when power on or charging, to avoid adverse consequences, such as data loss, etc. Guidelines for Safe and Efficient Use To safely and effectively to use your product, please read this information in depth before using your phone. The following suggestions may help you to follow the warranty terms and prolong its service life. To avoid the damage of hearing, please answer the call or lower the volume in advance before placing your phone to ear. Using your product (phone), charger and other accessories  Turn off your product where noticed and prohibited (including airports, gas stations and hospital, etc.).  Keep your product and its accessories away from small children.  Do not expose your product and its accessories to liquid or moisture or humidity.  Do not expose your product to extreme high or low temperature.  Do not expose your product to open flames or lit tobacco products.  Do not paint your product.  Do not drop, throw or try to bend your product.  Do not store your product with PC ‐ disk, credit ‐ card, travel ‐ card or other metallic objects. Otherwise information stored in the disk or credit ‐ card may be affected by your product.  Do not expose your product or battery in the areas where temperature may exceed 60 Ԩ ， such as windowsill or behind direct sunlight glass plate, etc.  Do not attempt to disassemble your product ， do not unauthorized service your product and its accessories.  Do not use any battery or chargers that are not approved by the phone manufacturer, to avoid potential dangers.  Wipe your product with a slightly damp or anti ‐ static cloth. Do not use dry or electrostatic cloth to wipe your phone. Do not use chemicals or detergents containing grinding ingredients ， otherwise it may damage the casing.  LCD parts belong to the fragile and easily scratched parts that need to pay attention to store. Do not hit or crush your product. Do not store your product with sharp objects, to avoid scratching the screen or your phone.  If your phone, battery ， charger or other accessories are not working properly ， bring your product and related accessories to the nearest authorized professional maintenance department, the staff will assist you, and arrange repair if necessary. Inflammable and explosive area  Turn off your product and comply with all the safety signs or instructions whenever you in and around the inflammable and explosive area (e.g., refueling points). Otherwise your product will produce slight spark or radio wave and could cause explosions or fire. Aircraft  Turn off your product or switch to the airplane mode ， and comply with all the safety signs or instructions when you on the plane. In such places, the waves emitted from your phone can interfere with aircraft navigation equipment and control system ， and make the automatic control device receive the wrong information ， do the wrong operation ， case danger ， even make the plane crash. Hospital  Turn off your product and comply with all the safety signs or instructions when you in the hospital. Otherwise the waves emitted from your phone will affect the proper functioning of the electronic medical equipment and the cardiac pacemaker, and then endanger the patient’s life. Personal Healthcare Device Class  Mobile phones may affect the operation of cardiac pacemakers ， hearing aid ， implanted Cochlear and other medically implanted equipment. Avoid placing the mobile phone in the breast pocket. When using the mobile phone, place it at the ear opposite the pacemaker. Keep the minimum distance of 15cm between the mobile phone and the pacemaker throughout. If you have any reason to suspect that interference is taking place, immediately turn off your mobile phone, move it to the far place, then contact your cardiologist for more information. If you use any other personal medical device or implanted equipment ， e.g. hearing aid ， consult the manufacturer of your device. Driving  Always give full attention to driving and pull off the road and park before making or answering a call. If local laws and/or regulations permit drivers to use a Hands Free solution ， we recommend that you use ‘Interior Hands Free’ solutions intended for use with your mobile phone only. Child safety instructions  Keep your phone and all accessories out of the reach of small children. Do not allow children to play with your mobile phone or its accessories, they could hurt themselves or others, or could accidentally damage the mobile phone or its accessories. Your mobile phone or its accessories may contain small parts that could be detached and cause a choking hazard or serious injury if swallowed. Used battery  The used battery should never be placed in common municipal waste. Please consult local regulations for disposal of waste electronics products to get the correct disposal ways. Use of original accessories  Charger: Connect the AC power adapter to designated power sources as marked on the product. Make sure the cord is positioned so that it will not be subjected to damage or stress. To reduce risk of electric shock, unplug the unit from any power source before attempting to clean it. The AC power adapter must not be used outdoors or in damp areas. Never alter the cord or plug.  Battery ： We recommended that you charge the new battery (or one that has not been used for a long time) for 12 hours at least and less than 24 hours before you use your mobile ph…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 5.0 Shenzhen Hipad Telecommunication Technology Co.,LTD. 2014-9-24 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Shenzhen Hipad Telecommunication Technology Co.,LTD. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product Name: mobile phone Model: MM5008-MX, MM5008-MX-O, MM5008-CA FCC ID: 2ABOU5008 Sincerely, Client’s signature Client’s name / title Jason Huang /Project Director Contact information / address Address: Rm 502,Unit 3,Bldg. C,Kexing Science Park,Keyuan Rd.,NanShan Dist.Shenzhen Guangdong China Mail: [email protected] Fax: 0755-83828281 Tel: 0755-83828820

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Shenzhen Hipad Telecommunication Technology Co.,LTD. (2014-9-24) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ABOU5008 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Tune up Procedure - BOM The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Jason Huang /Project Director Address: Rm 502,Unit 3,Bldg. C,Kexing Science Park,Keyuan Rd.,NanShan Dist.Shenzhen Guangdong China Mail: [email protected] Fax: 0755-83828281 Tel: 0755-83828820

Differences Declaration To whom concern, We company Shenzhen Hipad Telecommunication Technology Co.,LTD.hereby declares: The product model(s) MM5008-MX-O, MM5008-CA is identical in the same PCB layout, interior structure and electrical circuits with the model MM5008-MX which tested in Shenzhen Huatongwei International Inspection Co., Ltd, the only differences are the model name for commercial purpose. Sincerely yours, Name (in print): Jason Huang Title: Project Director Company name: Shenzhen Hipad Telecommunication Technology Co.,LTD. Te l : 0755-83828820 E-Mail: [email protected]

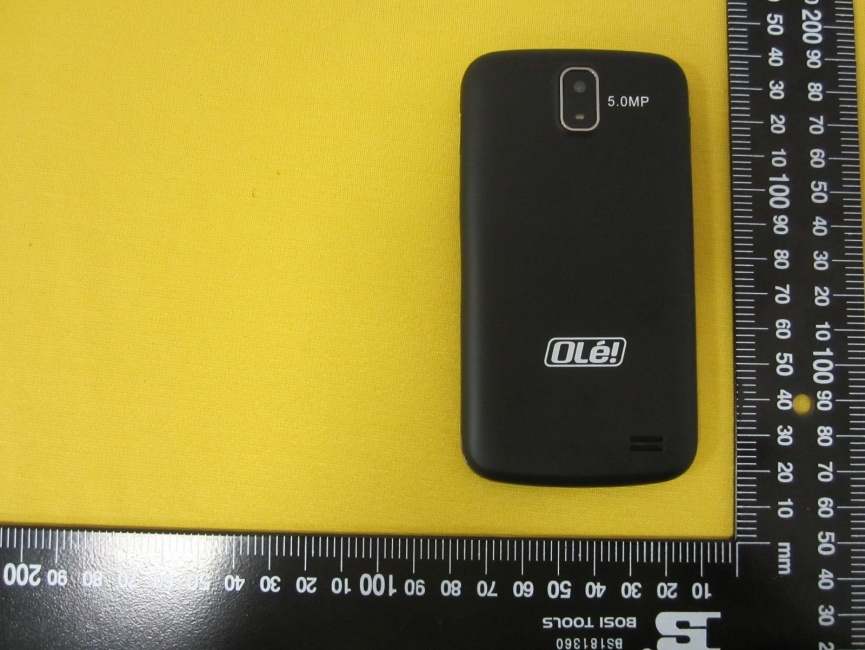

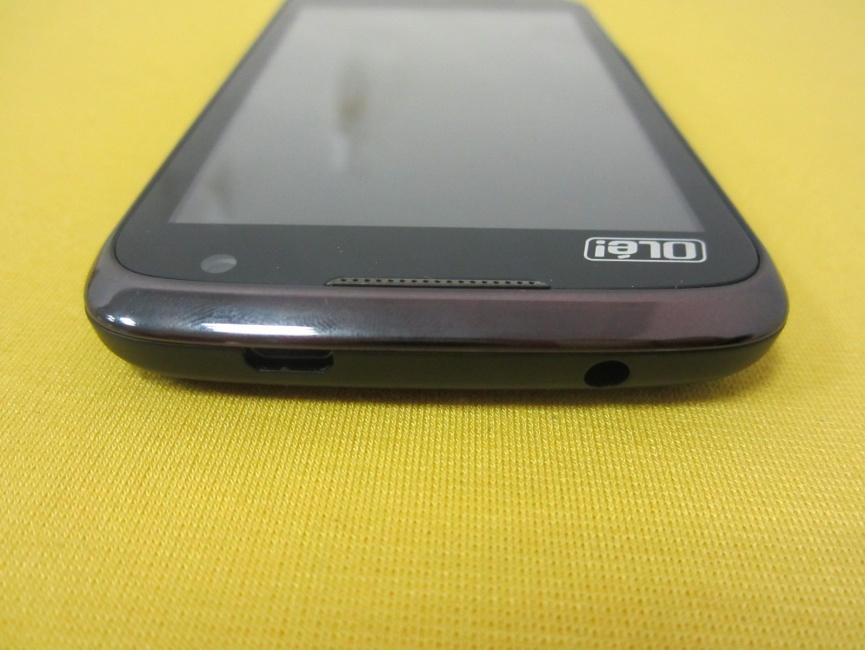

Report No : TRE1409002301 Page 49 of 53 6. External and Internal Photos of the EUT External photos of the EUT Report No : TRE1409002301 Page 50 of 53

Label Label Size Length=20mm Width=20mm Mobile phone This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Trademark:Olé! FCC ID:2ABOU5008 Shenzhen Hipad Telecommunication Technology Co.,LTD

Label location

Report No : TRE1409002301 Page 51 of 53 Internal photos of the EUT WIFI/BT ANTENNA GSM/WCDMA ANTENNE Report No : TRE1409002301 Page 52 of 53 Report No : TRE1409002301 Page 53 of 53 .......................End of Report.........................

Report R FCC ID. .. Applican Address .. Manufactu Address.. Test item Trade Ma Model/Typ Listed Mo Standard Date of re Date of te Date of is Result .... Compiled ( position + Supervise ( position+ Approved ( position + Testing L Address .. Shenzhen This publi Huatongw Shenzhen for damag context. Reference No .................... t’s name ..... .................... urer.............. .................... m description ark ................ pe reference odel(s) .......... d ................... eceipt of test esting ........... sue .............. .............. ...... by +printed nam ed by +printed nam by +printed nam Laboratory N .................... n Huatongw cation may b wei Internatio n Huatongwe ges resulting o. ................. .................... .................... .................... .................... .................... n ................. .................... e ................... .................... .................... sample ....... .................... .................... .................. me+signature me+signature me+signature Name .......... .................... wei Internatio be reproduce onal Inspectio ei Internation from the rea TES ... : TRE1 ... : 2ABO ... : Shen .... : Roo m Road Distri .....: She n ......: Roo m Road Distri ... : Mobi l .... : Olé! .... : MM5 .... : MM5 ... : FCC .... : Sep 0 .... : Sep 0 .... : Sep 1 ......: PASS e) .. : File a e) .. : Proje e) .. : RF M ... : She n .... : Keji N onal Inspec ed in whole o on Co., Ltd is nal Inspection ader's interpr ST RE 1409002302 OU5008 nzhen Hipad m 502-503,U d, Hi-tech ind ct,Shenzhen nzhen Hipad m 502-503,U d, Hi-tech ind ct,Shenzhen le phone 008-MX 008-MX-O, CFR Title 4 7 04, 2014 04, 2014 ~ S 19, 2014 S administrator ect Engineer Manager Han nzhen Huato Nan No.12 R ction Co., Ltd or in part for s acknowledg n Co., Ltd tak retation of th EPOR d Telecomm nit 3,Buildin g dustrial Park, n,Guangdong Telecommun nit 3,Building dustrial Park, n,Guangdong MM5008-CA 7 Part 15 Su Sep 19, 2014 rs May Hu Lion Cai ns Hu ongwei Inter Road, Hi-tech d. All rights non-commer ged as copy kes no respo e reproduce RT R/C...... unication Te g C,Kexing S NanShan g,China nication Tec g C,Kexing S NanShan g,China A ubpart C Sec 4 rnational Ins h Park, Shenz reserved. rcial purpose right owner a onsibility for a d material du .......: 35339 echnology C Science Park chnology Co. Science Park ction 15.247 spection Co zhen, China es as long as and source o and will not a ue to its plac Co.,LTD k, Keyuan .,LTD. k, Keyuan 7 o., Ltd s the Shenzh of the materia assume liabil cement and hen al. lity Report No : TRE1409002302 Page 2 of 49 Contents 1. TEST STANDARDS AND TEST DESCRIPTION 3 1.1. Test Standards 3 1.2. Test Description 3 2. SUMMARY 4 2.1. Client Information 4 2.2. Product Description 4 2.3. EUT operation mode 5 2.4. EUT configuration 5 2.5. Modifications 5 3. TEST ENVIRONMENT 6 3.1. Address of the test laboratory 6 3.2. Test Facility 6 3.3. Environmental conditions 7 3.4. Statement of the measurement uncertainty 7 3.5. Equipments Used during the Test 8 4. TEST CONDITIONS AND RESULTS 9 4.1. Antenna requirement 9 4.2. Conducted Emission (AC Main) 10 4.3. Conducted Peak Output Power 13 4.4. 20dB Emission Bandwidth 17 4.5. Carrier Frequencies Separation 21 4.6. Hopping Channel Number 25 4.7. Dwell Time 27 4.8. Pseudorandom Frequency Hopping Sequence 31 4.9. Band Edge (conducted) 32 4.10. Band Edge (Radiated) 35 4.11. Spurious Emission (conducted) 40 4.12. Spurious Emission (radiated) 43 Report No : TRE1409002302 Page 3 of 49 1. TEST STANDARDS AND TEST DESCRIPTION 1.1. Test Standards The tests were performed according to following standards: FCC Rules Part 15.247 : Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2009 : American National Standard for Testing Unlicensed Wireless Devicese 1.2. Test Description Test Item Section in CFR 47 Result Antenna Requirement 15.203/15.247 (c) Pass AC Power Line Conducted Emission 15.207 Pass Conducted Peak Output Power 15.247 (b)(1) Pass 20dB Occupied Bandwidth 15.247 (a)(1) Pass Carrier Frequencies Separation 15.247 (a)(1) Pass Hopping Channel Number 15.247 (a)(1) Pass Dwell Time 15.247 (a)(1) Pass Pseudorandom Frequency Hopping Sequence 15.247(b)(4)&TCB Exclusion List (7 July 2002) Pass Band Edge 15.247(d) Pass Radiated Emission 15.205/15.209 Pass Remark: The measurement uncertainty is not included in the test result. Report No : TRE1409002302 Page 4 of 49 2. SUMMARY 2.1. Client Information Applicant: Shenzhen Hipad Telecommunication Technology Co.,LTD Address: Room 502-503,Unit 3,Building C,Kexing Science Park, Keyuan Road, Hi-tech industrial Park,NanShan District,Shenzhen,Guangdong,China Manufacturer: Shenzhen Hipad Telecommunication Technology Co.,LTD Address: Room 502-503,Unit 3,Building C,Kexing Science Park, Keyuan Road, Hi-tech industrial Park,NanShan District,Shenzhen,Guangdong,China 2.2. Product Description Name of EUT Mobile phone Trade Mark: Olé! Model No.: MM5008-MX Listed Model(s): MM5008-MX-O, MM5008-CA Power supply: DC 3.7V From internal battery Adapter information: Model: A31-500550 Input:AC 100-240V 50/60Hz 0.2A Output:DC 5V 0.75A Bluetooth Version: Supported BT2.1 Modulation: GFSK, π/4DQPSK, 8DPSK Operation frequency: 2402MHz~2480MHz Channel number: 79 Channel separation: 1MHz Antenna type: Internal Antenna Antenna gain: -2.24dBi Operation Frequency List: Channel Frequency (MHz) 0 2402 1 2403 ... ... 38 2440 39 2441 40 2442 ...... 77 2479 78 2480 Note: In section 15.31(m), regards to the operating frequency range over 10 MHz, the Lowest frequency, the middle frequency, and the highest frequency of channel were selected to perform the test, please see the above gray bottom. Report No : TRE1409002302 Page 5 of 49 2.3. EUT operation mode The EUT has been tested under typical operating condition. The Applicant provides software to control the EUT for staying …

Text truncated - open the document above for the full version.

Report No : TRE1409002301 Page 48 of 53 5. Test Setup Photos of the EUT Radiated emission: Conducted emission:
