2ABOU7705Mobile Phone

1 USER MANUAL AHS7705CA Precautions 1. This user manual has been specially designed to guide you through the functions of your mobile phone. 2. The company follows the strategy of sustainable development，so we will reserve the right to modify the product function, interface and the shape without informing the user. 3. When there are some discrepancies between the description and the actual product, the actual product shall prevail. 4. Please power off following the correct steps, do not remove the battery when power on or charging, to avoid adverse consequences, such as data loss, etc. Guidelines for Safe and Efficient Use To safely and effectively to use your product, please read this information in depth before using your phone. The following suggestions may help you to follow the warranty terms and prolong its service life. To avoid the damage of hearing, please answer the call or lower the volume in advance before placing your phone to ear. Using your product (phone), charger and other accessories y Turn off your product where noticed and prohibited (including airports, gas stations and hospital, etc.). y Keep your product and its accessories away from small children. y Do not expose your product and its accessories to liquid or moisture or humidity. y Do not expose your product to extreme high or low temperature. 2 y Do not expose your product to open flames or lit tobacco products. y Do not paint your product. y Do not drop, throw or try to bend your product. y Do not store your product with PC‐disk, credit‐card, travel‐card or other metallic objects. Otherwise information stored in the disk or credit‐card may be affected by your product. y Do not expose your product or battery in the areas where temperature may exceed 60Ԩ， such as windowsill or behind direct sunlight glass plate, etc. y Do not attempt to disassemble your product， do not unauthorized service your product and its accessories. y Do not use any battery or chargers that are not approved by the phone manufacturer, to avoid potential dangers. y Wipe your product with a slightly damp or anti‐static cloth. Do not use dry or electrostatic cloth to wipe your phone. Do not use chemicals or detergents containing grinding ingredients， otherwise it may damage the casing. y LCD parts belong to the fragile and easily scratched parts that need to pay attention to store. Do not hit or crush your product. Do not store your product with sharp objects, to avoid scratching the screen or your phone. y If your phone, battery，charger or other accessories are not working properly，bring your product and related accessories to the nearest authorized professional maintenance department, the staff will assist you, and arrange repair if necessary. Inflammable and explosive area y Turn off your product and comply with all the safety signs or instructions whenever you in and around the inflammable and explosive area (e.g., refueling points). Otherwise your 3 product will produce slight spark or radio wave and could cause explosions or fire. Aircraft y Turn off your product or switch to the airplane mode，and comply with all the safety signs or instructions when you on the plane. In such places, the waves emitted from your phone can interfere with aircraft navigation equipment and control system，and make the automatic control device receive the wrong information，do the wrong operation，case danger，even make the plane crash. Hospital y Turn off your product and comply with all the safety signs or instructions when you in the hospital. Otherwise the waves emitted from your phone will affect the proper functioning of the electronic medical equipment and the cardiac pacemaker, and then endanger the patient’s life. Personal Healthcare Device Class y Mobile phones may affect the operation of cardiac pacemakers，hearing aid，implanted Cochlear and other medically implanted equipment. Avoid placing the mobile phone in the breast pocket. When using the mobile phone, place it at the ear opposite the pacemaker. Keep the minimum distance of 15cm between the mobile phone and the pacemaker throughout. If you have any reason to suspect that interference is taking place, immediately turn off your mobile phone, move it to the far place, then contact your cardiologist for more information. If you use any other personal medical device or implanted equipment，e.g. hearing aid，consult the manufacturer of your device. Driving y Always give full attention to driving and pull off the road and park before making or answering a call. If local laws and/or regulations permit drivers to use a Hands Free solution，we recommend that you use ‘Interior 4 Hands Free’ solutions intended for use with your mobile phone only. Child safety instructions y Keep your phone and all accessories out of the reach of small children. Do not allow children to play with your mobile phone or its accessories, they could hurt themselves or others, or could accidentally damage the mobile phone or its accessories. Your mobile phone or its accessories may contain small parts that could be detached and cause a choking hazard or serious injury if swallowed. Used battery y The used battery should never be placed in common municipal waste. Please consult local regulations for disposal of waste electronics products to get the correct disposal ways. Use of original accessories y Charger: Connect the AC power adapter to designated power sources as marked on the product. Make sure the cord is positioned so that it will not be subjected to damage or stress. To reduce risk of electric shock, unplug the unit from any power source before attempting to clean it. The AC power adapter must not be used outdoors or in damp areas. Never alter the cord or plug. y Battery：We recommended that you charge the new battery (or one that has not been used for a long time) for 12 hours at least and less than 24 hours before you use your mobile phone for the first time. The battery can only be charged in temperatures between ‐5Ԩ and +45Ԩ…

Text truncated - open the document above for the full version.

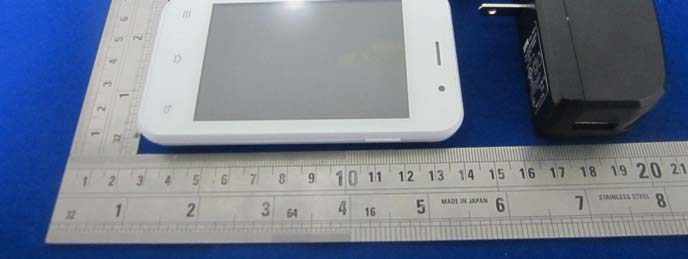

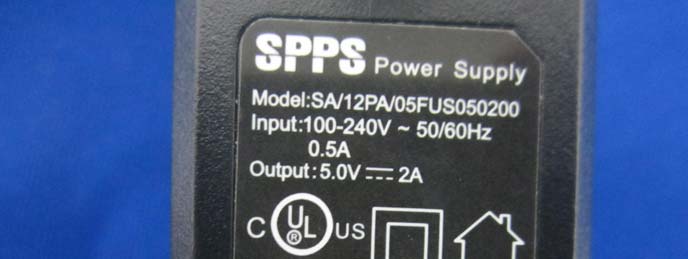

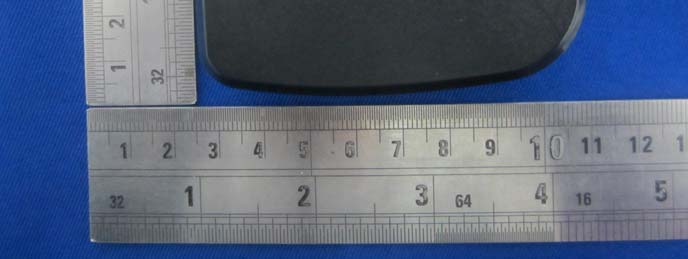

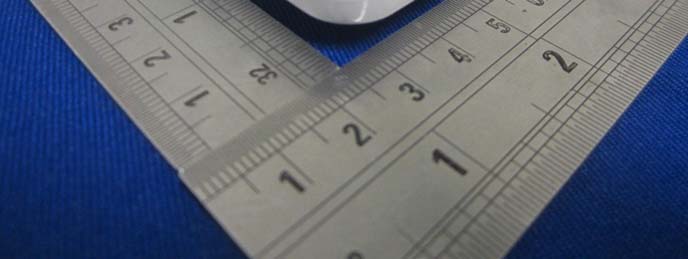

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT—All View EUT—Top View EUT—Bottom View EUT— Right Side View EUT- Left Side View EUT—Adapter View EUT—Adapter Label View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label Here

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT- Uncover View EUT- Battery Off View EUT- Cover Off View EUT- Front Cover Off View EUT-Main Board Top With Shielding View EUT-Main Board Top Without Shielding View EUT-Main Board Bottom With Screen View EUT-Main Board Bottom Without Screen View EUT- GSM & WCDMA Module View EUT- BT & wifi Module View EUT- GSM & WCDMA Antenna View EUT- BT & wifi Antenna View EUT- Battery Top View EUT- Bettery BottomView

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. SAR EVALUATION REPORT For ShenZhen Hipad Telecommunication Technology Co., LTD. Rm 502, Unit 3, Bldg. C, Kexing Science Park, Keyuan Rd., NanShan Dist., Shenzhen, China FCC ID: 2ABOU7705 Report Type: Original Report Product Type: mobile phone Test Engineer: Wilson Chen Report Number: R1DG131230001-20 Report Date: 2014-02-14 Reviewed By: Sandy Wang SAR Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 2 of 174 Attestation of Test Results EUT Information Company Name ShenZhen Hipad Telecommunication Technology Co., LTD. EUT Description mobile phone FCC ID 2ABOU7705 Model Number AHS7705CA Test Date 2014-02-08 to 2014-02-10 Frequency Max. SAR Level(s) Reported Limit(W/Kg) GSM 850 0.508 W /kg 1g Head SAR 1.05 4 W/kg 1g Body SAR 1. 6 PCS 1900 0.283 W/kg 1g Head SAR 0.575 W/kg 1g Body SAR WCDMA850 0.852 W/kg 1g Head SAR 0.762 W/kg 1g Body SAR WCDMA1900 0.778 W/kg 1g Head SAR 0.494 W/kg 1g Body SAR WiFi(802.11b) 0.148 W/kg 1g Head SAR 0.064 W/kg 1g Body SAR Simultaneous 0.927 W/kg 1g Head SAR 1.321 W/kg 1g Body SAR Applicable Standards ANSI/IEEE C95.1: 2005 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fileds,3 kHz to 300 GHz. ANSI/IEEE C95.3: 2002 IEEE Recommended Practice for Measurements and Computations of Radio Frequency Electromagnetic Fields With Respect to Human Exposure to SuchFields,100 kHz—300 GHz. IEEE1528: 2003 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques KDB procedures KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. KDB 648474 D04 SAR Evaluation Considerations for Wireless Handsets KDB 865664 D01 SAR Measurement Requirements for 100 MHz to 6 GHz KDB 941225 D01 SAR Measurement Procedures for 3G Devices-CDMA 2000/EV-Do WCDMA/HSDPA/HSUPA KDB 941225 D06 SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities. Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Standards and has been tested in accordance with the measurement procedures specified in IEEE 1528-2003 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 3 of 174 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 5 EUT DESCRIPTION .................................................................................................................................................... 6 TECHNICAL SPECIFICATION ......................................................................................................................................... 6 REFERENCE, STANDARDS, AND GUILDELINES ............................................................................................... 7 SAR LIMITS ................................................................................................................................................................. 8 FACILITIES .................................................................................................................................................................. 9 DESCRIPTION OF TEST SYSTEM ........................................................................................................................ 10 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 17 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 17 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 18 LIQUID VERIFICATION ............................................................................................................................................... 18 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 23 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 24 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 36 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 36 CHEEK/TOUCH POSITION ........................................................................................................................................... 37 EAR/TILT POSITION ................................................................................................................................................... 37 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS .............................................................................. 38 SAR EVALUATION PROCEDURE ................................................................................................................................. 39 CONDUCTED OUTPUT POWE…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 123 of 174 APPENDIX A MEASUREMENT UNCERTAINTY The uncertainty budget has been determined for the measurement system and is given in the following Table. Measurement Uncertainty for 300MHz to 3GHz Source of Uncertainty Tolerance Value Probability Distribution Divisor c i 1 (1-g) c i 1 (10-g) Standard Uncertainty (1-g) % Standard Uncertainty (10-g) % Measurement System Probe Calibration 3.5 normal 1 1 1 3.5 3.5 Axial Isotropy 3.7 rectangular 3 (1-cp) 1/2 (1-cp) 1 /2 1.5 1.5 Hemispherical Isotropy 10.9 rectangular 3 √cp √cp 4.4 4.4 Boundary Effect 1.0 rectangular 3 1 1 0.6 0.6 Linearity 4.7 rectangular 3 1 1 2.7 2.7 Detection Limit 1.0 rectangular 3 1 1 0.6 0.6 Readout Electronics 1.0 normal 1 1 1 1.0 1.0 Response Time 0.8 rectangular 3 1 1 0.5 0.5 Integration Time 1.7 rectangular 3 1 1 1.0 1.0 RF Ambient Condition -Noise 0.006 rectangular 3 1 1 0.003 0.003 RF Ambient Condition - Reflections 3.0 rectangular 3 1 1 1.7 1.7 Probe Positioner Mech. Restrictions 0.4 rectangular 3 1 1 0.2 0.2 Restriction Probe Positioning with respect to Phantom Shell 2.9 rectangular 3 1 1 1.7 1.7 Extrapolation and Integration 3.7 rectangular 3 1 1 2.1 2.1 Test Sample Positioning 0.023 normal 1 1 1 0.023 0.023 Device Holder Uncertainty 6.215 normal 1 1 1 6.215 6.215 Drift of Output Power 4.627 rectangular 3 1 1 2.67 2.67 Phantom and Setup Phantom Uncertainty(shape & thickness tolerance) 3.4 rectangular 3 1 1 2.0 2.0 Liquid Conductivity(target) 5.0 rectangular 3 0.7 0.5 2.0 1.4 Liquid Conductivity(meas.) 1.938 normal 1 0.7 0.5 1.36 0.97 Liquid Permittivity(target) 5.0 rectangular 3 0.6 0.5 1.7 1.4 Liquid Permittivity(meas.) 3.093 normal 1 0.6 0.5 1.86 1.55 Combined Uncertainty RSS 10.78 10.55 Expanded uncertainty (coverage factor=2) Normal(k=2) 21.56 21.10 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 124 of 174 APPENDIX B – PROBE CALIBRATION CERTIFICATES Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 125 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 126 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 127 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 128 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 129 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 130 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 131 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 132 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 133 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 134 of 174 APPENDIX C DIPOLE CALIBRATION CERTIFICATES Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 135 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 136 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 137 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 138 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 139 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 140 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 141 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 142 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 143 of 174 835MHz Dipole Calibration By BACL at 2013-12-20 Mechanical Verification APREL Length APREL Height Measured LengthMeasured Height 161.0 mm 89.8 mm 161.1 mm 89.7 mm Tissue Type Measured Return Loss Measured Impedance Head -33.135 dB 51.898 Ω Body -25.362 dB 50.604 Ω Test Graphs： Head Tissue Return Loss : Impedance : Body Tissue Return Loss : Impedance : Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 144 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 145 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 146 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 147 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 148 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 149 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 150 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 151 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 152 of 174 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: R1DG131230001-20 SAR Evaluation Report 153 of 174 1900MHz Dipole Calibration By BACL at 2013-12-20 Mechanical Verification APREL Length APREL Height Measured LengthMeasured Height 68.0 mm 39.4 mm 68.3 mm 39.2 mm Tissue Type Measured Return Loss Measured Impedance Head -28.083 dB 47.477 Ω Body -22.022 dB 48.076 Ω Test Graphs： Head Tissue Return Loss : Impedance : Body Tissue Return Loss : Impedance : Bay Area Complian…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and shall be marked with an asterisk “★” (Rev.2). This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For ShenZhen Hipad Telecommunication Technology Co., LTD. Rm 502, Unit 3, Bldg. C, Kexing Science Park, Keyuan Rd., NanShan Dist., Shenzhen, China Report Type: Original Report Product Type: mobile phone Test En gineer: Allen Qiao Re port Number: R2DG131230001-00B Re port Date: 2014-01-24 Reviewed By: Ivan Cao RF Leader Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industrial Zone, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID: 2ABOU7705 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: R2DG131230001-00B FCC Part 15.247 Page 2 of 53 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 FCC §15.247 (i) & §1.1310 & §2.1093- RF EXPOSURE ............................................................................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 TEST RESULT ............................................................................................................................................................... 9 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 10 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 MEASUREMENT UNCERTAINTY .................................................................................................................................. 11 EUT SETUP ................................................................................................................................................................ 11 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 12 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 13 TEST RESULTS SUMMARY .......................................................................................................................................... 13 TEST DATA ..................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions – Side View Radiated Emission -Front View (Below 1GHz) Radiated Emission - Rear View (Below 1GHz) Radiated Emission -Front View (Above 1GHz) Radiated Emission - Rear View (Above 1GHz)
