2ABPMCA00-1TX001TG0SMART KEY Key FOB

1 SMART KEY Key FOB Model Name: SMART KEY Key FOB Trade Name: - Model Number: APT-RX002 L.O freq: 4MHz Electrical Specifications Characteristics： Item Specifications Remarks Rated voltage DC12V - Operation voltage DC12V±3V - <20mA(max)@12VDC Passive mode Dark current <50mA(max)@12VDC Active mode RF receiving frequency 315MHz ± 150KHz - LF transmitting frequency 125KHz ± 1KHz - Transmission standard ISO14443A - Communication format Wiegand 34bits - Operating temperature range -10°C~+60°C - Storage temperature range -10°C~+60°C - PHOTOGRAPHS： 2 SMART KEY Key FOB Model Name: SMART KEY Key FOB Trade Name: - Model Number: APT-RX002 L.O freq: 4MHz P.C.B (Front)： P.C.B (Back)： 4 REMOTE KEYLESS BASE STATION Model Name: REMOTE KEYLESS BASE STATION Trade Name: - Model Number: APT-RX001 L.O freq: 4MHz Electrical Specifications Characteristics： Item Specifications Remarks Rated voltage DC12V - Operation voltage DC12V±3V - <20mA(max)@12VDC Passive mode Dark current <50mA(max)@12VDC Active mode RF receiving frequency 315MHz ± 150KHz - LF transmitting frequency 125KHz ± 1KHz - Transmission standard ISO14443A - Communication format Wiegand 34bits - Operating temperature range -10°C~+60°C - Storage temperature range -10°C~+60°C - PHOTOGRAPHS： 5 REMOTE KEYLESS BASE STATION Model Name: REMOTE KEYLESS BASE STATION Trade Name: - Model Number: APT-RX001 L.O freq: 4MHz P.C.B (Front)： P.C.B (Back)： 7 SMART KEYLESS KEYFOB Model Name: SMART KEYLESS KEYFOB Trade Name: - Model Number: CA00-1TX001TG0 L.O freq: 4MHz(MCU Internal oscillator) Electrical Specifications Characteristics： Item Specifications Remarks Rated voltage DC3V - Operating current <8mA(max) - Dark current <8uA(max) - RF receiving frequency 315MHz ± 150KHz - LF transmitting frequency 125KHz ± 1KHz - Battery Type CR2032 - Operating temperature range -10°C~+60°C - Storage temperature range -10°C~+60°C Without batteries Photographs： 8 SMART KEYLESS KEYFOB Model Name: SMART KEYLESS KEYFOB Trade Name: - Model Number: CA00-1TX001TG0 L.O freq: 4MHz(MCU Internal oscillator) P.C.B (Front)： P.C.B (Back)： 11 Cautions: To prevent electric shock or short circuit damage, please ask a qualified technician for installing. Please use an independent power supply so that the failure caused by the unstable power will not occur. Metal will block the radio signal. Therefore, stay away from metal when installing the product. Remote control distance will also become shorter when there is a same frequency signal around. Adjacent products should be separated at least 3 meters. If there is a malfunction of the product, please contact the service department. FCC Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Change or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. RF exposure warning: The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter.

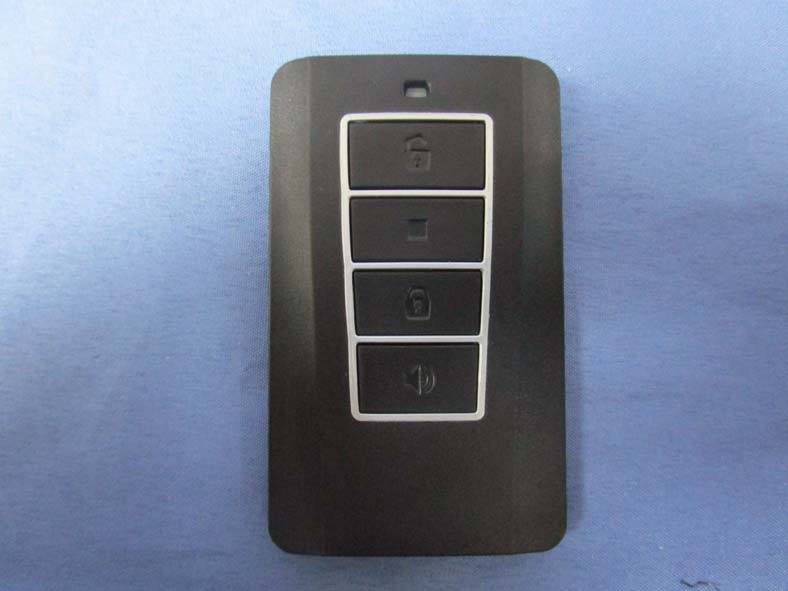

Report No：14C0596R-RFUSP14V00 Page: 27 of 31 Attachment EUT Photograph (1) EUT Photo (2) EUT Photo

Whetron electronic Co., Ltd. No.16, Singye Rd., Ta Fa Ind., Daliao Dist., Kaohsiung City 831, Taiwan (R.O.C.) FCC ID.: 2ABPMCA00-1TX001TG0 FCC ID Label

Whetron electronic Co., Ltd. No.16, Singye Rd., Ta Fa Ind., Daliao Dist., Kaohsiung City 831, Taiwan (R.O.C.) FCC ID.: 2ABPMCA00-1TX001TG0 FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. SMART KEY Key FOB Model No.: CA00-1TX001TG0 FCC ID : 2ABPMCA00-1TX001TG0 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No：14C0596R-RFUSP14V00 Page: 28 of 31 (3) EUT Photo (4) EUT Photo Report No：14C0596R-RFUSP14V00 Page: 29 of 31 (5) EUT Photo (6) EUT Photo Report No：14C0596R-RFUSP14V00 Page: 30 of 31 (7) EUT Photo (8) EUT Photo Report No：14C0596R-RFUSP14V00 Page: 31 of 31 (9) EUT Photo (ANT Location)

RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. 2. Measurement Result: According to KDB 447498 D01 Mobile Portable RF Exposure v05, Operation frequency = 315MHz and antenna separation distance = 5mm, SAR Test Exclusion Threshold = 27mW The Device max peak output power = 0.0002mW and less than 10mW The SAR/MPE measurement is not necessary.

Report No：14C0596R-RFUSP14V00 Page: 1 of 30 FCC Test Report Product Name ：SMART KEY Key FOB Model No. ：CA00-1TX001TG0 FCC ID. ：2ABPMCA00-1TX001TG0 Applicant ： Whetron electronics Co., Ltd. Address ： No.16, Singye Rd., Ta Fa Ind., Daliao Dist., Kaohsiung City 831, Taiwan (R.O.C.) Date of Receipt：2014/12/24 Issued Date ：2015/01/16 Report No. ：14C0596R-RFUSP14V00 Report Version：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：14C0596R-RFUSP14V00 Page: 2 of 30 Test Report Certification Issued Date : 2015/01/16 Report No. : 14C0596R-RFUSP14V00 Product Name : SMART KEY Key FOB Applicant : Whetron electronics Co., Ltd. Address : No.16, Singye Rd., Ta Fa Ind., Daliao Dist., Kaohsiung City 831, Taiwan (R.O.C.) Manufacturer : Whetron electronics Co., Ltd. Model No. : CA00-1TX001TG0 FCC ID. : 2ABPMCA00-1TX001TG0 EUT Voltage : DC 3V (Power by Battery) Applicable Standard : FCC 15 Subpart C Section 15.231(b): 2012 Test Result : Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Demi Chang / Engineering Adm. Specialist ) Reviewed By : ( Ken Huang / Assistant Engineer ) Approved By : ( Roy Wang / Director) Report No：14C0596R-RFUSP14V00 Page: 3 of 30 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/chinese/about/certificates.aspx?bval=5 The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 3024 NCC, Certificate No : NCC-RCB-07 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No：14C0596R-RFUSP14V00 Page: 4 of 30 TABLE OF CONTENTS Description Page 1. General Information........................................................................................................ 5 1.1. EUT Description..........................................................................................................................5 1.2. Test Mode....................................................................................................................................6 1.3. Tested System Details................................................................................................................7 1.4. Configuration of tested System................................................................................................7 1.5. EUT Exercise Software..............................................................................................................7 1.6. Test Facility..................................................................................................................................8 2. Radiated Emission ......................................................................................................... 9 2.1. Test Equipment...........................................................................................................................9 2.2. Test Setup..................................................................................................................................10 2.3. Limits...........................................................................................................................................11 2.4. Test Procedure..........................................................................................................................12 2.5. Test Specification......................................................................................................................12 2.6. Uncertainty.................................................................................................................................12 2.7. Test Result.................................................................................................................................13 2.8. Test Photo..................................................................................................................................18 3. Occupied Bandwidth..................................................................................................... 20 3.1. Test Equipment.........................................................................................................................20 3.2. Test Setup..................................................................................................................................20 3.3. Limits...........................................................................................................................................20 3.4. Test Specification......................................................................................................................20 3.5. Uncertainty.................................................................................................................................20 3.…

Text truncated - open the document above for the full version.

Report No：14C0596R-RFUSP14V00 Page: 18 of 31 2.8. Test Photo Test Mode ： Mode 1: Transmit_Remote_Power by Battery Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit_Remote_Power by Battery Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No：14C0596R-RFUSP14V00 Page: 19 of 31 Test Mode ： Mode 1: Transmit_Remote_Power by Battery Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit_Remote_Power by Battery Description： Back View of Radiated Emission Test Setup (Horn)
