2ABPTYX3800Bluetooth Low Energy Activity Tracker

YOO is a registered trademark of YOO Fitness, LLC. INSTRUCTION MANUAL Technical Writer July 2014


Table of Contents : Introduction 3 YOO-C Special Features3 To Start Up Your YOO-View3 Getting to Know Your Display 4 Battery and Low battery Alert5 Battery Replacement5 Device Memory 5 Clearing the Memory6 Important Safety Information 6 Care and Maintenance 7 Warranty 7 FCC Compliance 8
Introduction Congratulations, your purchase of the YOO-C Bluetooth Activity Tracker is a step in the right direction! The YOO-View is a digital pedometer that features a 3 Axis Accelerometer that accurately tracks and stores your every step, whether you are walking, jogging or running. It then synchronizes the data, via Bluetooth to the YOO App, developed for the IOs devices. YOO-View Special Features --Digital step counting accuracy which tracks and stores your steps while walking, jogging or running via a 3 Axis Accelerometer. --Removable rubberized jacket for clipping to a waist belt or for shoe attachment. --Up to 14 days of data can be stored on the YOO-C device. --Track Steps, Distance, Calories and Activity Time --Sync with App via wireless --No Key, Tap to operate. --Long 6 month battery life. To Start Up Your YOO-View 1. To conserve battery life, your Yoo-View and battery has been packaged in separately. 2. To start up your device, Turn battery door to open , install battery "CR2032" and then close battery door 3. Your YOO-C is now ready for use. Full Segment Ready for used( Step Mode) (After Install Battery)  Getting to Know Your Display 1. Single Tap to switch Modes : Clock-->Step-->Distance-->Calories-->Activity Time-->Clock...... 2.No Auto Return. The mode Will remain unchanged until next tap 3. Make sure the Blue Tooth is turned to the “ON” position on your iOS device. 4. The time-of-day and target number of steps towards your goal is set via the Yoo-View App. 5. The YOO-View step count will reset to 0 at 12:00 AM everyday. 6. Clock Mode by default and showing 12:00(<--a.m.) 7. In Distance Mode , no unit is displayed on the LCD.It is supposed to be viewed or set via smartphone App. 8. The display format of activity time is hh:mm. The maximum time is 23 hrs 59 mins 9. It can keep user data for 14 days only. Further data will not be saved until synced.  Battery and Low battery Alert The YOO-C uses a CR2032 3V lithium battery. The battery is expected to last 6 months with normal use. You will need to replace the battery when a low battery Icon is blink to alert user. Battery Replacement 1. You will need 1 pcs Coin to open battery door 2. Loosen and remove the battery door 3. Remove the battery. 4. Insert a new CR2032 battery with the positive side up. 5. Place back the cover and tighten the battery door with coin. Device Memory YOO-View can store up to 14 days of activity. However, it is recommended that you sync your device to the YOO-C app on a regular basis. Syncing your YOO-C will clear the memory. Further data will not be saved until synced  Clearing the Memory To clear the YOO-C memory, synchronize the device with the YOO-C APP via Smart Blue Tooth and follow the instructions as per APP. Note: --The device will alert The user to sync to The App if The device detects no synchronization for the last 10 days. The user must synch the device on day 10 or the data will be lost. The alert will disappear once the device is synched to the app. --If the user ignores to synch the device to the app, the new data (step counts) on the new day will not be recorded in the YOO-C , since the memory is full. Important Safety Information To assure optimal use of the YOO-C , basic safety measures should be followed. --Please use care when checking the pedometer readings.  Contact your healthcare provider before beginning any weight loss or exercise program. Keep the device away from small children. Operate the RBX only as intended. Do not use the device for any other purpose To prevent damage, do not store the device in the back pocket of your shorts or pants. If the battery leaks and fluid gets on your skin, rinse immediately with clean water. Do not insert the battery with the polarities in the wrong direction.  Care and Maintenance To keep the YOO-C tracking device in optimal condition, please follow the directions: Clean the device with a soft dry cloth. Do not use any abrasive cleansers. Do not immerse the device in water. Store the device in a safe and dry location. Do not subject the device to shock, extreme heat or long-term exposure to direct sunlight. Remove the battery if the device will not be used for longer than three months. Warranty Your YOO-C tracking device, excluding the battery, is warranted to
be free from material defects appearing within 1 year from the date of
purchase, when used in accordance to the guidelines included with the device. The warranty only extends to the original owner. To obtain warranty service, please contact customer service by
calling xxx-xxx-xxxx for instructions on how to proceed with repairs.
Please enclose the Proof of Purchase, a letter with your name, address,
phone number and a short description of the problem. Please pack the device carefully to prevent damage in transit.  FCC Part 15 Compliance This device compiles with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the product. Note: This equipment has been tested and found to comply with the
limited for a Class B digital device , pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in residential installation. This equipment generates, uses and can radiate…

Text truncated - open the document above for the full version.

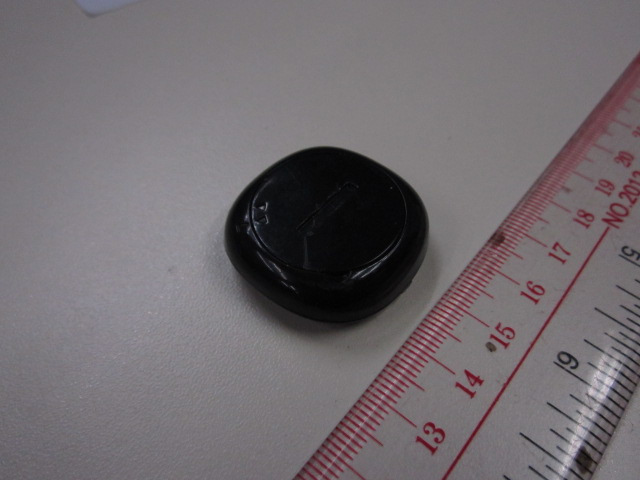

www.tuv.com Test Report No.: 14037319 001 Appendix 3 page 1 of 2 Appendix 3 EUT External Photos www.tuv.com Test Report No.: 14037319 001 Appendix 3 page 2 of 2 External View External View

www.tuv.com Test Report No.: 14037319 001 Appendix 5 page 2 of 14 1.1 FCCID Label Artwork

www.tuv.com Test Report No.: 14037319 001 Appendix 4 page 1 of 3 Appendix 4 EUT Internal Photos www.tuv.com Test Report No.: 14037319 001 Appendix 4 page 2 of 3 Internal View Internal View www.tuv.com Test Report No.: 14037319 001 Appendix 4 page 3 of 3 Internal View

www.tuv.com Test Report No.: 14037319 001 Date: 07.01.2015 page 2 of 12 Table of Content Page Cover Page .........................................................................................1 Table of Content .........................................................................2 Test Summary ................................................................................................................ 4 Product information....................................................................................................... 5 Manufacturers declarations ....................................................................................................................... 5 Product function and intended use ........................................................................................................... 5 Submitted documents ................................................................................................................................. 5 Independent Operation Modes .................................................................................................................. 5 Related Submittal(s) Grants ....................................................................................................................... 5 Remark ......................................................................................................................................................... 5 Test Set-up and Operation Mode .................................................................................. 6 Principle of Configuration Selection ......................................................................................................... 6 Test Operation and Test Software ............................................................................................................. 6 Special Accessories and Auxiliary Equipment ......................................................................................... 6 Countermeasures to achieve EMC Compliance ....................................................................................... 6 Test Methodology .......................................................................................................... 7 Radiated Emission ...................................................................................................................................... 7 Field Strength Calculation .......................................................................................................................... 7 List of Test and Measurement Instruments ................................................................. 8 Results FCC Part 15 – Subpart C ................................................................................. 9 Subclause 15.203 – Antenna Information ....................................................................... Pass ................. 9 Subclause 15.207 – Conducted Emission on AC Mains .................................................. N/A ................. 9 Subclause 15.215 (c) – 20 dB Bandwidth ........................................................................ Pass ................. 9 Subclause 15.249 (a) – Radiated Emission (Fundamental and Harmonics) ................ Pass ............... 10 Subclause 15.205, 15.249 (d) – Spurious Radiated Emissions ..................................... Pass ............... 11 Appendix 1 – Test Results 4 pages Appendix 2 – Test Setup Photos 3 pages Appendix 3 – EUT External Photos 2 pages Appendix 4 – EUT Internal Photos 3 pages Appendix 5 – Label, Operational Description, Block, Schematics and User Manual 13 pages www.tuv.com Test Report No.: 14037319 001 Date: 07.01.2015 page 3 of 12 Appendix 6 – RF Exposure Information........................................................................... 2 pages www.tuv.com Test Report No.: 14037319 001 Date: 07.01.2015 page 4 of 12 Test Summary Conducted Emissions Result: N/A 20dB bandwidth Result: Pass Radiated Emission of Carrier Frequency Result: Pass Spurious Radiated Emissions Result: Pass www.tuv.com Test Report No.: 14037319 001 Date: 07.01.2015 page 5 of 12 Product information Manufacturers declarations Transceiver Operating frequency range 2402-2480 MHz Type of modulation GFSK Number of channels 40 Type of antenna Integral PCB Antenna Power level fix Connection to public utility power line No Nominal voltage V nor : 3.0Vdc (1 x 3V CR2032 battery) Product function and intended use The equipment under test (EUT) is a Bluetooth Low Energy Transceiver operating at 2.4GHz. It is a pedometer. And it is powered by 3.0Vdc (1 x 3V CR2032 battery). FCC ID: 2ABPTYX3800 Models Product description YOO-C Bluetooth-LE Pedometer Submitted documents Circuit Diagram Block Diagram Bill of material User manual Rating Label Independent Operation Modes The basic operation modes are: - Transmitting Bluetooth signal . For further information refer to User Manual Related Submittal(s) Grants This is a single application for certification of the transmitter. Remark - None. www.tuv.com Test Report No.: 14037319 001 Date: 07.01.2015 page 6 of 12 Test Set-up and Operation Mode Principle of Configuration Selection Emission: The equipment under test (EUT) was configured to measure its highest possible radiation level. The test modes were adapted accordingly in reference to the instructions for use. Test Operation and Test Software Test operation should refer to test methodology. - Test software provided by the applicant is used to fix the transmitting channel. Special Accessories and Auxiliary Equipment The product has been tested together with the following additional accessories: - none Countermeasures to achieve EMC Compliance - none www.tuv.com Test Report No.: 14037319 001 Date: 07.01.2015 page 7 of 12 Test Methodology Radiated Emission The radiated emission measurements were performed according to the procedures in ANSI C63.4-2003. The equipment under test (EUT) was placed at the middle of the 80…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14037319 001 Appendix 1 page 1 of 4 Appendix 1 Test Results www.tuv.com Test Report No.: 14037319 001 Appendix 1 page 2 of 4 20dB Bandwidth Tx frequency: 2402MHz A 2.402604 GHz Ref -10 dBm 2.402604 GHz Att 20 dB 2.402604 GHz 2.402604 GHz 2.402604 GHz 2.402604 GHz 2.402604 GHz 2.402604 GHz 2.402604 GHz 2.402604 GHz 2.402604 GHz 2.402604 GHz 1 PK 2.402604 GHz MAXH 2.402604 GHz Center 2.402 GHz 2.402604 GHz Span 2 MHz 2.402604 GHz 200 kHz/ 2.402604 GHz * 2.402604 GHz RBW 30 kHz 2.402604 GHzVBW 100 kHz 2.402604 GHz SWT 2.5 ms 2.402604 GHz -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 2.402604 GHz 1 Marker 1 [T1 ] -23.15 dBm 2.402060000 GHz 2 Marker 2 [T1 ] -42.38 dB m 2.401564000 GHz 3 Marker 3 [T1 ] -43.82 dB m 2.402604000 GHz MARKER 3 2.402604 GHz Comment: test print Date: 16.DEC.2014 13:48:03 www.tuv.com Test Report No.: 14037319 001 Appendix 1 page 3 of 4 Tx frequency: 2440MHz A 2.440604 GHz Ref -10 dBm 2.440604 GHz Att 20 dB 2.440604 GHz 2.440604 GHz 2.440604 GHz 2.440604 GHz 2.440604 GHz 2.440604 GHz 2.440604 GHz 2.440604 GHz 2.440604 GHz 2.440604 GHz 1 PK 2.440604 GHz MAXH 2.440604 GHz Center 2.44 GHz 2.440604 GHz Span 2 MHz 2.440604 GHz 200 kHz/ 2.440604 GHz * 2.440604 GHz RBW 30 kHz 2.440604 GHzVBW 100 kHz 2.440604 GHz SWT 2.5 ms 2.440604 GHz -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 2.440604 GHz 1 Marker 1 [T1 ] -23.42 dB m 2.440068000 GHz 2 Delta 2 [T1 ] -20.57 dB -504.000000000 kHz 3 Marker 3 [T1 ] -43.43 dBm 2.440604000 GHz MARKER 3 2.440604 GHz Comment: test print Date: 16.DEC.2014 13:47:08 www.tuv.com Test Report No.: 14037319 001 Appendix 1 page 4 of 4 Tx frequency: 2480 MHz A 2.48062 GHz Ref -10 dBm 2.48062 GHz Att 20 dB 2.48062 GHz 2.48062 GHz 2.48062 GHz 2.48062 GHz 2.48062 GHz 2.48062 GHz 2.48062 GHz 2.48062 GHz 2.48062 GHz 2.48062 GHz Center 2.48 GHz 2.48062 GHz Span 2 MHz 2.48062 GHz 200 kHz/ 2.48062 GHz * 2.48062 GHz RBW 30 kHz 2.48062 GHzVBW 100 kHz 2.48062 GHz SWT 2.5 ms 2.48062 GHz 1 PK 2.48062 GHz MAXH 2.48062 GHz -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 2.48062 GHz 1 Marker 1 [T1 ] -26.91 dB m 2.480072000 GHz 2 Marker 2 [T1 ] -46.97 dBm 2.479564000 GHz 3 Marker 3 [T1 ] -47.23 dBm 2.480620000 GHz MARKER 3 2.48062 GHz Comment: test print Date: 16.DEC.2014 13:44:57

www.tuv.com Test Report No.: 14037319 001 Appendix 6 page 2 of 2 Maximum transmitter power: Frequency (MHz) Maximum peak output power (dBm) Output power(mW) 2402 -3.9 0.403 2440 -6.3 0.232 2480 -11.2 0.076 According to KDB 447498 D01: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [ √f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR,24 where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below Result: (0.403/5)*√2.402 = 0.13 <3.0 (0.232/5)*√2.440 = 0.07 <3.0 (0.347/5)*√2.480 = 0.02 <3.0 Conclusion: No SAR is required.

www.tuv.com Test Report No.: 14037319 001 Appendix 2 page 1 of 3 Appendix 2 Test Setup Photos www.tuv.com Test Report No.: 14037319 001 Appendix 2 page 2 of 3 Setup for radiated emission Setup for radiated emission www.tuv.com Test Report No.: 14037319 001 Appendix 2 page 3 of 3 Setup for radiated emission
