2ABPTYX4400Short Range Device - Pedometer

Test Report No.: 14041057 001 Appendix 4 page 7 of 14 1.6 User Manual Model: 370900027 Test Report No.: 14041057 001 Appendix 4 page 8 of 14 Test Report No.: 14041057 001 Appendix 4 page 9 of 14 Test Report No.: 14041057 001 Appendix 4 page 10 of 14 Test Report No.: 14041057 001 Appendix 4 page 11 of 14 Test Report No.: 14041057 001 Appendix 4 page 12 of 14 Test Report No.: 14041057 001 Appendix 4 page 13 of 14 Test Report No.: 14041057 001 Appendix 4 page 14 of 14

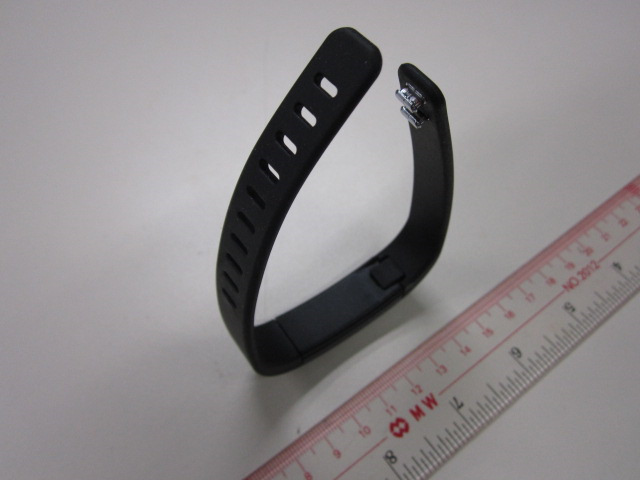

Test Report No.: 14041057 001 Appendix 3 page 2 of 5 External View External View Test Report No.: 14041057 001 Appendix 3 page 3 of 5 External View

Test Report No.: 14041057 001 Appendix 4 page 2 of 14 1.1 FCCID Label Artwork

Test Report No.: 14041057 001 Appendix 3 page 4 of 5 Internal View Internal View Test Report No.: 14041057 001 Appendix 3 page 5 of 5 Internal View Internal View

www.tuv.com Test Report No.: 14041057 001 Date: 08.09.2015 page 2 of 10 Table of Content Page Cover Page ..................................................................................................................... 1 Table of Content ............................................................................................................ 2 Product information....................................................................................................... 3 Manufacturers declarations ....................................................................................................................... 3 Product function and intended use ........................................................................................................... 3 Submitted documents ................................................................................................................................. 3 Special accessories and auxiliary equipment .......................................................................................... 3 Independent Operation Modes .................................................................................................................. 4 Related Submittal(s) Grants ....................................................................................................................... 4 Remarks ....................................................................................................................................................... 4 List of Test and Measurement Instruments ................................................................. 5 Results FCC Part 15 – Subpart C ................................................................................. 6 Subclause 15.203 – Antenna Requirement ............................................................................ Pass .......... 6 FCC 15.207 – Conducted Emission on AC Mains ................................................................. Pass .......... 6 Subclause 15.215 (c) – 20 dB Bandwidth ............................................................................... Pass .......... 7 Subclause 15.249 (a) – Field Strength of Fundamental and Harmonics ............................. Pass .......... 8 Subclause 15.249 (d), 15.205 – Out Of Band Radiated Emission ........................................ Pass ........ 10 Appendix 1 – Test Results 3 pages Appendix 2 – Test Setup Photos 3 pages Appendix 3 – Photo documentation 6 pages Appendix 4 – Product documentation 14 pages Appendix 5 – RF Exposure Information 2 pages www.tuv.com Test Report No.: 14041057 001 Date: 08.09.2015 page 3 of 10 Product information Manufacturers declarations Transmitter Operating frequency range 2402 - 2480 MHz Type of modulation GFSK Number of channels 40 Type of antenna PCB Antenna Power level fix Connection to public utility power line No Nominal voltage V nor : 3.7 V Product function and intended use The equipment under test (EUT) is a Bluetooth Low Energy Pedometer operating at 2.4GHz. It is powered by battery only. FCC ID: 2ABPTYX4400 Models Product description YOO-SA Pedometer Submitted documents Circuit Diagram Block Diagram Bill of material User manual Rating Label Declaration of Equivalence Special accessories and auxiliary equipment - Nil www.tuv.com Test Report No.: 14041057 001 Date: 08.09.2015 page 4 of 10 Independent Operation Modes The basic operation modes are transmitting mode. For further information refer to User Manual Related Submittal(s) Grants This is a single application for certification of the transmitter. Remarks - Nil www.tuv.com Test Report No.: 14041057 001 Date: 08.09.2015 page 5 of 10 List of Test and Measurement Instruments Hong Kong Productivity Council (Registration number: 90656) Radiated Emission Equipment Manufacturer Type Cal. Date Due Date Semi-anechoic Chamber Frankonia Nil 14-Apr-15 14-Apr-16 New Fully Ancheonic Chamber TDK N/A 15-Apr-15 15-Apr-16 Cable Hubersuhner SUCOFLEX 104 31-Mar-14 31-Mar-16 Test Receiver R & S ESU26 12-Feb-15 12-Feb-16 Bi-conical Antenna R & S HK116 22-Oct-13 22-Oct-15 Log Periodic Antenna R & S HL223 16-Oct-13 16-Oct-15 Coaxial cable Harbour LL335 10-Jun-14 10-Jun-16 Microwave amplifer 0.5- 26.5GHz, 25dB gain HP 83017A 17-Jul-14 17-Jul-16 High Pass Filter (cutoff freq. =1000MHz) Trilithic 23042 28-Oct-13 28-Oct-15 Horn Antenna EMCO 3115 07-Oct-13 07-Oct-15 Active Loop Antenna EMCO 6502 17-May-15 17-May-16 TÜV Rheinland Hong Kong Ltd AC Mains Conducted Emission Equipment Manufacturer Type Cal. Date Due Date Test Receiver R & S ESR3 12 Sep 14 12-Sep-15 LISN R & S ENV216 05 Feb 15 05-Feb-16 EMC32 R & S v9.12 N/A N/A www.tuv.com Test Report No.: 14041057 001 Date: 08.09.2015 page 6 of 10 Results FCC Part 15 – Subpart C Subclause 15.203 – Antenna Requirement Pass FCC Requirement: No antenna other than that furnished by the responsible party shall be used with the device Results: Antenna type: Fixed Integral PCB antenna Verdict: Pass FCC 15.207 – Conducted Emission on AC Mains Pass Test Specification : ANSI C63.4 – 2009 Mode of operation : TX mode Port of testing : AC Mains input port of the Notebook Detector : Quasi-peak and Average RBW : 9 kHz Supply voltage : 120Vac 60Hz Temperature : 23ºC Humidity : 50% Requirement: 15.207(a) Results: Pass Live measurement Frequency range (MHz) Frequency (MHz) Quasi-peak dBμV Average dBμV Limit QP (dBμV) Limit AV (dBμV) Verdict 0,15 – 0,5 0.16125 61.3 40.8 66 - 56 56 - 46 Pass > 0,5 - 5 No peak found --- --- 56 46 Pass > 5 - 30 No peak found --- --- 60 50 Pass Neutral measurement Frequency range (MHz) Frequency (MHz) Quasi-peak dBμV Average dBμV Limit QP (dBμV) Limit AV (dBμV) Verdict 0,15 – 0,5 0.16800 60.6 41.2 66 - 56 56 - 46 Pass > 0,5 - 5 No peak found --- --- 56 46 Pass > 5 - 30 No peak found --- --- 60 50 Pass Results: Pre-scan has been conducted to determine the worst-case mode from all possible combinations between available modulations and data rate. Only the worst-case is reported. The ra…

Text truncated - open the document above for the full version.

Test Report No.: 14041057 001 Appendix 1 page 1 of 4 Appendix 1 Test Results Test Report No.: 14041057 001 Appendix 1 page 2 of 4 20dB Bandwidth Tx frequency: 2402MHz Ref -20 dBmAtt 10 dB 1 PK VIEW A RBW 100 kHz VBW 300 kHz SWT 2.5 ms Center 2.402 GHzSpan 5 MHz500 kHz/ EXT -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 1 Marker 1 [T1 ] -52.50 dBm 2.401120000 GHz 1 Delta 1 [T1 ] -0.08 dB 1.650000000 MHz Date: 7.SEP.2015 17:45:02 Tx frequency: 2440MHz Ref -20 dBmAtt 10 dB 1 PK VIEW A RBW 100 kHz VBW 300 kHz SWT 2.5 ms Center 2.44 GHzSpan 5 MHz500 kHz/ EXT -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 1 Marker 1 [T1 ] -51.27 dBm 2.438970000 GHz 1 Delta 1 [T1 ] -0.02 dB 1.900000000 MHz Date: 7.SEP.2015 17:43:25 Test Report No.: 14041057 001 Appendix 1 page 3 of 4 Tx frequency: 2480MHz Ref -20 dBmAtt 10 dB 1 PK VIEW A RBW 100 kHz VBW 300 kHz SWT 2.5 ms Center 2.48 GHzSpan 5 MHz500 kHz/ EXT -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 1 Marker 1 [T1 ] -52.63 dBm 2.479020000 GHz 1 Delta 1 [T1 ] 0.04 dB 2.160000000 MHz Date: 7.SEP.2015 17:46:51 Test Report No.: 14041057 001 Appendix 1 page 4 of 4 Conducted Emission TX mode Live 0 10 20 30 40 50 60 70 80 150k 300 400 500 800 1M2M3M 4M 5M 6 8 10M20M30M Level in dBμV Frequency in Hz Conducted Emission (150 kHz - 30 MHz) FCC Part 15 Class B Voltage on Mains QP FCC Part 15 Class B Voltage on Mains AV TX mode Neutral 0 10 20 30 40 50 60 70 80 150k 300 400 500 800 1M2M3M 4M 5M 6 8 10M20M30M Level in dBμV Frequency in Hz Conducted Emission (150 kHz - 30 MHz) FCC Part 15 Class B Voltage on Mains QP FCC Part 15 Class B Voltage on Mains AV

Test Report No.: 14041057 001 Appendix 5 page 1 of 2 Appendix 5 RF Exposure Information Test Report No.: 14041057 001 Appendix 5 page 2 of 2 Maximum transmitter power: Frequency (MHz) Maximum peak output power (dBm) Output power (mW) 2402 -4.0 0.402 2440 -5.3 0.297 2480 -8.9 0.129 According to KDB 447498 D01: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [ √f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below Result: (0.402/5)* √2.40 2 = 0.12 <3.0 (0.297/5)*√2.440 = 0.09 <3.0 (0.129/5)*√2.480 = 0.04 <3.0 Conclusion: No SAR test is required.

Test Report No.: 14041057 001 Appendix 2 page 1 of 2 Appendix 2 Test Setup Photos Test Report No.: 14041057 001 Appendix 2 page 2 of 2 Setup for radiated emission Setup for conducted emission
