2ABQE-ITAGAnti-Lost Device

User Manual Thank you for choosing the smart anti-lost products iTag based on Bluetooth. iTag is a kind of Bluetooth Low-energy product which based on the newest Bluetooth. It can chain user’s easy-lost & valuable belongings (such as keys, handbags etc.), kids or pets together with smart phones through specified App software within a setting Bluetooth connection distance. In the effective distance it can realize the functions of anti-lost, looking for smart phones, self-portrait and voice recording. The effective distance of iTag is 75 Feet in open range without barrier. With this device, your belongings, kids and pets won’t leave your attentions any more. iTag use CR2032 Lithium Coin Battery which is easy to get from markets, and it works for almost half a year. Switchon/off Switch on: Press and hold the button on iTag for 3 seconds until you heard the Beep twice Switch off: Press and hold the button on iTag for 3 seconds until the long “Beep” sound. Connection 1. iTag will connect the smart phone automatically when power on, if it shows “disconnected” on the App, please click the “Connect” button to connect it again. 2. Click the button “ ” to find more connectable iTag devices, such as car keys, bags and so on. (Note: Click the arrow icon will turn to submenu, such as add photo for iTag, rename and set the ring tone etc.) 3.Press thebutton to enter into “Delete” submenu to remove the item which you don’t need, or slide this item to left on “device list” interface, click “–” to remove it out of the device list. DoNotDisturbMode On the “Setting” interface, switch “Do not disturb” on, alert function of all devices will be shut down. On the “Device” interface, enter into submenu “iTag” item, click “Anti lost” to set a unique feature for alert function for each iTag, such as shut off the alert for one of connected iTag. Settingfor Alert As shown in the image 1. Double click the button on iTag to trigger the alert on the smart phone. 2 .Click the red flash button to stop the phone alert. 3 .Click “Alert” button, iTag alerts, and click the “Stop Alert” will stop the alert from iTag. Photograph As shown in the image Press the “Photograph” button, it will turns to camera mode. 1. Press top right and left to set the flashlight and camera: 2. Press the button on the right button, you can set for burst shooting and interval timer shooting. Press the button on iTag once, it works as a remote shutter to take photos. Location As shown in the image Location list: when you pack your car, press the button on iTag, it will marks your current location on the map. Press the “Location list” and you will find where your vehicle is with easy tracking when you leave any big or underground parking lot Lost history: If the iTag is lost, A pin-drop will be marked automatically on Map to tell you the site it was lost. just press “lost history” to find the record. Remark: To delete the list, just scroll left the list and press the “Delete” menu Setting In order to experience the functions of iTag better, enter into the setting menu to set for your iTag. As shown in the image CAUTION:

FCC INFORMATION (additional) Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

SHENZHEN SAGE HUMAN ELECTRONICS CO.,LTD. FCC ID:2ABQE-ITAG FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name SHENZHEN SAGE HUMAN ELECTRONICS CO.,LTD. Address 4 floor,A9 bldg, Silicon Vellay Power, Qinghu Industry Park Longhua new district City Shenzhen, Guangdong, Country China declare that the following representative (agent): Name (person) Company name Shenzhen ISOTek Standards Technical Services Co.,Ltd. Address 13/F, HuaFengRui Building, XinHu Rd., XiXiang, Bao’an District, City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Anti-lost Device Type or Model(s) IT-01, IT-02, IT-03, IT-04, IT-05, IT-06, IT-07, IT-08, IT-09, IT-10, IT-11,IT-12, IT-15,IT-16, IT-18, PCA9887. Tradename or Brand(s) N/A We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shenzhen China 2014-5-26 Fred Xiao General Manager

Shenzhen Sage Human Electronics Co., Ltd. FCC Confidentiality Request Number: CF303 Version: V03 Date: 25-11-2011 To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company nameShenzhen Sage Human Electronics Co., Ltd. Address4 floor,A9 bldg, Silicon Vellay Power, Qinghu Industry Park Longhua new district CityShenzhen, Guangdong CountryChina request for this certification filing under: Grantee CodeProduct Number FCC ID:2ABQE-ITAG to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) ExhibitFile NameDescription vOperational Descriptionexplaining the functioning of the block diagram vBlock Diagramsshowing the systematic building blocks of the EUT vSchematics Diagramsshowing components, their values and interconnection Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country:Date:Name: (this must be a person) Function:Signature: (or official company stamp) Enschede, Netherlands2014-05-30M. Koop (authorized) Manager

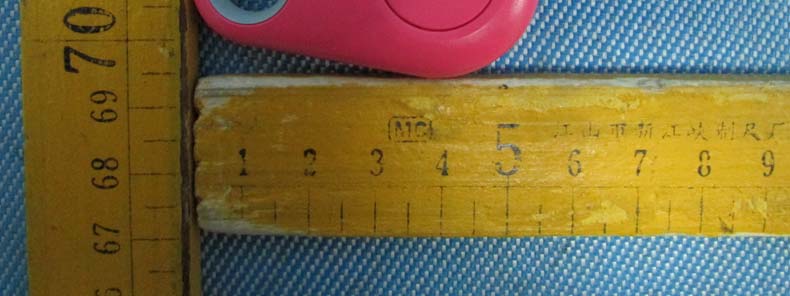

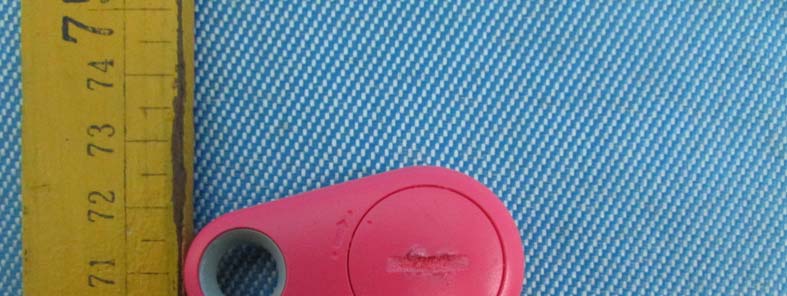

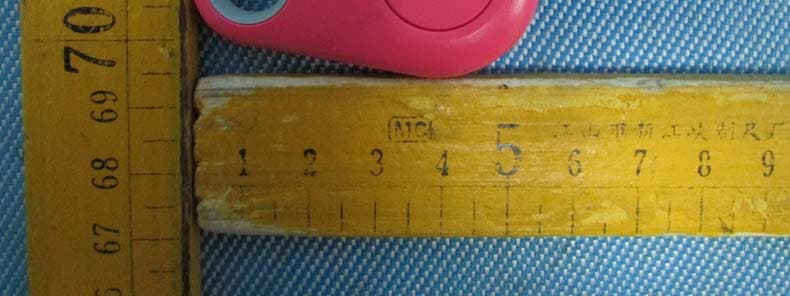

2.1 EUT – External View(1) 2.2 EUT – External View(2)

/

2.1 EUT –Internal View(1) 2.2 EUT –Internal View(2) ANT

FCC RF Exposure FCC ID: 2ABQE-ITAG Frequency: 2402-2480 MHz Mid-Channel Peak Power, Conducted, highest valud measured: 0.97 dBm == 1.25 mW Antenna G ain: G = 0 dBi Peak, Radiated = 0.97 dBm + 0 dBi = 0.97 dBm = 1.25 mW SAR Test Exclusion Thresholds specified in KDB447498 Appendix A: Evaluation: The Calculated Radiated Peak output power is taken as worst case, and this emission level is far under the maximum allowed emission level at even the closest distance for 2.4G device specified in this table. Conclusion: The emitted power appears to be below the required limit, so PASS.

Reference No.: ISOT14050356F Page 1 of 73 FCC TEST REPORT Shenzhen ISOTek Standards Technical Services Co.,Ltd. FCC ID:2ABQE-ITAG Http://www.ISOTek.com.cn FCC ID : 2ABQE-ITAG Applicant : SHENZHEN SAGE HUMAN ELECTRONICS CO.,LTD. Address : 4 floor,A9 bldg, Silicon Vellay Power, Qinghu Industry Park Longhua new district, Shenzhen, Guangdong,China Manufacturer : SHENZHEN SAGE HUMAN ELECTRONICS CO.,LTD. Address : 4 floor,A9 bldg, Silicon Vellay Power, Qinghu Industry Park Longhua new district, Shenzhen, Guangdong,China Equipment Under Test (EUT) : Product Name : Anti-lost Device Model No. : IT-01, IT-02, IT-03, IT-04, IT-05, IT-06, IT-07, IT-08, IT-09, IT-10, IT-11, IT-12, IT-15,IT-16, IT-18, PCA9887. Brand Name : N/A Standards : FCC Part15.247:2012 Date of Test : May 12~26, 2014 Date of Issue : May 26, 2014 Test Result : PASS Remark: * The sample described above has been tested to be in compliance with the requirements of ANSI C63.4:2003. The test results have been reviewed and comply with the rules listed above and found to meet their essential requirements. The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Shenzhen ISOTek Standards Technical Services Co.,Ltd. 13/F, HuaFengRui Building, XinHu Rd., XiXiang, Bao’an District,Shenzhen,China Tel: +86-755-36655588 Fax: +86-755-36655599 Compiled by: Approved by: Lisa Huang/ Project Engineer Richard Chen/ Manager Reference No.: ISOT14050356F Page 2 of 73 Shenzhen ISOTek Standards Technical Services Co.,Ltd. FCC ID:2ABQE-ITAG Http://www.ISOTek.com.cn 2 Test Summary Test Items Test Requirement Result Spurious Radiated Emissions 15.205(a) 15.209 15.247(d) PASS Band edge Emissions 15.247(d) PASS Spurious RF Conducted Emissions from out of band 15.247(d) PASS Duty Cycle 15.35 PASS Conducted Emissions 15.207 PASS 20dB Bandwidth 15.215c 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Reference No.: ISOT14050356F Page 3 of 73 Shenzhen ISOTek Standards Technical Services Co.,Ltd. FCC ID:2ABQE-ITAG Http://www.ISOTek.com.cn 3 Contents Page 1 COVER PAGE .......................................................................................................................................... 1 2 TEST SUMMARY................................................................................................................................................... 2 3 CONTENTS............................................................................................................................................................. 3 4 GENERAL INFORMATION.................................................................................................................................. 5 4.1 GENERAL DESCRIPTION OF E.U.T.................................................................................................................. 5 4.2 DETAILS OF E.U.T........................................................................................................................................... 5 4.3 CHANNEL LIST................................................................................................................................................. 5 4.4 DESCRIPTION OF SUPPORT UNITS..................................................................................................................... 6 4.5 STANDARDS APPLICABLE FOR TESTING........................................................................................................... 6 4.6 TEST LOCATION............................................................................................................................................... 6 5 EQUIPMENT USED DURING TEST................................................................................................................... 7 5.1 EQUIPMENTS LIST........................................................................................................................................... 7 5.2 MEASUREMENT UNCERTAINTY........................................................................................................................ 7 5.3 TEST EQUIPMENT CALIBRATION..................................................................................................................... 7 6 CONDUCTED EMISSION..................................................................................................................................... 8 6.1 E.U.T. OPERATION.......................................................................................................................................... 8 6.2 EUT SETUP..................................................................................................................................................... 8 6.3 CONDUCTED EMISSION TEST RESULT............................................................................................................ 8 7 SPURIOUS RADIATED EMISSIONS................................................................................................................. 9 7.1 EUT OPERATION :........................................................................................................................................... 9 7.2 TEST SETUP.................................................................................................................................................. 10 7.3 SPECTRUM ANALYZER SETUP...................................................................................................................... 11 7.4 TEST PROCEDURE..........................................................................…

Text truncated - open the document above for the full version.

Test Setup Radiated Emissions Below 30MHz From 30-1000MHz Above 1GHz
