2ABQE-S11PORTABLE BLUETOOTH SPEAKER

U DISK SD BT BK3513 AC4101 MCU DC5V/500mA POWER KEYBOBD REMOTE AMP IC MIX3018 AMP IC 4871*2 2.4G BT ANT 26MHz 10W 3W 3W FM ANT AUX IN 32.768KHz 12MHz 0&8 520 5$0 26 0+= / 5 %OXHWRRWK *$QWHQQD

SHENZHEN SAGE HUMAN ELECTRONICS CO.,LTD FCC ID:2ABQE-S11 POWER OF ATTORNEY Date:2014/2/18 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorizeWaltek Services (ShenZhen) Co., Ltd. (Philo Zhong)on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out byWaltek Services (ShenZhen) Co., Ltd. (Philo Zhong)on our behalf shall have the same effect as acts of our own. This authorization expires on2015/2/17. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We,SHENZHEN SAGE HUMAN ELECTRONICS CO.,LTD. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, SHENZHEN SAGE HUMAN ELECTRONICS CO.,LTD. ................................................... Signature ................................................... Fred.Xiao/General Manager

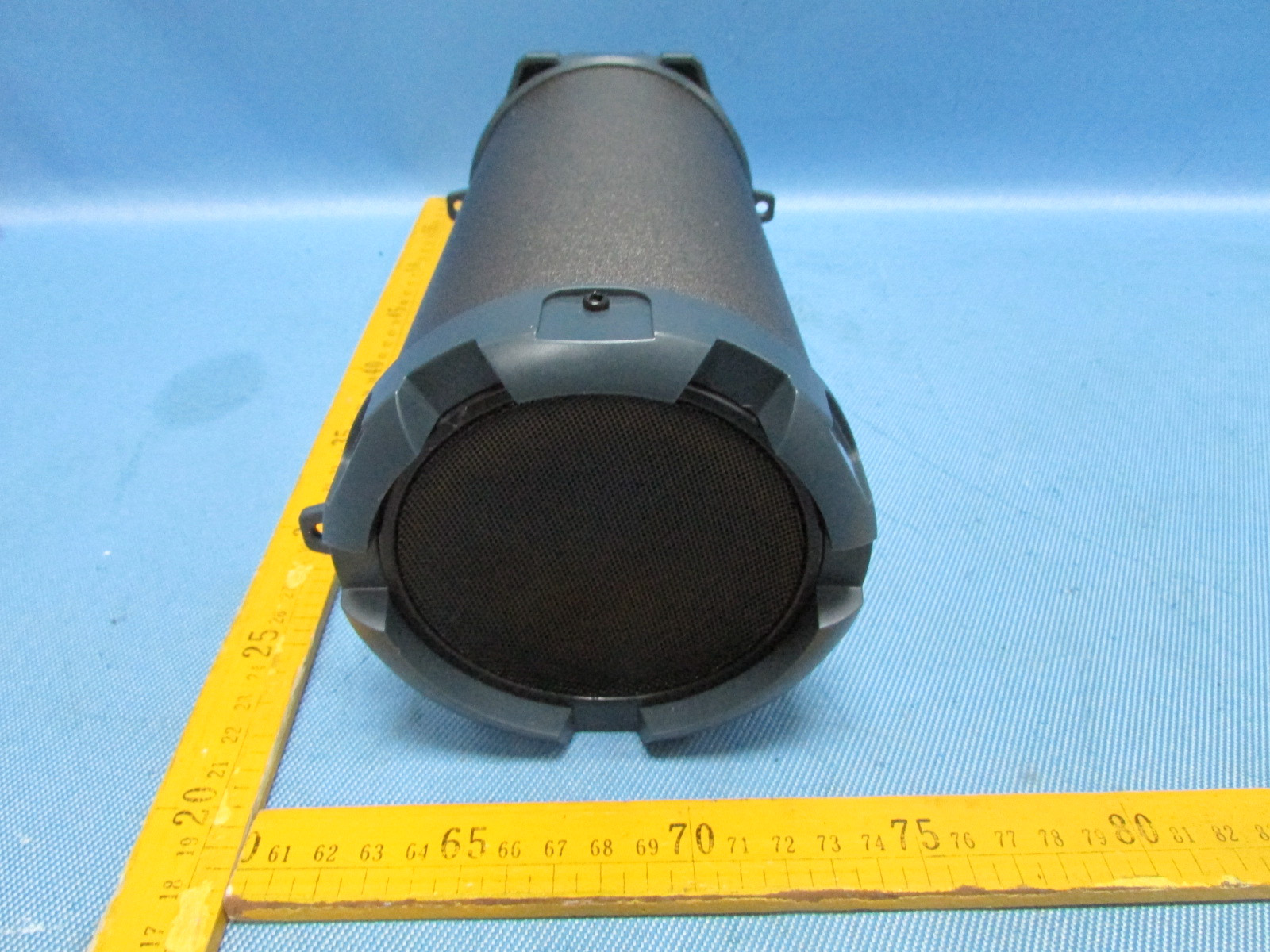

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn S11 - Photographs - Constructional Details EUT – Appearance View Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

FCC Label Location for model: S11 The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. FCC ID: 2ABQE-S11 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Label Sample for model: S11 FCC ID: 2ABQE-S11 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn S 11 – Internal View Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn ANT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 17.3 EUT – RF Module View

Circuit Description for mdoel S11 1,Power source: DC 5V from AC to DC adapter 2,FM radio: Bluetooth module uses for channel selecting and signal amplifying, and receives command from MCU AC4101,then transfers the signal into L/R audio signal, sends the signal to AC4001 and IC MIX 3018 to amplify, output to speaker. 3,AUX signal: input to ICAC4101 and MIX 3018 to amplify, output to speaker. 4,Bluetooth linking: This device uses wireless playing function. The RF module is Bluetooth module with Bluetooth V2.1+EDR.After paired with audio device such as iPod, mobile phone, The device receives audio signal from Bluetooth module F‐6088 which employs 26MHz oscillator. The module process the wireless signal into digital signal and send to MCU which employs 32.768KHz/12MHz oscillators. The MCU process the signal and send to IC AC4101 and IC MIX 3018 to amplify, output to speaker. 6,This Bluetooth module is regulated to Bluetooth V2.1+EDR and set from 2402.00MHz to 2480.00MHz.The separation is 1.0MHz and there are 79 channels in total. The working procedures are:a. When power on, this device will l oop scan the whole frequency until a connection command from the partner is received. b. This device transmits a response signal. c. The partner receives the response signal and recognizes it, then send a connection command to establish the connection. d. each frequency is used equally on the average by each transmitter that each new transmission event begins on the next channel in the hopping sequence after the final channel used in the previous transmission event. e. After the connection establish successfully, the data transmission is beginning. At the same time, the partner and this device will shi ft frequencies in synchronization per a same pseudo randomly ordered list of hopping frequencies, the hopping rate is 1600 times per second. This device conform to the criteria in FCC Public NoticeDA00‐705. f. The bandwidth of the this device, which is set to a fixed width by the software, match the hopping channel bandwidth of thei r corresponding partner. This device is a true frequency hopping system and does not have the capability to be coordinated with other FHSS systems in an effort to avoid the simultaneous occupancy of individual hopping frequencies by multiple transmitters. There are 79 channels in total. The channels hopping from one channel to another channel during the pseudorandom selection process. The hopping interval is 12 millisecond. This system frequency hops between 79 channels.If it is determined that one of the 79 hopping channels is found to be noisy or poor due to other RF interference, then a new channel is selected from the 78 unused channels and the one noisy channel is released to the unused group.This repeats whenever a noisy or poor channel is detected. For example, for the hop pattern of 2414MHz,2434MHz,2444MHz,2434MHz,2451MHz,2441MHz,2454MHz, 2434MHz,2427MHz,2461MHz,2461MHz,2444MHz,2414MHz,2448MHz,2451MHz,2417MHz,2478 MHz,2469MHz,2473MHz,2403MHz,etc. The sequential hops can not follow any order, is completely random. 5,USB port: This USB port is only used for charging mobile device.

55 44 33 22 11 D D C C B B A A <Doc> <RevCode> <Title> Custom 12 Saturday, September 21, 2013 TitleSize Document Number Rev Date: Sheet of USB-USB+DACVDDVCOMGNDDACLDACRVDDIO GND FM_L SP_CS SP_DO SP_CLK SP_DI SD_DATSD_CLK OSCKOOSCKI VBAT USB+ USB5VUSB+ USB- USB- SD_CMDSD_DATSD_CLKGND FM_R AUXLAUXR CD IIC_CLKIIC_DAT SP_DO SP_CS SP_DI SP_CLK VCC3V3 AUXL AUXR BT_RX PCMCLK MUTE PCMSDO BL_32 ADKEY PCMSYNC PCMSDI BAT HT_WAKE LDO_EN BT_TX IIC_CLKIIC_DATLDO_ENGNDBL_32VCC3V3PCMSYNCPCMCLK FM_LFM_R HT_WAKEBT_RXBT_TXPCMSDIPCMSDO SD_CMD VCC3V3 ADKEY VCC3V3 MODE LED_PLAY LED_DC LED_DC# MUTEDACLDACRMODE IRM IRM LED_DC# LED_PLAY DACLMUTEMODEDACR DACVDD VCOM VDDIO VBAT DC_5V VCC3V3 DC_5V VBAT VCC3V3 VDDIO R176.2K R1 2.2R USB1 4321 R3 1K R23 1K LED2 USB2 12345 C91U IRD1 1 2 3 1 2 3 S1 Switch 2 3 1 R12NC C31U C15 1U R1515K C6 12P C14 1U R149.1K R13 22K C101U SD1 129 10 453786 DATA2DATA3CD VSS VDDCLKCMDDATA0DATA1VSS R9 1K C12 1U K2 NEXT U3EN25F80 78 4 5 1 6 32 HOLD-VCC GND DIO CS- CLK WP- DO R24 5.1K R7 1K ANT1 R21 1K C161U C170.1U BAT1 12 R19 10K R6 3.3K R8 1K K1 PREV C5 12P K3 PLAY U1 AC4101 36 35 37 4 5 16 25 24 6 26 27 48454443424139 1 4746 30 28 29 22 11 7 10 8 1415 32 31 9 3 38 20 2 191817 12 132123 33 34 40 PA4 PA5 USBDM PC15 PC14 PB13 PA15 PB1 PC13 PA14 PA13 VDDIODACVSSVCOMDACVDDPD0/VCOMPD1PD7/OSCKO PG DACRDACL PA10 PA12 PA11 PB3 PC8 PC12 PC9 PC11 PB15PB14 PA8 PA9 PC10 VSSIO USBDP PB9 LDO5V PB10PB11PB12 PC7 PC2 PB8PB2 PA7 PA6 PD6/OSCKI C21U C11U D1 SS14 2 1 Y132768HZ Q13906 R1624K LED1 U2A 12345678 910111213141516 FM_ANTFM_LFM_RHOST_WAKEBT_RXBT_TXPCM_SDIPCM_SDO PCM_CLK PCM_SYNC BT_VBAT 32K_XO GND LDO_EN IIC_DAT IIC_CLK J1 PHONEJACK 2134 R2 2.2R R25 2.2R K4 FILE C13 1U R20 10K C111U R22 5.1K 55 44 33 22 11 D D C C B B A A 高为 D 类 低为 AB 类 <Doc> <RevCode> <Title> B 22 Saturday, September 21, 2013 TitleSize Document Number Rev Date: Sheet of DACL MUTE DACR LCHRCH ROUTLOUT RCH MODE AB/D LCH LOUT SD ROUT SD AB/D AB/D MUTE MUTEDACRDACLMODE DACRMODEMUTEDACL VBAT VBAT VCC3V3 VBAT VCC3V3 10K R32 R3610K + C21470UF 12 R42NC C40 223 C22 1000P SPK1 12 + C35470UF 12 C181U U6MIX2008 58 7 2341 6 VO1VO2 GND BY-PASS+IN-INSHUTDOWN PVDD C36 1U C231U R4847K U4 PM8403/MIX3018 31 2 8 10 7 12 5 1614 15 13 114 6 9 -OUTL +OUTL GND BY-PASSINRINLSHUTDOWNMUTE +OUTR -OUTR GND PVDD GNDPVDD PVDD AB/D R5010K R40 4.7K R30 15K R33 NC SPK2 12 C411U R43 10K R3810K R260R R28 15K C30 1000P R27NC R46 10K C33 1000P 10K R34 C28 1000P C24471 C39 102 C371U C34 1U R47 NC C191U C311U C20220UF C38 102 C26 225 SPKL1 12 VR1VOL-ADJ 45321 SPKR1 12 R39NC C25471 C27 225 U5MIX2008 58 7 2341 6 VO1VO2 GND BY-PASS+IN-INSHUTDOWN PVDD Q23904 C321U R4410K R3510K R45 18K C29 223 R2910K R4947K R37100K R31 18K R41 4.7K RFmoduleSCH

TEST REPORT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 67 Reference No. .................... : WTS13S1210531E FCC ID ................................ : 2ABQE-S11 Applicant ............................ : SHENZHEN SAGE HUMAN ELECTRONICS CO.,LTD Address .............................. : 4 floor,A9 bldg, Silicon Vellay Power Qinghu Industry Park Longhua, new district, Shenzhen, Guangdong Manufacturer ..................... : Shenzhen Sage Human Electronics Co.,LTD. Address .............................. : 4FL, A9 Building, Qinghu Industry Park, Silicon Valley Power, Longhua Town, Shenzhen, China Product Name .................... : Portable bluetooth speaker Model No. ........................... : S11, S12, S15, S16, S17, T110, A26, A26B, S-10, S-02B/C/D, S-03, S-04, S-06, S-08, S-09, S-20, S-21, S-22, ,-23, S-25 ,S-26 Standards ........................... : FCC CFR47 Part 15 C Section 15.247:2012 Date of Receipt sample ..... : Dec.29. 2013 Date of Test ........................ : Jan.01, 2014 to Mar.25, 2014 Date of Issue ...................... : Mar.26, 2014 Test Result ......................... : Pass * *Remarks: The results shown in this test report refer only to the sample(s) tested; this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. Address: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Testing location: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Tel :+86-755-83551033 Fax:+86-755-83552400 Compiled by: Approved by: Zero Zhou / Project Engineer Philo Zhong / Manager Reference No.: WTS13S1210531E Page 2 of 67 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 2 Test Summary Test Items Test Requirement Result Conducted Emissions 15.207 PASS Spurious Radiated Emissions 15.205(a) 15.209 15.247(d) PASS Band edge Emissions 15.247(d) PASS 20dB Bandwidth 15.215c 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Reference No.: WTS13S1210531E Page 3 of 67 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE .......................................................................................................................................... 1 2 TEST SUMMARY ................................................................................................................................................... 2 3 CONTENTS ............................................................................................................................................................. 3 4 GENERAL INFORMATION .................................................................................................................................. 5 4.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................................. 5 4.2 DETAILS OF E.U.T. .......................................................................................................................................... 5 4.3 CHANNEL LIST ................................................................................................................................................. 5 4.4 TEST FACILITY ................................................................................................................................................. 6 4.5 TEST LOCATION ............................................................................................................................................... 6 4.5.2 Test Mode ................................................................................................................................................. 6 5 EQUIPMENT USED DURING TEST ................................................................................................................... 7 5.1 EQUIPMENTS LIST ........................................................................................................................................... 7 5.2 MEASUREMENT UNCERTAINTY ........................................................................................................................ 7 5.3 TEST EQUIPMENT CALIBRATION ..................................................................................................................... 7 6 CONDUCTED EMISSION TEST ......................................................................................................................... 8 6.1 E.U.T. TEST CONDITION ................................................................................................................................. 8 6.2 EUT SETUP ..................................................................................................................................................... 8 6.3 CONDUCTED EMISSION TEST RESULT ............................................................................................................ 9 7 SPURIOUS RADIATED EMISSIONS ............................................................................................................... 11 7.1 EUT OPERATION: .......................................................................................................................................... 11 7.2 TEST SETUP .................................................................................................................................................. 12 7.3 SPECTRUM ANALYSER SETUP .................................................................................................................…

Text truncated - open the document above for the full version.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn S11 - Photographs – Test Setup P hotograph –Power Line Conducted Emission Test Setup P hotograph – Radiated Emission Test Setup Below 30MHz Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn From 30-1000MHz Above 1G Hz
