2ABREIVF-RU01READER

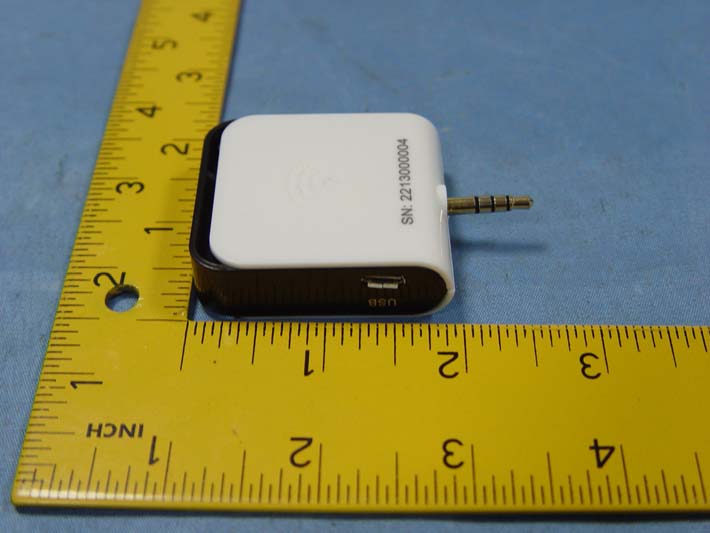

Instructions This series of products is xminnov through more than two years of independent research and development, the domestic first successful production, and won the "2012 China's RFID industry's most influential ten innovative products". By 3.5 mm headphone audio mouth with apple's IOS, Android, Android mobile intelligent terminal platform is linked together, such as a plug and play, small volume, low power consumption, the built‐in rechargeable battery, and the advantages of low cost, easy to carry, truly "anytime, anywhere, as", read all kinds of electronic label, is a typical Internet and mobile Internet technology integration products. The main application fields: personal RFID terminal apparatus, NFC electronic tag reading and writing, capital equipment inventory, intelligent browser tools, etc. parameter specification 1), ultra‐high frequency (UHF) 2), support ios, Android platform 3), the communication interface: 3.5 mm audio interface (ordinary headphone jack) 4), read distance: 0.5 m (depending on the size label) 5), working hours:continuous work 4 hours 6), material: ABS + PC engineering plastic 7), size: 48 mm * 42 mm * 15 mm 8), weight: 35 g 9), battery capacity: 550 mA FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 3. Radiation Exposure Statement: This equipment complies with FCC radiation exposure requirement. The device can be used in portable exposure condition without RF striction.

Xiamen Innov Information Technology Co., LTD 2014-01-22 To: SIEMIC, INC. 775 Montague Expressway Milpitas , CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We , Xiamen Innov Information Technology Co., LTD hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Description: READER Model name: IVF-RU01 FCC ID: 2ABREIVF-RU01 We affirm that between SIEMIC and Xiamen Innov Information Technology Co., LTD , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature ：Zhongzhiming Client’s name / title：R&D Manager Contact information / address ：86-0592-3365576 （Qiangye building 705 room, Xiangan District of Xiamen City, Fujian province, China）

SCS-F19: Confidentiality Request Letter Page 1 of 1 Rev 2.0 Xiamen Innov Information Technology Co., LTD 2014-01-22 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: 2ABREIVF-RU01 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Client’s signature ：Zhongzhiming Client’s name / title：R&D Manager Contact information / address ：86-0592-3365576 （Qiangye building 705 room, Xiangan District of Xiamen City, Fujian province, China）

FCC ID: 2ABREIVF-RU01

Anternna

FCC ID : 2ABREIVF-RU01 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) Calculation Value Threshold Value 902.75 3.03 2.01 0.38 3.0 915.25 5.10 3.24 0.62 3.0 927.25 5.41 3.48 0.67 3.0 Threshold at which no SAR required is ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required. SIMULTANEOUS TRANSMISSION EVALUATION N/A

Page 1 of 52 FCC ID: 2ABREIVF-RU01 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20140010 APPLICATION CERTIFICATION On Behalf of Xiamen Innov Information Technology Co., LTD READER Model No.: IVF-RU01 FCC ID: 2ABREIVF-RU01 Prepared for : Xiamen Innov Information Technology Co., LTD Address : Qiangye building 705 room, Xiangan District of Xiamen City, Fujian province, China Prepared by : ACCURATE TECHNOLOGY CO. LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report Number : ATE20140010 Date of Test : Jan 03-17, 2014 Date of Report : Jan 20, 2014 Page 2 of 52 FCC ID: 2ABREIVF-RU01 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20140010 TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 5 1.1. Description of Device (EUT)....................................................................................................................5 1.2. Description of Test Facility ......................................................................................................................6 1.3. Measurement Uncertainty.........................................................................................................................6 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 7 3. OPERATION OF EUT DURING TESTING ................................................................................. 8 3.1. Operating Mode ........................................................................................................................................8 3.2. Configuration and peripherals ..................................................................................................................8 4. TEST PROCEDURES AND RESULTS ......................................................................................... 9 5. 20DB BANDWIDTH TEST............................................................................................................10 5.1. Block Diagram of Test Setup..................................................................................................................10 5.2. The Requirement For Section 15.247(a)(1) ............................................................................................10 5.3. EUT Configuration on Measurement .....................................................................................................10 5.4. Operating Condition of EUT ..................................................................................................................10 5.5. Test Procedure ........................................................................................................................................11 5.6. Test Result ..............................................................................................................................................11 6. CARRIER FREQUENCY SEPARATION TEST........................................................................ 11 6.1. Block Diagram of Test Setup..................................................................................................................13 6.2. The Requirement For Section 15.247(a)(1) ............................................................................................13 6.3. EUT Configuration on Measurement .....................................................................................................13 6.4. Operating Condition of EUT ..................................................................................................................13 6.5. Test Procedure ........................................................................................................................................14 6.6. Test Result ..............................................................................................................................................14 7. NUMBER OF HOPPING FREQUENCY TEST ......................................................................... 16 7.1. Block Diagram of Test Setup..................................................................................................................16 7.2. The Requirement For Section 15.247(a)(1)(iii) ......................................................................................16 7.3. EUT Configuration on Measurement .....................................................................................................16 7.4. Operating Condition of EUT ..................................................................................................................16 7.5. Test Procedure ........................................................................................................................................17 7.6. Test Result ..............................................................................................................................................17 8. DWELL TIME TEST ..................................................................................................................... 18 8.1. Block Diagram of Test Setup..................................................................................................................18 8.2. The Requirement For Section 15.247(a)(1)(iii) ......................................................................................18 8.3. EUT Configuration on Measurement .....................................................................................................18 8.4. Operating Condition of EUT ..................................................................................................................18 8.5. Test Procedure ................................................................................................................................…
