2ABRO-IB001-NJaalee Beacon

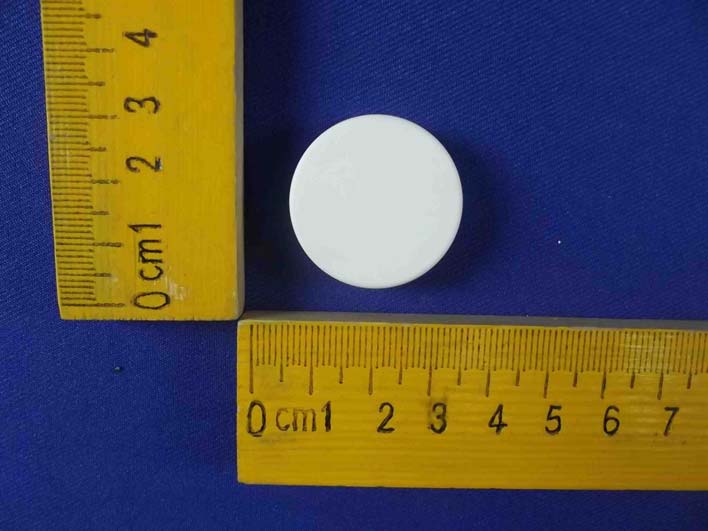

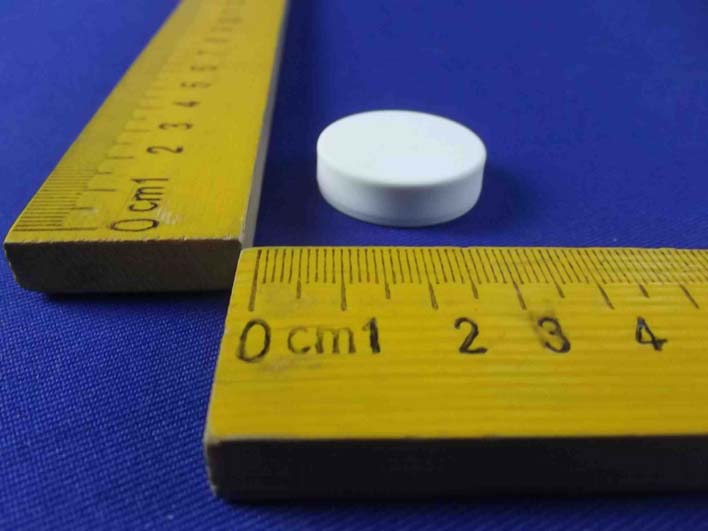

Figure 1 The EUT-Front View Figure 2 The EUT-Back View Figure 3 The EUT-Side View

Label Location On EUT

Model Name: Jaalee Beacon Model No.: iB001-N FCC ID: 2ABRO-IB001-N

Figure 4 TheEUT-InsideView Figure 5 PCB of the EUT-Front View Figure 6 PCB of the EUT-Back View Figure 7 PCB of the BT Module View

Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2ABRO-IB001-N Page 1 of 41 Report No.: R011408360E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com FCC TEST REPORT for Chengdu Jaalee Technology Co., Ltd. Jaalee Beacon Model No.: iB001-N Report Number : R011408360E Date of Test : Aug. 23~ Oct. 17, 2014 Date of Report : Oct. 20, 2014 Prepared for : Chengdu Jaalee Technology Co., Ltd. Address : Building II, Linli Center (period 1), Section II of Southwest Airport Road, Chengdu, 610000, China Prepared By : Shenzhen Anbotek Compliance Laboratory Limited Address : 1/F., Building 1, SEC Industrial Park, No.0409 Qianhai Road, Nanshan District, Shenzhen, Guangdong, China Tel: (86) 755-26066544 Fax: (86) 755-26014772 Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2ABRO-IB001-N Page 2 of 41 Report No.: R011408360E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TABLE OF CONTENT Description Page Test Report 1. GENERAL INFORMATION ..................................................................................................... 4 1.1. Description of Device (EUT) ............................................................................................................... 4 1.2. Auxiliary Equipment Used during Test ............................................................................................... 5 1.3. Description of Test Facility ................................................................................................................. 5 1.4. Measurement Uncertainty .................................................................................................................... 5 2. TEST METHODOLOGY ........................................................................................................... 6 2.1. Summary of Test Results ..................................................................................................................... 6 2.2. Description of Test Modes ................................................................................................................... 6 3. FCC PART 15.247 REQUIREMENTS FOR DSSS & OFDM MODULATION ................... 7 3.1 Test Setup ............................................................................................................................................. 7 3.2 6dB Bandwidth ..................................................................................................................................... 7 3.3. Maximum Peak output power test ..................................................................................................... 10 3.4. Band Edges Measurement ................................................................................................................. 13 3.5. Peak Power Spectral Density ............................................................................................................. 23 3.6. Radiated Emissions ............................................................................................................................ 26 4. PHOTOGRAPH ......................................................................................................................... 37 4.1. Photo of Radiation Emission Test ..................................................................................................... 37 APPENDIX I (EXTERNAL PHOTOS) ....................................................................................... 38 APPENDIX II(INTERNAL PHOTOS) ..................................................................................... 40 Appendix I (2 Pages) Appendix II (2 Pages) Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2ABRO-IB001-N Page 3 of 41 Report No.: R011408360E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com TEST REPORT Applicant : Chengdu Jaalee Technology Co., Ltd. Manufacturer : Chengdu Jaalee Technology Co., Ltd. EUT : Jaalee Beacon Model No. : iB001-N Serial No. : N.A. Trade Mark : Jaalee Rating : DC 3V, 3.6A Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.247 The device described above is tested by Shenzhen Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The measurement results are contained in this test report and Shenzhen Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Part 15 Subpart C requirements. This report applies to above tested sample only and shall not be reproduced in part without written approval of Shenzhen Anbotek Compliance Laboratory Limited. Date of Test : Aug. 23~ Oct. 17, 2014 Prepared by : (Tested Engineer / Kebo Zhang) Reviewer : (Project Manager / Amy Ding) Approved & Authorized Signer : (Manager / Tom Chen) Shenzhen Anbotek Compliance Laboratory Limited FCC ID: 2ABRO-IB001-N Page 4 of 41 Report No.: R011408360E Shenzhen Anbotek Compliance Laboratory Limited Tel:(86)755-26066544 Fax:(86)755-26014772 www.anbotek.com 1. GENERAL INFORMATION 1.1. Description of Device (EUT) EUT : Jaalee Beacon Model Number : iB001-N Test Power Supply : DC 3V Frequency : 2402~2480MHz Modulation : GFSK Channel Spacing : 2MHz Number of Channels : 40 Antenna Type : PCB Trace Antenna Antenna Specification : PCB Antenna:0 dBi Applicant : Chengdu Jaalee Technology Co., Ltd. Address : Building II, Linli Center (period 1), Section II of Southwest Airport Road, Chengdu, 610000, China Manufacturer : Chengdu Jaalee Technology Co., Ltd. Address : Building II, Linli Center (period 1), Section II of Southwest Airport Road, Chengdu, 610000, China Factory : Chengdu Jaalee Technology Co., Ltd. Address : Building II, Linli Cen…

Text truncated - open the document above for the full version.

1. Photo of Radiation Emission Test
