2ABRO-JAALEEBluetooth alarm iBeacon

1 / 4 1.Description The iBeacon module is built-in a battery holder and a coin battery, it can work as alone system.We would like to provide the housing development service at low cost to potential customers. 2 / 4 2.Features - Built-in iBeacon firmware - Built-in a coin battery - Bluetooth low energy technology compatible - Excellent link budget (up to 97dB) - Enable long range applications - Accurate digital RSSI - Compatible with CE and FCC regulation - High performance and low power 8051 core MCU - AES security coprocessor 3.iBeacon parameter default setting -UUID: EBEFD08370A247C89837E7B5634DF524 -Major and minor identifier: 0x0001, 0x0001 -Pairing password: 0x666666 -Power Value:0xc5 -Broadcast Rate:0x14 -It can be rang(default) -It will ring 3 times after reset(default) 4.Modify iBeacon parameter Please download the eBeacon from Apple store and then refer to the below pictures . 3 / 4 5. Electronic Parameters Item Test Data Remarks Battery model CR2016(CR2032) Coin battery, 3.0Vdc, 1pc Operation Voltage 2.0-3.6V DC Operation Frequency 2402-2480MHz Programmable Frequency Error +/- 20KHz Null Modulation GFSK Null Standby current 12uA Null Output Power 1 dBm±1dB Programmable Receiving Sensitivity -93dBm High gain mode Transmission distance 30 meters BER<0.1%, Open space Antenna 50ohm Onboard Size 23.1 x 23.1 x 4mm (23.1 x 23.1 x 5.6mm) Null 4 / 4 6.Operation state and power consumption State Operation Current (mA) State 1: wake-up 6 State 2: pre-processing 7.4 State 3: pre-receiving 11 State 4: receiving 17.5 State 5: Rx changed to TX 7.4 State 6: transmitting 17.5 State 7: pre-processing 7.4 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interfere nce in a residential installation. This equipment generates and can radiate radio frequency energy and, if no t installed and used in accordance with the instructions, may cause harmful interference to radio communic ations. However, there is no guarantee that interference will not occur in a particular installation. If this equi pment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the fol lowing measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1)Thi s device may not cause harmful interference, and (2)This device must accept any interference received, in cluding interference that may cause undesired operation. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modific ations to this equipment. such modifications could void the user’s authority to operate this equipment. FCC RF Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Chengdu Jaalee Technology Co., Ltd Building II, Linli Center (period 1), Section II of Southwest Airport Road , Chengdu,China Mar 13, 2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ Chengdu Jaalee Technology Co., Ltd __hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): FCC ID: 2ABRO-JAALEE Product Name: Jaalee Beacon Model: iB001, eB001 We affirm that between SIEMIC and _ Chengdu Jaalee Technology Co., Ltd __, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely yours, Chengdu Jaalee Technology Co., Ltd ZHIYUAN YAN / Engineer Fax: +8613348940670 Tel: +862889460068 E-mail: [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Chengdu Jaalee Technology Co., Ltd Building II, Linli Center (period 1), Section II of Southwest Airport Road , Chengdu,China Mar 13,2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ABRO-JAALEE We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram- Long-term confidential - Schematics- Long-term confidential - Operational Description- Long-term confidential The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Chengdu Jaalee Technology Co., Ltd ZHIYUAN YAN / Engineer Fax: +8613348940670 Tel: +862889460068 E-mail: [email protected]

Chengdu Jaalee Technology Co., Ltd Product Similarity Declaration FCC ID: 2ABRO-JAALEE DATE:Mar 13, 2014 To Whom It May Concern, We , Chengdu Jaalee Technology Co., Ltd. hereby declare that our (Bluetooth alarm iBeacon) Model Number: eB001 are same as iB001 (PCB,Schemartic,Hardware erc), eB001 and iB001 are Only product Color and trade mark are different,and are named differently due to marketing purposes Please contact me if you have any question. Sincerely yours, Chengdu Jaalee Technology Co., Ltd ZHIYUAN YAN / Engineer Fax: +8613348940670 Tel: +862889460068 E-mail: [email protected]

FCC ID: 2ABRO-JAALEE

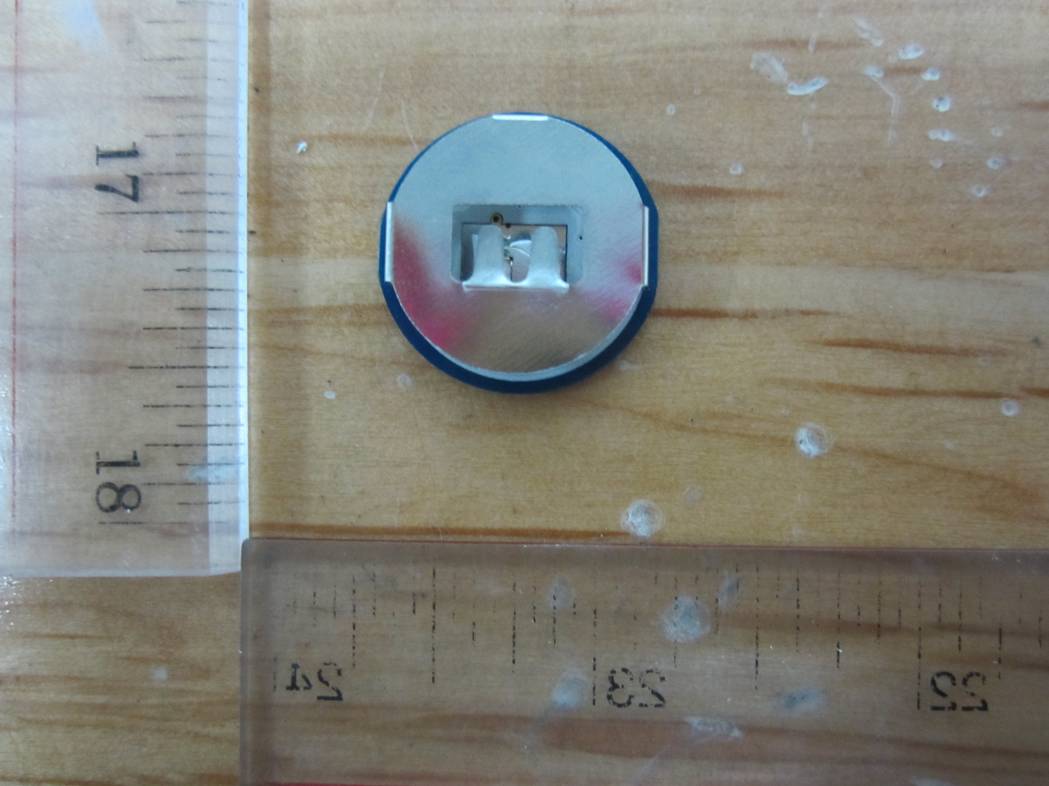

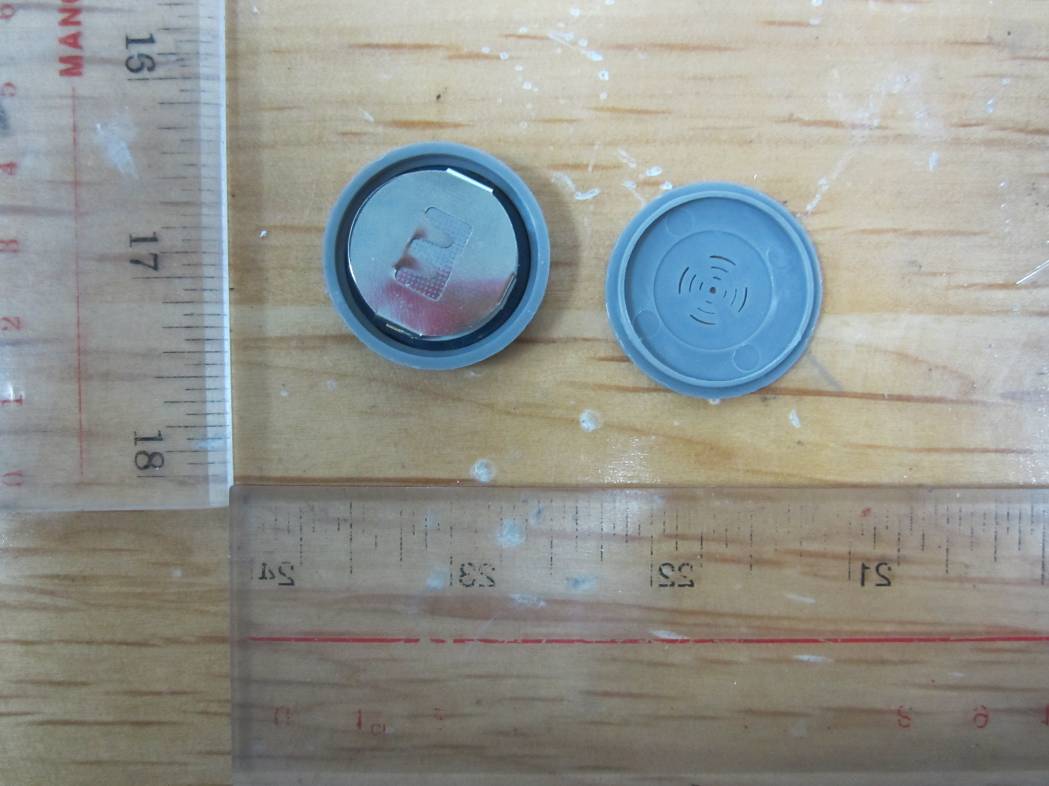

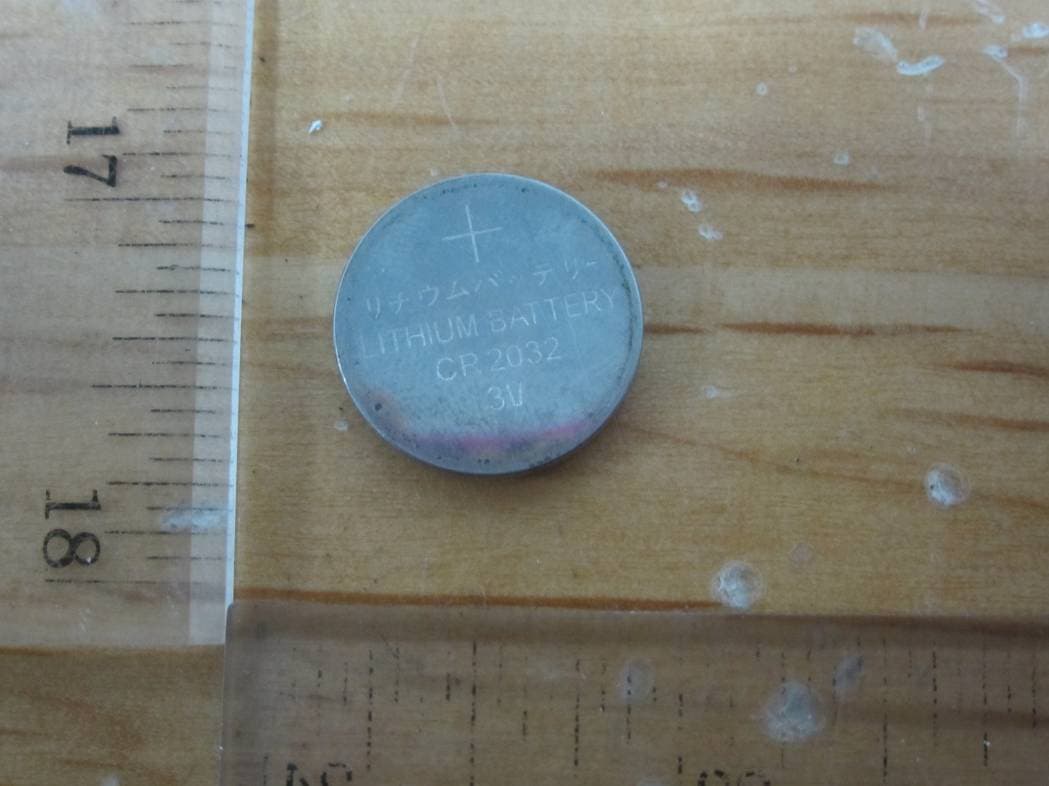

Internal photos of the EUT BT Antenna

RF EXPOSURE REPORT FCC Per 47 CFR 2.1093(d) Report Reference No. ..................... : FCC ID. ............................................ : TRE1401008602 R/C:84443 2ABRO-JAALEE Compiled by ( position+printed name+signature) .. : File administrators Jerome Luo Supervised by ( position+printed name+signature) .. : Test Engineer Yuchao Wang Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : Feb,18 2014 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : Chengdu Jaalee Technology Co., Ltd Address ............................................. : Building II, Linli Center (period 1), Section II of Southwest Airport Road , Chengdu,China Test specification .......................... : Standard ........................................... : FCC Per 47 CFR 2.1093(d) KDB447498 TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Bluetooth alarm iBeacon Trade Mark ....................................... : jaalee Manufacturer .................................. : Chengdu Jaalee Technology Co., Ltd Model/Type reference ....................... : iB001 Listed Models .................................. : eB001 Operation Frequency ........................ : From 2402MHz to 2480MHz Modulation Type ............................... : GFSK Rating ............................................... : Battery: 3V d.c.,30mA Result ................................................ : PASS Report No.: TRE1401008602 Page 2 of 7 Issued:2014-02-18 RF EXPOSURE REPORT Test Report No. : TRE1401008602 Feb,18 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test : Bluetooth alarm iBeacon Model /Type : iB001 Listed Models : eB001 Applicant : Chengdu Jaalee Technology Co., Ltd Address : Building II, Linli Center (period 1), Section II of Southwest Airport Road , Chengdu,China Manufacturer : Chengdu Jaalee Technology Co., Ltd Address : Building II, Linli Center (period 1), Section II of Southwest Airport Road , Chengdu,China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE1401008602 Page 3 of 7 Issued:2014-02-18 Contents 1. SUMMARY ............................................................................. 4 1.1. EUT configuration 4 1.2. NOTE 4 2. TEST ENVIRONMENT ............................................................... 5 2.1. Address of the test laboratory 5 2.2. Environmental conditions 5 2.3. Statement of the measurement uncertainty 5 3. METHOD OF MEASUREMENT .................................................... 5 3.1. Applicable Standard 5 3.2. Limit 6 3.3. RF Exposure 6 4. CONCLUSION ........................................................................ 7 Report No.: TRE1401008602 Page 4 of 7 Issued:2014-02-18 1. SUMMARY 1.1. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer ○ - supplied by the lab ○ Power Cable Length (m) : / Shield : / Detachable : / ○ Multimeter Manufacturer : / Model No. : / 1.2. NOTE 1. The EUT is a Bluetooth alarm iBeacon Bluetooth function,The functions of the EUT listed as below: Test Standards Reference Report Bluetooth FCC Part 15 Subpart C TRE1401008601 RF Exposure FCC Per 47 CFR 2.1093(d) TRE1401008602 2. The frequency bands used in this EUT are listed as follows: Frequency Band(MHz) 2400-2483.5 5150-5350 5470-5725 5725-5850 EUT √ － － － Report No.: TRE1401008602 Page 5 of 7 Issued:2014-02-18 2. TEST ENVIRONMENT 2.1. Address of the test laboratory Shenzhen Huatongwei International Inspection Co., Ltd Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Phone: 86-755-26715686 Fax: 86-755-26748089 The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 (2009) and CISPR Publication 22. 2.2. Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 950-1050mbar 2.3. Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report acc. to TR-100028-01” Electromagnetic compatibility and Radio spectrum Matters (ERM);Uncertainties in the measurement of mobile radio equipment characteristics; Part 1” and TR-100028-02 “Electromagnetic compatibility and Radio spectrum Matters (ERM);Uncertainties in the measurement of mobile radio equipment characteristics; Part 2 “ and is documented in the Shenzhen Huatongwei International Inspection Co., Ltd quality system acc. to DIN EN ISO/IEC 17025. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of cont…

Text truncated - open the document above for the full version.

FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ........................................... : TRE1401008601 R/C:84443 2ABRO-JAALEE Compiled by ( position+printed name+signature) .. : File administrators Jerome Luo Supervised by ( position+printed name+signature) .. : Test Engineer Yuchao Wang Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : Feb,18 2014 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................ : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : Chengdu Jaalee Technology Co., Ltd Address ............................................ : Building II, Linli Center (period 1), Section II of Southwest Airport Road , Chengdu,China Test specification ...........................: Standard ........................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Bluetooth alarm iBeacon Trade Mark ....................................... : jaalee Model/Type reference....................... : iB001 Listed Models .................................. : eB001 Manufacturer .................................. : Chengdu Jaalee Technology Co., Ltd Modulation Type ............................... : GFSK Operation Frequency ........................ : From 2402MHz to 2480MHz Rating ............................................... : Battery:3V d.c.,30mA Result................................................ : PASS Report No.: TRE1401008601 Page 2 of 40 Issued:2014-02-18 T E S T R E P O R T Test Report No. : TRE1401008601 Feb,18 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test : Bluetooth alarm iBeacon Model /Type : iB001 Listed Models : eB001 Applicant : Chengdu Jaalee Technology Co., Ltd Address : Building II, Linli Center (period 1), Section II of Southwest Airport Road , Chengdu,China Manufacturer : Chengdu Jaalee Technology Co., Ltd Address : Building II, Linli Center (period 1), Section II of Southwest Airport Road , Chengdu,China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE1401008601 Page 3 of 40 Issued:2014-02-18 Contents 1. TEST STANDARDS .................................................................. 4 2. SUMMARY ............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. Block Diagram of Test Setup 6 2.6. Related Submittal(s) / Grant (s) 6 2.7. Modifications 6 2.8. NOTE 6 3. TEST ENVIRONMENT ............................................................... 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 8 3.4. Test Description 8 3.5. Statement of the measurement uncertainty 8 3.6. Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1. AC Power Conducted Emission(Not Applicable) ......................................................... 10 4.2. Radiated Emission ........................................................................................................ 11 4.3. Maximum Peak Output Power ...................................................................................... 15 4.4. Power Spectral Density ................................................................................................ 18 4.5. 6dB Bandwidth ............................................................................................................. 21 4.6. Band Edge Compliance of RF Emission ...................................................................... 24 4.7. Spurious RF Conducted Emission ............................................................................... 28 4.8. Antenna Requirement ................................................................................................... 35 5. TEST SETUP PHOTOS OF THE EUT .......................................... 36 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 37 Report No.: TRE1401008601 Page 4 of 40 Issued:2014-02-18 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.247 : Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2009 : American National Standard for Testing Unlicensed Wireless Devices Report No.: TRE1401008601 Page 5 of 40 Issued:2014-02-18 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Jan 15, 2014 Testing commenced on : Jan 20, 2014 Testing concluded on : Feb 17, 2014 2.2. Equipment Under Test Power supply system utilised Power supply voltage : ○ 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) Battery:3.0 V DC 2.3. Short description of the Equi…

Text truncated - open the document above for the full version.

Test setup photos of the EUT_DTS
