2ABSL1151TRANSMITTER

Passive or Active Keyless entry system User Guide 8 Lightwave Technology 400 Wright Street Montreal, QC, Canada, H4N1M6 Website: www.lightwavetechnology.com Passive Keyless Entry System Doc#140109 Rev: 1.0 ©2014 -1W-AM-2BTN-PKE-A- Canada OWNERS MANUAL PKE-AL(PS)-UNI WARNING! It is the responsibility of the vehicle operator to ensure that their vehicle is parked in a safe and responsible manner. A note concerning the battery inside the transmitter: Depending on your usage of the transmitter, the battery can last anywhere between 2 to 3 years. Although we recommend to replace the battery inside the transmitter every year to get the best performances from your system. INDUSTRY CANADA USER NOTICE: Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. Passive or Active Keyless entry system User Guide 2 Table of Contents Government regulations.............................................................................. . ...... 3 Using the transmitter and ADB.................................................................. . ...... 4 Doorlock Access Chart................................................................................. . ...... 5 Trunk / Hatch Release................................................................................. . ...... 6 Valet Mode............................................................................................. . ............... 6 Parking Light Flash Table.................................................................................... 7 Passive or Active Keyless entry system User Guide 7 Diagnostics - Parking lights Flash Table Parking Lights Flashes Description 1 Flash - Door Lock 2 Flashes - Door Unlock 3 Flashes - Valet Mode 5 Flashes - Please see your retailer 6 Flashes - Please see your retailer 7 Flashes - Door Locking command using ADB while RFID transmitter is inside vehicle (Active Mode Only) 8 Flashes - Please see your retailer Passive or Active Keyless entry system User Guide 6 Trunk/Hatch Release or Motorized liftgate With RFID transmitter Press & Release Button 1 & 2 on RFDI transmitter - Parking lights will blink 2 times - Trunk will pop open or Motorized hatch will open or Close Valet Mode Enabled/Disabled Use factory key in ignition cylinder Cycle Key in ignition cylinder 5x On/Off - Valet On = Parking lights will blink 3 times - Valet Off = Parking lights will blink 2 times Passive or Active Keyless entry system User Guide 3 Government regulations This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) Th is device may not cause harmful interference, and (2) this device mu st accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to pa rt 15 of the FCC Rules. These limits are designed to provide reasonable pr otection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not inst alled and used in accordance with the instructions, may cause harmful inte rference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipm ent does cause harmful interference to radio or television reception, whic h can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experien ced radio/TV technician for help. This device complies with the Industry Canada Radio Standards Specification RSS 210. Its use is authorized only on a no-interference, no-protection basis; in other words, this device must not be used if it is determined that it causes harmful inte rferences to servic es authorized by IC. In addition, the user of this device must accept any radio interface that may be received, even if this interfe re-ence could affect the operation of the device. Warning! Changes or modifications not expressly approved by the party responsible for compliance could void th e user’s authority to operate this device. Passive or Active Keyless entry system User Guide 4 Using the Transmitter and ADB Your Passive Keyless system is eq uipped with a 2 button RFDI remote control. This transmit ter is capable of allowing access to yo ur vehicle without pressing any button on it. LOCK Locks the doors and arms the Starter Kill (if installed) UNLOCK Unlocks the doors and disarms the Starter Kill (if installed) TRUNK Opens the Trunk, Hatch or Power liftgate (if option installed) The Active Doorlock Button (ADB) is an optional part installed at the entry doors and can control the Locking and Unlocking of the doors simply by pressing on it. NOTE: The RFID transmitter must be present for the doorlocks to react to the ADB. Passive or Active Keyless entry system User Guide 5 Doorlock Access Chart The Doorlock mode is configured by your installer at the time of installation. There are three (3) different doorlock mode. Passive mode does not require any action from user and is the default me thod to use. Ac…

Text truncated - open the document above for the full version.

LIGHTWAVE TECHNOLOGY Lightwave Technology 400 Wright Street, St-Laurent, QC, H4N-1M6 Tel 514-745-6265 | Fax 514-745-6068 www.lightwavetechnology.com January 29, 2014 Equipment Authorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Model: LWR-1151 FCC ID: 2ABSL1151 IC: 11732A-LWR1151 Re: Request of Confidentiality Pursuant to FCC 47 CRF Sections 0.457(d) and 0.459 and IC RSP-100, Section 10, of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: • Schematics • Block Diagrams • Operational Discriptions The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d) (1) (ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Ismail Warsame RF Design Engineer

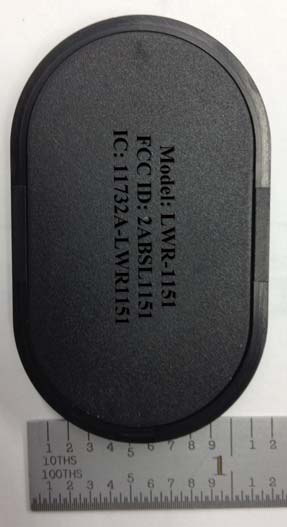

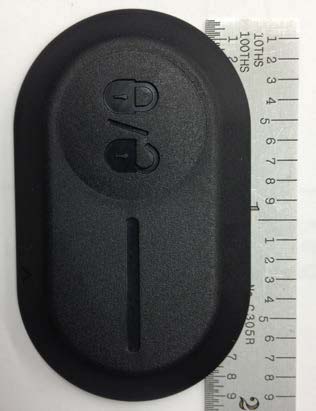

LIGHTWAVE TECHNOLOGY /LJKWZDYH7HFKQRORJ\ :ULJKW6WUHHW6W/DXUHQW4&+10 7HO_)D[ ZZZOLJKWZDYHWHFKQRORJ\FRP External Photos:  0RGHO/:5 ,&$/:5 )&&,'$%6/    3LFWXUH([WHUQDO7RS9LHZ    3LFWXUH([WHUQDO%RW9LHZ

LIGHTWAVE TECHNOLOGY Lightwave Technology 400 Wright Street, St-Laurent, QC, H4N-1M6 Tel 514-745-6265 | Fax 514-745-6068 www.lightwavetechnology.com Internal Photos: Model: LWR-1151 IC: 11732A-LWR1151 FCC ID: 2ABSL1151 Picture 1: Internal Top View Picture 2: Internal Bot View

FCC PART 15.231 TEST REPORT LOW POWER UNLICENSED TRANSMITTER Applicant LIGHTWAVE TECHNOLOGY Address 400 WRIGHT STREET ST-LAURENT QUEBEC CANADA FCC ID 2ABSL1151 Product Description TRANSMITTER Date Sample Received 2/7/2014 Date Tested 2/20/2014 Report Issue Date 2/21/2014 Tested By Joe Scoglio Approved By Joe Scoglio Timco Report No. 192AUT14TestReport.pdf Test Results Pass Fail THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM APPLICANT: LIGHTWAVE TECHNOLOGY FCC ID: 2ABSL1151 REPORT: L\LIGHT_2ABSL\192AUT14\192AUT14TestReport.docx Page 2 of 16 TABLE OF CONTENTS GENERAL REMARKS ...................................................................................................... 3 REPORT SUMMARY ....................................................................................................... 4 TEST ENVIRONMENT ..................................................................................................... 4 TEST SETUP................................................................................................................... 4 DUT SPECIFICATION ..................................................................................................... 5 MANUFACTURE DECLARATION OF COMPLIANCE WITH PART 15.231(A) ..................... 6 TEST EQUIPMENT LIST ................................................................................................. 7 TEST PROCEDURES ...................................................................................................... 8 RADIATION INTERFERENCE .......................................................................................... 9 CALCULATION OF DUTY CYCLE .................................................................................. 11 OCCUPIED BANDWIDTH .............................................................................................. 15 POWER LINE CONDUCTED INTERFERENCE ............................................................... 16 APPLICANT: LIGHTWAVE TECHNOLOGY FCC ID: 2ABSL1151 REPORT: L\LIGHT_2ABSL\192AUT14\192AUT14TestReport.docx Page 3 of 16 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025: 2005 requirements. I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Joe Scoglio Project Manager Date: 2/21/2014 APPLICANT: LIGHTWAVE TECHNOLOGY FCC ID: 2ABSL1151 REPORT: L\LIGHT_2ABSL\192AUT14\192AUT14TestReport.docx Page 4 of 16 REPORT SUMMARY Disclaimer The test results only relate to the item tested. Applicable Rule(s) FCC Pt 15.231, Pt 15.209, Pt 15.207, ANSI C63.4: 2003 Related Report(s) or Approval(s) TEST ENVIRONMENT Test Facility The test sites are located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Condition: Temperature: 26ºC Relative humidity: 50% TEST SETUP Test Exercise (e.g software description, test signal, etc.): The DUT was placed in continuous transmit mode of operation. Deviation from the standard(s) No deviation from the standard(s) Modification to the DUT: No modification was made to the DUT. Supporting Peripheral Equipment Not applicable. The device is a stand-alone remote control radio. APPLICANT: LIGHTWAVE TECHNOLOGY FCC ID: 2ABSL1151 REPORT: L\LIGHT_2ABSL\192AUT14\192AUT14TestReport.docx Page 5 of 16 DUT SPECIFICATION Applicant LIGHTWAVE TECHNOLOGY Description TRANSMITTER FCC ID 2ABSL1151 Model Number LWR-1151 Frequency Range 433.9 MHz DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable APPLICANT: LIGHTWAVE TECHNOLOGY FCC ID: 2ABSL1151 REPORT: L\LIGHT_2ABSL\192AUT14\192AUT14TestReport.docx Page 6 of 16 MANUFACTURE DECLARATION OF COMPLIANCE WITH PART 15.231(A) Item Description Yes No 1 Does this device transmit a signal that is only used to control another device? X 2 Does this device send data with this control signal? X 3 Does this device send data? Data is, things like: temperature, wind direction, fluid amount, rate of flow, etc. X 4 Does this device transmit continuously or automatically? X 5 If manually operated does this device stop transmitting within 5 seconds of releasing the button? X 6 If automatically operated does it deactivate 5 seconds after activation? 7 Does it transmit at regular predetermined intervals? X 8 Does it poll or send supervisory information? X If yes does it do a system integrity check? How often? 9 Is this a fire, security or safety of life device? X If YES does the device stop transmitting after the alarm condition is satisfied? 10 Duty cycle: Maximum on-time? 18.5ms If YES, on-time in 100 ms? If Other, please specify here 100ms On time in 11 Modulation technique: Please specify the modulation of the test sample, FM, or AFSK, or FSK, or on-off keying, or others? OOK APPLICANT: LIGHTWAVE TECHNOLOGY FCC ID: 2ABSL1151 REPORT: L\LIGHT_2ABSL\192AUT14\192AUT14TestReport.docx Page 7 of 16 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A 12/31/13 12/31/15 Analyzer Tan Tower Preamplifier HP 8…

Text truncated - open the document above for the full version.
