2ABTAHNL85CBAAutomatic Upper Arm Blood Pressure Monitor

1 Instruction Manual Automatic Upper Arm Blood Pressure Monitor Model No. HL858CB 2 Table of Contents Medical Disclaimer.......................................................................................03 Intended Use...............................................................................................03 About Blood Pressure.................................................................................04 Measurement Method............................................................................06 Accuracy.......................................................................................................06 Precautions.................................................................................................... 07 Device Overview...........................................................................................09 Symbol Definitions.....................................................................................12 Features.......................................................................................................13 Installing Batteries.....................................................................................18 Using the AC Adapter.................................................................................19 Applying the Cuff........................................................................................20 Measurement Procedure..........................................................................21 Bluetooth Transmission.................................................................................26 Memory Function........................................................................................27 Storage and Maintenance.........................................................................30 Troubleshooting...........................................................................................31 Warranty & Recalibration..........................................................................32 Specifications..............................................................................................33 Note..............................................................................................................35 Appendix........................................................................................................37 Blood Pressure Diary.................................................................................39 3 Medical Disclaimer This manual and product are not meant as a substitute for advice provided by your doctor. You are not to use the information contained herein, or this product for diagnosing or treating a health problem or prescribing any medication. If you have or suspect that you have a medical problem, promptly consult your healthcare provider. Intended Use This device uses the oscillometric method to automatically measure systolic and diastolic blood pressure as well as heart rate. The measurement position is at human being’s arm. All values can be read out in one LCD panel. The device is designed and recommended for use by people over the age of 18 with arm circumference ranging from approx.9 inches to 17 inches (23 cm to 43 cm) and for home use. HL858CB detects the appearance of irregular heartbeats during measurement; an indicated symbol will appear with measuring reading. And the device features a built-in "Bluetooth Data Transmission" function, which enables the device automatically transmit measuring results to paired Bluetooth device. 4 About Blood Pressure 1. What is blood pressure? Blood pressure is the measurement of the force of blood pushing against the walls of the arteries. Arterial blood pressure is constantly fluctuating during the course of the cardiac cycle. The highest pressure in the cycle is called the systolic blood pressure, and represents the pressure in the artery when the heart is beating. The lowest pressure is the diastolic blood pressure, and represents the pressure in the artery when the heart is at rest. Both the systolic and the diastolic pressure are necessary for a physician to evaluate the status of a patient's blood pressure. Many factors such as physical activity, anxiety or the time of day, can influence your blood pressure. Blood pressure is typically low in the mornings and increases from the afternoon to the evening. It is on average lower in the summer and higher in the winter. 2. Why is it useful to measure blood pressure at home? Having one's blood pressure measured by a doctor in a hospital or a clinic, is often associated with an event called “White Coat Hypertension” where the patient becomes nervous or anxious, thus raising his blood pressure. There are also numerous other factors that might cause your blood pressure to be raised at a specific time of day. This is why medical physician recommend home monitoring as it is important to get readings of blood pressure during different times of the day to really get an idea of your real blood pressure. Medical physicians generally recommend the “Rule of 3”, where you are encouraged to take your blood pressure three times in a row (at 3 ~ 5 minute interval), three times a day for three days. After three days you can average all the results and this will give you an accurate idea of what your blood pressure really is. 5 About Blood Pressure A. Standards for assessment of high or low blood pressure without regard to age, have been established by the WHO, and classifications adapted from JNC7: WHO: World Health Organization JNC 7: The Seventh Report of the Joint National Committee on Prevention, Detection, Evaluation, and Treatment of High Blood Pressure. NIH Publication No.04-5230 August 2004 However the above chart is not exact for classification of blood pressure and it's intended to be used as a guide in understanding non-invasive blood pressure measurements. Please consult with your physician for proper diagnosis. B. Variations in blood pressure: Individual blood pressur…

Text truncated - open the document above for the full version.

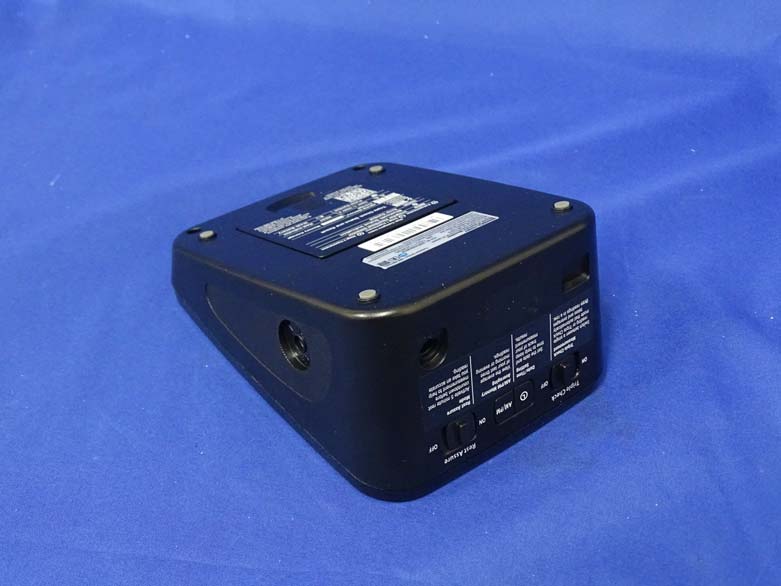

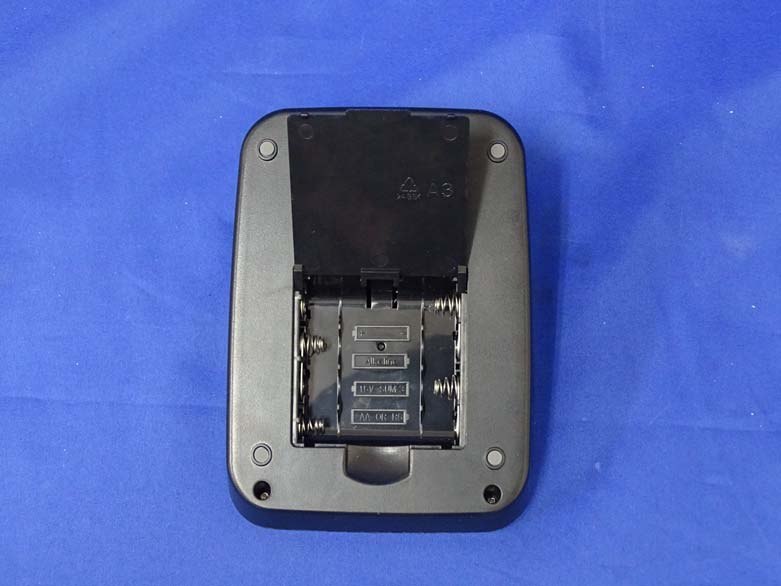

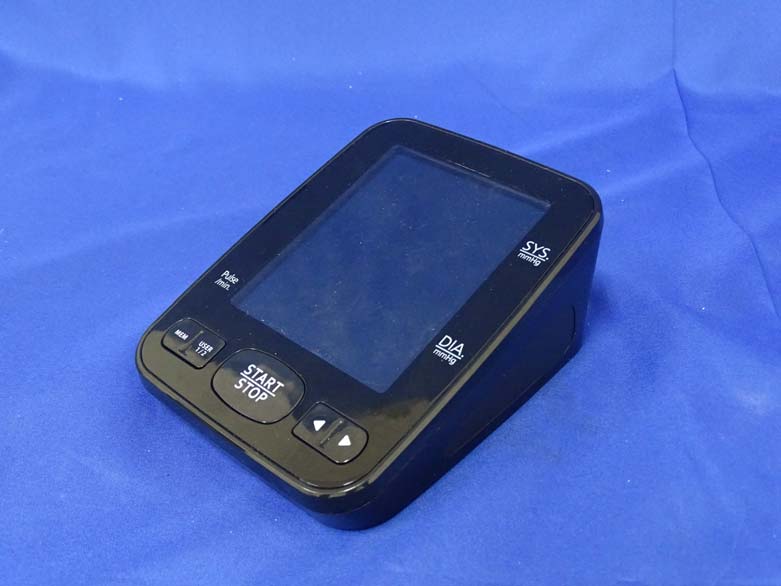

Report No.: 1580266R-RFUSP01V00 Page : 1 of 12 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 1580266R-RFUSP01V00 Page : 2 of 12 (3) EUT Photo (4) EUT Photo

HEALTH & LIFE CO., LTD. FCC ID.: 2ABTAHNL85CBA 9F No.186, Jian Yi Road, Zhonghe District, New Taipei City, TaiwanTel : +886-2-8227-1300 The FCC ID and will be placed on the equipment as shown in the photograph below.

HEALTH & LIFE CO., LTD. FCC ID.: 2ABTAHNL85CBA 9F No.186, Jian Yi Road, Zhonghe District, New Taipei City, TaiwanTel : +886-2-8227-1300 FCC ID Label

Report No.: 1580266R-RFUSP01V00 Page : 3 of 12 (5) EUT Photo (6) EUT Photo Report No.: 1580266R-RFUSP01V00 Page : 4 of 12 (7) EUT Photo (8) EUT Photo Report No.: 1580266R-RFUSP01V00 Page : 5 of 12 (9) EUT Photo (10) EUT Photo RF Chip RF antenna Report No.: 1580266R-RFUSP01V00 Page : 6 of 12 (11) EUT Photo (12) EUT Photo Report No.: 1580266R-RFUSP01V00 Page : 7 of 12 (13) EUT Photo (14) EUT Photo (RF module) Report No.: 1580266R-RFUSP01V00 Page : 8 of 12 (15) EUT Photo (16) EUT Photo Report No.: 1580266R-RFUSP01V00 Page : 9 of 12 (17) EUT Photo (18) EUT Photo Report No.: 1580266R-RFUSP01V00 Page : 10 of 12 (19) EUT Photo (20) EUT Photo Report No.: 1580266R-RFUSP01V00 Page : 11 of 12 (21) EUT Photo (22) EUT Photo Report No.: 1580266R-RFUSP01V00 Page : 12 of 12 (23) EUT Photo (24) EUT Photo

Report No.: 1580266R-RFUSP01V00 Page: 1 of 1 RF Exposure Evaluation declaration Product Name : Automatic Upper Arm Blood Pressure Monitor Model No. : HL858CB FCC ID : 2ABTAHNL85CBA Applicant : HEALTH & LIFE CO., LTD. Address : 9F No.186, Jian Yi Road, Zhonghe District, New Taipei City, Taiwan Date of Receipt : Aug. 06, 2015 Date of Declaration: Aug. 21, 2015 Report No. : 1580266R-RFUSP01V00 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No.: 1580266R-RFUSP01V00 Page: 2 of 2 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No.: 1580266R-RFUSP01V00 Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : Automatic Upper Arm Blood Pressure Monitor Test Item : RF Exposure Evaluation Test Site : No.3 OATS Operation Frequency 2402 – 2480MHz Maximum Conducted output power 5.01dBm Antenna gain -2.39556dBi Output Power Into Antenna & RF Exposure Evaluation Distance: Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 3.169567463 0.0004 Power density is lower than the limit (1 mW/cm2).

Report No. 1580266R-RFUSP01V00 Page: 1 of 47 FCC Test Report Product Name Automatic Upper Arm Blood Pressure Monitor Model No. HL858CB FCC ID. 2ABTAHNL85CBA Applicant HEALTH & LIFE CO., LTD. Address 9F No.186, Jian Yi Road, Zhonghe District, New Taipei City, Taiwan Date of Receipt Aug. 06, 2015 Issued Date Aug. 21, 2015 Report No. 1580266R-RFUSP01V00 Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No. 1580266R-RFUSP01V00 Page: 2 of 47 Test Report Issued Date: Aug. 21, 2015 Report No.: 1580266R-RFUSP01V00 Product Name Automatic Upper Arm Blood Pressure Monitor Applicant HEALTH & LIFE CO., LTD. Address 9F No.186, Jian Yi Road, Zhonghe District, New Taipei City, Taiwan Manufacturer HEALTH & LIFE CO., LTD. Model No. HL858CB FCC ID. 2ABTAHNL85CBA EUT Rated Voltage DC 6V by Battery EUT Test Voltage AC 120V/60Hz Trade Name Health & Life Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2014 ANSI C63.4: 2014, ANSI C63.10: 2013 KDB 558074 D01 DTS Meas Guidance v03r03 Test Result Complied Documented By : ( Senior Engineering Adm. Specialist / Anita Chou ) Tested By : ( Engineer / Ken Chen ) Approved By : (Manager / Vincent Lin ) Report No. 1580266R-RFUSP01V00 Page: 3 of 47 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...............................................................................................................5 1.1. EUT Description......................................................................................................................................5 1.2. Operational Description...........................................................................................................................7 1.3. Tested System Details..............................................................................................................................8 1.4. Configuration of Tested System ..............................................................................................................8 1.5. EUT Exercise Software ...........................................................................................................................8 1.6. Test Facility .............................................................................................................................................9 2. CONDUCTED EMISSION ................................................................................................................10 2.1. Test Equipment ......................................................................................................................................10 2.2. Test Setup ..............................................................................................................................................10 2.3. Limits.....................................................................................................................................................11 2.4. Test Procedure .......................................................................................................................................11 2.5. Uncertainty ............................................................................................................................................11 2.6. Test Result of Conducted Emission .......................................................................................................12 3. PEAK POWER OUTPUT ..................................................................................................................14 3.1. Test Equipment ......................................................................................................................................14 3.2. Test Setup ..............................................................................................................................................14 3.3. Limit ......................................................................................................................................................14 3.4. Test Procedure .......................................................................................................................................14 3.5. Uncertainty ............................................................................................................................................14 3.6. Test Result of Peak Power Output .........................................................................................................15 4. RADIATED EMISSION .....................................................................................................................16 4.1. Test Equipment ......................................................................................................................................16 4.2. Test Setup ..............................................................................................................................................16 4.3. Limits.....................................................................................................................................................18 4.4. Test Procedure .......................................................................................................................................19 4.5. Uncertainty ............................................................................................................................................19 4.6. Test Result of Radiated Emission ..........................................................................................................20 5. RF ANTENNA CONDUCTED TEST.........................…
