2ABUBGC714968Digital Two Way Radio

1 / 25 Samhoo SCI&TECH CO.,LTD. All Rights Reserved Icon Information The following icons are available through this manual: Caution: indicates situations that could cause damage to your terminal. Note: indicates tips that can help you make better use of your terminal. Term Explanation Key Operation Short press: to press a key and release it quickly. Long press: to press and hold down a key for above 1.5 seconds. Hold down: to press a key and remain holding it down. Individual Call Individual call is a simplex or duplex call initiated by a single user to another user, involving the calling party and the called party only. Group Call Group call is a simplex call initiated by a single user to a group of users, involving the calling party and all the group members. Emergency Call Emergency call has the highest priority, and is very helpful for the user to request help when emergency occurs. Generally, it is set to group call type. Emergency call can break off any non-emergency calls in progress. DMO (Direct Mode Operation) DMO mode allows terminals to communicate directly with each other in simplex mode, without network restriction. But functions that require network access, such as telephone call and short message, will be disallowed. TMO (Trunked Mode Operation) TMO mode allows terminals to communicate with each other via the TETRA network, in half duplex or full duplex mode. Functions that require network access are supported. 2 / 25 Samhoo SCI&TECH CO.,LTD. All Rights Reserved To operate in TMO mode, the terminal must be granted authorization by your service provider, and must be within the network coverage. 3 / 25 Samhoo SCI&TECH CO.,LTD. All Rights Reserved Contents Checking Items in the Package .................................................................................................... 4 Product Overview ........................................................................................................................... 5 Terminal Controls.................................................................................................................... 5 Function Keypad ..................................................................................................................... 6 Programmable Keys .............................................................................................................. 6 Before Use ....................................................................................................................................... 7 Charging the Battery .............................................................................................................. 7 Procedures ...................................................................................................................... 7 LED Indications and Charging Progress ..................................................................... 7 Assembly and Disassembly .................................................................................................. 8 Attaching the Antenna .................................................................................................... 8 Attaching the Battery ...................................................................................................... 8 Attaching the Belt Clip ................................................................................................... 8 Attaching Accessories .................................................................................................... 8 Status Indicators ............................................................................................................................. 9 LCD Icons ................................................................................................................................ 9 LED Indicator .......................................................................................................................... 9 Basic Operations .......................................................................................................................... 10 Turning the Terminal On/Off ................................................................................................ 10 Adjusting the Volume ........................................................................................................... 10 Channel Selection ................................................................................................................... 10 Locking/Unlocking the Keypad ........................................................................................... 10 Switching Operation Mode .................................................................................................. 11 Call .......................................................................................................................................... 11 Individual Call ................................................................................................................. 11 Group Call ............................................................................................................................. 11 Emergency Call ............................................................................................................ 12 Menu Navigation ........................................................................................................................... 13 Function .................................................................................................................................. 13 PhoneBook ............................................................................................................................ 13 Message ................................................................................................................................ 14 Profiles ................................................................................................................................... 1…

Text truncated - open the document above for the full version.

SHENZHEN SAMHOO SCI&TECH CO.,LTD. Room 406 Floor 4th,Building 16th, Shangsha Innovation Sci &Tech Park, Binhe Road,shenzhen,China TEL: 0755-8226 8133 FAX: +86-0755-8226 7833 FCC Authorization 2014-03-12 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, SHENZHEN SAMHOO SCI&TECH CO.,LTD., the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Xinguo Xu R&D director

SHENZHEN SAMHOO SCI&TECH CO.,LTD. Room 406 Floor 4th,Building 16th, Shangsha Innovation Sci &Tech Park, Binhe Road,shenzhen,China TEL: 0755-8226 8133 FAX: +86-0755-8226 7833 FCC Confidential Authorization 2014-3-12 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: 2ABUBGC714968 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below:  Block Diagram--- (Long term)  Circuit Description--- (Long term)  schematic --- (Long term)  Parts list--- (Long term)  Tune up procedure--- (Long term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Signature: Xinguo Xu R&D director

SHENZHEN SAMHOO SCI&TECH CO.,LTD. Room 406 Floor 4th,Building 16th, Shangsha Innovation Sci &Tech Park, Binhe Road,shenzhen,China TEL:15625252002 FAX: +86-0755-8226 7833 Date:2014-3-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Extended Frequencies Justification Dear Sir/Madam, The Radio with FCC ID: 2ABUBGC714968 was designed to operate in the frequency bands 400~470MHz To aid equipment authorization in other countries which accept the United States FCC Grant for Certification, SHENZHEN SAMHOO SCI&TECH CO.,LTD. is requesting that the FCC lists the frequencies 400~470MHz. under FCC Rule Parts90 on the FCC Grant. SHENZHEN SAMHOO SCI&TECH CO.,LTD Attests that the radio will not be marketed to USA users with the frequency band which is not allowed by the rule part 15B and 90. Per the FCC’s KDB634817 guidance, as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Also, equipment programming is the responsibility of Authorized Service Personnel, the radio complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Frequency Range（MHz） FCC rule part 406.1-450MHz For FCC Part 90 450-454MHz For FCC Part 90 456-460MHz For FCC Part 90 460-462.5375MHz For FCC Part 90 462.7375-467.5375MHz For FCC Part 90 467.7375-470MHz For FCC Part 90 Sincerely Yours, Signature: Xinguo Xu R&D director

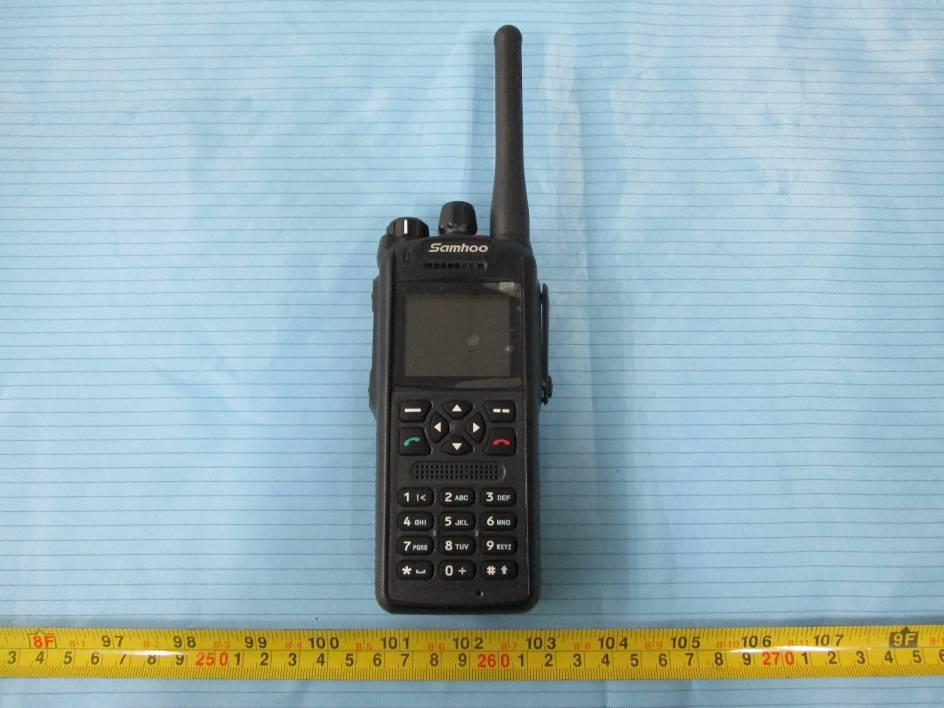

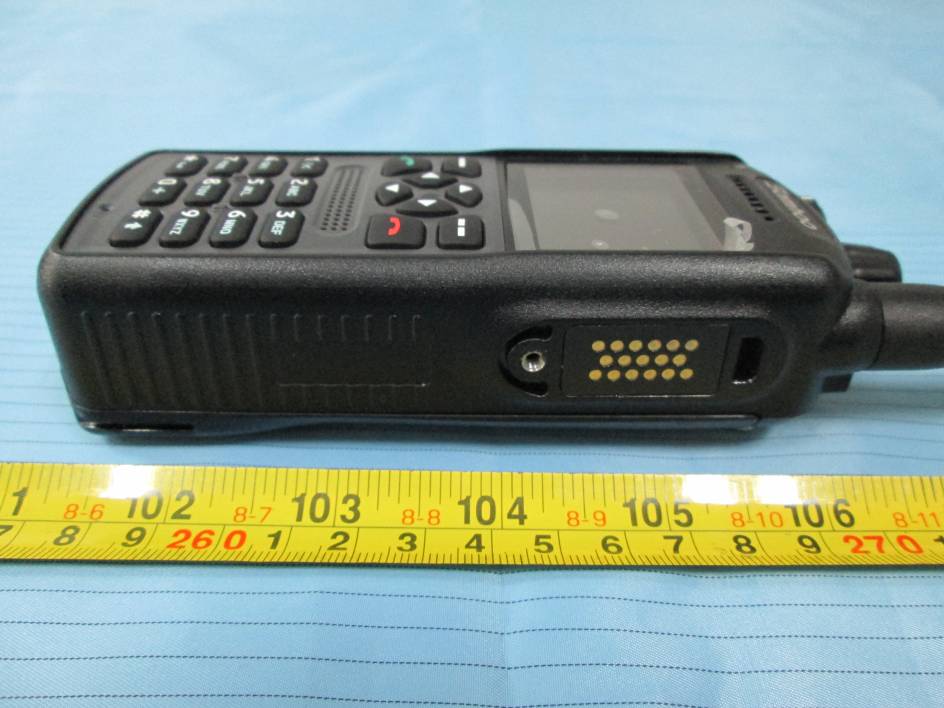

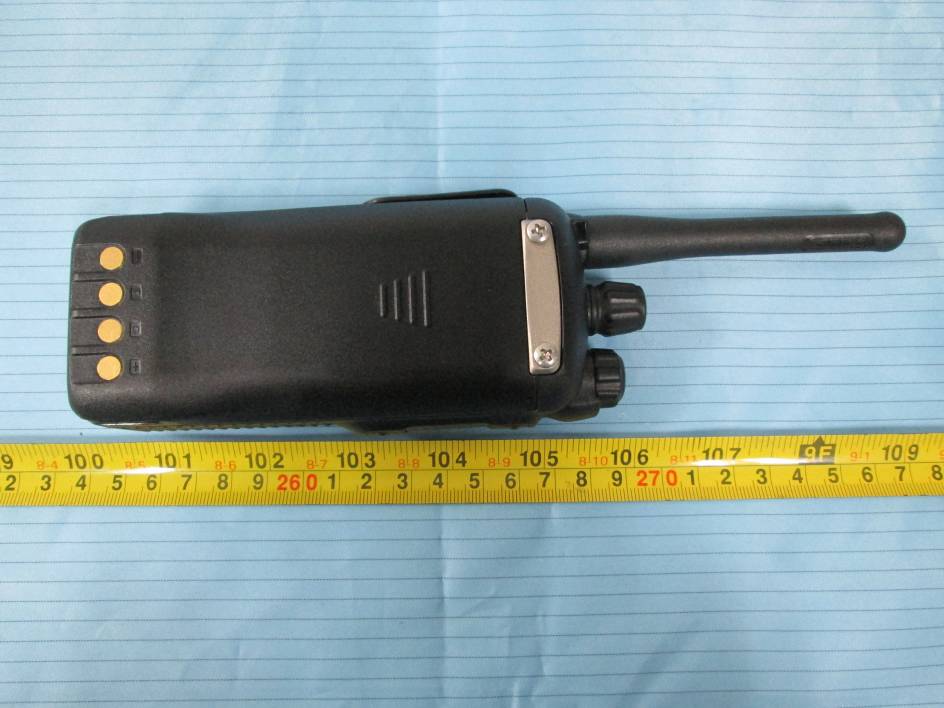

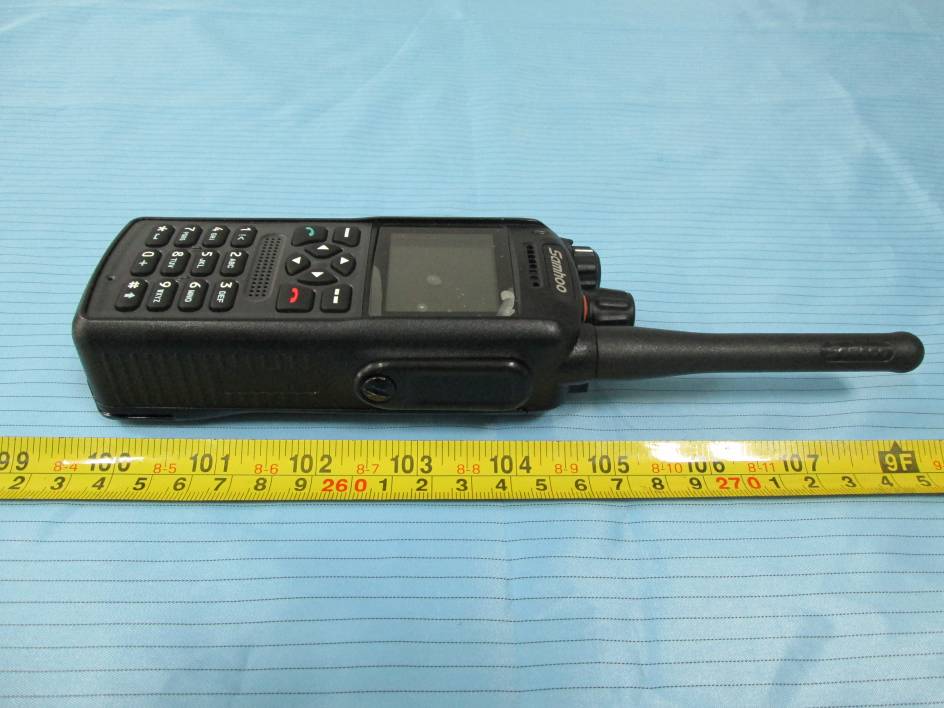

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Top View 1 EUT – Top View 2 EUT – Bottom View EUT – Left View EUT – Right View 1 EUT – Right View 2 EUT – Antenna View 1 EUT – Antenna View 2

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Statement Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Cover off View 1 EUT – Cover off View 2 EUT – Main Board Top View EUT – Main Board Top Shielding off View EUT – Main Board Bottom View EUT – Main Board Bottom Shielding off View EUT – LCD Board Top View 1 EUT – LCD Board Top View 2 EUT – LCD Board Bottom View EUT – Battery Label View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. SAR EVALUATION REPORT For SHENZHEN SAMHOO SCI&TECH CO., LTD. Room 406 Floor 4th, Building 16th, Shangsha Innovation Sci &Tech Park, Binhe Road, Shenzhen, China FCC ID: 2ABUBGC714968 Report Type: Original Report Product Type: Digital Two Way Radio Test Engineer: Wilson Chen Report Number: RSZ140106003-20 Report Date: 2014-03-18 Reviewed By: Sandy Wang SAR En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: RSZ140106003-20 SAR Evaluation Report 2 of 61 Attestation of Test Results EUT Information Company Name SHENZHEN SAMHOO SCI&TECH CO., LTD. EUT Description Digital Two Way Radio FCC ID 2ABUBGC714968 Model Number SPH6040 Test Date 2014-03-16 to 2014-03-17 Mode Frequency (MHz) Max. SAR Level(s) Report Limit (W/Kg) Analog 400-470 12.5kHz Face up: 1.660 W/kg (50% duty cycle) Body-Back: 3.052 W/kg (50% duty cycle) 8 Digital 12.5kHz Face up: 1.703 W/kg Body-Back: 3.337 W/kg Applicable Standards ANSI / IEEE C95.1: 2005 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fileds,3 kHz to 300 GHz. ANSI / IEEE C95.3: 2002 IEEE Recommended Practice for Measurements and Computations of Radio Frequency Electromagnetic Fields With Respect to Human Exposure to SuchFields,100 kHz—300 GHz. IEEE1528:2003 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques KDB procedures KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies KDB 643646 SAR Test Reduction Considerations for Occupational PTT Radios Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Standards and has been tested in accordance with the measurement procedures specified in IEEE 1528-2003 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: RSZ140106003-20 SAR Evaluation Report 3 of 61 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 EUT DESCRIPTION .................................................................................................................................................... 5 TECHNICAL SPECIFICATION ......................................................................................................................................... 5 REFERENCE, STANDARDS, AND GUILDELINES ............................................................................................... 6 SAR LIMITS ................................................................................................................................................................. 7 FACILITIES .................................................................................................................................................................. 8 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 9 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 16 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 16 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 17 LIQUID VERIFICATION ............................................................................................................................................... 17 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 19 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 20 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 24 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 24 CHEEK/TOUCH POSITION ........................................................................................................................................... 25 EAR/TILT POSITION ................................................................................................................................................... 25 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS .............................................................................. 26 SAR EVALUATION PROCEDURE ................................................................................................................................. 27 CONDUCTED OUTPUT POWER MEASUREMENT ........................................................................................... 28 PROVISION APPLICABLE ............................................................................................................................................ 28 TEST PROCEDURE ...............................................................................................................................................…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 90 TEST REPORT For SHENZHEN SAMHOO SCI&TECH CO., LTD. Room 406 Floor 4th, Building 16th, Shangsha Innovation Sci &Tech Park, Binhe Road, Shenzhen, China FCC ID: 2ABUBGC714968 Report Type: Original Report Product Type: Digital Two Way Radio Test En gineer: Candy Li Re port Number: RSZ140106003-00A Re port Date: 2014-03-18 Reviewed B y: Jimmy Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ140106003-00A FCC PART 90 Page 2 of 30 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 5 SUMMARY OF TEST RESULTS ............................................................................................................................... 6 FCC §1.1307(b) & §2.1093 - RF EXPOSURE ............................................................................................................. 7 APPLICABLE STANDARD .............................................................................................................................................. 7 FCC §2.1046 & §90.205 - RF OUTPUT POWER ....................................................................................................... 8 APPLICABLE STANDARD .............................................................................................................................................. 8 TEST PROCEDURE ........................................................................................................................................................ 8 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 8 TEST DATA .................................................................................................................................................................. 8 FCC §2.1047 §90.207 - MODULATION CHARACTERISTIC .............................................................................. 10 APPLICABLE STANDARD ............................................................................................................................................ 10 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 10 TEST PROCEDURE ...................................................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 10 FCC §2.1049 & §90.209 & §90.210 – OCCUPIED BANDWIDTH & EMISSION MASK ................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 14 TEST DATA ................................................................................................................................................................ 15 FCC §2.1051 & §90.210 - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ............................................ 20 APPLICABLE STANDARD ............................................................................................................................................ 20 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 20 TEST PROCEDURE .…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Transmitting Radiated Emissions (Below 1 GHz) Transmitting Radiated Emissions (Above 1 GHz) Extreme Condition View
