Wi‐MM BP100 Users Manual (Page1) The Wi‐MM BP100 is a cloud based activity monitor for bicyclists. You get on the bike, BP100 knows you’re there, gathers your data, and uploads it to the cloud in real time. You focus on enjoying your ride and the cycling experience, knowing all of the data is there for you, all the time. No more post‐ride downloads or adding and removing hardware from your bike. The anti‐theft element of the BP100 system has the potential to entirely change the mindset of how often you use your bike or even what kind of bike is purchased. Mount the BP100 to the bicycle at the water bottle site using the M5 tamper resistant screws provided. Register the BP100 at www.wi‐mm.com and install the mobile phone app. The mobile app is the primary interface for setting and controlling the BP100 system. The BP100 should be charged before use. Charging is through the micro‐USB port. The BP100 can be connected to a wall charger, computer, or other USB standard port with +5V power for charging. The second light from the bottom (orange) will be solid orange when the charger is plugged in. The light will turn off when the unit is fully charged. If the battery is fully depleted, charging time can be up to 4 hours. Manufacturer: Wi-MM Corp. Model: BP100-2-2-1 FCC ID: 2ABUE-BP100-2-2-1 IC: 11915A-BP100221 Model BP100-2-2-1 Wi‐MM BP100 Users Manual (Page2) GPS (Yellow). Blinks when the unit is awake and GPS is active. Lock (Red) When the alarm is set (on) this light will blink Battery (Orange) Solid when the unit is charging (connected to USB) Off when the battery level is OK Blinking when the battery level is low Logging & Mapping (Green) Blinks when the BP100 is logging and mapping a ride. USB Charging Port Soft Reset Button Manufacturer: Wi-MM Corp. Model: BP100-2-2-1 FCC ID: 2ABUE-BP100-2-2-1 IC: 11915A-BP100221 Model BP100-2-2-1 Wi‐MM BP100 Users Manual (Page3) Operation is automatic or set using the mobile app. The unit must be “awake” (i.e. yellow light flashing) to immediately process new commands. Alternately, commands such as set alarm, or start logging can be entered when the unit is “asleep”, and the command will be processed the next time the BP100 wakes up. Log in to the Wi‐MM app on the mobile phone with the email address and password used for registering. App function for icons (left to right) are: ID This button will lead to the display showing information about the BP100 and registered user. Locate Pressing this button will show the bike location one time on a map. Log & Map Pressing this button activates continuous logging and mapping. The system maps the ride and records speed, elevation, battery charge, and other custom bike sensor data. This information is available locally on the mobile phone or remotely in real time as the ride is underway. After completing the ride, logging and mapping is stopped by pressing the same icon. The display will zoom out and map markers will indicate start (green) and stop (red) points. A blue line will show the path travelled. Ride data, including history is available on the mobile phone or through the web interface accessed by logging into the user account at www.wi‐mm.com. Additional information such as calories burned and carbon offsets are including in the web interface. Data can also be uploaded to third party apps such as Strava. Alarm: The alarm is set by pressing the lock icon on the mobile app. The lock icon will close and turn red. If the bike is moved, an audible alarm will sound and the user will receive a text message and email indicating suspicious activity. Others can be automatically informed of a stolen bike by opting in to several options available at the Wi‐MM website registration portal. The alarm function is turned off by pressing the same icon once. After a few seconds the lock will open and the icon will turn from red to off (gray). Manufacturer: Wi-MM Corp. Model: BP100-2-2-1 FCC ID: 2ABUE-BP100-2-2-1 IC: 11915A-BP100221 Model BP100-2-2-1 Wi‐MM BP100 Users Manual (Page4) Sound Alarm: Pressing the right most button with the speaker icon will manually sound the alarm one time and display the bike location on the map . For battery savings, the BP100 will shut down (deep sleep mode) all non‐essential functions if it is not moved for about 5 minutes (default). The BP100 automatically wakes up by sensing motion. The bike mounted BP100 is ready for use once the yellow GPS light is flashing continuously. The alarm function is still active, even when the BP100 is in deep sleep. The user can park the bike, set the alarm, and have the security of knowing that the system will automatically wake upon movement, sound the alarm, and provide text and email notifications of tampering, weeks or even months later. The BP100 can be reset to factory installed firmware by holding the reset button for about five seconds and then releasing. After a two tone sound, all lights will flash and the system will restart. The restart process may take up 30‐60 seconds as the system connects to the cellular network and acquires the GPS signal. The restart process is complete when the unit beeps once and the GPS light (Yellow) begins to flash continuously. Manufacturer: Wi-MM Corp. Model: BP100-2-2-1 FCC ID: 2ABUE-BP100-2-2-1 IC: 11915A-BP100221 Model BP100-2-2-1 Wi‐MM BP100 Users Manual (Page5) REGULATORY NOTICE This equipment is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government and Industry Canada. The exposure standard employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit relevant for the application described in this manual is 1.6W/kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actu…

Text truncated - open the document above for the full version.

To Whom It May Concern: Subject: Validity of Test Results from Testing / Certification of the integrated Module WE, Wi-MM Corporation, 1885 De La Cruz Blvd., Santa Clara, CA 95050 confirm that the results from conducted tests applied to the radio modules CDMA Cell Module Module Manufacturer: U-Blox Module Description: LISA-C200 CDMA 800/1900 MHz module FCC Identifier: XU9-LISAC200 Module Test Report: 2012 04203246 FCC, Date submitted to FCC 4/11/12 Bluetooth Module Module Manufacturer: BlueGiga Technologies Module Description: Bluetooth 4.0 Module FCC Identifier: QOQBLE113 Module Test Report: SGS Reference Number 268252, Date submitted to FCC 4/30/13 which are incorporated in our host equipment and as reported in module test report(s) noted above accurately represent the test results under the new conditions when the identified radio modules are integrated in the identified host equipment. By integration of the said radio modules into the identified host equipment no changes were made to it or by external adaptation circuitry that impacts the validity of the results of the original module’s test reports. Leslie Levitt, CTO Dated: 4-18-14 Manufacturer: Wi-MM Corp. Model: BP100-2-2-1 FCC ID: 2ABUE-BP100-2-2-1 IC: 11915A-BP100221 Model BP100-2-2-1

Receiver Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Subject: Request for Permanent Confidentiality FCC ID: 2ABUE-BP100-2-2-1 To Whom It May Concern: In accordance with §0.457(d) and §0.459 of CFR 47, Wi-MM Inc. requests permanent confidentiality for the following items 1. Block Diagram 2. Schematic Diagram 3. Part List 4. Operational Description 5. Internal Photos These items contain detailed system and equipment description and related information about the product which Wi-MM Inc. considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. The circuit board is inside a sealed housing only serviceable by Wi-MM Inc. Since this design is a basis from which future technological products will evolve, Wi-MM Inc. also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Best Regards, June 17th 2014, Santa Clara CA

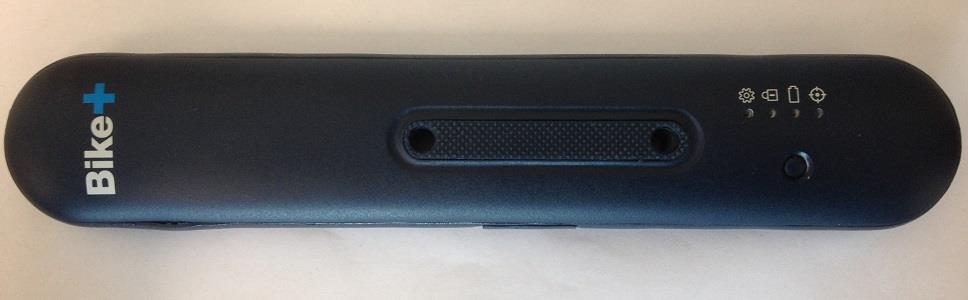

1 EUT Photos EUT Top View EUT Bottom View

WI-MM SIZE A CAGE CODE DWG. NO. Certification BP100 REV. I PAGE 24 12.0 TUNE UP PROCEDURE There is no tuning or tune up procedure since the design is based on pre-tested modules. 13.0 LABEL ID & LOCATION INFO The label is located on the back of the unit where shown below. FCC ID: 2ABUE-BP100-2-2-1 IC: 1195A-BP100221 Model BP100-2-2-1 14.0 USERS MANUAL [see the following pages from Wi-MM BP100 Users Manual 6-26-14.doc] Manufacturer: Wi-MM Corp. Model: BP100-2-2-1 FCC ID: 2ABUE-BP100-2-2-1 IC: 11915A-BP100221 Model BP100-2-2-1

FCC Listed #: A2LA Accredited IC Recognized # 3462B-1 CETECOM Inc. 411 Dixon Landing Road
Milpitas, CA 95035
U.S.A. Phone: + 1 (408) 586 6200
Fax: + 1 (408) 586 6299
E)mail: [email protected]
http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 V5.2 2013)02)15 © Copyright by CETECOM SAR Test Report FOR: Manufacturer: Wi-MM Corporation Model Number: BP100-2-2-1 FCC ID: 2ABUE-BP100-2-2-1 IC Certification Number: 11915A-BP100221 Test Report #: SAR_WIMML_002_14001 Date of Report: June 27, 2014 Test Report #: SAR_WIMML_002_14001 FCC ID: 2ABUE)BP100)2)2)1 Date of Report: June 27, 2014 IC Cert. No.: 11915A)BP100221 Page 2 of 22 V5.1 2013)01)09 This report shall not be reproduced except in full without the written approval of: CETECOM Inc.
SAR
411 Dixon Landing Road
Milpitas, CA 95035
U.S.A. TABLE OF CONTENTS 1. Assessment ................................................................................................................................. 4 2. Administrative Data .................................................................................................................. 5 2.1. Identification of the Testing Laboratory Issuing the SAR Test Report ..................... 5 2.2. Identification of the Client .............................................................................................. 5 2.3. Identification of the Manufacturer ................................................................................. 5 3. Equipment under Test (EUT) .................................................................................................. 6 3.1. General Specification of the Equipment under Test..................................................... 6 3.2. Technical Specification of Supported Radios ................................................................ 7 3.3. Identification of the Equipment Under Test (EUT) ...................................................... 7 3.4. Identification of Accessory equipment ........................................................................... 7 3.5. Maximum SAR values ..................................................................................................... 7 4. Subject of Investigation ............................................................................................................. 8 4.1. The IEEE Standard C95.1 , FCC Exposure Criteria, and IC Exposure Criteria ..... 8 4.2. SAR Limit ......................................................................................................................... 8 5. Measurement Procedure ........................................................................................................... 9 5.1. General Requirements ..................................................................................................... 9 5.2. Body-worn and Other Configurations ........................................................................... 9 5.3. Procedure for assessing the peak spatial-average SAR .............................................. 10 5.4. Determination of the largest peak spatial-average SAR ............................................ 12 6. The Measurement System ....................................................................................................... 13 6.1. Robot system specification ............................................................................................ 13 6.2. Isotropic E-Field Probe for Dosimetric Measurements ............................................. 14 6.3. Data Acquisition Electronics ......................................................................................... 14 6.4. Phantoms ........................................................................................................................ 14 6.5. Interpolation and Extrapolation schemes .................................................................... 14 7. Uncertainty Assessment .......................................................................................................... 15 7.1. Measurement Uncertainty Budget According to IEEE 1528:2013 ........................... 15 Test Report #: SAR_WIMML_002_14001 FCC ID: 2ABUE)BP100)2)2)1 Date of Report: June 27, 2014 IC Cert. No.: 11915A)BP100221 Page 3 of 22 V5.1 2013)01)09 This report shall not be reproduced except in full without the written approval of: CETECOM Inc.
SAR
411 Dixon Landing Road
Milpitas, CA 95035
U.S.A. 7.1. Measurement Uncertainty Budget According to EN 62209-1 ................................... 16 8. Test results summary .............................................................................................................. 17 8.1. Conducted Average Output Power .............................................................................. 17 8.2. Stand-Alone SAR Evaluation Exclusion ...................................................................... 17 8.3. Test Positions and Configurations ................................................................................ 18 8.4. SAR Results for Body .................................................................................................... 18 8.5. Simultaneous Transmission SAR Evaluation Consideration .................................... 19 8.6. Dipole verification .......................................................................................................... 20 9. References ................................................................................................................................ 21 10. Report History ......................................................................................................................... 22 Appendices: Appendix A – Plots Appendix B – Antenna location , Test Setup Photos Appendix C – Tissue liquid parameters, Equipment list Test Report #: SAR_WIMML_002_14001 FCC ID: 2ABUE)BP100)2)2)1 Date of Report: June 27, 2014 IC Cert. No.: 11915A)BP100221 Page 4 of 22…

Text truncated - open the document above for the full version.

FCC ID: 2ABUE BP100 2 2 1 IC Cert. No.: 11915A BP100221 SAR Test Report - Appendix A - Plots Page 1 of 13 Plot 1 Date/Time: 5/30/2014 3:28:19 PM Test Laboratory: Cetecom Inc., SAR 3 Lab DUT: Wi-MM; Type: Bike ; Serial: MEID:A10000369F479F Communication System: CDMA2000 (1xRTT, RC3); Frequency: 836 MHz Medium: MSL900_Batch 110518 7 Medium parameters used: f = 836 MHz; σ = 0.963 mho/m; ε r = 53.395; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19 2007) Procedure Notes: Test Technician: Kathy; Air Temperature: 21.9C; Medium Temperature: 21C; Comments: ; DASY Configuration: • Probe: ES3DV3 SN3244; ConvF(6.15, 6.15, 6.15); Calibrated: 3/19/2014; • Sensor Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 • Electronics: DAE4 Sn1233; Calibrated: 3/17/2014 • Phantom: SAM Front; Type: QD000P40CD; Serial: TP 1637 • DASY52 52.8.1(838); Flat-Section/Front 30mm/Area Scan (7x24x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.115 mW/g Flat-Section/Front 30mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.388 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 0.135 mW/g SAR(1 g) = 0.103 mW/g; SAR(10 g) = 0.077 mW/g Maximum value of SAR (measured) = 0.116 mW/g Flat-Section/Front 30mm/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.388 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 0.097 mW/g SAR(1 g) = 0.075 mW/g; SAR(10 g) = 0.054 mW/g Maximum value of SAR (measured) = 0.0816 mW/g 0 dB = 0.115 mW/g = 18.80 dB mW/g FCC ID: 2ABUE BP100 2 2 1 IC Cert. No.: 11915A BP100221 SAR Test Report - Appendix A - Plots Page 2 of 13 Plot 2 Date/Time: 5/30/2014 4:14:28 PM Test Laboratory: Cetecom Inc., SAR 3 Lab DUT: Wi-MM; Type: Bike ; Serial: MEID:A10000369F479F Communication System: CDMA2000 (1xRTT, RC3); Frequency: 836 MHz Medium: MSL900_Batch 110518 7 Medium parameters used: f = 836 MHz; σ = 0.963 mho/m; ε r = 53.395; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19 2007) Procedure Notes: Test Technician: Kathy; Air Temperature: 21.8C; Medium Temperature: 21C; Comments: ; DASY Configuration: • Probe: ES3DV3 SN3244; ConvF(6.15, 6.15, 6.15); Calibrated: 3/19/2014; • Sensor Surface: 3mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 • Electronics: DAE4 Sn1233; Calibrated: 3/17/2014 • Phantom: SAM Front; Type: QD000P40CD; Serial: TP 1637 • DASY52 52.8.1(838); Flat-Section/Back 30mm/Area Scan (7x24x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.117 mW/g Flat-Section/Back 30mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.777 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.137 mW/g SAR(1 g) = 0.107 mW/g; SAR(10 g) = 0.080 mW/g Maximum value of SAR (measured) = 0.119 mW/g Flat-Section/Back 30mm/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.777 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.087 mW/g SAR(1 g) = 0.066 mW/g; SAR(10 g) = 0.047 mW/g Maximum value of SAR (measured) = 0.0736 mW/g 0 dB = 0.117 mW/g = 18.67 dB mW/g FCC ID: 2ABUE BP100 2 2 1 IC Cert. No.: 11915A BP100221 SAR Test Report - Appendix A - Plots Page 3 of 13 Plot 3 Date/Time: 5/30/2014 5:10:06 PM Test Laboratory: Cetecom Inc., SAR 3 Lab DUT: Wi-MM; Type: Bike ; Serial: MEID:A10000369F479F Communication System: CDMA2000 (1xRTT, RC3); Frequency: 836 MHz Medium: MSL900_Batch 110518 7 Medium parameters used: f = 836 MHz; σ = 0.963 mho/m; ε r = 53.395; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19 2007) Procedure Notes: Test Technician: Kathy; Air Temperature: 21.8C; Medium Temperature: 21C; Comments: ; DASY Configuration: • Probe: ES3DV3 SN3244; ConvF(6.15, 6.15, 6.15); Calibrated: 3/19/2014; • Sensor Surface: 3mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 • Electronics: DAE4 Sn1233; Calibrated: 3/17/2014 • Phantom: SAM Front; Type: QD000P40CD; Serial: TP 1637 • DASY52 52.8.1(838); Flat-Section/Left Edge 30mm/Area Scan (7x24x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.0874 mW/g Flat-Section/Left Edge 30mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.942 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.104 mW/g SAR(1 g) = 0.080 mW/g; SAR(10 g) = 0.059 mW/g Maximum value of SAR (measured) = 0.0897 mW/g 0 dB = 0.0874 mW/g = 21.17 dB mW/g FCC ID: 2ABUE BP100 2 2 1 IC Cert. No.: 11915A BP100221 SAR Test Report - Appendix A - Plots Page 4 of 13 Plot 4 Date/Time: 5/30/2014 4:51:56 PM Test Laboratory: Cetecom Inc., SAR 3 Lab DUT: Wi-MM; Type: Bike ; Serial: MEID:A10000369F479F Communication System: CDMA2000 (1xRTT, RC3); Frequency: 836 MHz Medium: MSL900_Batch 110518 7 Medium parameters used: f = 836 MHz; σ = 0.963 mho/m; ε r = 53.395; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19 2007) Procedure Notes: Test Technician: Kathy; Air Temperature: 21.8C; Medium Temperature: 21C; Comments: ; DASY Configuration: • Probe: ES3DV3 SN3244; ConvF(6.15, 6.15, 6.15); Calibrated: 3/19/2014; • Sensor Surface: 3mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0 • Electronics: DAE4 Sn1233; Calibrated: 3/17/2014 • Phantom: SAM Front; Type: QD000P40CD; Serial: TP 1637 • DASY52 52.8.1(838); Flat-Section/Right Edge 30mm/Area Scan (7x24x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.0778 mW/g Flat-Section/Right Edge 30mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.463 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.092 mW/g SAR(1 g) = 0.070…

Text truncated - open the document above for the full version.

FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix B - Photos Page 1 of 4 Antenna Locations Cellular Antenna Bluetooth Antenna FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix B - Photos Page 2 of 4 Setup Photos Photo 1: Front Photo 2: Back FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix B - Photos Page 3 of 4 Photo 3: Left Edge Photo 4: Right Edge FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix B - Photos Page 4 of 4 Photo 5: 15cm Liquid Depth in Flat Section of SAM Phantom Photo 6: 15cm Liquid Depth in Elliptical Phantom

FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix C - Misc Page 1 of 46 Tissue Parameters Recipe for liquids below 1 GHz: Water 35-58% Sugar 40-60% Salt 0-6% Hydroxyethyl-cellulose <0.3% Preventol-D7 0.1-0.7% Recipe for liquids above 1-3 GHz: Water 52-75% DGBE 25-48% Salt <1.0% SAR measurements were made within 24 hours of the measurement of liquid parameters. Relative permittivity and conductivity are within ±5% of the target. FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix C - Misc Page 2 of 46 850 MHz Body Liquid Date Temp (°C) Frequency (MHz) Relative Permativit y Conductivity (S/m) 82453.553 0.9429 82553.5173 0.9442 82653.5269 0.9462 82753.5101 0.9476 83553.4087 0.9607 83653.3945 0.9627 83753.3877 0.9645 84653.333 0.9796 84753.3334 0.9811 84853.3288 0.9826 84953.3256 0.9845 2014/05/30 21 0.9 0.92 0.94 0.96 0.98 1 1.02 1.04 820840 Conductivity (S/m) Frequency (MHz) Conductivity Target Liquid Value 5% Liquid Tolerance -5% Liquid Tolerance 2014/05/30 51 52 53 54 55 56 57 58 59 820840 Relative Permittivity Frequency (MHz) Permittivity Target Liquid Value 5% Liquid Tolerance -5% Liquid Tolerance 2014/05/30 FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix C - Misc Page 3 of 46 1900 MHz Body Liquid Date Temp (°C) Frequency (MHz) Relative Permativit y Conductivity (S/m) 1850 54.14321.5058 1855 54.10671.5124 1860 54.08671.5209 1865 54.07041.5296 1870 54.06881.5362 1875 54.05511.5446 1880 54.04671.5529 1885 54.04281.5604 1890 54.04361.5682 1900 54.0451.5829 1910 54.03491.5955 1850 53.78871.4806 1855 53.77171.4927 1860 53.75861.5034 1865 53.76891.5125 1870 53.78111.5234 1875 53.80491.5322 1880 53.82571.5387 1885 53.84761.5443 1890 53.86481.5477 1900 53.87541.5525 1910 53.84141.5539 2014/05/30 20.6 2014/06/11 22 1.42 1.47 1.52 1.57 18451895 Conductivity (S/m) Frequency (MHz) Conductivity Target Liquid Value 5% Liquid Tolerance -5% Liquid Tolerance 2014/05/30 2014/06/11 50 51 52 53 54 55 56 18451895 Relative Permittivity Frequency (MHz) Permittivity Target Liquid Value 5% Liquid Tolerance -5% Liquid Tolerance 2014/05/30 2014/06/11 FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix C - Misc Page 4 of 46 Test Equipment SAR 3 Lab Instrument description Supplier / Manufacturer Model Serial No. Calibration (date) Calibration Due (date) Robot Staubli TX90 F11/5G2MA 1/C/01 N/A N/A SAM Twin Phantom SPEAG SM 000 T01 DA 1637 N/A N/A SAM Twin Phantom SPEAG SM 000 T01 DA 1638 N/A N/A Elliptical Phantom SPEAG QD OVA 001 BB 1124 N/A N/A Software SPEAG Dasy52.6.2.482 N/A N/A N/A Device Holder SPEAG SD 000H01 N/A N/A N/A Data Acquisition Electronics SPEAG DAE4 1266 2011/05/30 2014/05/30 SAR Probe SPEAG ES3DV3 3244 2014/3/19 2015/3/19 SAR 4 Lab Instrument description Supplier / Manufacturer Model Serial No. Calibration (date) Calibration Due (date) Robot Staubli TX90 F11/5GW9A 1/A/01 N/A N/A SAM Twin Phantom SPEAG SM 000 T01 DA 1639 N/A N/A SAM Twin Phantom SPEAG SM 000 T01 DA 1640 N/A N/A Elliptical Phantom SPEAG QD OVA 001 BB 1125 N/A N/A Software SPEAG Dasy52.6.2.482 N/A N/A N/A Device Holder SPEAG SD 000H01 N/A N/A N/A Data Acquisition Electronics SPEAG DAE4 1265 2013/06/11 2014/06/11 SAR Probe SPEAG ES3DV3 3260 2014/3/19 2015/03/19 FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix C - Misc Page 5 of 46 Shared Equipment Instrument description Supplier / Manufacturer Model Serial No. Calibration (date) Calibration Due (date) 900 MHz Body Tissue Simulant SPEAG MSL 900 110518-7 5/30/2014 N/A 1900 MHz Body Tissue Simulant SPEAG MSL 1900 100824-3 5/30/2014 – 6/18/2014 N/A 835 MHz Dipole SPEAG D835V2 4d155 2013/6/6 2014/6/6 1900 MHz Dipole SPEAG D1900V2 5d172 2013/06/10 2014/06/30 Network Analyzer Agilent FieldFox N9923A MY51491621 2013/06/21 2014/06/21 Directional coupler Werlatone C6529 11249 N/A N/A RF Amplifier Vectawave VTL5400 N/A N/A N/A Dielectric Measurement Kit SPEAG DAK-3.5 1023 2012/02/20 2014/02/20 Synthesized CW Generator Agilent 8371213 US37101255 N/A N/A Power Meter Agilent E4419B MY45101996 2013/06/03 2015/06/03 Power Sensor Agilent E9300A MY41498484 2013/06/04 2015/06/04 Power Sensor Agilent E9300A MY41498492 2013/06/04 2015/06/04 Radio Communications Tester Rohde & Schwarz CMU 200 101821 2013/06 2015/06 FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix C - Misc Page 6 of 46 Equipment Calibration/Performance Documents: Attached: SAR Probe ES3DV3 Calibration Report 835 MHz Dipole Calibration Report 1900 MHz Dipole Calibration Report FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix C - Misc Page 7 of 46 FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix C - Misc Page 8 of 46 FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix C - Misc Page 9 of 46 FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix C - Misc Page 10 of 46 FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix C - Misc Page 11 of 46 FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix C - Misc Page 12 of 46 FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix C - Misc Page 13 of 46 FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix C - Misc Page 14 of 46 FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix C - Misc Page 15 of 46 FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix C - Misc Page 16 of 46 FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix C - Misc Page 17 of 46 FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix C - Misc Page 18 of 46 FCC ID: 2ABUE-BP100-2-2-1 IC Cert. No.: 11915A-BP100221 SAR Test Report - Appendix C - Misc Page 19 of 46 FCC ID: 2ABUE-BP100-…

Text truncated - open the document above for the full version.

FCC: Accredited IC recognized # 3462B-1 CETECOM Inc. 411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. Phone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 V1.01 2013-07-29 © Copyright by CETECOM FCC/IC Test Report FOR: Wi-MM Corporation Model: BP100-2-2-1 Product Description: Bike Computer with location, alarm and performance information FCC ID: 2ABUE-BP100-2-2-1 IC Certification Number: 11915A-BP100221 47 CFR Part 2, 22, 24 RSS-GEN issue 3 RSS-132 Issue 3 RSS-133 Issue 6 TEST REPORT #: EMC_ WIMML_002_14001_BP-100_FCC_22_24 DATE: 2014-06-27 Test Report #: EMC_WIMML_002_14001_BP-100_FCC_22_24 FCC ID: 2ABUE-BP100-2-2-1 Date of Report : 2014-06-27 IC ID: 11915A-BP100221 Page 2 of 44 Table of Contents 1 Assessment ............................................................................................................................... 3 2 Administrative Data ................................................................................................................. 4 2.1 Identification of the Testing Laboratory Issuing the Test Report .................................................. 4 2.2 Identification of the Client ............................................................................................................. 4 2.3 Identification of the Manufacturer ................................................................................................. 4 2.4 Dates of Testing: ............................................................................................................................ 4 3 Equipment under Test (EUT) ................................................................................................... 5 3.1 Specification of the Equipment under Test .................................................................................... 5 3.2 Identification of the Equipment under Test (EUT) ........................................................................ 5 3.3 Identification of Accessory equipment........................................................................................... 6 4 Summary of Measurement Results .......................................................................................... 7 5 Measurements..........................................…
