USERMANUALFORFT12W09INWALLTRANSMITTER I.OperationInstructions 1.Mainpowerswitch: Trunon/turnoffthewallcontrollerpowersupply,pushtheswitchbuttonto“on”,thenthewallcontrollerand ceilingcontrollercanwork. 2.Fanoff: Whenoperating,pressthekeytostopthefan. Thiskeyforthefanoffonly. 3.Speedofthefan(1~6level): Pressthekey”1,2,3,4,5,6”toadjustthefantodesignatedspeedlevel. AfterpressspeedlevelKeys,thefanwillenterthecorrespondingspeedlevelfromotherspeedleveloridle. Key“1”isthelowestspeed,andkey”6“isthehighestspeed. 4.“REV”Directionofthefan PressthekeyREVcanchangetherunningdirectionofthefan. 5.“OD“Dimmerfuncionenabledswitch: Releasethescrewthenremovethetoppanel,pushtheswitchto“o”canshutdownthelightadjustfeature. Lightbuttoncanturnonandturnoffthelightonly.Whenpushtheswitchto“D”canopenthelightadjustfeature,short pressthelightbuttontoturnonandturnoffthelight,longpressthelightbuttonforbrightnessadjustment.(Remark:the controllerandthelightshouldsupportbrightnessadjustment) 6.“LIGHT”Lightingcontrol: LIGHTLightonoroff. Longpressforbrightnessadjustment(Initiatethebrightnessadjustmentandthecontrollerandthelightshould supportbrightnessadjustment) II.Useprecautions 1.WallcontrollerusedwithceilingfancontrolleronlyandconnectinseriesonACLwireofceilingcontroller. 2.Pleasechecktheswitchstatusiftheindicatordonotflashwhenpressthekey. 3.Thepersonqualifiedformaintenanceonly. 4.Groundconnectwellisnecessaryforinstallation. FCCInstructions: ThisproducthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15of theFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidential installation.Thisproductgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedin accordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisno guaranteethatinterferencewillnotoccurinaparticularinstallation.Iftheproductdoescauseharmfulinterferenceto radioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedto trytocorrecttheinterferencebyoneormoreofthefollowingmeasures: ---Reorientorrelocatethereceivingantenna. ---Increasetheseparationbetweentheproductandreceiver. ---Connecttheproductintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. ---Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions: (1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause Undesiredoperation. Warning:Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’s authoritytooperatetheproduct. ICNotice: InadditiontocontainingotherrequiredstatementsspecifiedelsewhereinthisstandardorintheapplicableRSS,user manualsforlicence-exemptradioapparatusshallcontainthefollowingtext,oranequivalentnotice,thatshallbe displayedinaconspicuouslocation,eitherintheusermanualoronthedevice,orboth: Thisdevicecontainslicence-exempttransmitter(s)/receiver(s)thatcomplywithInnovation, ScienceandEconomicDevelopmentCanada’slicence-exemptRSS(s).Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseinterference. (2)Thisdevicemustacceptanyinterference,includinginterferencethatmaycause undesiredoperationofthedevice. Cetappareilestconformeàlasection15desrèglementsdelaFCC&IndustryCanada'slicence-exemptRSSs. Lefonctionnementestsujetauxconditionssuivantes: 1.Cetappareilnecausepasdubrouillagenuisible. 2.Cetappareilpeutsubirdebrouillagereçu,ycomprisl'interférencequiconduitàl'opérationindésirable.

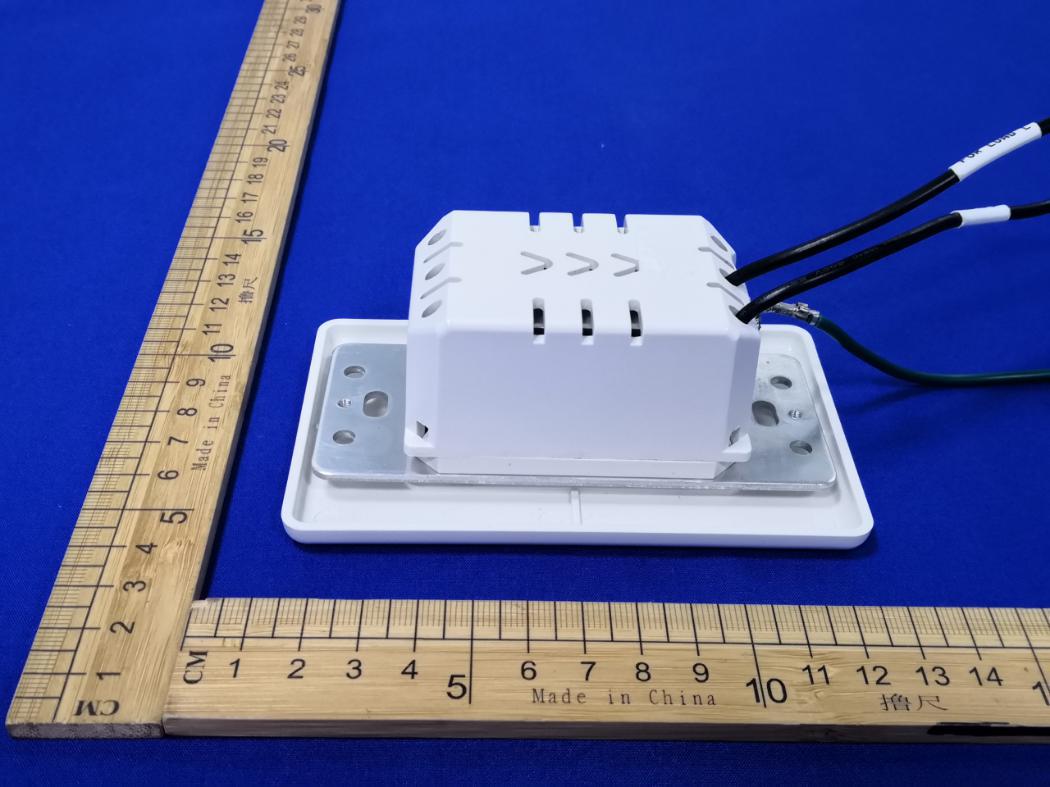

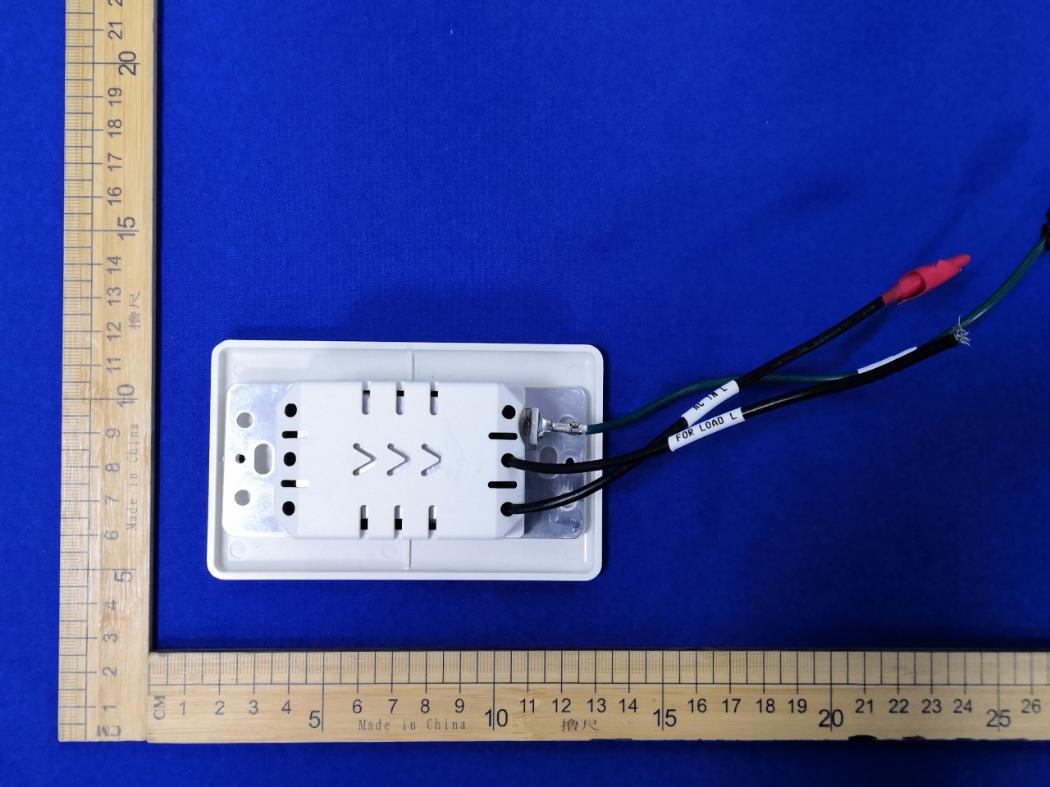

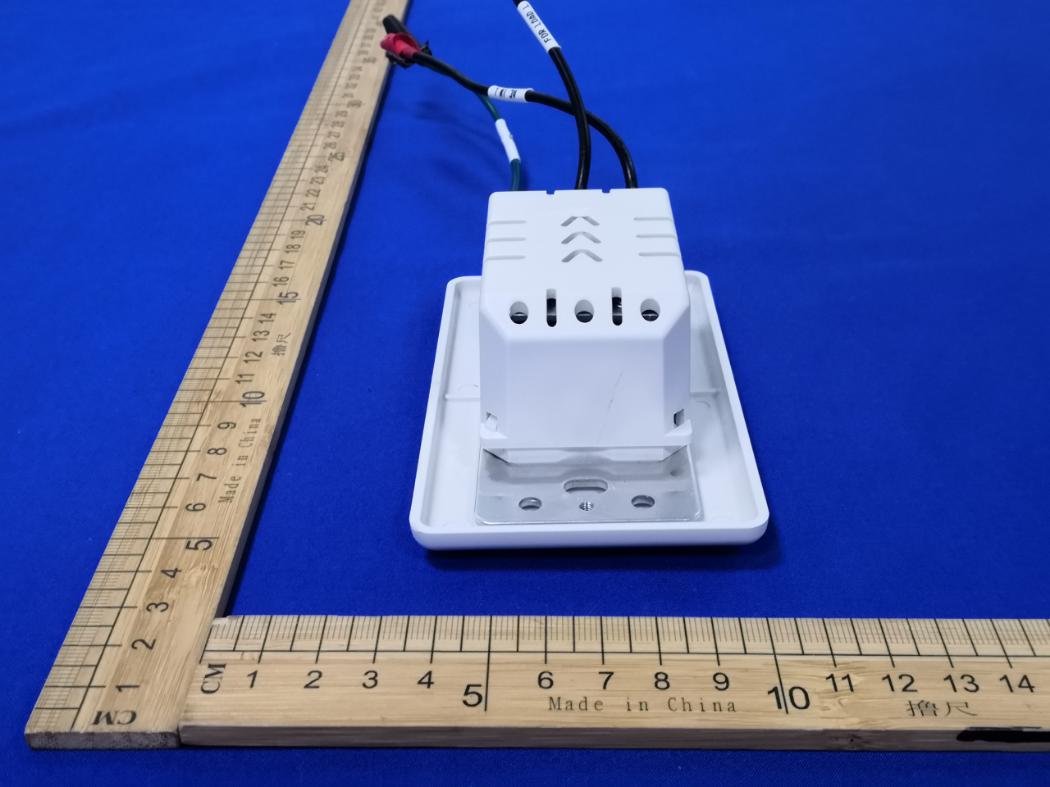

Page 1 of 3 ExternalPhotographs Page 2 of 3 Page 3 of 3
Label LabelLocation
InternalPhotographs
ShenzhenFunpowerGeneral TechnologyCo.,Ltd. DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.: FT12W09 FCCID:2ABUP-FT12W09 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsforinternalantennatype(s) describedbelow: ModelNo.ofantenna:N/A Typeofantenna:PCBAntenna Gainoftheantenna:0dBi Frequencyrange:433.92MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Sincerely, [YiChen] [MarketingManager] ShenzhenFunpowerGeneralTechnologyCo.,Ltd. Room201B,HaborVentureBuilding, No.1041HouhaiAvenue,Shekou,NanshanDistrict,ShenzhenCity,PRC. version01
KSIGN(Guangdong)TestingCo.,Ltd. WestSideof1/F.,BuildingC,ZoneA,FuyuanNewFactory,JiujiuIndustrialPark, Minzhu,Shatou,Shajing,Bao'anDistrict,Shenzhen,Guangdong,People’sRepublicofChina Tel.:+(86)755-29852678Fax:+(86)755-29852397E-mail:[email protected]: www.gdksign.com RFEXPOSUREEVALUATION PRODUCTINFORMATION ProductDescriptionInWallTransmitter ModelNameFT12W09 FCCID2ABUP-FT12W09 Max.outputpower78.60dBuV/m(-16.66dBm)(0.022mW) PortableDevice Accordingto§15.247(i)and§1.1307b(1),systemsoperatingundertheprovisionsofthis sectionshallbeoperatedinamannerthatensuresthatthepublicisnotexposedtoradio frequencyenergylevelsinexcessoftheCommission’sguidelines.SeeKDB447498D01 GeneralRFExposureGuidanceV6,section4.3.1. The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparation distances≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR, 16 where ·f(GHz)istheRFchanneltransmitfrequencyinGHz ·PoweranddistanceareroundedtothenearestmWandmmbeforecalculation17 ·Theresultisroundedtoonedecimalplaceforcomparison Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50 mmandfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmisappliedtodetermineSARtestexclusion. KSIGN(Guangdong)TestingCo.,Ltd. WestSideof1/F.,BuildingC,ZoneA,FuyuanNewFactory,JiujiuIndustrialPark, Minzhu,Shatou,Shajing,Bao'anDistrict,Shenzhen,Guangdong,People’sRepublicofChina Tel.:+(86)755-29852678Fax:+(86)755-29852397E-mail:[email protected]: www.gdksign.com MeasurementResult Channel Frequency (MHz) Max Output power (dBm) Maxtune-up tolerance Outputpower (dBm) MaxOutput power(mW) Calculation Value (Note1) Threshold Value 433.92-16.66-16.66±10.0270.00353.0 EIRP=E-104.8+20logD=78.60-104.8+20log3=-16.66dbm Note1:CalculationValue=[(max.powerofchannel,mW/min.testseparationdistance,mm) *√f(GHz)]. Foxexample:0.027/5*√0.43392=0.0035≤3.0 KSIGN(Guangdong)TestingCo.,Ltd. WestSideof1/F.,BuildingC,ZoneA,FuyuanNewFactory,JiujiuIndustrialPark, Minzhu,Shatou,Shajing,Bao'anDistrict,Shenzhen,Guangdong,People’sRepublicofChina Tel.:+(86)755-29852678Fax:+(86)755-29852397E-mail:[email protected]: www.gdksign.com AccordingtoKDB447498D01V6,thresholdatwhichnoSARrequiredis≤3.0for1-g SAR,separationdistanceis5mm,andnosimultaneousSARmeasurementisrequired. StandardApplicable Accordingto2.1093thisisaportabledevice.AccordingtoKDB447498D01V6,AppendixA SARtestexclusionthresholdsforbelowtable,thepowerlevel22mWat5mm. MeasurementResult: ThisisaportabledeviceandtheMax.peakoutputpoweris-16.66dBm(0.022mW)lowerthan lowthreshold22mWat5mmingeneralpopulationcategory; TheSARmeasurementisnotnecessary.
