2ABWDJS1-MK2Digital Game Caller

1 Version 2.3 2014 Jury Digital Game Caller Instruction Manual A subsidiary of: Hunter's Specialties, Inc. 6000 Huntington Ct. NE, Cedar Rapids, IA 52402 (319) 395‐0321 www.hunterspec.com 2 Version 2.3 2014 Important Information Johnny Stewart Digital Callers are backed by over 40 years of experience. Our goal with the (J.S. line of callers) is to create incredible fun and success for your enjoyment in the outdoors. Whether used for hunting, photography or observation of wildlife, Johnny Stewart callers create opportunities for you to experience nature up close, in a dynamic way, with superior sounds... Hunter's Specialties, Inc. 6000 Huntington Court NE Cedar Rapids, IA 52402 (319) 395‐0321 Fax: (319) 395‐0326 Business Hours Monday – Friday 7:45 AM – 4:45 PM CST Contact Us Customer Service: (319) 395‐0321 General Inquiry e‐mail: [email protected] Stay up to date with the latest Johnny Stewart sounds by visiting our online sound library. Watch for new products and upgrades at: www.hunterspec.com A subsidiary of Hunter's Specialties, Inc 6000 Huntington Court NE Cedar Rapids, IA 52402 3 Version 2.3 2014 Index Topic Page 1.0 Power Source and Installation 4 1.1 Remote (Transmitter) 4 1.2 Base (Receiver) 4 1.3 Battery Carrier 4 2.0 Caller Operation 4 2.1 Power On 4 2.2 Power Off 4 2.3 Selecting sound(s) to be played 4 2.4 Stop sound(s) 4 2.5 Single Loop or Continuous Loop mode 5 2.6 Volume Control 5 2.7 Mute 5 2.8 Playing two sounds at one time 5 2.9 Internal Memory (128 Mb of storage space is in the base unit) 5 2.10 Storage Space 5‐6 3.0 Speaker 6 4.0 Adjustable Leg 6 5.0 Lanyard and Shoulder Strap 6 6.0 Caller Storage 7 7.0 Maintenance 7 8.0 Troubleshooting 7 Included: 1 ‐ 12 key remote (transmitter) 1 – Base unit (receiver) 1 – Base unit antenna 1 ‐ Battery carrier (shipped inside the base unit) 4 – AA Battery Adaptor tubes (shipped inside the base unit) 1 – Sound reference card 1 – USB cord 1 – Single lanyard 1 – Shoulder strap 1 – Instruction manual 4 Version 2.3 2014 1.0 Power Source and Installation: 1) Remote (Transmitter) – Is operated with one 12V 23/27A battery. (Included) To install battery: Remove six screws from back of case, separate case and install battery into holder. Snap case back together and reinstall six screws being careful not to over‐tighten. 2) Base (Receiver) ‐ Is operated with eight AA or eight C cell batteries. (Not included) To install batteries: Loosen two screws on battery door and remove door. Install desired batteries. (Note: if using AA batteries the four adapter tubes must be used). Orient the batteries as per the directions shown in each cavity within the holder. Note that the battery polarity alternates. 3) Battery Carrier & Adaptor Tubes – The battery carrier was designed as a removable component. The carrier can be removed from the battery compartment and unplugged to separate it from the unit. The battery carrier was designed to receive both C‐cell and AA batteries. Base carrier is designed for C‐cell and by inserting AA batteries in the tube adaptors; they will power the unit using the same carrier. Note: For maximum performance use high quality batteries. Tip: 1) Be prepared... pack replacement batteries and a coin or straight screwdriver in your game caller bag. 2) To prolong battery life in cold conditions, hand warmers can be used between the ground and battery door to radiate heat to the batteries. 2.0 Caller Operation: 1) Power on a) For Base unit, switch On/Off Rocker to the on position. b) For Remote, there is no on / off button: just press button for desired function. The Remote only consumes power from the internal battery when a button is pressed. 2) Power Off a) Switch On/Off rocker to the off position on the base unit. Remote needs no shut down. 3) Selecting sound to be played (sounds are designed to start softly and increase in volume then fade out when stopped) a) Simply press the numeric key of the sound that is desired, i.e., If you want to play sound one, simply press the 1 key. To play sound 21, simply press the 2 then 1 keys, etc. A sound reference card has been supplied, listing the 25 sounds that are pre‐loaded. b) If a sound with a single digit numeric key is selected, there will be a 2 second delay in the sound starting. This is due to the system waiting for the second digit if a two digit numeric key is required. c) If you select a new sound while a sound is playing, the new sound will replace the current one as the audible sound and the original will stop. 4) Stop a sound(s) a) Press the “Stop” button on the remote when you want to stop the current audible sound. 5 Version 2.3 2014 Caller Operation continued: 5) Play single loop mode or continuous loop mode a) There are two settings in this feature. 1) Single Loop Mode (Default): will play one time in its entirety, and then stop. 2) Continuous Loop Mode: will play in a continuous loop until stopped. To change to the desired mode: Press and hold the “Loop/Mix” button for five seconds. If the unit was in single loop mode, it will now be in continuous play mode. Press and hold the “Loop/Mix” button for five seconds again to take the system back to single loop play. Mode can be changed before a sound is selected or while a sound is playing. Note: The average length of a Johnny Stewart sound is 60 seconds. 6) Volume Control a) While a sound is playing, press the “Vol/0” button then the desired numeric volume level 2‐ 9. (Note: Vol/0 then 1 is MUTE) 7) Mute a) While a sound is playing, press the “Vol/0” button then the 1 button. b) To deactivate Mute, simply press “Vol/0” and desired numeric volume level or the “Stop” button if you do not want to continue the sound. 8) Playing two sounds at one time a) While the first sound is playing, press the “Loop/Mix” button then select the second desired sound. Two sounds will play at the same time until they are stopped. 9) Internal Memory (128 Mb of Storage Space is in the Base Unit) a) The base unit has two 128 Mb flash drives for so…

Text truncated - open the document above for the full version.

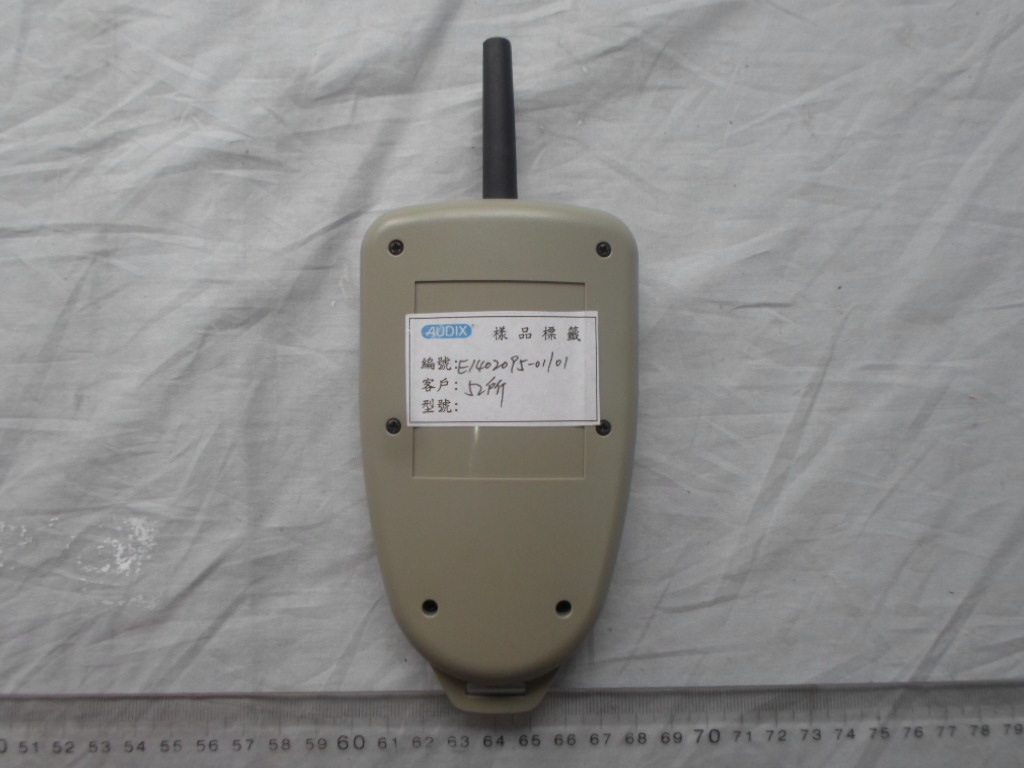

FIGURE 1 DIGITAL GAME CALLER (M/N: JURY MK2 (TRANSMITTER)) GENERAL APPEARANCE (FRONT VIEW) F IGURE 2 DIGITAL GAME CALLER (M/N: JURY MK2 (TRANSMITTER)) GENERAL APPEARANCE (BACK VIEW)

Label Location Information Refer to the below red arrow: (For example)

FIGURE 3 DIGITAL GAME CALLER (M/N: JURY MK2 (TRANSMITTER)) COVER REMOVED F IGURE 4 DIGITAL GAME CALLER (M/N: JURY MK2 (TRANSMITTER)) MAIN BOARD (FRONT SIDE) FIGURE 5 DIGITAL GAME CALLER (M/N: JURY MK2 (TRANSMITTER)) MAIN BOARD (BACK SIDE) F IGURE 6 DIGITAL GAME CALLER (M/N: JURY MK2 (TRANSMITTER)) RF PA R T ON MAIN BOARD

NFTZ Hangpack Int'l Trading Co., Ltd. FCC ID: 2ABWDJS1-MK2 Page 1 of 19 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F14047 Prepared For : NFTZ Hangpack Int'l Trading Co., Ltd. 722-1 Honghai Shangmao Mansion, Ningbo, China Prepared By : Audix Technology (Shanghai) Co., Ltd. 3F and 4F, 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai 200233, China Tel : +86-21-64955500 Fax : +86-21-64955491 Report No. : ACI-F14047 Date of Test : Feb. 12, 2014 Date of Report : Mar. 11, 2014 Application for FCC Certificate On Behalf of NFTZ Hangpack Int'l Trading Co., Ltd. Digital Game Caller Model No.: Jury MK2 (Transmitter) FCC ID : 2ABWDJS1-MK2 NFTZ Hangpack Int'l Trading Co., Ltd. FCC ID: 2ABWDJS1-MK2 Page 2 of 19 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F14047 TABLE OF CONTENTS Page 1 SUMMARY OF STANDARDS AND RESULTS .......................................................................... 4 1.1 Description of Standards and Results ......................................................................................... 4 2 GENERAL INFORMATION .......................................................................................................... 5 2.1 Description of Equipment Under Test ........................................................................................ 5 2.2 Description of Test Facility ........................................................................................................ 6 2.3 Measurement Uncertainty .......................................................................................................... 6 3 RADIATED EMISSION TEST ....................................................................................................... 7 3.1 Test Equipment ........................................................................................................................... 7 3.2 Block Diagram of Test Setup ..................................................................................................... 7 3.3 Radiated Emission Limit [FCC Part 15 Subpart C 15.209] ....................................................... 8 3.4 Test Configuration ...................................................................................................................... 8 3.5 Operating Condition of EUT ...................................................................................................... 8 3.6 Test Procedures .......................................................................................................................... 9 3.7 Test Results ................................................................................................................................ 9 4 FUNDAMENTAL AND HARMONICS EMISSIONS TEST .................................................... 11 4.1 Test Equipment ......................................................................................................................... 11 4.2 Block Diagram of Test Setup ................................................................................................... 11 4.3 Fundamental and Harmonics Emission Limit [FCC Part 15 Subpart C 15.249(a)] ................. 11 4.4 Test Configuration .................................................................................................................... 11 4.5 Operating Condition of EUT .................................................................................................... 12 4.6 Test Procedures ........................................................................................................................ 12 4.7 Test Results .............................................................................................................................. 12 5 BAND-EDGE MEASUREMENT ................................................................................................. 14 5.1 Test Equipment ......................................................................................................................... 14 5.2 Band-Edge Limit [FCC Part 15 Subpart C 15.249(d)] ............................................................. 14 5.3 Test Results .............................................................................................................................. 14 6 DEVIATION TO TEST SPECIFICATIONS .............................................................................. 16 APPENDIX I PLOT OF DUTY CYCLE ............................................................................................ 18 NFTZ Hangpack Int'l Trading Co., Ltd. FCC ID: 2ABWDJS1-MK2 Page 3 of 19 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F14047 TEST REPORT FOR FCC CERTIFICATION Applicant : NFTZ Hangpack Int'l Trading Co., Ltd. Manufacturer : Hangzhou Xiaoshan Jinwei Suliao Chang EUT Description : Digital Game Caller (A) Model No. Jury MK2 (Transmitter) (B) Power SupplyDC 12V (E23A battery*1) Test Procedure Used: FCC RULES AND REGULATIONS PART 15 SUBPART C OCTOBER 2013 AND ANSI C63.4:2003 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart C limits radiated emission. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. This report shows that the EUT (M/N: Refer to Sec2.1; S/N: Refer to Sec2.1), which was tested in 3m anechoic chamber on Feb. 21, 2014 to be technically compliant with the FCC official limits also. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report contains data that are not covered by the NVLAP accreditation. This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government by…

Text truncated - open the document above for the full version.

1. Radiated & Fundamental and Harmonics Emissions Test F RONT VIEW OF RADIATED EMISSION TEST (BELOW 1GHZ) BACK VIEW OF RADIATED EMISSION TEST (ABOVE 1GHZ)
