2ABWR-DKT003Bluetooth Low Energy Module

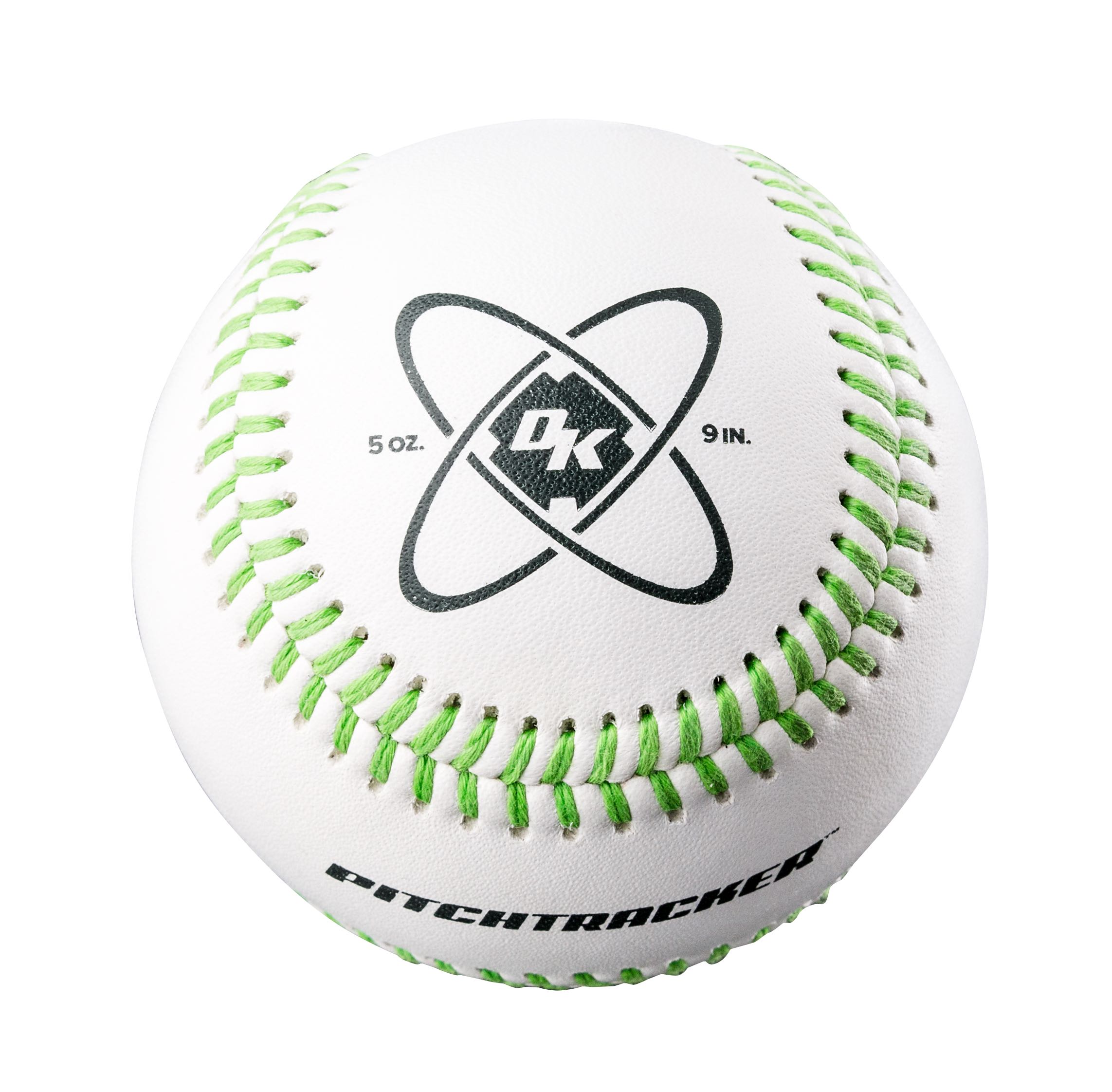

PitchTracker Baseball PitchTracker Ba — Last update: Jul 09, 2020 Diamond Kinetics Copyright © 2020 Diamond Kinetics Table of Contents 1.Getting Started.......................................................................................................................................2 1.1.Safety Information...........................................................................................................................3 1.2.Package Contents...........................................................................................................................4 1.3.Download the Mobile App................................................................................................................5 1.4.Create an Account..........................................................................................................................6 2.Before You Throw...................................................................................................................................7 2.1.Turning your SmartBall ON/OFF......................................................................................................8 2.2.Pairing Smart Ball...........................................................................................................................9 2.3.Firmware Version (Smart Ball).......................................................................................................11 2.3.1.Checking your Firmware Version..........................................................................................12 2.3.2.Updating your Firmware Version...........................................................................................13 2.4.Charging.......................................................................................................................................14 2.4.1.Check Battery Level.............................................................................................................15 2.5.Naming your Smart Ball...............................................................................................................16 3.Smart Baseball Care.............................................................................................................................17 4.Finishing Your Profile..........................................................................................................................18 5.App Dashboard Information.................................................................................................................19 6.Start a Pitch Session............................................................................................................................20 6.1.As a Player...................................................................................................................................21 6.2.Through a Group..........................................................................................................................22 7.Pitch Session Views.............................................................................................................................23 7.1.Metric View...................................................................................................................................24 7.2.Charting........................................................................................................................................26 7.2.1.Live Session Charting...........................................................................................................28 7.2.2.Past Session Charting...........................................................................................................29 7.3.Video............................................................................................................................................30 8.BullPens Feature..................................................................................................................................32 8.1.Creating a BullPen........................................................................................................................33 8.2.Assigning a BullPen......................................................................................................................34 8.3.Throwing a BullPen.......................................................................................................................35 9.Just Chart Feature................................................................................................................................37 10.Activity...............................................................................................................................................38 10.1.Sessions.....................................................................................................................................39 10.2.Performance...............................................................................................................................40 10.2.1.Edit Performance................................................................................................................41 11.Navigating Groups..............................................................................................................................42 11.1.Player View.................................................................................................................................43 11.1.1.Group Member....................................................................................................................44 11.1.2.Finding a Group..................................................................................................................45 11.2.Coach View.................................................................................................................................46 11.2.1.Creating a Group.............................................…

Text truncated - open the document above for the full version.

PitchTracker Softball 1 — Last update: Jul 09, 2020 Diamond Kinetics Copyright © 2020 Diamond Kinetics Table of Contents 1.Getting Started.......................................................................................................................................2 1.1.Safety Information...........................................................................................................................3 1.2.Package Contents...........................................................................................................................4 1.3.Download the Mobile App................................................................................................................5 1.4.Create an Account..........................................................................................................................6 2.Before You Throw...................................................................................................................................7 2.1.Turning your SmartBall ON/OFF......................................................................................................8 2.2.Pairing Smart Ball...........................................................................................................................9 2.3.Firmware Version (Smart Ball).......................................................................................................11 2.3.1.Checking your Firmware Version..........................................................................................12 2.3.2.Updating your Firmware Version...........................................................................................13 2.4.Charging.......................................................................................................................................14 2.4.1.Check Battery Level..............................................................................................................15 2.5.Naming your Smart Ball...............................................................................................................16 3.Smart Softball Care..............................................................................................................................17 4.Finishing Your Profile.........................................................................................................................18 5.App Dashboard Information................................................................................................................19 6.Start a Pitch Session............................................................................................................................20 7.Pitch Session Views.............................................................................................................................21 7.1.Metric View...................................................................................................................................22 7.2.Charting........................................................................................................................................24 7.2.1.Live Session Charting...........................................................................................................26 7.2.2.Past Session Charting...........................................................................................................27 7.3.Video............................................................................................................................................28 8.As a Player............................................................................................................................................30 9.Through a Group.................................................................................................................................31 10.BullPens Feature................................................................................................................................32 10.1.Creating a BullPen......................................................................................................................33 10.2.Assigning a BullPen....................................................................................................................34 10.3.Throwing a BullPen.....................................................................................................................35 11.Just Chart Feature..............................................................................................................................37 12.Activity...............................................................................................................................................38 12.1.Sessions.....................................................................................................................................39 12.2.Performance...............................................................................................................................40 12.2.1.Edit Performance View........................................................................................................41 13.Navigating Groups..............................................................................................................................42 13.1.Player View.................................................................................................................................43 13.1.1.Group Member....................................................................................................................44 13.2.Finding a Group..........................................................................................................................45 13.3.Coach View.................................................................................................................................46 13.3.1.Creating a Group.................................................…

Text truncated - open the document above for the full version.

SwingTracker 1 — Last update: Jul 09, 2020 Diamond Kinetics Copyright © 2020 Diamond Kinetics Table of Contents 1.Getting Started.......................................................................................................................................3 1.1.Safety Information...........................................................................................................................4 1.2.Package Contents...........................................................................................................................5 1.3.Download the Mobile App................................................................................................................6 1.4.Create an Account..........................................................................................................................7 2.Before You Swing...................................................................................................................................8 2.1.Turning your Sensor ON/OFF..........................................................................................................9 2.2.Removing Your Sensor from the Pod............................................................................................10 2.3.Pairing Your Sensor......................................................................................................................11 2.3.1.Pairing Your Sensor through the App....................................................................................12 2.3.2.Pairing Your Sensor through Apple Settings.........................................................................14 2.4.Firmware Version (Sensor)............................................................................................................15 2.4.1.Checking your Firmware Version..........................................................................................16 2.4.2.Updating your Firmware Version...........................................................................................17 2.5.Charging.......................................................................................................................................18 2.5.1.Checking Battery Level.........................................................................................................19 2.6.Naming your Sensor......................................................................................................................20 2.7.Attaching to the Bat.......................................................................................................................21 2.8.Turn Audio On...............................................................................................................................22 3.Sensor Care..........................................................................................................................................23 4.Finishing Your Profile..........................................................................................................................28 5.App Dashboard Information.................................................................................................................29 6.Swing Fingerprint.................................................................................................................................30 6.1.Swing Fingerprint Walk-through....................................................................................................31 6.2.Insights.........................................................................................................................................34 6.3.Swing Fingerprint FAQ..................................................................................................................35 7.Activity.................................................................................................................................................37 7.1.Sessions.......................................................................................................................................38 7.2.Performance.................................................................................................................................39 7.2.1.Edit Performance..................................................................................................................40 7.3.Leaderboards................................................................................................................................41 8.Programs..............................................................................................................................................42 8.1.Start a Program............................................................................................................................43 9.Games...................................................................................................................................................44 9.1.Classic Home Run Derby..............................................................................................................45 9.2.Timed Home Run Derby................................................................................................................46 9.3.Take 10 Swings.............................................................................................................................47 9.4.Going the Distance........................................................................................................................48 10.Start a Swing Session........................................................................................................................49 10.1.Player..........................................................................................................................................50 10.2.Through a Group.......................................................................................................…

Text truncated - open the document above for the full version.

9.4.Going the Distance In _Going the Distance _ you are given 1 minutes to rack up as much hitting distance s as you can. Game Notes: •You can level up in this game to get more time! •Every time you hit 5x your Competition Level’s home run distance, you will level up. •This will reset your clock minus ten seconds. So the first time you level up, it will reset to 0:50 seconds. Then 0:40 and so on. •Fence distances vary by Sport and Competition Level. For information on fence distance used, select an option:BaseballorFast-Pitch Softball Diamond KineticsSwingTracker - 1 Page 48 of 107 10.Start a Swing Session There are multiple ways to starting a swing session in SwingTracker. 1.Using SwingTracker as aPlayer 2.Using SwingTracker as aCoachand recording swings with a player in a Group 3.Using ourDisconnectedfeature (For disconnected swing sessions, please see ourDisconnected Swingssection of the guide) The sensor will need to register an impact in order to record data. Dry swings will not capture data. * Diamond KineticsSwingTracker - 1 Page 49 of 107 10.1.Player To start a swing session in the SwingTracker app follow the steps below. 1.Make sure your sensor isonandconnected via BlueToothto your device. 2.Open up your SwingTracker app and log in. 3.Select theSwing Nowoption on at the bottom of your dashboard screen. 4.Start Swinging! The sensor will need to detect contact in order to capture metrics. * Diamond KineticsSwingTracker - 1 Page 50 of 107 10.2.Through a Group Follow the steps below to start a swing session in the SwingTracker app through the Groups feature: 1.Make sure your sensor isonandconnected via BlueToothto your device. 2.Open up your SwingTracker app and log in. 3.Navigate to your Group page 4.Select the Group that the player is in 5.Select the name of the Player that is swinging 6.To the right of their name you’ll see a bat icon, select this icon 7.Start Swinging! The sensor will need to detect contact in order to capture metrics. * Diamond KineticsSwingTracker - 1 Page 51 of 107 11.Swing Session Views When looking at live or historical swings, there are several different views in which you can see your data:3D View, Video, andDamage Potential Diamond KineticsSwingTracker - 1 Page 52 of 107 Comparing 3D 11.1.3D View Welcome to 3D View! At the top of the page you’ll see three (3) icons:3D,a video cameraanda baseball field. The 3D should be highlighted white.Here you’ll see the 3D rendering of your swing! In the 3D bat path, the blue area is your Distance in the Zone and the red area is your contact point. Control Menu At the bottom of the 3D screen you’ll see controls. To watch the 3D, press the play button. The rounded arrows on either side of the play button will take you through the swing step by step. The eye icon on the controls will change the view at which you see the 3D. You can drag the white bar to go slow motion through your 3D. Comparing Swings To the far left of the control panel you’ll see an icon that has a bat on either side of a line. This allows you to compare 3D views. Select this icon. Then select a swing from the top of the page (swings are represented by a diamond with a number). You’ll see the 3D views overlap. The green swing path is the first swing you were on. The bronze is the swing path of the one you selected. If you rotate your device sideways(Make sure rotation lock is off!!), the 3D’s will appear side by side. The controls on the control menu will work the same. To exit swing compare press the icon again, it should go from green to grey. You can also compare the 3D rendering of a swing to a video of another swing. To indicate if a swing has video, a white video icon will appear next to that swings diamond. To compare to video, select the compare icon. Then select a swing from the top of the page. Rotate your device sideways(Make sure rotation lock is off!!)and the 3D’s will appear side by side. Your original swing will be on the left, the swing you are comparing it to on the right. Then tap on the side of the screen which has the video you’d like to compare to. The controls on the control menu will work the same. To exit swing compare press the icon again, it should go from green to grey. Swing Count Your swings will appear across the top of the page. Each individual swing will appear as a diamond with a number inside. As swings come in, you will see a green bar go across the top of the page. You can click on a previous swing to view it’s metrics. You are able to scroll through the swings by dragging your finger Diamond KineticsSwingTracker - 1 Page 53 of 107 across the row of swings. To close this top drawer select the green circle in the lower right hand corner and then selectHide Swings. Once done, select the white ‘X’. Metrics Your metrics will appear across the bottom of the page. Each metric is represented in a grey rectangle. The metric name will appear at the top of the rectangle. The metric reading for a swing will appear in large white letters with the units of measurements. You are able to scroll through your metrics by dragging your finger across the drawer. To close this bottom drawer select the green circle in the lower right hand corner and then selectHide Metrics. Once done, select the white ‘X’. Within a session, you have the ability to view the trend of a specific metric over the course of your swings. To see the trend line, select the green circle in the lower right hand corner and then selectShow Trends. A chart with a trend line will pop up. At the top of the graph will be the name of the metric you are viewing along with the units of measurement in parenthesis. To change the metric you are viewing, select the downward facing green arrow. Each white dot on this chart represents a swing, the green line connecting these dots is your trend line. If you click on a dot you will see the background change to that swing and the metric reading for that metric appear in a white box with green lettering. To close the Trends view, sel…

Text truncated - open the document above for the full version.

Date (2020-06-29) TUV SUD America Inc. 10 Centennial Drive Peabody, MA 01960, USA Dear Sir or Madam, We, Diamond Kinetics, Inc. hereby authorize Jeremy Rittenhouse, of Diamond Kinetics., Inc to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Yours sincerely, Name: C.J. Handron Title: CEO

Date (2020-07-20) Federal Communications Commission Equipment Authori]ation Branch 7435 Oakland Mills Road Columbia, MD 21046 ModXlar ApproYal ReqXest FCC ID: ​2ABWR-DKT003 The folloZing attestation addresses the reqXirements to sXpport modXlar approYal: ModXlar approYal reqXirement Yes ​(proYide brief statement) No * (a) The radio elements must have the radio frequenc\ circuitr\ shielded. Ph\sical components and tuning capacitor(s) ma\ be located external to the shield, but must be on the module assembl\ The module is not shielded and relies on the hosts tested within the filing for compliance (HMNs: SwingTracker, PitchTracker Baseball, PitchTracker Softball) (b) The module must have buffered modulation/data inputs to ensure that the device will compl\ with Part 15 requirements with an\ t\pe of input signal Data inputs are buffered through a microcontroller (c) The module must contain power suppl\ regulation on the module RF Voltage regulation is handled on the module. (d) The module must contain a permanentl\ attached antenna, or contain a unique antenna connector, and be marketed and operated onl\ with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b) The antenna is permanentl\ attached to the module (e) The module must demonstrate compliance in a stand-alone configuration The module is tested with specific hosts as outlined in the test reports provided within this filing. (f) The module must be labelled with its permanentl\ affixed FCC ID label, or use an electronic displa\ (See KDB Publication 784748 about labelling requirements) Please refer to FCC ID Label format and location in attached file 700 River Avenue Suite 100 ​ƒ​ Pittsburgh, PA 15212 ​ƒ​ Phone: 412.223.5341 ​ƒ​ [email protected] (g) The module must compl\ with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements The module complies with the rules governing the transmitter as laid out in the attached report. (h) The module must compl\ with RF exposure requirements Below SAR exemption * Please provide a detailed explanation if the answer is ³No. ́ Yours sincerel\, Name: Jerem\ Rittenhouse Title: Platform Engineer Compan\: Diamond Kinetics, Inc. 700 River Avenue Suite 100 ​ƒ​ Pittsburgh, PA 15212 ​ƒ​ Phone: 412.223.5341 ​ƒ​ [email protected]

TÜV SÜD AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 FAX: 858 546 0364 July 20, 2020 TUV SUD BABT FCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Attention: Director of Certification RE: Analysis of RF Exposure for Portable and Mobile use per KDB 447498 D01 RF Exposure Procedures and Equipment Authorization Policies for Mobile and Portable Devices v06 and RSS-102 Issue 5 March 2015 FCC ID: 2ABWR-DKT003 IC: 12312A-DKT003 Portable exposure SAR Exemption Calculation using a 5mm separation distance: As per Clause 4.3.1 (a) of KDB 447498 D01 v06: . , , . , x ( ) ≤ 3.0 . x 2.480 ( ) ≤ 3.0 0.176 ≤ 3.0 (complies) The EUT complies with the exemption limits for routine evaluation based on frequency and separation distance as per Table 1 of RSS-102 Issue 5 March 2015 with an EIRP of 0.56 mW. See separate RSS-102 Annex A exhibit for more details. All calculations were based on peak power (worst case than source-based time-averaged maximum conducted output power). Sincerely, Xiaoying Zhang Name Authorized Signatory Title: Wireless/EMC Test Engineer

TÜV SÜD America, Inc. 10040 Mesa Rim Road San Diego, CA 92121-2912 TÜV SÜD America, Inc. Rancho Bernardo Facility 16936 Via Del Campo San Diego, CA 92127 Phone: 858 678 1400 www.tuv-sud-america.com TÜV SÜD RESPONSIBLE FOR NAME DATE SIGNATURE Authorized Signatory Ferdinand S. Custodio July 20, 2020 Signatures in this approval box have checked this document in line with the requirements of TÜV SÜD document control rules. EXECUTIVE SUMMARY The EUT in general was confirmed to be in compliance with FCC Part 15 Subpart C §15.247 and RSS-247 Issue 2 February 2017. Radio Testing of the Diamond Kinetics Bluetooth Low Energy Module Model: DKT003 In accordance with FCC Part 15 Subpart C §15.247 RSS-247 Issue 2 February 2017 Diamond Kinetics 700 River Ave, Suite 100, Pittsburgh, PA 15212 COMMERCIAL-IN-CONFIDENCE Date: July 2020 Document Number: 72161007A Issue 01 | Version Number: 01 A2LA Cert. No. 2955.13 DISCLAIMER AND COPYRIGHT This non-binding report has been prepared by TÜV SÜD America with all reasonable skill and care. The document is confidential to the potential Client and TÜV SÜD America. No part of this document may be reproduced without the prior written approval of TÜV SÜD America. ACCREDITATION Our A2LA Accreditation does not cover opinions and interpretations and any expressed are outside the scope of our A2LA Accreditation. FCC ID: 2ABWR-DKT003 IC: 12312A-DKT003 Report No. 72161007A COMMERCIAL-IN-CONFIDENCE Page 2 of 71 REPORT ON TEST REPORT NUMBER TEST REPORT DATE Radio Testing of the Diamond Kinetics Bluetooth Low Energy Module Model: DKT003 72161007A July 2020 PREPARED FOR Diamond Kinetics 700 River Ave, Suite 100, Pittsburgh, PA 15212 CONTACT PERSONJeremy Rittenhouse Platform Engineer [email protected] (412) 223-5341 PREPARED BYXiaoying Zhang Name Authorized Signatory Title: EMC/Wireless Test Engineer FCC ID: 2ABWR-DKT003 IC: 12312A-DKT003 Report No. 72161007A COMMERCIAL-IN-CONFIDENCE Page 3 of 71 Revision History 72161007A Diamond Kinetics Bluetooth Low Energy…

Text truncated - open the document above for the full version.
