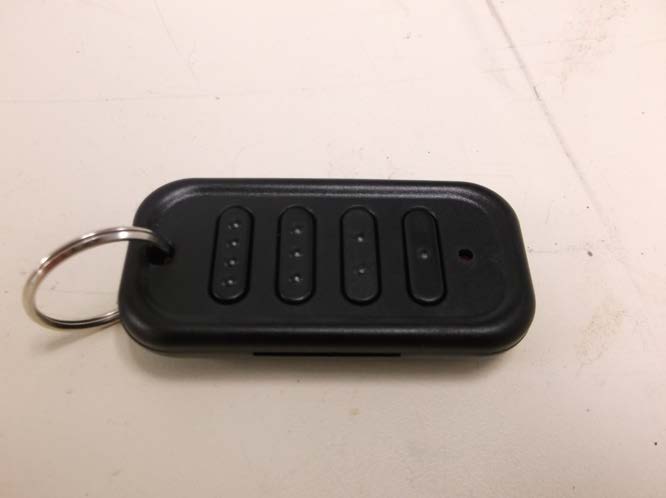

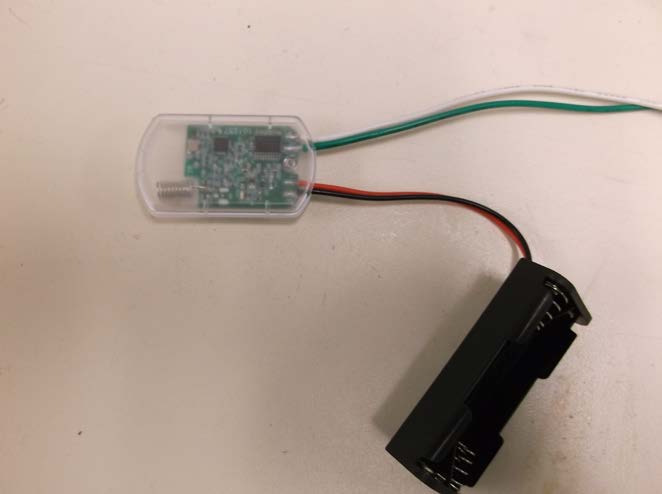

75.5786.01 900 MHz TX-RX 20140723 Page 1 of 4 900 MHZ TRANSMITTERS & RECEIVER Digital transmitters and receiver with frequency hopping and sequencing and extended hold functionality (US version) ENGLISH 1. receiver (10RD900) 2. antenna wire 3. blue activation LED 4. red learn LED 5. tri-color signal strength LED 6. DIP switches 7. no-delay learn button 8. delay learn button 9. delay learn POT 10. transmitter (10TD900PB) 11. push plate connectors 12. battery cradle 2 3 4 5 10 11 12 HAND HELD TRANSMITTERS DESCRIPTION 10TD900HH410TD900HH310TD900HH2 IMPORTANT: This product is NOT intended for use directly with Magnetic Locks or Electric Strikes. Contact BEA Technical Support for further information. 1 6 7 8 9 10TD900HH410TD900HH310TD900HH1 Page 2 of 4 75.5786.01 900 MHz TX-RX 20140723 • The device should not be used for purposes other than its intended use. All other uses cannot be guaranteed by the manufacturer of the sensor. • The installer of the door system is responsible for carrying out a risk assessment and installing the sensor and the door system in compliance with applicable national and international regulations and standards on door safety. • The manufacturer of the sensor cannot be held responsible for incorrect installations or inappropriate adjustments of the sensor. PRECAUTIONS qShut off all power going to header before attempting any wiring procedures. qMaintain a clean & safe environment when working in public areas. qConstantly be aware of pedestrian traffic around the door area. qAlways stop pedestrian traffic through the doorway when performing tests that may result in unexpected reactions by the door. qESD (electrostatic discharge): Circuit boards are vulnerable to damage by electrostatic discharge. Before handling any board ensure you dissipate your body’s ESD charge. qAlways check placement of all wiring before powering up to ensure that moving door parts will not catch any wires and cause damage to equipment. qEnsure compliance with all applicable safety standards (i.e. ANSI A156.10) upon completion of installation. qDO NOT attempt any internal repair of the components. All repairs and/or component replacements must be performed by BEA, Inc. Unauthorized disassembly or repair: 1. May jeopardize personal safety and may expose one to the risk of electrical shock. 2. May adversely affect the safe and reliable performance of the product resulting in a voided warranty. Hand Held Configuration INSTALLATION Wiring TERMINAL:12345 LABEL:12-24 V12-24 VCOMNONC WIRE COLOR:redblackwhitegreenyellow SIGNAL:+ voltage- voltagecommonnormally opennormally closed DESCRIPTION:powerrelay contacts SETUP DIP Switches DIPSTATUSFUNCTIONDESCRIPTION 1 PULPulse Relaypressing transmitter activates and holds relay according to DIP 2 and 3 TOG Toggle Relay pressing transmitter once activates and holds relay indefinitely pressing transmitter again deactivates relay immediately (no hold) 2 (PUL only) 0.5s 0.5 second hold time relay remains active for 0.5 seconds after transmitter is... pressed [STD] released [EH] 10s 10 second hold time relay remains active for 10 seconds after transmitter is... pressed [STD] released [EH] 3 STD standard hold relay acts according to DIP 1 and 2 (does not matter if transmitter is pressed/released or pressed/held) EH extended hold relay remains active as long as transmitter is pressed and held once released, relay acts according to DIP 1 and 2 1 23 ON 123 Set DIP switches as desired.Press transmitter twice (blue LED on receiver will illuminate). Press and release desired learn button (red LED on receiver will illuminate) 1 . NOTES: 1 If Learn w/ Delay button is used, adjust potentiometer (1 s to 30 s). 75.5786.01 900 MHz TX-RX 20140723 Page 3 of 4 All Transmitters Removing Transmitters Single Transmitter 1 x2 21 Press BOTH learn buttons until red LED flashes once (~2 s). Press BOTH learn buttons until blue LED illuminates (~10 s). Press transmiter TWICE within 10 seconds. SETUP (cont.) Push Plate Configuration 21 1 2 3 ON 3 Connect transmitter 1 to push plate (NO & COM) and insert into box. Follow steps 1-3 in Hand Held Configuration Install push plate. NOTES: 1: 10TD900PB required for push plates Vestibule Configuration RECEIVERTRANSMITTERLEARN 1 Outer outer (1)No Delay inner (2)Delay vestibule (4)No Delay Inner outer (1)Delay inner (2)No Delay vestibule (3)No Delay Battery Replacement Push Plate (TD900PB)Handheld (TD900HHx) 1 3 V 2 AAA BatteryAAA Battery 1 Remove back screws and disassemble. Replace 2 AAA batteries observing polarity. Replace 3 volt (CR2032) battery observing polarity and reassemble. Low Battery Indicator - After transmitter button is pressed, low battery is indicated by three (3) transmiter LED blinks. OUTER RECEIVER 1 2 3 INNER RECEIVER 4 Signal Strength Indicator - Pressing and holding transmitter button for 3 seconds activates signal strength tri-color LED on receiver. Green = strong signal, Yellow = medium signal, Red = weak signal. For vestibule applications, program each receiver to the appropriate transmitters according to the chart below and the picture to the right. NOTE: All transmitters must ONLY be powered with provided batteries or equivalent. Page 4 of 4 75.5786.01 900 MHz TX-RX 20140723 PLEASE KEEP FOR FURTHER USE – DESIGNED FOR COLOR PRINTING ©BEA | Original Instructions | 75.5786.01 900 MHz TX-RX 20140723 TECHNICAL SPECIFICATIONS Frequency:908-918 MHz (frequency hopping) Emitted radio power:-25 dBm (TX) Power consumption:30mA (TX) 40mA (RX) Supply voltage:12-24 VAC/DC Contact rating:1.0 A @ 30 VDC 0.5 A @ 125 VAC 0.3 A @ 60 VDC Temperature range:14°F to 131°F (-10°C to 55°C) Programmable units per receiver:74 LEDs:red (receiver learn) blue (relay activation) tri-color (signal strength) Dimensions:2.5” (W) x 2.0” (D) x 0.75” (H) [RD900] 2.75” (W) x 1.38” (D) x 0.56” (H) [TD900HHx] 1.75” (W) x 1.0” (D) x 0.3” (H) [TD900PB] Certification:FCC, IC Specifications are subject to changes without prior notice. All values measured in specific…

Text truncated - open the document above for the full version.

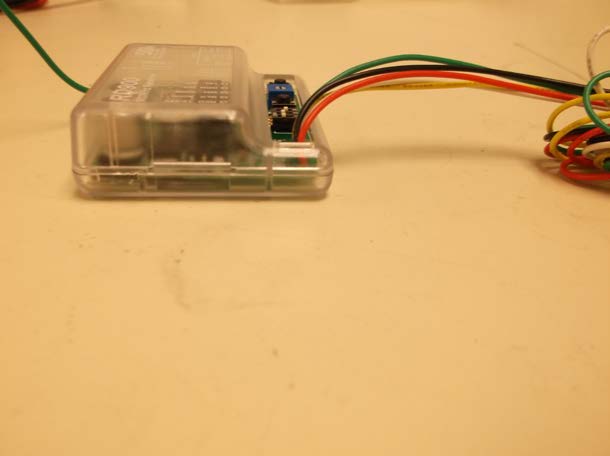

F2LQ5979B Page 1 of 3 June 4, 2014 PHOTOGRAPHS: EXTERNAL BEA Sensors, 10RD900 Order Number: F2LQ5979B Client: BEA Sensors Model: 10RD900 F2LQ5979B Page 2 of 3 June 4, 2014 Order Number: F2LQ5979B Client: BEA Sensors Model: 10RD900 F2LQ5979B Page 3 of 3 June 4, 2014
