2ABWS-10TD900HH4Hand held transmitter in the 902-928MHz band

75.5786.01 900 MHz TX-RX 20140723 Page 1 of 4 900 MHZ TRANSMITTERS & RECEIVER Digital transmitters and receiver with frequency hopping and sequencing and extended hold functionality (US version) ENGLISH 1. receiver (10RD900) 2. antenna wire 3. blue activation LED 4. red learn LED 5. tri-color signal strength LED 6. DIP switches 7. no-delay learn button 8. delay learn button 9. delay learn POT 10. transmitter (10TD900PB) 11. push plate connectors 12. battery cradle 2 3 4 5 10 11 12 HAND HELD TRANSMITTERS DESCRIPTION 10TD900HH410TD900HH310TD900HH2 IMPORTANT: This product is NOT intended for use directly with Magnetic Locks or Electric Strikes. Contact BEA Technical Support for further information. 1 6 7 8 9 10TD900HH410TD900HH310TD900HH1 Page 2 of 4 75.5786.01 900 MHz TX-RX 20140723 • The device should not be used for purposes other than its intended use. All other uses cannot be guaranteed by the manufacturer of the sensor. • The installer of the door system is responsible for carrying out a risk assessment and installing the sensor and the door system in compliance with applicable national and international regulations and standards on door safety. • The manufacturer of the sensor cannot be held responsible for incorrect installations or inappropriate adjustments of the sensor. PRECAUTIONS qShut off all power going to header before attempting any wiring procedures. qMaintain a clean & safe environment when working in public areas. qConstantly be aware of pedestrian traffic around the door area. qAlways stop pedestrian traffic through the doorway when performing tests that may result in unexpected reactions by the door. qESD (electrostatic discharge): Circuit boards are vulnerable to damage by electrostatic discharge. Before handling any board ensure you dissipate your body’s ESD charge. qAlways check placement of all wiring before powering up to ensure that moving door parts will not catch any wires and cause damage to equipment. qEnsure compliance with all applicable safety standards (i.e. ANSI A156.10) upon completion of installation. qDO NOT attempt any internal repair of the components. All repairs and/or component replacements must be performed by BEA, Inc. Unauthorized disassembly or repair: 1. May jeopardize personal safety and may expose one to the risk of electrical shock. 2. May adversely affect the safe and reliable performance of the product resulting in a voided warranty. Hand Held Configuration INSTALLATION Wiring TERMINAL:12345 LABEL:12-24 V12-24 VCOMNONC WIRE COLOR:redblackwhitegreenyellow SIGNAL:+ voltage- voltagecommonnormally opennormally closed DESCRIPTION:powerrelay contacts SETUP DIP Switches DIPSTATUSFUNCTIONDESCRIPTION 1 PULPulse Relaypressing transmitter activates and holds relay according to DIP 2 and 3 TOG Toggle Relay pressing transmitter once activates and holds relay indefinitely pressing transmitter again deactivates relay immediately (no hold) 2 (PUL only) 0.5s 0.5 second hold time relay remains active for 0.5 seconds after transmitter is... pressed [STD] released [EH] 10s 10 second hold time relay remains active for 10 seconds after transmitter is... pressed [STD] released [EH] 3 STD standard hold relay acts according to DIP 1 and 2 (does not matter if transmitter is pressed/released or pressed/held) EH extended hold relay remains active as long as transmitter is pressed and held once released, relay acts according to DIP 1 and 2 1 23 ON 123 Set DIP switches as desired.Press transmitter twice (blue LED on receiver will illuminate). Press and release desired learn button (red LED on receiver will illuminate) 1 . NOTES: 1 If Learn w/ Delay button is used, adjust potentiometer (1 s to 30 s). 75.5786.01 900 MHz TX-RX 20140723 Page 3 of 4 All Transmitters Removing Transmitters Single Transmitter 1 x2 21 Press BOTH learn buttons until red LED flashes once (~2 s). Press BOTH learn buttons until blue LED illuminates (~10 s). Press transmiter TWICE within 10 seconds. SETUP (cont.) Push Plate Configuration 21 1 2 3 ON 3 Connect transmitter 1 to push plate (NO & COM) and insert into box. Follow steps 1-3 in Hand Held Configuration Install push plate. NOTES: 1: 10TD900PB required for push plates Vestibule Configuration RECEIVERTRANSMITTERLEARN 1 Outer outer (1)No Delay inner (2)Delay vestibule (4)No Delay Inner outer (1)Delay inner (2)No Delay vestibule (3)No Delay Battery Replacement Push Plate (TD900PB)Handheld (TD900HHx) 1 3 V 2 AAA BatteryAAA Battery 1 Remove back screws and disassemble. Replace 2 AAA batteries observing polarity. Replace 3 volt (CR2032) battery observing polarity and reassemble. Low Battery Indicator - After transmitter button is pressed, low battery is indicated by three (3) transmiter LED blinks. OUTER RECEIVER 1 2 3 INNER RECEIVER 4 Signal Strength Indicator - Pressing and holding transmitter button for 3 seconds activates signal strength tri-color LED on receiver. Green = strong signal, Yellow = medium signal, Red = weak signal. For vestibule applications, program each receiver to the appropriate transmitters according to the chart below and the picture to the right. NOTE: All transmitters must ONLY be powered with provided batteries or equivalent. Page 4 of 4 75.5786.01 900 MHz TX-RX 20140723 PLEASE KEEP FOR FURTHER USE – DESIGNED FOR COLOR PRINTING ©BEA | Original Instructions | 75.5786.01 900 MHz TX-RX 20140723 TECHNICAL SPECIFICATIONS Frequency:908-918 MHz (frequency hopping) Emitted radio power:-25 dBm (TX) Power consumption:30mA (TX) 40mA (RX) Supply voltage:12-24 VAC/DC Contact rating:1.0 A @ 30 VDC 0.5 A @ 125 VAC 0.3 A @ 60 VDC Temperature range:14°F to 131°F (-10°C to 55°C) Programmable units per receiver:74 LEDs:red (receiver learn) blue (relay activation) tri-color (signal strength) Dimensions:2.5” (W) x 2.0” (D) x 0.75” (H) [RD900] 2.75” (W) x 1.38” (D) x 0.56” (H) [TD900HHx] 1.75” (W) x 1.0” (D) x 0.3” (H) [TD900PB] Certification:FCC, IC Specifications are subject to changes without prior notice. All values measured in specific…

Text truncated - open the document above for the full version.

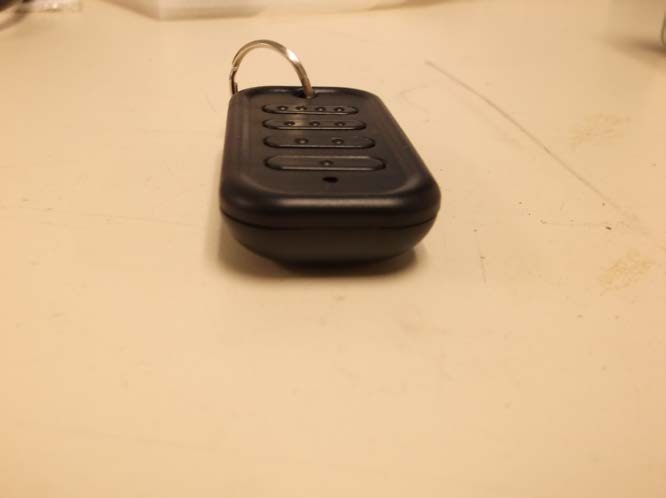

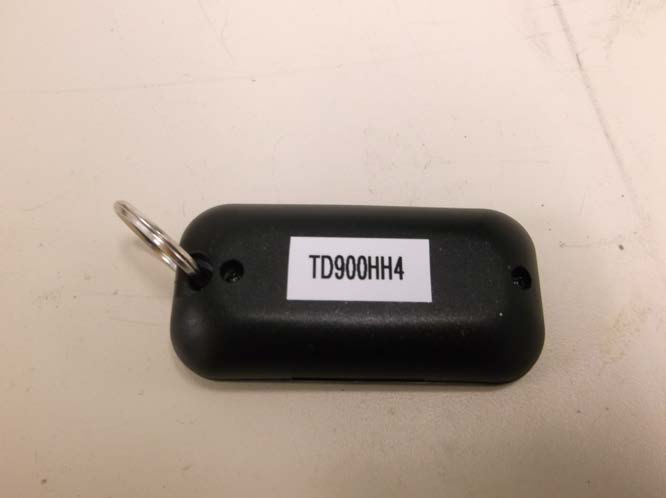

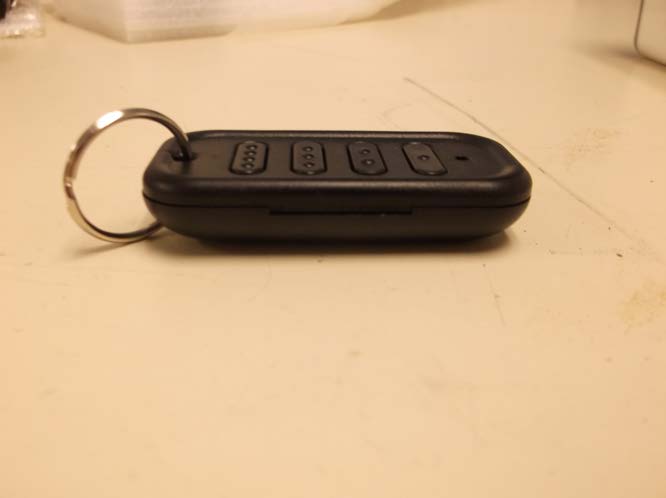

F2LQ5979B Page 1 of 3 June 4, 2014 PHOTOGRAPHS: EXTERNAL BEA Sensors, 10TD900HH4 Order Number: F2LQ5979B Client: BEA Sensors Model: 10TD900HH4 F2LQ5979B Page 2 of 3 June 4, 2014 Order Number: F2LQ5979B Client: BEA Sensors Model: 10TD900HH4 F2LQ5979B Page 3 of 3 June 4, 2014

16±1 43±1 Note 1 : The dimensions, geometric tolerances and notes marked as: are critical for BEA application, see relevant BEA quality assurace (QA) document for details (cfr BEA Prot ocol No 6002 for explanation) Note 2 : Label material - Clear Acetate with PSA backing Note 3 : Print ink color - whiteNote 4 : All dimensions must be read in millimete rs Note 5 : All dimensions must be held within +/- 1 mm unless otherwise noted Label Placement PDM Project : File Name : A COMPANY WWW.BEAINC.COM HALMA F E D 1 C B H A 34 H C 432 75.5795 . 03 . PM . 00 --0302 -00 00- --Changed frequency descriptionChanged frequency description --AGAG --8/6/146/12/14 PROD. NAME : TD900HH1MATERIAL: See Note 2 01 00 Original document AG G THIS DRAWING IS THE PROPERTY OF BEA AND MAY NOT BE REPRODUCED WITHOUT WRITTEN AGREEMENT MODIFICATIONS LIST 3/27/14 Rev : Description : Ver : By : TITLE : FCC/IC Product Label Size DRAWER : AG DATE : 8/6/14 GENERAL TOLERANCE : - TREATEMENT: - APPROVED VERIFIED PAGE: 1 / 1 Ver.Obj Objet Doc. Rev.Doc. Scale B B A 2 G F E D Date : NTS - 75.5795.03.PM.00

16±1 43±1 Note 1 : The dimensions, geometric tolerances and notes marked as: are critical for BEA application, see relevant BEA quality assurace (QA) document for details (cfr BEA Prot ocol No 6002 for explanation) Note 2 : Label material - Clear Acetate with PSA backing Note 3 : Print ink color - whiteNote 4 : All dimensions must be read in millimete rs Note 5 : All dimensions must be held within +/- 1 mm unless otherwise noted PDM Project : File Name : A COMPANY WWW.BEAINC.COM HALMA F E D 1 C B H A 34 H C 432 75.5796 . 03 . PM . 00 --0302 -00 00- --Changed frequency descriptionChanged frequency description --AGAG --8/6/146/12/14 PROD. NAME : TD900HH2MATERIAL: See Note 2 01 00 Original document AG G THIS DRAWING IS THE PROPERTY OF BEA AND MAY NOT BE REPRODUCED WITHOUT WRITTEN AGREEMENT MODIFICATIONS LIST 3/27/14 Rev : Description : Ver : By : TITLE : FCC/IC Product Label Size DRAWER : AG DATE : 8/6/14 GENERAL TOLERANCE : - TREATEMENT: - APPROVED VERIFIED PAGE: 1 / 1 Ver.Obj Objet Doc. Rev.Doc. Scale B B A 2 G F E D Date : NTS - 75.5796.03.PM.00 Label Placement

Note 1 : The dimensions, geometric tolerances and notes marked as: are critical for BEA application, see relevant BEA quality assurace (QA) document for details (cfr BEA Prot ocol No 6002 for explanation) Note 2 : Label material - Clear Acetate with PSA backing Note 3 : Print ink color - whiteNote 4 : All dimensions must be read in millimete rs Note 5 : All dimensions must be held within +/- 1 mm unless otherwise noted PDM Project : File Name : A COMPANY WWW.BEAINC.COM HALMA F E D 1 C B H A 34 H C 432 75.5797 . 03 . PM . 00 --0302 -00 00- --Changed frequency descriptionChanged frequency description --AGAG --8/6/146/12/14 PROD. NAME : TD900HH3MATERIAL: See Note 2 01 00 Original document AG G THIS DRAWING IS THE PROPERTY OF BEA AND MAY NOT BE REPRODUCED WITHOUT WRITTEN AGREEMENT MODIFICATIONS LIST 3/27/14 Rev : Description : Ver : By : TITLE : FCC/IC Product Label Size DRAWER : AG DATE : 8/6/14 GENERAL TOLERANCE : - TREATEMENT: - APPROVED VERIFIED PAGE: 1 / 1 Ver.Obj Objet Doc. Rev.Doc. Scale B B A 2 G F E D Date : NTS - 75.5797.03.PM.00 Label Placement 16±1 43±1

PDM Project : File Name : A COMPANY WWW.BEAINC.COM HALMA F E TITLE : FCC/IC Product Label G F E D 1 C B H A 34 75.5798 . 03 . PM . 00 4 H 2 C - Changed frequency description PROD. NAME : TD900HH4 -0302 -00 00- --Changed frequency description DATE : 8/6/14 --AGAG --8/6/146/12/14 MATERIAL: See Note 2 G 3 01 00 Rev : Original document AG THIS DRAWING IS THE PROPERTY OF BEA AND MAY NOT BE REPRODUCED WITHOUT WRITTEN AGREEMENT Description : 3/27/14 MODIFICATIONS LIST Ver : By : Size DRAWER : AG D GENERAL TOLERANCE : - TREATEMENT: - APPROVED VERIFIED PAGE: 1 / 1 Ver.Obj Objet Doc. Rev.Doc. Scale B B A 2 Date : NTS - 75.5798.03.PM.00 16±1 43±1 Label Placement Note 1 : The dimensions, geometric tolerances and notes marked as: are critical for BEA application, see relevant BEA quality assurace (QA) document for details (cfr BEA Prot ocol No 6002 for explanation) Note 2 : Label material - Clear Acetate with PSA backing Note 3 : Print ink color - whiteNote 4 : All dimensions must be read in millimete rs Note 5 : All dimensions must be held within +/- 1 mm unless otherwise noted

F2LQF2LQ5979B Page 1 of 2 June 4, 2014 PHOTOGRAPHS: INTERNAL BEA Sensors, 10TD900HH4 Order Number: F2LQ5979B Client: BEA Sensors Model: 10TD900HH4 F2LQ5979B Page 2 of 2 June 4, 2014

012414 Report Number: F2LQ5979B-07E Page 1 of 25 Issue Date: June 30, 2014 F2 Labs 16740 Peters Road Middlefield, Ohio 44062 United States of America www.f2labs.com CERTIFICATION TEST REPORT Manufacturing Address: Beijing Jia An Electronics Technology Co., Ltd. No. 19 Gu Cheng West Street, Shi Jing Shan District, Beijing 100043, China Applicant: BEA Incorporated RIDC Park West, 100 Enterprise Drive Pittsburgh, Pennsylvania 15275 United States of America Product: RF 900 MHz Transceivers for Pedestrian Automatic Door Industry Models: 10TD900HH, 10TD900HH2, 10TD900HH3, 10TD900HH4 FCC ID: 2ABWS-10TD900HH4 Testing Commenced: June 26, 2014 Testing Ended: June 26, 2014 Summary of Test Results: Page 5 Standards:
FEDERAL REGISTER CFR 47, PART 15 – RADIO FREQUENCY DEVICES • Part 15 Subpart C, Section 15.231 - Periodic operation in the band 40.66–40.70 MHz and above 70 MHz • Part 15 Subpart C, Section 15.209 - Radiated emissions limits; general requirements
ANSI C63.4 2009 – American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Order Number: F2LQ5979B-C1 Client: BEA Incorporated Model: 10TD900HH4 012414 Report Number: F2LQ5979B-07E Page 2 of 25 Issue Date: June 30, 2014 Evaluation Conducted by: Joe Knepper, EMC Proj. Eng. Ken Littell, EMC Tech. Mgr. Report Reviewed by: Wendy Fuster, President F2 Labs F2 Labs 26501 Ridge Road 16740 Peters Road Damascus, MD 20872 Middlefield, OH 44062 Ph 301.253.4500 Ph 440.632.5541 Fax 301.253.5179 Fax 440.632.5542 This test report may be reproduced in full; partial reproduction only may be made with the written consent of F2 Labs. The results in this report apply only to the equipment tested. Order Number: F2LQ5979B-C1 Client: BEA Incorporated Model: 10TD900HH4 012414 Report Number: F2LQ5979B-07E Page 3 of 25 Issue Date: June 30, 2014 TABLE OF CONTENTS Section Title Page 1 ADMINISTRATIVE INFORMATION 4 2 SUMMARY OF TEST RESULTS/MODIFICATIONS 5 3 ENGINEERING STATEMENT 6 4 EUT INFORMATION AND DATA 7 5 LIST OF MEASUREMENT INSTRUMENTATION 8 6 FCC Part 15.231(b) 9 7 PHOTOGRAPH(S) 25 APPENDIX • UE259 Engineering Change Requests (Hardware) 20140603 Order Number: F2LQ5979B-C1 Client: BEA Incorporated Model: 10TD900HH4 012414 Report Number: F2LQ5979B-07E Page 4 of 25 Issue Date: June 30, 2014 1 ADMINISTRATIVE INFORMATION 1.1 Measurement Location: F2 Labs in Middlefield, Ohio. Site description and attenuation data are on file with the FCC's Sampling and Measurement Branch at the FCC Laboratory in Columbia, MD. 1.2 Measurement Procedure: All measurements were performed according to the 2009 version of ANSI C63.4 and recommended FCC procedure of measurement for Intermittent Transmitters and Receivers operating under Section 15.231. A list of the measurement equipment can be found in Section 6. 1.3 Uncertainty Budget: Radiated Emission • Combined Uncertainty (+ or -) 2.67 dB • Expanded Uncertainty (+ or -) 5.35 dB This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. 1.4 Document History Document Number Description Issue Date Approved By F2LQ5979A-07E First Issue June 30, 2014 W. Fuster Order Number: F2LQ5979B-C1 Client: BEA Incorporated Model: 10TD900HH4 012414 Report Number: F2LQ5979B-07E Page 5 of 25 Issue Date: June 30, 2014 2 SUMMARY OF TEST RESULTS Standard(s) Results CFR 47 Part 15.231(b) / Part 15.209 Complies Note: Requirements of 15.31(e) were met by using new batteries. Modifications Made to the Equipment Reduced power of EUT to -7.4dBm Refer to APPENDIX - UE259 Engineering Change Requests (Hardware) 20140603 Order Number: F2LQ5979B-C1 Client: BEA Incorporated Model: 10TD900HH4 012414 Report Number: F2LQ5979B-07E Page 6 of 25 Issue Date: June 30, 2014 3 ENGINEERING STATEMENT This report has been prepared on behalf of BEA Incorporated, to provide documentation for the testing described herein. This equipment has been tested and found to comply with Part 15.231 of the FCC Rules, using ANSI C63.4 2009 standards, with the modifications noted in Section 2 of this Test report. The test results found in this test report relate only to the items tested. Order Number: F2LQ5979B-C1 Client: BEA Incorporated Model: 10TD900HH4 012414 Report Number: F2LQ5979B-07E Page 7 of 25 Issue Date: June 30, 2014 4 EUT INFORMATION AND DATA 4.1 Equipment Under Test: Product: RF 900 MHz Transceivers for Pedestrian Automatic Door Industry Model: 10TD900HH4 Serial No.: None Spec. FCC ID: 2ABWS-10TD900HH4 4.2 Trade Name: BEA Incorporated 4.3 Power Supply: Battery Powered, (new batteries were used) 4.4 Applicable Rules: CFR 47, Part 15.231, subpart C 4.5 Equipment Category: Intermittent Transceiver 4.6 Antenna: 0dBi Internal 4.7 Accessories: N/A 4.8 Test Item Condition: The equipment to be tested was received in good condition. 4.9 Testing Algorithm: The EUT was configured to permit frequency changes from low-mid-upper transmission channel. For all tests, in a semi-anechoic chamber and on the OATS, the EUT was equipped with a 0dBi Omni antenna. Order Number: F2LQ5979B-C1 Client: BEA Incorporated Model: 10TD900HH4 012414 Report Number: F2LQ5979B-07E Page 8 of 25 Issue Date: June 30, 2014 5 LIST OF MEASUREMENT INSTRUMENTATION Equipment Type Asset Number Manufacturer Model Serial Number Calibration Due Date Shield Room 0175 Ray Proof N/A 11645 Aug. 7, 2014 Temp/Hum. Recorder CL119 Extech RH520 H005869 Jan. 8, 2015 OATS-3m CL017 Compliance Labs N/A 001 Dec. 13, 2014 Spectrum Analyzer CL147 Agilent E7402A MY45101241 Oct. 24, 2014 Spectrum Analyzer CL138 Agilent Technologies E4407B US41192779 Oct. 29, 2014 Receiver CL151 Rohde & Schwarz ESU40 100319 Oct. 30, 2014 Antenna 1-Chamber 0142 ETS/EMCO 3142B 9811-1330 Verified Antenna 2-OATS 0105 Sunol Sciences JB1 A101101 May 7, 2015 Pre-Amplifier CL153 Agilent 83006-69007 MY39500900 Jan. 9, 2015 Amplifier w/Monopole & 18” Loop CL163 A.H. Systems, Inc. EHA-52B 100 Apr. …
