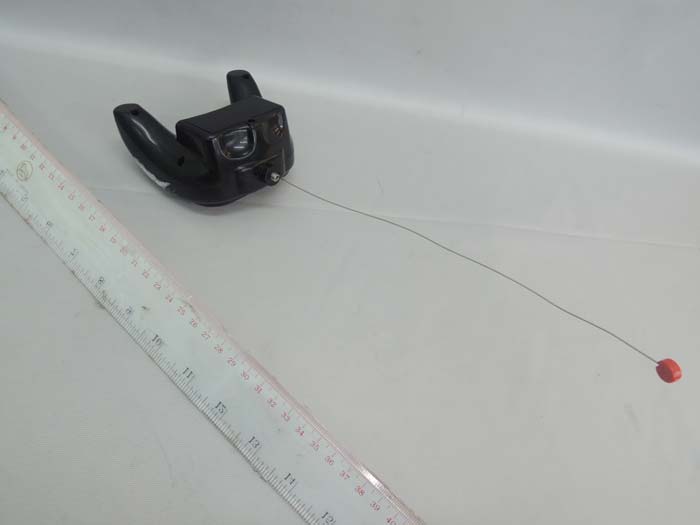

INTERTEK TESTING SERVICE Report No.: 14020519HKG-002 Equipment Photographs Model : 2905048 (External) FCC ID: 2ABYDJZH9201449A

Toy RC Robot Jr 27MHz FCC ID Label-2014 SIZE: 29 * 14 mm FCC ID：2ABYDJZH9201427A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Toy RC Robot Jr 49MHz FCC ID Label-2014 SIZE: 29 * 14 mm FCC ID：2ABYDJZH9201449A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Toy RC Robot Jr 49MHz FCC DOC Label-2014 SIZE: 16 * 10 mm Toy RC Robot Jr JZH2014A

INTERTEK TESTING SERVICE Report No.: 14020519HKG-002 Equipment Photographs Model : 2905048 (Internal) FCC ID: 2ABYDJZH9201449A INTERTEK TESTING SERVICE Report No.: 14020519HKG-002 Equipment Photographs Model : 2905048 (Internal) FCC ID: 2ABYDJZH9201449A

FCC ID: 2ABYDJZH9201449A Model: 2905048 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 49.86 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: SW1, SW2, IC1 (TX-3E) 2. A Filter Network Consisting: L1, C4 4. A RF Oscillator (27.145MHz), A RF Modulator and Amplifier Consisting: T2, C2, C3, Q1, C6, R5 5. A Power Supply Consisting: 9VDC (1 X “9V” battery) Antenna Gain: 0dBi Nominal rated field strength: 79.0dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and integral antenna.

Analysis Report Report No.: 14020519HKG-002 The Equipment Under Test (EUT) is a transmitter of a RC Car operating at 49.860 MHz as dictated by LC oscillator. The EUT is powered by a 9.0 V DC source (1 x 9V battery). The EUT has a forward or backward control lever and a left or right control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward, and switching mode for robot and race car. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 79dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 82dBμV/m at 3m in frequency 49.860MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.0475mW Thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.0475mW. The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 308.6mW Since the above conducted output power is well below the SAR Exclusion Threshold level, so the EUT is considered to comply with SAR requirement without testing.

123456 A B C D 6 54321 D C B A Title NumberRevisionSize B Date:4-Apr-2014 Sheet of File:F:\JH\佳和电子.ddbDrawn By: Q1 945 R2 2.2K R4 1K R1 10K R3 82K C4 15P C3 5P L1 2.2UH SW2 VCC ANT C2 12P SW1 C1 104P C5 104P D1 4148 LED1 T431 T2 IC1 TX-3E R5 15R C5 22P
