2ABYDJZH9201527BTOY RC MOTORCYCLE

SHANTOU JIAZHIHE ELECTRONIC TOY FACTORY Address : South side HuanCui Road,GuangYi Street,Chenghai District, ShanTou, Guangdong, China. To whom it may concern, Letter of Agency I, an officer of Shantou Jiazhihe Electronic Toy Factory do hereby authorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, [Signature] [Name] Lai Chu Po [Title] manager Feb 03, 2015

Feb 03, 2015 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: Request is hereby submitted by permanently from public review the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application to be kept permanently confidential and the right to discern which parties can obtain access to these information: Schematics Detailed Block diagrams Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose succ of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, [Signature] [Name] Lai Chu Po [Title] Manager Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: 2ABYDJZH9201527B Request is hereby submitted by Shantou Jiazhihe Electronic Toy Factory permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application to be kept permanently confidential and Shantou Jiazhihe Electronic Toy Factory the right to discern which parties can obtain access to these information: Detailed Block diagrams Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of Shantou Jiazhihe Electronic Toy Factory and it is subject to competition. We have invested considerable time and materials in research d development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose succ of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Shantou Jiazhihe Electronic Toy Factory to withhold certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are Shantou Jiazhihe Electronic Toy Factory reserves the right to discern which parties can obtain access to these information: Shantou Jiazhihe Electronic Toy Factory and it is subject to competition. We have invested considerable time and materials in research d development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation If you have questions or need further information, please contact the undersigned.

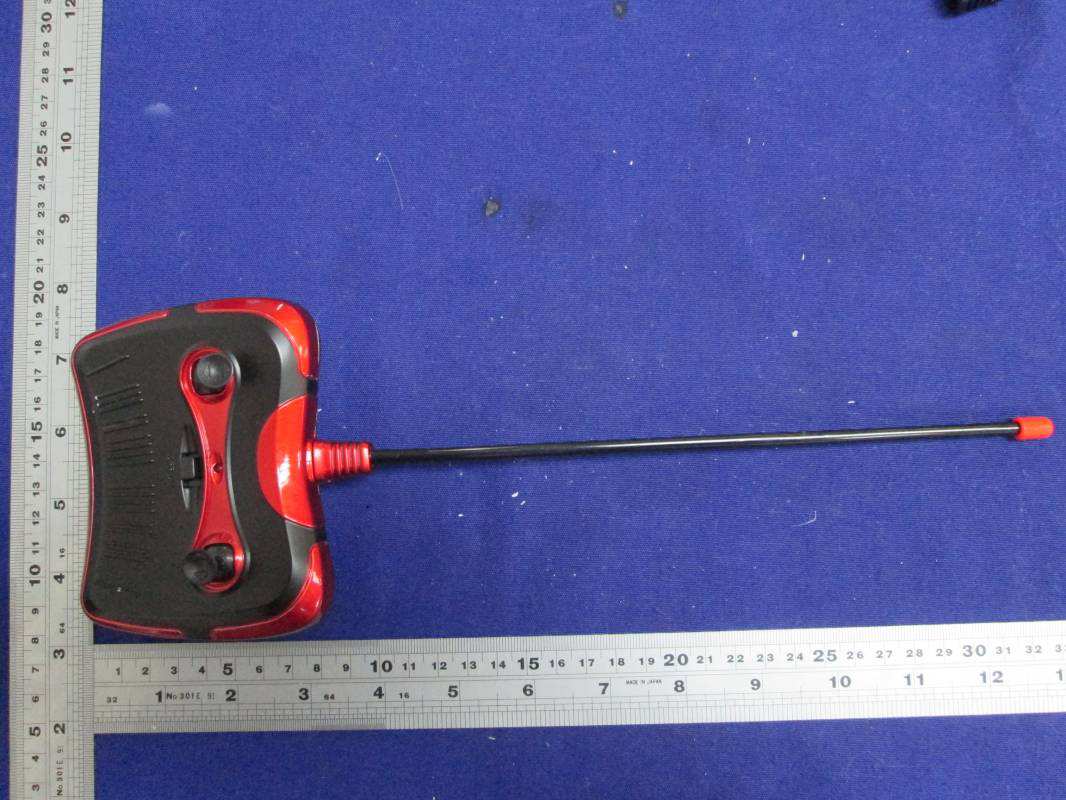

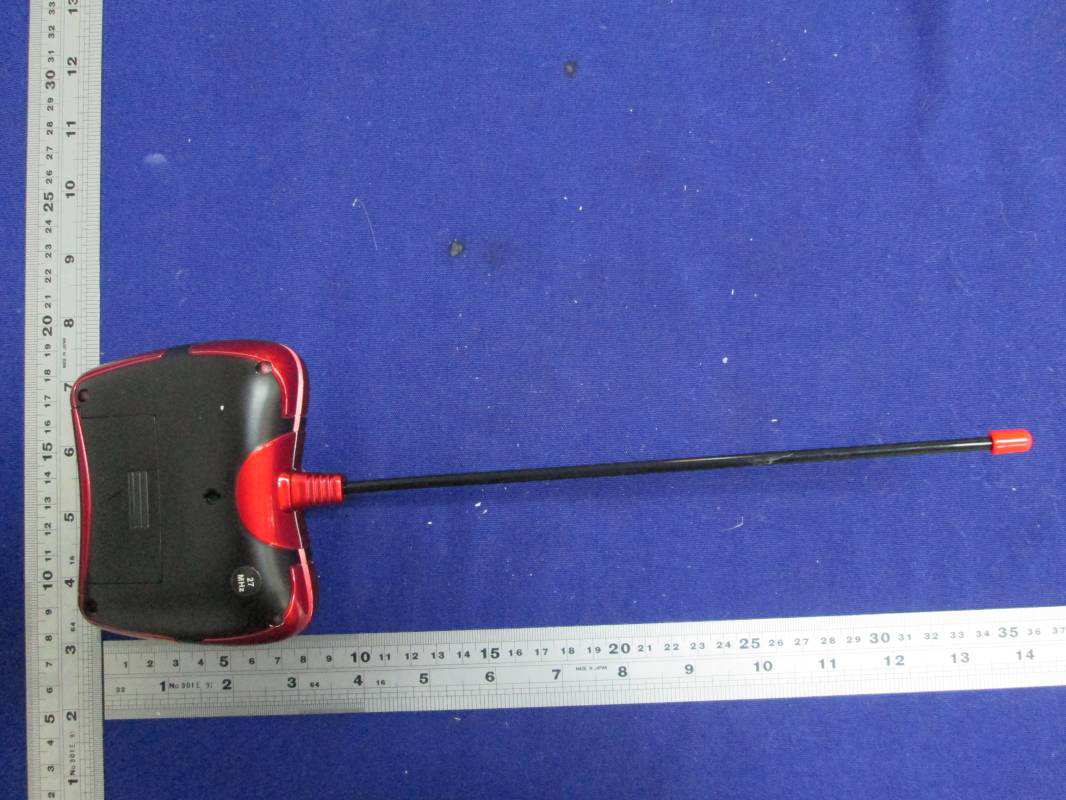

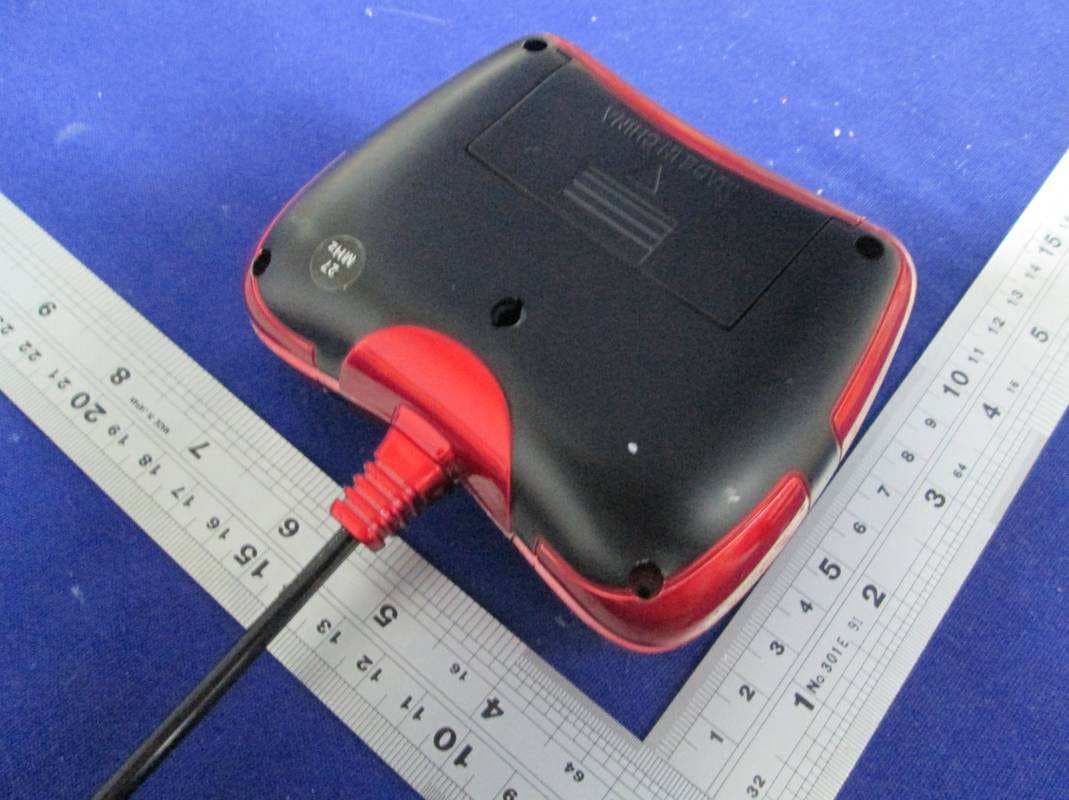

External Photos

Label Artwork and Location SIZE: 30mm (W) x 15mm (H) FCC ID ： 2ABYDJZH9201527B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal photos

: -41.15dBm (+/- 3dB) 1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a Toy RC Motorcycle operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by one 9.0V 6F22 size battery. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal conducted output power specified: -39.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified Modulation Type: Pulse modulation According to the KDB 447498: The worst-case peak radiated emission for the EUT is 55.3dBμV/m at 3m in the frequency 27.145MHz The EIRP = [(FS*D) ^2 / 30] mW= -39.93dBm The ERP = EIRP – 2.15 = -42.08 dBm which is within the production variation. The maximun conducted output power specified is -36dBm =0.00025mW The source- based time-averaging conducted output power = 0.00025* Duty Cycle mW < 0.1mW (Duty Cycle<100%) The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 371.2 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 17.3913ms Effective period of the cycle = 478.3μs x 10 + 1.4348ms x 4 = 10.5222ms DC = 10.5222ms / 17.3913ms = 0.6050 or 60.50% FCC ID: 2ABYDJZH9201527B

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 SHANTOU JIAZHIHE ELECTRONIC TOY FACTORY Application For Certification FCC ID: 2ABYDJZH9201527B Toy RC Motorcycle Model: JZH2015B Transmitter Report No.: GZHH00168680-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-13] Prepared and Checked by: Approved by: Sign on file Terry Tang Engineer Andy Yan Senior Project Engineer Date: April 7, 2015 INTERTEK TESTING SERVICES Report No.: GZHH00168680-001 FCC ID: 2ABYDJZH9201527B TRF No.: FCC 15C_TX_b i GENERAL INFORMATION SHANTOU JIAZHIHE ELECTRONIC TOY FACTORY MODEL: JZH2015B FCC ID: 2ABYDJZH9201527B Grantee: SHANTOU JIAZHIHE ELECTRONIC TOY FACTORY Grantee Address: South side HuanCui Road, GuangYi Street, Chenghai District, ShanTou, Guangdong, China Contact Person: CHU PO LAI Tel: 0754-89872543 Manufacturer: SHANTOU JIAZHIHE ELECTRONIC TOY FACTORY Manufacturer Address: South side HuanCui Road,GuangYi Street, Chenghai District, ShanTou, Guangdong, China Model: JZH2015B Type of EUT: Transmitter Description of EUT: TOY RC MOTORCYCLE Serial Number: N/A FCC ID : 2ABYDJZH9201527B Date of Sample Submitted: February 10, 2015 Date of Test: March 16, 2015 Report No.: GZHH00168680-001 Report Date: April 7, 2015 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: GZHH00168680-001 FCC ID: 2ABYDJZH9201527B TRF No.: FCC 15C_TX_b ii SUMMARY OF TEST RESULT SHANTOU JIAZHIHE ELECTRONIC TOY FACTORY MODEL: JZH2015B FCC ID: 2ABYDJZH9201527B TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses an integral antenna, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: GZHH00168680-001 FCC ID: 2ABYDJZH9201527B TRF No.: FCC 15C_TX_b iii Table of Contents 1.0 General Description ....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology ............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software .................................................................................. 2 2…

Text truncated - open the document above for the full version.

Radiated Emission
