2ABYDTCBJZH9201427A27MHz B/O RC Toys

BLOCK DIAGRAM ANT 27.1206MHz Control Encoder RF Power Filter Key TX-3E Amplifier and Modulator U1 128KHz with LC Oscillator 27.1206MHz

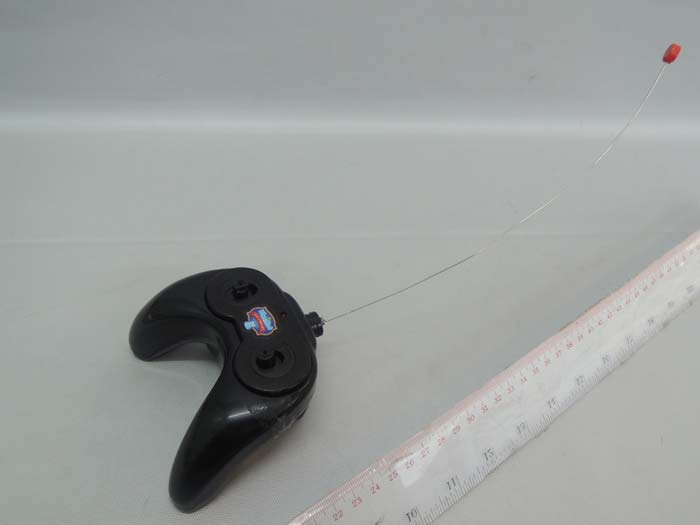

INTERTEK TESTING SERVICE Report No.: 14020518HKG-001 Equipment Photographs Model : 2905048 (External) FCC ID: 2ABYDJZH9201427A

Toy RC Robot Jr 27MHz FCC ID Label-2014 SIZE: 29 * 14 mm FCC ID：2ABYDJZH9201427A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Toy RC Robot Jr 49MHz FCC ID Label-2014 SIZE: 29 * 14 mm FCC ID：2ABYDJZH9201449A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Toy RC Robot Jr 49MHz FCC DOC Label-2014 SIZE: 16 * 10 mm Toy RC Robot Jr JZH2014A

INTERTEK TESTING SERVICE Report No.: 14020518HKG-001 Equipment Photographs Model : 2905048 (Internal) FCC ID: 2ABYDJZH9201427A INTERTEK TESTING SERVICE Report No.: 14020518HKG-001 Equipment Photographs Model : 2905048 (Internal) FCC ID: 2ABYDJZH9201427A

FCC ID: 2ABYDJZH9201427A Model: 2905048 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.1206 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: SW1, SW2, IC1 (TX-3E) 2. A Filter Network Consisting: L1, C4 4. A LC Oscillator (27.120MHz), A RF Modulator and Amplifier Consisting: T2, C2, C3, Q1, C6, R5 5. A Power Supply Consisting: 9VDC (1 X “9V” battery) Antenna Gain: 0dBi Nominal rated field strength: 68.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and integral antenna.

Analysis Report Report No.: 14020518HKG-001 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.1206 MHz as dictated by LC oscillator. The EUT is powered by a 9.0 V DC source (1 x 9.0V battery). The EUT has a forward / backward control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward and switching mode for robot and race car. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 68.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 71.5dBμV/m at 3m in frequency 27.1206MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00424mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.00424mW. The SAR Exclusion Threshold Level for 27.1206MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.3mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

123456 A B C D 6 54321 D C B A Title NumberRevisionSize B Date:4-Apr-2014 Sheet of File:F:\JH\佳和电子.ddbDrawn By: Q1 945 R2 2.2K R4 1K R1 10K R3 82K C4 101P C3 5P L1 6.8UH SW2 VCC ANT C2 47P SW1 C1 104P C5 104P D1 4148 LED1 T431 T2 U1 TX-3E R5 15R C5 22P

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 14020518HKG-001 Shantou Jiazhihe Electronic Toy Factory Application For Certification (Original Grant) (FCC ID: 2ABYDJZH9201427A) Transmitter Prepared and Checked by: Approved by: Signed On File Tse Ying, Cathy Senior Lead Engineer Ng Mei Nar, Chris Lead Engineer Date: April 04, 2014 INTERTEK TESTING SERVICES Report No.: 14020518HKG-001 FCC ID: 2ABYDJZH9201427A i GENERAL INFORMATION Shantou Jiazhihe Electronic Toy Factory BRAND NAME: N/A, MODEL: 2905048 FCC ID: 2ABYDJZH9201427A Grantee: Shantou Jiazhihe Electronic Toy Factory Grantee Address: South Side HuanCui Road, GuangYi Street, Chenghai District, ShanTou, Guangdong, China. Contact Person: Lai Chu Po Tel: 0754-89872543 Fax: 0754-89873543 e-mail: [email protected] Buyer: Merchsource LLC Manufacturer: Shantou Jiazhihe Electronic Toy Factory Manufacturer Address: South Side HuanCui Road, GuangYi Street, Chenghai District, ShanTou, Guangdong, China. Brand Name: N/A Model: 2905048 Type of EUT: Transmitter Description of EUT: 27MHz B/O RC Toys Serial Number: N/A FCC ID: 2ABYDJZH9201427A Date of Sample Submitted: February 20, 2014 Date of Test: February 20, 2014 to March 20, 2014 Report No.: 14020518HKG-001 Report Date: April 04, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 14020518HKG-001 FCC ID: 2ABYDJZH9201427A ii SUMMARY OF TEST RESULT Shantou Jiazhihe Electronic Toy Factory BRAND NAME: N/A, MODEL: 2905048 FCC ID: 2ABYDJZH9201427A TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 14020518HKG-001 FCC ID: 2ABYDJZH9201427A iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Equipment Modification...................................................................................... 2 2.5 Measurement Uncertainty .................................................................................. 2 2.6 Support Equipment List and Description............................................................. 2 3.0 Emission Results ................................................................................................ 3 3.1 Field Strength Calculation .................................................................................. 3 3.2 Radiated Emission Configuration Photograph .................................................... 4 3.3 Radiated Emission Data .................................................................................... 4 4.0 Equipment Photographs ..................................................................................... 6 5.0 Product Labelling................................................................................................ 6 6.0 Technical Specifications ..................................................................................... 6 7.0 Instruction Manual .............................................................................................. 6 8.0 Miscellaneous Information................................................................................. 7 8.1 Measure…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14020518HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 2905048 2905048 FCC ID: 2ABYDJZH9201427A INTERTEK TESTING SERVICE Report No: 14020518HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 2905048 2905048 FCC ID: 2ABYDJZH9201427A
