2AC23-WCT5HWIFI+BT Module

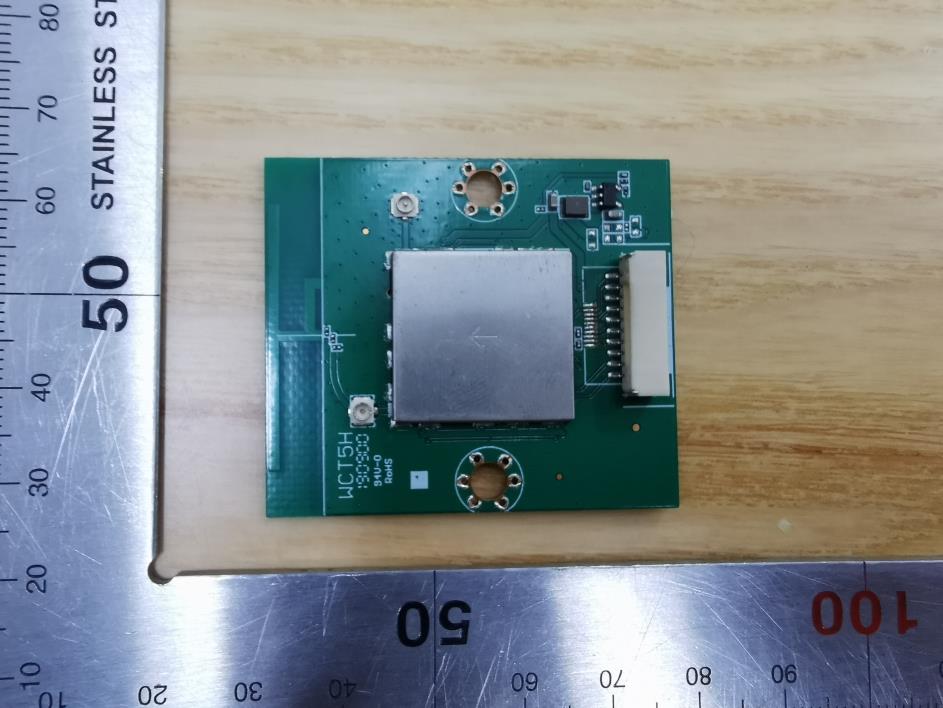

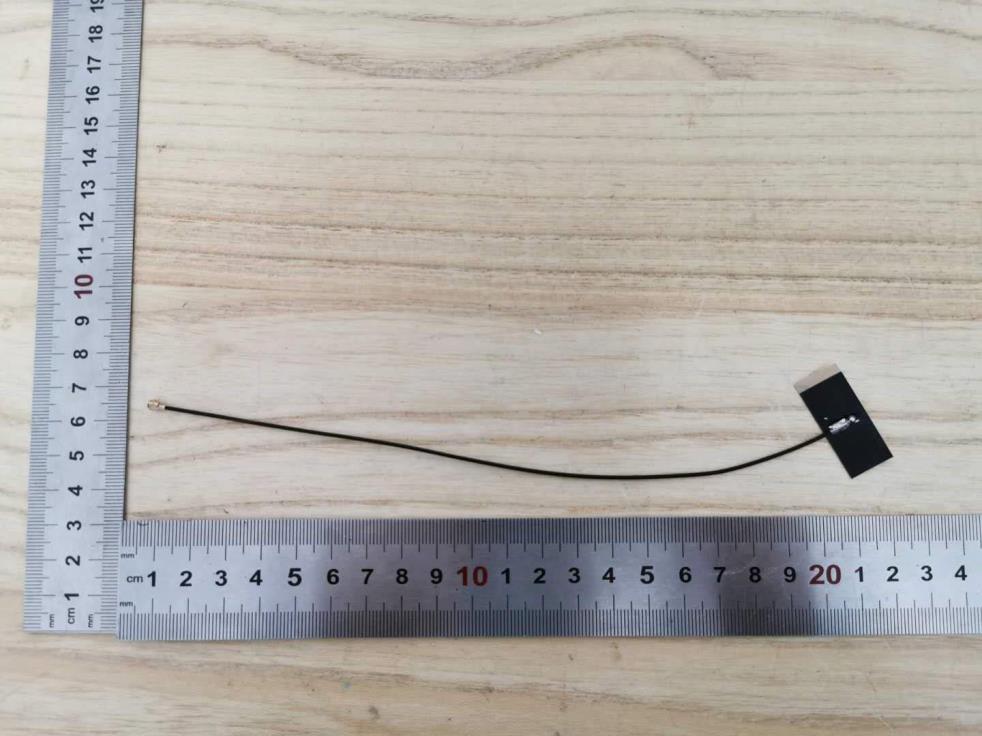

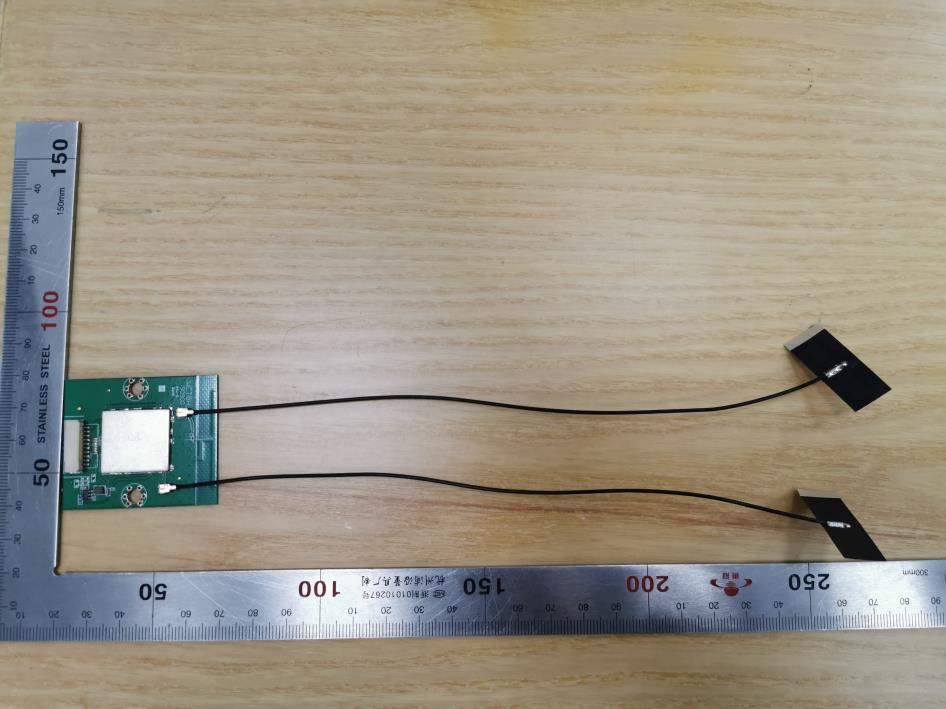

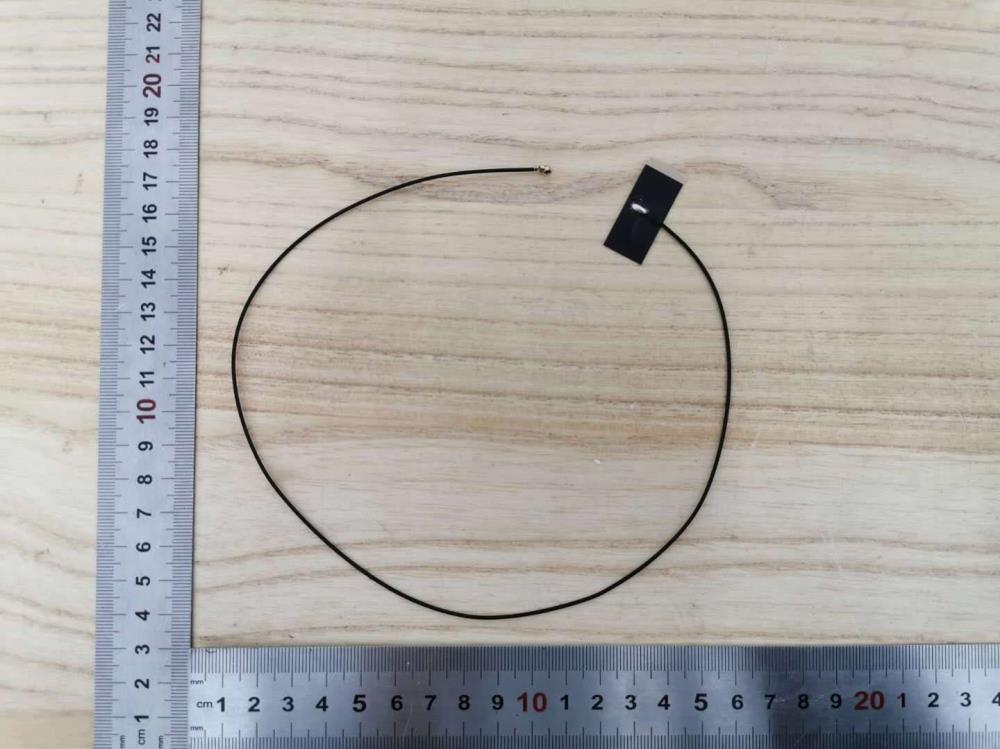

External Photographs Page 2 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-1 View of EUT-2 BT ANT WIFI ANT ANT not used Page 3 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-3 View of EUT-4 ANT(WCT5H-20) Page 4 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-5 ANT(WCT5H-40) View of EUT-6 ANT(WCT5H-60) Page 5 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-7-ANT （WCT5H-20，WCT5H-40，WCT5H-60） View of EUT-8-ANT（WCT5H-20，WCT5H-40，WCT5H-60）

QR-code

Internal Photographs Page 2 of 2 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-1 Internal View of EUT-2 Chip ANT not used

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC RF EXPOSURE REPORT For MODEL NUMBER: WCT5HM2511 FCC ID: 2AC23-WCT5H REPORT NUMBER: 4789290585.1-12 ISSUE DATE: March 18, 2020 Prepared for Hui Zhou Gaoshengda Technology Co.,LTD NO.75 Zhongkai Development Area Huizhou, Guangdong China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi-Tech Development Zone, Dongguan, People’s Republic of China Tel: +86 769-22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT No.: 4789290585.1-12 Page 2 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 3 2. TEST METHODOLOGY ..................................................................................................... 3 3. FACILITIES AND ACCREDITATION ................................................................................. 4 4. REQUIREMENT ................................................................................................................. 5 REPORT No.: 4789290585.1-12 Page 3 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Hui Zhou Gaoshengda Technology Co.,LTD Address: NO.75 Zhongkai Development Area Huizhou, Guangdong China Manufacturer Information Company Name: Hui Zhou Gaoshengda Technology Co.,LTD Address: NO.75 Zhongkai Development Area Huizhou, Guangdong China EUT Information EUT Name: WIFI+BT Module Model Name WCT5HM2511 Sample Status Normal Sample ID 2755848 Sample Received date January 3, 2020 Date Tested January 3, 2020~March 18, 2020 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47CFR§2.1091 KDB-447498 D01 V06 PASS Prepared By: Checked By: Kebo Zhang Shawn Wen Engineer Project Associate Laboratory Leader Approved By: Stephen Guo Laboratory Manager REPORT No.: 4789290585.1-12 Page 4 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4102.01) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1187) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. Has been recognized to perform compliance testing on equipment subject to the Commission's Delcaration of Conformity (DoC) and Certification rules ISED(Company No.: 21320) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been registered and fully described in a report filed with Industry Canada. The Company Number is 21320. VCCI (Registration No.: G-20019, R-20004, C-20012 and T-20011) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with VCCI, the Membership No. is 3793. Facility Name: Chamber D, the VCCI registration No. is G-20019 and R-20004 Shielding Room B , the VCCI registration No. is C-20012 and T-20011 Note 1: All tests measurement facilities use to collect the measurement data are located at Building 10, Innovation Technology Park, Song Shan Lake Hi tech Development Zone, Dongguan, 523808, China Note 2: The test anechoic chamber in UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. Note 3: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. And these measurements below 30MHz had been correlated to measurements performed on an OFS. REPORT No.: 4789290585.1-12 Page 5 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 4. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 30 Note 1: f = frequency in MHz, * means Plane-wave equivalent power density Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Note 3: The limit value 1.0mW/cm 2 is available for this EUT. M…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. CFR 47 FCC PART 15 SUBPART E ISED RSS-247 ISSUE 2 TEST REPORT For WIFI+BT Module MODEL NUMBER: WCT5HM2511 FCC ID: 2AC23-WCT5H IC: 12290A-WCT5H REPORT NUMBER: 4789290585.1-10 ISSUE DATE: March 18, 2020 Prepared for Hui Zhou Gaoshengda Technology Co.,LTD NO.75 Zhongkai Development Area Huizhou, Guangdong China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi-Tech Development Zone Dongguan, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT No.: 4789290585.1-10 Page 2 of 167 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 3/18/2020 Initial Issue REPORT No.: 4789290585.1-10 Page 3 of 167 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Clause Test Items FCC/IC Rules Test Results 1 6dB/26dB Bandwidth FCC 15.407 (a)&(e) RSS-247 Clause 6.2 PASS 2 99% Occupied Bandwidth RSS-Gen Clause 6.7 PASS 3 Maximum Conducted Output Power FCC 15.407 (a) RSS-247 Clause 6.2 PASS 4 Power Spectral Density FCC 15.407 (a) RSS-247 Clause 6.2 PASS 5 Radiated Bandedge and Spurious Emission FCC 15.407 (b) FCC 15.209 FCC 15.205 RSS-247 Clause 6.2 RSS-GEN Clause 8.9 PASS 6 Conducted Emission Test For AC Power Port FCC 15.207 RSS-GEN Clause 8.8 PASS 7 Frequency Stability FCC 15.407 (g) PASS 8 Antenna Requirement FCC 15.203 RSS-GEN Clause 8.3 PASS Note: This test report is only published to and used by the applicant, and it is not for evidence purpose in China. REPORT No.: 4789290585.1-10 Page 4 of 167 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 6 2. TEST METHODOLOGY ..................................................................................................... 7 3. FACILITIES AND ACCREDITATION ................................................................................. 7 4. CALIBRATION AND UNCERTAINTY ................................................................................ 8 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 8 4.2. MEASUREMENT UNCERTAINTY ............................................................................... 8 5. EQUIPMENT UNDER TEST ............................................................................................... 9 5.1. DESCRIPTION OF EUT .............................................................................................. 9 5.2. MAXIMUM EIRP .......................................................................................................... 9 5.3. CHANNEL LIST ..........................................................................................................10 5.4. THE WORSE CASE POWER SETTING PARAMETER ..............................................11 5.5. THE WORSE CASE CONFIGURATIONS ..................................................................11 5.6. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................12 5.7. DESCRIPTION OF TEST SETUP ...............................................................................13 6. MEASURING INSTRUMENT AND SOFTWARE USED ....................................................14 7. ANTENNA PORT TEST RESULTS ...................................................................................16 7.1. ON TIME AND DUTY CYCLE .....................................................................................16 7.2. 6/26/99% dB BANDWIDTH .........................................................................................18 7.2.1. 802.11a MODE ....................................................................................................20 7.2.2. 802.11n HT20 MODE ..........................................................................................23 7.2.3. 802.11n HT40 MODE ..........................................................................................26 7.2.4. 802.11ac VHT80 MODE ......................................................................................29 7.3. MAXIMUM CONDUCTED OUTPUT POWER .............................................................31 7.3.1. UNII-1 BAND .......................................................................................................32 7.3.2. UNII-3 BAND .......................................................................................................33 7.4. POWER SPECTRAL DENSITY ..................................................................................34 7.4.1. 802.11a MODE ....................................................................................................36 7.4.2. 802.11n HT20 MODE ..........................................................................................38 7.4.3. 802.11n HT4…

Text truncated - open the document above for the full version.

REPORT No.: 4789290585.1-10 Page 101 of 167 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. VERTICAL RESULTS No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) (dB/m) (dBuV/m) (dBuV/m) (dB) 1 5850.000 16.73 42.89 59.62 122.20 -62.58 peak 2 5938.940 19.76 43.19 62.95 68.20 -5.25 peak Note: 1. Measurement = Reading Level + Correct Factor. REPORT No.: 4789290585.1-10 Page 102 of 167 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. HARMONICS AND SPURIOUS EMISSIONS LOW CHANNEL HORIZONTAL RESULTS 1-7GHz No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) (dB/m) (dBuV/m) (dBuV/m) (dB) 1 2344.000 43.42 -8.03 35.39 74.00 -38.61 peak 2 3832.000 49.79 -2.79 47.00 74.00 -27.00 peak 3 4936.000 41.32 2.53 43.85 74.00 -30.15 peak 4 5554.000 47.96 3.82 51.78 74.00 -22.22 peak 5 5746.000 48.27 3.76 52.03 74.00 -21.97 peak 6 5920.000 41.57 5.23 46.80 74.00 -27.20 peak Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Peak: Peak detector. 4. Filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for Band reject filter losses. 5. Proper operation of the transmitter prior to adding the filter to the measurement chain. 6. Owing to the highest peak level of unwanted emission out of the restricted bands complies with the lowest limit(54dBuV/m), so all the test point were deemed to comply with the limits list in the standard. REPORT No.: 4789290585.1-10 Page 103 of 167 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. HORIZONTAL RESULTS 7-18GHz No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) (dB/m) (dBuV/m) (dBuV/m) (dB) 1 8518.000 39.80 7.85 47.65 74.00 -26.35 peak 2 10300.000 36.83 11.30 48.13 74.00 -25.87 peak 3 11493.873 40.88 13.33 54.21 74.00 -19.79 peak 4 11493.873 27.58 13.33 40.91 54.00 -13.09 AVG 5 13435.000 34.78 16.08 50.86 74.00 -23.14 peak 6 15173.000 34.50 16.12 50.62 74.00 -23.38 peak 7 17230.548 34.33 21.41 55.74 74.00 -18.26 peak 8 17230.548 20.19 21.41 41.60 54.00 -12.40 AVG Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Peak: Peak detector. 4. AVG: VBW=1/Ton where: ton is transmit duration. 5. For transmit duration, please refer to clause 7.1. 6. Filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for High Pass Filter losses. 7. Proper operation of the transmitter prior to adding the filter to the measurement chain. 8. Owing to the highest peak level of unwanted emission out of the restricted bands complies with the lowest limit(54dBuV/m), so all the test point were deemed to comply with the limits list in the standard. REPORT No.: 4789290585.1-10 Page 104 of 167 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. VERTICAL RESULTS 1-7GHz No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) (dB/m) (dBuV/m) (dBuV/m) (dB) 1 1060.000 48.47 -13.53 34.94 74.00 -39.06 peak 2 2434.000 44.72 -7.49 37.23 74.00 -36.77 peak 3 2662.000 47.22 -6.96 40.26 74.00 -33.74 peak 4 3712.000 42.24 -2.12 40.12 74.00 -33.88 peak 5 5746.000 48.12 3.76 51.88 74.00 -22.12 peak 6 5926.000 44.60 5.16 49.76 74.00 -24.24 peak Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Peak: Peak detector. 4. Filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for Band reject filter losses. 5. Proper operation of the transmitter prior to adding the filter to the measurement chain. 6. Owing to the highest peak level of unwanted emission out of the restricted bands complies with the lowest limit(54dBuV/m), so all the test point were deemed to comply with the limits list in the standard. REPORT No.: 4789290585.1-10 Page 105 of 167 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. VERTICAL RESULTS 7-18GHz No. Frequency Reading Correct Result Limit Margin Remark (MHz) (dBuV) (dB/m) (dBuV/m) (dBuV/m) (dB) 1 7429.000 45.32 6.95 52.27 74.00 -21.73 peak 2 8507.000 41.71 7.89 49.60 74.00 -24.40 peak 3 11492.900 45.68 13.31 58.99 74.00 -15.01 peak 4 11492.900 31.61 13.31 44.92 54.00 -9.08 AVG 5 13974.000 35.07 16.16 51.23 74.00 -22.77 peak 6 17231.599 33.76 21.43 55.19 74.00 -18.81 peak 7 17231.599 19.23 21.43 40.66 54.00 -13.34 AVG 8 17725.000 31.95 22.72 54.67 74.00 -19.33 peak 9 17725.000 16.64 22.72 39.36 54.00 -14.64 AVG Note: 1. Measurement = Reading Level + Correct Factor. 2. If Peak Result complies with AV limit, AV Result is deemed to comply with AV limit. 3. Peak: Peak detector. 4. AVG: VBW=1/Ton where: ton is transmit duration. 5. For transmit duration, please refer to clause 7.1. 6. Filter losses were only considered in the spurious frequency bands and the authorized band was not corrected for High Pass Filter losses. 7. Proper operation of the transmitter pri…

Text truncated - open the document above for the full version.

Appendix II Setup Photographs RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) MEASUREMENT POSITION (TESTED) MEASUREMENT POSITION (X axis) MEASUREMENT POSITION (Y axis) MEASUREMENT POSITION (Z axis) RADIATED RF MEASUREMENT SETUP (30MHz~1GHz) RADIATED RF MEASUREMENT SETUP (Below 30MHz) POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
