2AC23-WKCT1FWIFI+BT Module

Hui Zhou Gaoshengda Technology Co., LTD WKCT1FR2501 PAGE 1 Version 1.0 WIFI+BT Module IEEE 802.11 a/b/g/n/ac 2T/2R Model Number: WKCT1FR2501 Product Descrition The WKCT1FR2501 is a complete dual-band(2.4GHz and 5GHz)WIFI 2×2 MIMO module. This module provides a high level of integration with a dual-stream IEEE 802.11ac MAC/ base band /radio and Bluetooth 5.4.The WLAN operation supports 20MHz,40MHz and 80MHz channels for data rates up to 866.7Mbps. It fully complies with IEEE 802.11 a/b/g/n/ac feature rich wireless connectivity at high standards,delivers reliable,cost-effective, throughput from an extended distance. Product Features ◆ Complies with IEEE 802.11b/g/n for 2.4GHz and IEEE 802.11a/n/ac 5GHz Wireless LAN. ◆ Bluetooth v5.4 ◆ Two transmit and Two receive path(2T2R) ◆ Works with all existing network nfrastructure. ◆ Capable of up to 128-Bit WEP Encryption. ◆ Freedom to roam while staying connected. ◆ UP to 866.7 Mbps High-Speed Transfer Rate in 802.11ac mode of operation. ◆ Operating Systems：Linux,Windows ◆ Low power consumption. ◆ Easy to install and configure. ◆ High speed USB 2.0 interface ◆ ROHS compliant Product Specification Model WKCT1FR2501 Product Name WIF+BT Module Standard 802.11 a/b/g/n/ac Interface USB Data Transfer Rate Up to 866.7Mbps Modulation Method GFSK,π/4-DQPSK,8DPSK(bluetooth) DQPSK,DBPSK,CCK(802.11b) QPSK,BPSK,16QAM,64QAM with OFDM (802.11g) QPSK,BPSK,16QAM,64QAM with OFDM (802.11n) QPSK,BPSK,16QAM,64QAM with OFDM (802.11a) QPSK,BPSK,16QAM,64QAM,256QAM with OFDM (802.11ac) Frequency Band BLUETOOTH 2402~2480 MHz WIFI 2.4G: 2412~2462 MHz 5G: 5150~5350MHz,5470~5725MHz,5725~5850MHz Operation Mode Infrastructure Security WEP, TKIP, AES, WPA, WPA2 Operating Voltage 3.3V±10% Current Consumption ＜1000mA Antenna Type WIFI:PCB,BT:PIFA Operating Temperature 0 ~ 70°C ambient temperature Storage Temperature -40 ~ 80°C ambient temperature Humidity 5 to 95 % maximum (non-condensing) Hui Zhou Gaoshengda Technology Co., LTD WKCT1FR2501 PAGE 2 Version 1.0 NOTICE: ◆please keep this product and accessories attached to the places which children can't touch; ◆do not splash water or other liquid onto this product, otherwise it may cause damage; ◆do not put this product near the heat source or direct sunlight, otherwise it may cause deformation or malfunction; ◆please keep this product away from flammable or naked flame; ◆please do not repair this product by yourself. Only qualified personnel can be repaired. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2.2 This module has been assessed against the following FCC rule parts: CFR 47 FCC Part 15 C (15.247, DTS and DSS) and CFR 47 FCC Part 15 E (NII). It is applicable to the modular transmitter 2.3 This radio transmitter 2AC23-WKCT1F has been approved by Federal Communications Commission to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device. The concrete contents to check are the following three points. １) Maximum antenna gains are shown in item 2.8 below. ２) Should be installed so that the end user cannot modify the antenna ３) Feed line should be designed in 50ohm Fine-tuning of return loss etc. can be performed using a matching network. The antenna shall not be accessible for modification or change by the end user. 2.4 The module complies with FCC Part 15.247 / Part 15.407 and apply for Single module approval. 2.5 Trace antenna designs: Not applicable, the antenna conector for this module are integrated into the module. Use of external antennas or antennas integrated into the host circuit board are not an option. 2.6 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.7 Hui Zhou Gaoshengda Technology Co., LTD WKCT1FR2501 PAGE 3 Version 1.0 The following antennas have been certified for use with this module. Only antennas of the same type with equal or lower gain may also be used with this module. Other types of antennas and/or higher gain antennas may require the additional authorization for operation. The installer should use unique antenna connector and Antenna types not included in this list that have a gain greater than the …

Text truncated - open the document above for the full version.

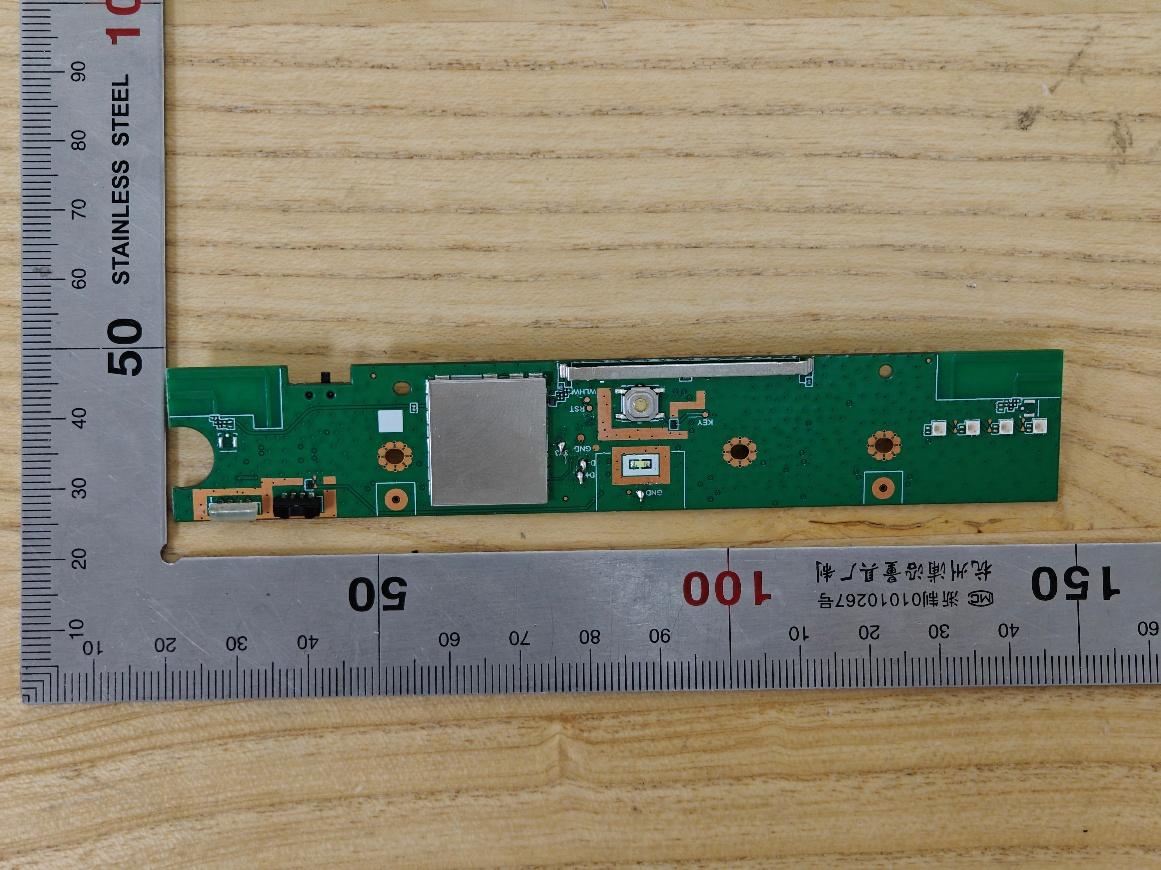

Internal Photographs Page 2 of 2 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-1

Appendix II Setup Photographs RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) MEASUREMENT POSITION MEASUREMENT POSITION (X axis) MEASUREMENT POSITION (Y axis) MEASUREMENT POSITION (Z axis) RADIATED RF MEASUREMENT SETUP (30MHz~1GHz) RADIATED RF MEASUREMENT SETUP (Below 30MHz) POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP RF CONDUCTED MEASUREMENT SETUP DFS MEASUREMENT SETUP

V1.1 1/13 AntennaTestReport 产品名称：WirelessTransceiverAll-in-OneModule 产品型号：WKCT1FR2501 频率：2.4GHz+5GHz 检测日期：20250715 检测目的：AntennaPerformanceTest 拟制：刘坤庭 审核：郑伟 批准：高照 V1.1 2/13 Revisionhistory VersionDateStatus V1.02025-05-07Draft V1.12025-05-13Added3Dgraphics V1.1 3/13 TableofContents 1.Antennaposition.............................................................................................................................4 1.1ModulePlacementRequirements.........................................................................................4 2.TestEnvironment............................................................................................................................4 3.AntennaStandingWaveRatio........................................................................................................5 3.1WF0....................................................................................................................................5 3.2WF1....................................................................................................................................6 3.3BT......................................................................................................................................6 4.Antennaisolation............................................................................................................................7 4.1WF0&WF1......................................................................................................................7 4.2WF0&BT..........................................................................................................................7 4.3WF1&BT..........................................................................................................................7 5.Directionalmap...............................................................................................................................8 5.1WF0Directionalmap...................................................................................................8 5.2WF1Directionalmap...................................................................................................8 5.3BTDirectionalmap.........................................................................................................9 6.3DEtotal.........................................................................................................................................9 6.1WF03Dmap......................................................................................................................9 6.2WF13Dmap....................................................................................................................10 6.3BT3Dmap.......................................................................................................................10 7.AntennaEfficiencyandGain........................................................................................................11 7.1WF0&WF1AntennaEfficiencyandGain..........................................................................11 7.2AntennaEfficiencyandGain...................................................................................................13 V1.1 4/13 1.Antennaposition 1.1ModulePlacementRequirements 1.1.1WIFI:MetalantennaBT:MetalantennaInstallthecasingand performthefreespacetest. 2.TestEnvironment V1.1 5/13 3.AntennaStandingWaveRatio 3.1WF0 V1.1 6/13 3.2WF1 3.3BT V1.1 7/13 4.Antennaisolation 4.1WF0&WF1 4.2WF0&BT 4.3WF1&BT V1.1 8/13 5.Directionalmap 5.1WF0Directionalmap Phi02DPhi902DTheta90 5.2WF1Directionalmap Phi02DPhi902DTheta90 V1.1 9/13 5.3BTDirectionalmap Phi02DPhi902DTheta90 6.3DEtotal 6.1WF03Dmap V1.1 10/13 6.2WF13Dmap 6.3BT3Dmap V1.1 11/13 7.AntennaEfficiencyandGain 7.1WF0&WF1AntennaEfficiencyandGain WIFI0WIFI1 Frequency/MhzMaxGain/dBiEfficiency/%Frequency/MhzMaxGain/dBiEfficiency/% 2400-0.0431.3324000.6445.39 24100.3133.5724100.746.34 24200.9937.4124201.0747.32 24301.3439.8124301.2446.24 24401.4940.5524401.3144.46 24501.4240.4624501.2542.27 24601.4840.9324601.1439.81 24701.4941.2124700.8436.48 24801.4440.4624800.4232.89 24901.3439.924900.0429.99 25001.2439.452500-0.3327.93 5150-0.0840.645150-1.3436.31 5160-0.139.815160-1.5135.4 5170-0.0838.645170-1.5634.2 5180-0.1437.935180-1.7733.5 5190-0.0238.195190-1.6533.81 52000.239.635200-1.4235.08 52100.3640.185210-1.2835.4 52200.1938.735220-1.3734.12 52300.0538.465230-1.3933.81 52400.0137.765240-1.4933.19 5250-0.2537.335250-1.632.81 5260-0.2237.075260-1.5732.81 5270-0.1736.985270-1.732.89 5280-0.1136.645280-1.632.81 52900.0837.55290-1.5733.57 53000.1637.585300-1.4333.65 53100.1137.245310-1.5133.42 53200.0136.395320-1.5432.81 5330-0.1535.45330-1.7132.28 5340-0.1435.565340-1.6732.73 5350-0.0735.975350-1.5833.57 V1.1 12/13 5360-0.0235.975360-1.533.96 5370-0.0735.165370-1.3733.65 5380-0.0635.565380-1.1634.36 5390-0.0335.565390-0.9934.75 54000.0335.735400-0.9735.24 5410035.245410-0.9835.08 54200.0635.895420-0.9635.97 54300.1836.645430-0.7836.98 54400.4238.115440-0.5738.82 54500.4337.845450-0.4838.73 54600.3437.55460-0.4438.73 54700.3337.585470-0.2338.9 54800.4638.025480-0.1739.45 54900.6538.375490-0.0340.09 55000.6737.9355000.0439.9 55100.6437.9355100.1740.18 55200.5337.3355200.1539.72 55300.5737.8455300.2940.18 55400.637.8455400.339.99 55500.6539.1755500.5241.4 55600.7339.4555600.6341.69 55700.9140.7455700.8842.95 55800.9441.115580143.45 5590141.6955901.0143.85 5600141.8856000.9743.45 56101.0842.6656100.9143.45 56201.2643.4556200.943.35 56301.2643.1556300.7642.46 56401.2542.6656400.7142.07 56501.2842.4656500.7941.5 56601.5144.0656601.0542.07 56701.6344.7756701.1741.69 56801.846.2456801.3742.56 56901.7146.0356901.3842.07 57001.7646.7757001.4642.36 57101.6546.6757101.3141.3 57201.6647.4257201.2441.21 57301.747.9757301.1940.93 57401.7548.7557401.1641.21 57501.7548.4257501.0640.64 57601.8149.0957601.0240.93 V1.1 13/13 7.2AntennaEfficiencyandGain 57702.0951.0557701.242.17 57802.1551.6457801.1642.27 57902.1751.5257901.0841.59 58002.0850…

Text truncated - open the document above for the full version.

REPORT NO.: 4791925244-1-RF-4 Page 273 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Ant1 5720_UNII-2C 2.30 ≤11.00 4.64 --- PASS Ant2 5720_UNII-2C 1.01 ≤11.00 2.47 --- PASS total 5720_UNII-2C 4.71 ≤11.00 10.06 --- PASS Ant1 5720_UNII-3 -0.67 ≤30.00 1.67 --- PASS Ant2 5720_UNII-3 -1.86 ≤30.00 -0.40 --- PASS total 5720_UNII-3 1.79 ≤30.00 7.14 --- PASS Ant1 5745 -0.23 ≤30.00 2.11 --- PASS Ant2 5745 -1.43 ≤30.00 0.03 --- PASS total 5745 2.22 ≤30.00 7.57 --- PASS Ant1 5785 -0.81 ≤30.00 1.53 --- PASS Ant2 5785 -1.92 ≤30.00 -0.46 --- PASS total 5785 1.68 ≤30.00 7.03 --- PASS Ant1 5825 -1.26 ≤30.00 1.08 --- PASS Ant2 5825 -1.98 ≤30.00 -0.52 --- PASS total 5825 1.41 ≤30.00 6.76 --- PASS 11N40MIMO Ant1 5190 -0.97 ≤11.00 1.37 ≤10.00 PASS Ant2 5190 -1.17 ≤11.00 0.29 ≤10.00 PASS total 5190 1.94 ≤11.00 7.29 ≤10.00 PASS Ant1 5230 -1.26 ≤11.00 1.08 ≤10.00 PASS Ant2 5230 -0.60 ≤11.00 0.86 ≤10.00 PASS total 5230 2.09 ≤11.00 7.44 ≤10.00 PASS Ant1 5270 -1.28 ≤11.00 1.06 --- PASS Ant2 5270 -0.89 ≤11.00 0.57 --- PASS total 5270 1.93 ≤11.00 7.28 --- PASS Ant1 5310 -0.73 ≤11.00 1.61 --- PASS Ant2 5310 -0.18 ≤11.00 1.28 --- PASS total 5310 2.56 ≤11.00 7.91 --- PASS Ant1 5510 -0.93 ≤11.00 1.41 --- PASS Ant2 5510 -2.07 ≤11.00 -0.61 --- PASS total 5510 1.55 ≤11.00 6.90 --- PASS Ant1 5550 -1.69 ≤11.00 0.65 --- PASS Ant2 5550 -0.68 ≤11.00 0.78 --- PASS total 5550 1.85 ≤11.00 7.20 --- PASS Ant1 5670 -2.23 ≤11.00 0.11 --- PASS Ant2 5670 -0.20 ≤11.00 1.26 --- PASS total 5670 1.91 ≤11.00 7.26 --- PASS Ant1 5710_UNII-2C -2.28 ≤11.00 0.06 --- PASS Ant2 5710_UNII-2C -0.88 ≤11.00 0.58 --- PASS total 5710_UNII-2C 1.49 ≤11.00 6.84 --- PASS Ant1 5710_UNII-3 -6.51 ≤30.00 -4.17 --- PASS Ant2 5710_UNII-3 -5.19 ≤30.00 -3.73 --- PASS total 5710_UNII-3 -2.79 ≤30.00 2.56 --- PASS Ant1 5755 -4.79 ≤30.00 -2.45 --- PASS Ant2 5755 -3.85 ≤30.00 -2.39 --- PASS total 5755 -1.28 ≤30.00 4.07 --- PASS Ant1 5795 -4.96 ≤30.00 -2.62 --- PASS Ant2 5795 -3.72 ≤30.00 -2.26 --- PASS total 5795 -1.29 ≤30.00 4.06 --- PASS 11AC80MIMO Ant1 5210 -3.57 ≤11.00 -1.23 ≤10.00 PASS Ant2 5210 -3.09 ≤11.00 -1.63 ≤10.00 PASS total 5210 -0.31 ≤11.00 5.04 ≤10.00 PASS Ant1 5290 -3.50 ≤11.00 -1.16 --- PASS Ant2 5290 -2.96 ≤11.00 -1.50 --- PASS total 5290 -0.21 ≤11.00 5.14 --- PASS Ant1 5530 -4.09 ≤11.00 -1.75 --- PASS Ant2 5530 -3.74 ≤11.00 -2.28 --- PASS total 5530 -0.90 ≤11.00 4.45 --- PASS Ant1 5610 -3.76 ≤11.00 -1.42 --- PASS Ant2 5610 -3.32 ≤11.00 -1.86 --- PASS total 5610 -0.52 ≤11.00 4.83 --- PASS REPORT NO.: 4791925244-1-RF-4 Page 274 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Ant1 5690_UNII-2C -3.97 ≤11.00 -1.63 --- PASS Ant2 5690_UNII-2C -3.11 ≤11.00 -1.65 --- PASS total 5690_UNII-2C -0.51 ≤11.00 4.84 --- PASS Ant1 5690_UNII-3 -9.52 ≤30.00 -7.18 --- PASS Ant2 5690_UNII-3 -8.36 ≤30.00 -6.90 --- PASS total 5690_UNII-3 -5.89 ≤30.00 -0.54 --- PASS Ant1 5775 -7.19 ≤30.00 -4.85 --- PASS Ant2 5775 -6.57 ≤30.00 -5.11 --- PASS total 5775 -3.86 ≤30.00 1.49 --- PASS Note：1.The Result and Limit Unit is dBm/500 kHz in the band 5.725−5.85 GHz. 2.The Duty Cycle Factor and RBW Factor is compensated in the graph. REPORT NO.: 4791925244-1-RF-4 Page 275 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11.5.2. Test Graphs 11A_Ant1_5180 11A_Ant2_5180 11A_Ant1_5200 REPORT NO.: 4791925244-1-RF-4 Page 276 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant2_5200 11A_Ant1_5240 11A_Ant2_5240 REPORT NO.: 4791925244-1-RF-4 Page 277 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant1_5260 11A_Ant2_5260 11A_Ant1_5280 REPORT NO.: 4791925244-1-RF-4 Page 278 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant2_5280 11A_Ant1_5320 11A_Ant2_5320 REPORT NO.: 4791925244-1-RF-4 Page 279 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant1_5500 11A_Ant2_5500 11A_Ant1_5580 REPORT NO.: 4791925244-1-RF-4 Page 280 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant2_5580 11A_Ant1_5700 11A_Ant2_5700 REPORT NO.: 4791925244-1-RF-4 Page 281 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant1_5720_UNII-2C 11A_Ant2_5720_UNII-2C 11A_Ant1_5720_UNII-3 REPORT NO.: 4791925244-1-RF-4 Page 282 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 Thi…

Text truncated - open the document above for the full version.

REPORT NO.: 4791925244-1-RF-4 Page 233 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant1_5825 11A_Ant2_5825 11N20MIMO_Ant1_5180 REPORT NO.: 4791925244-1-RF-4 Page 234 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant2_5180 11N20MIMO_Ant1_5200 11N20MIMO_Ant2_5200 REPORT NO.: 4791925244-1-RF-4 Page 235 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant1_5240 11N20MIMO_Ant2_5240 11N20MIMO_Ant1_5260 REPORT NO.: 4791925244-1-RF-4 Page 236 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant2_5260 11N20MIMO_Ant1_5280 11N20MIMO_Ant2_5280 REPORT NO.: 4791925244-1-RF-4 Page 237 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant1_5320 11N20MIMO_Ant2_5320 11N20MIMO_Ant1_5500 REPORT NO.: 4791925244-1-RF-4 Page 238 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant2_5500 11N20MIMO_Ant1_5580 11N20MIMO_Ant2_5580 REPORT NO.: 4791925244-1-RF-4 Page 239 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant1_5700 11N20MIMO_Ant2_5700 11N20MIMO_Ant1_5720 REPORT NO.: 4791925244-1-RF-4 Page 240 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant2_5720 11N20MIMO_Ant1_5745 11N20MIMO_Ant2_5745 REPORT NO.: 4791925244-1-RF-4 Page 241 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant1_5785 11N20MIMO_Ant2_5785 11N20MIMO_Ant1_5825 REPORT NO.: 4791925244-1-RF-4 Page 242 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant2_5825 11N40MIMO_Ant1_5190 11N40MIMO_Ant2_5190 REPORT NO.: 4791925244-1-RF-4 Page 243 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N40MIMO_Ant1_5230 11N40MIMO_Ant2_5230 11N40MIMO_Ant1_5270 REPORT NO.: 4791925244-1-RF-4 Page 244 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N40MIMO_Ant2_5270 11N40MIMO_Ant1_5310 11N40MIMO_Ant2_5310 REPORT NO.: 4791925244-1-RF-4 Page 245 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N40MIMO_Ant1_5510 11N40MIMO_Ant2_5510 11N40MIMO_Ant1_5550 REPORT NO.: 4791925244-1-RF-4 Page 246 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N40MIMO_Ant2_5550 11N40MIMO_Ant1_5670 11N40MIMO_Ant2_5670 REPORT NO.: 4791925244-1-RF-4 Page 247 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N40MIMO_Ant1_5710 11N40MIMO_Ant2_5710 11N40MIMO_Ant1_5755 REPORT NO.: 4791925244-1-RF-4 Page 248 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N40MIMO_Ant2_5755 11N40MIMO_Ant1_5795 11N40MIMO_Ant2_5795 REPORT NO.: 4791925244-1-RF-4 Page 249 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AC80MIMO_Ant1_5210 11AC80MIMO_Ant2_5210 11AC80MIMO_Ant1_5290 REPORT NO.: 4791925244-1-RF-4 Page 250 of 312 UL Verificati…

Text truncated - open the document above for the full version.

REPORT NO.: 4791925244-1-RF-4 Page 195 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11.1.2. Test Graphs 11A_Ant1_5180 11A_Ant2_5180 11A_Ant1_5200 REPORT NO.: 4791925244-1-RF-4 Page 196 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant2_5200 11A_Ant1_5240 11A_Ant2_5240 REPORT NO.: 4791925244-1-RF-4 Page 197 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant1_5260 11A_Ant2_5260 11A_Ant1_5280 REPORT NO.: 4791925244-1-RF-4 Page 198 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant2_5280 11A_Ant1_5320 11A_Ant2_5320 REPORT NO.: 4791925244-1-RF-4 Page 199 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant1_5500 11A_Ant2_5500 11A_Ant1_5580 REPORT NO.: 4791925244-1-RF-4 Page 200 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant2_5580 11A_Ant1_5700 11A_Ant2_5700 REPORT NO.: 4791925244-1-RF-4 Page 201 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant1_5720 11A_Ant2_5720 11A_Ant1_5745 REPORT NO.: 4791925244-1-RF-4 Page 202 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant2_5745 11A_Ant1_5785 11A_Ant2_5785 REPORT NO.: 4791925244-1-RF-4 Page 203 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant1_5825 11A_Ant2_5825 11N20MIMO_Ant1_5180 REPORT NO.: 4791925244-1-RF-4 Page 204 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant2_5180 11N20MIMO_Ant1_5200 11N20MIMO_Ant2_5200 REPORT NO.: 4791925244-1-RF-4 Page 205 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant1_5240 11N20MIMO_Ant2_5240 11N20MIMO_Ant1_5260 REPORT NO.: 4791925244-1-RF-4 Page 206 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant2_5260 11N20MIMO_Ant1_5280 11N20MIMO_Ant2_5280 REPORT NO.: 4791925244-1-RF-4 Page 207 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant1_5320 11N20MIMO_Ant2_5320 11N20MIMO_Ant1_5500 REPORT NO.: 4791925244-1-RF-4 Page 208 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant2_5500 11N20MIMO_Ant1_5580 11N20MIMO_Ant2_5580 REPORT NO.: 4791925244-1-RF-4 Page 209 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant1_5700 11N20MIMO_Ant2_5700 11N20MIMO_Ant1_5720 REPORT NO.: 4791925244-1-RF-4 Page 210 of 312 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant2_…

Text truncated - open the document above for the full version.
