2AC23-WKXT0GWIFI+BT Module

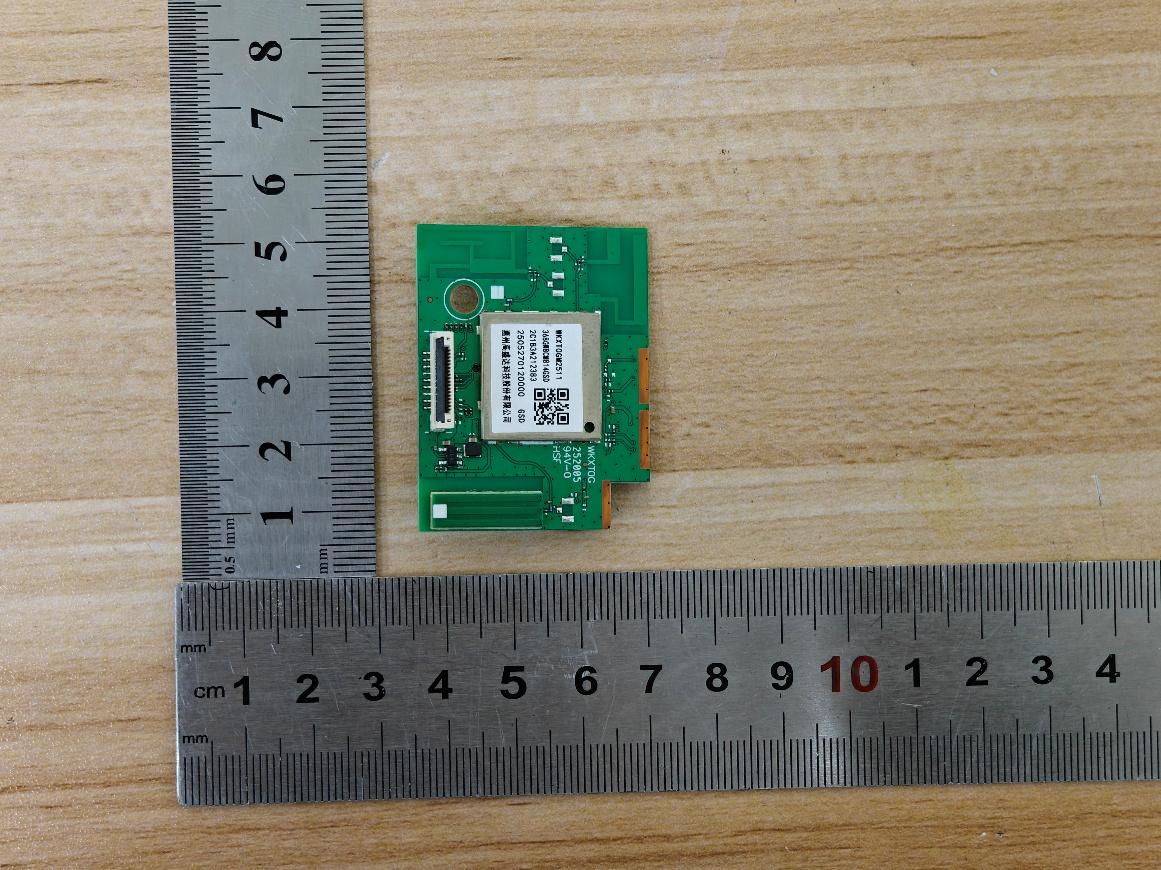

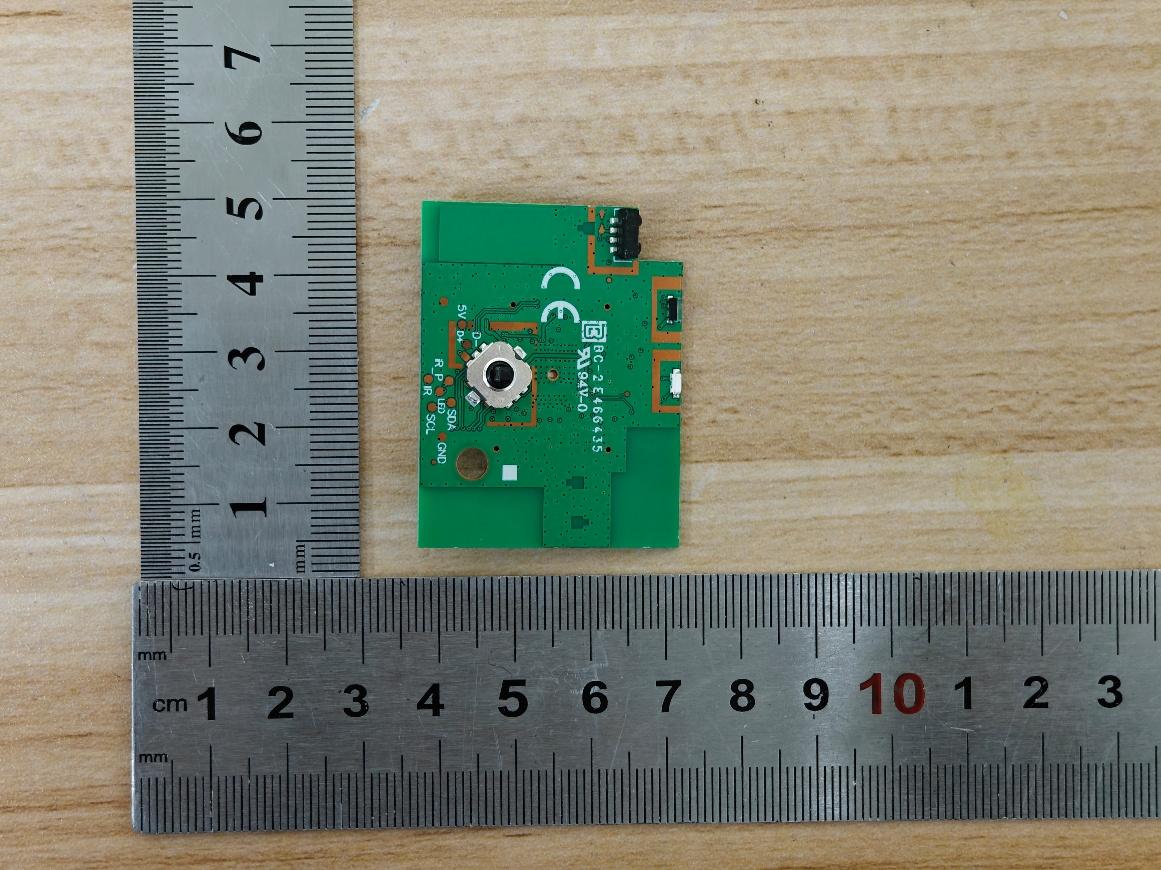

Hui Zhou Gaoshengda Technology Co., LTD WKXT0GM2511 PAGE 1 Version 1.0 WIFI+BT Module IEEE 802.11 a/b/g/n/ac/ax 2T/2R Model Number: WKXT0GM2511 Product Descrition The WKXT0GM2511 is a complete dual-band(2.4GHz and 5GHz)WIFI 2×2 MIMO module. This module provides a high level of integration with a dual-stream IEEE 802.11ax MAC/ base band /radio and Bluetooth 5.4.The WLAN operation supports 20MHz,40MHz and 80MHz channels for data rates up to 1201Mbps. It fully complies with IEEE 802.11 a/b/g/n/ac/ax feature rich wireless connectivity at high standards,delivers reliable,cost-effective, throughput from an extended distance. Product Features ◆ Complies with IEEE 802.11b/g/n/ax for 2.4GHz and IEEE 802.11a/n/ac/ax 5GHz Wireless LAN. ◆ Bluetooth v5.4 ◆ Two transmit and Two receive path(2T2R) ◆ Works with all existing network nfrastructure. ◆ Capable of up to 128-Bit WEP Encryption. ◆ Freedom to roam while staying connected. ◆ UP to 1201 Mbps High-Speed Transfer Rate in 802.11ax mode of operation. ◆ Operating Systems：Linux,Windows ◆ Low power consumption. ◆ Easy to install and configure. ◆ High speed USB 2.0 interface ◆ROHS compliant Product Specification Model WKXT0GM2511 Product Name WIFI+BT Module Standard 802.11 a/b/g/n/ac/ax Interface USB Data Transfer Rate Up to 1201Mbps Modulation Method GFSK,π/4-DQPSK,8DPSK(bluetooth) DQPSK,DBPSK,CCK(802.11b) QPSK,BPSK,16QAM,64QAM with OFDM (802.11g) QPSK,BPSK,16QAM,64QAM with OFDM (802.11n) QPSK,BPSK,16QAM,64QAM with OFDM (802.11a) QPSK,BPSK,16QAM,64QAM,256QAM with OFDM (802.11ac) QPSK,BPSK,16QAM,64QAM,256QAM,1024QAM with OFDM (802.11ax) Frequency Band BLUETOOTH 2402~2480 MHz WIFI 2.4G: 2412~2462 MHz 5G: 5180~5240MHz, 5260~5320MHz, 5500~5720MHz, 5745~5825MHz Operation Mode Infrastructure Security WEP, TKIP, AES, WPA, WPA2 Operating Voltage 5V±10% Current Consumption ＜1000mA Antenna Type PCB,External Operating Temperature 0 ~ 70°C ambient temperature Storage Temperature -40 ~ 80°C ambient temperature Humidity 5 to 95 % maximum (non-condensing) Hui Zhou Gaoshengda Technology Co., LTD WKXT0GM2511 PAGE 2 Version 1.0 NOTICE: ◆please keep this product and accessories attached to the places which children can't touch; ◆do not splash water or other liquid onto this product, otherwise it may cause damage; ◆do not put this product near the heat source or direct sunlight, otherwise it may cause deformation or malfunction; ◆please keep this product away from flammable or naked flame; ◆please do not repair this product by yourself. Only qualified personnel can be repaired. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2.2 This module has been assessed against the following FCC rule parts: CFR 47 FCC Part 15 C (15.247, DTS and DSS) and CFR 47 FCC Part 15 E (NII). It is applicable to the modular transmitter 2.3 This radio transmitter 2AC23-WKXT0G has been approved by Federal Communications Commission to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device. The concrete contents to check are the following three points. １) Maximum antenna gains are shown in item 2.7 below. ２) Should be installed so that the end user cannot modify the antenna ３) Feed line should be designed in 50ohm Fine-tuning of return loss etc. can be performed using a matching network. The antenna shall not be accessible for modification or change by the end user. 2.4 The module complies with FCC Part 15.247 / Part 15.407 and apply for Single module approval. 2.5 Trace antenna designs: Not applicable, the antenna conector for this module are integrated into the module. Use of external antennas or antennas integrated into the host circuit board are not an option. Hui Zhou Gaoshengda Technology Co., LTD WKXT0GM2511 PAGE 3 Version 1.0 2.6 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.7 The following antennas have been certified for use with this module. Only antennas of the same type with equal or lower gain may also be used with this module. Other types of antennas and/or higher gain antennas may require the additional authorization for operation. The installer should use unique antenna connecto…

Text truncated - open the document above for the full version.

1. Label 1 Label 1 location： The label is attached to the surface of the shield with a permanent adhesive. Label 2：FCC ID: 2AC23-WKXT0G IC: 12290A- WKXT0G Label 2 location： Label 2 was carved into the product with radium.

Appendix II Setup Photographs RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) CONDITION 1 MEASUREMENT POSITION CONDITION 1 MEASUREMENT POSITION (X axis) CONDITION 1 MEASUREMENT POSITION (Y axis) CONDITION 1 MEASUREMENT POSITION (Z axis) CONDITION 2 MEASUREMENT POSITION CONDITION 2 MEASUREMENT POSITION (X axis) CONDITION 2 MEASUREMENT POSITION (Y axis) CONDITION 2 MEASUREMENT POSITION (Z axis) RADIATED RF MEASUREMENT SETUP (30MHz~1GHz) RADIATED RF MEASUREMENT SETUP (Below 30MHz) POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP RF CONDUCTION MEASUREMENT SETUP DFS MEASUREMENT SETUP

Customer：GSD antenna test report Project name：WKXT0G 汉阳天线版权所有Copyright©2014-2024ShenzhenHanyangAntennaDesignCo.,Ltd.All Date:2025.8.7 SHENZHEN HANYANG ANTENNA DESIGN CO.LTD. 深圳汉阳天线设计有限公司 SHENZHEN HANYANGANTENNA DESIGNCO.LTD. 汉阳天线版权所有Copyright©2014-2024ShenzhenHanyangAntennaDesignCo.,Ltd.Allrightsreserved. 测试标准 深圳汉阳天线设计有限公司 SHENZHEN HANYANGANTENNA DESIGNCO.LTD. 汉阳天线版权所有Copyright©2014-2024ShenzhenHanyangAntennaDesignCo.,Ltd.Allrightsreserved. 测试环境 深圳汉阳天线设计有限公司 SHENZHEN HANYANG ANTENNA DESIGN CO.LTD. 汉阳天线版权所有Copyright©2014-2024ShenzhenHanyangAntennaDesignCo.,Ltd.Allrightsreserved. Lab Address：Shenzhen BaoanDistrict Qianjin2 Road BaoYundalogistics information building Test Date:08/07/2025 Test Engineer:LiuDeng Software name and version:GTS_MAX SIGN Libra1.2.7 CalDate:04/01/2025 测试环境 EquipmentManufacturerModelSNLast cal.Dul Date Network analyzerAgilentE5071CMY470029022025.04.012026.03.30 CMW antenna systemGTS1800/2025.04.012026.04.30 深圳汉阳天线设计有限公司 SHENZHEN HANYANGANTENNA DESIGNCO.LTD. 汉阳天线版权所有Copyright©2014-2024ShenzhenHanyangAntennaDesignCo.,Ltd.Allrightsreserved. 测试示意图 深圳汉阳天线设计有限公司 SHENZHEN HANYANGANTENNA DESIGNCO.LTD. 汉阳天线版权所有Copyright©2014-2024ShenzhenHanyangAntennaDesignCo.,Ltd.Allrightsreserved. BT-2.4G FreqEfficiency_dBEfficiency_PcentGain 2400-8.6213.74-4.29 2410-7.9216.13-3.7 2420-7.418.21-3.26 2430-6.9720.1-2.97 2440-6.8120.86-2.99 2450-6.920.42-3.27 2460-7.2218.98-3.76 2470-7.7116.94-4.37 2480-8.3914.48-5.26 2490-9.1412.2-6.32 2500-9.7910.49-7.29 深圳汉阳天线设计有限公司 SHENZHEN HANYANGANTENNA DESIGNCO.LTD. 2400MHZ 汉阳天线版权所有Copyright©2014-2024ShenzhenHanyangAntennaDesignCo.,Ltd.Allrightsreserved. 深圳汉阳天线设计有限公司 SHENZHEN HANYANGANTENNA DESIGNCO.LTD. 汉阳天线版权所有Copyright©2014-2024ShenzhenHanyangAntennaDesignCo.,Ltd.Allrightsreserved. 深圳汉阳天线设计有限公司 SHENZHEN HANYANG ANTENNA DESIGN CO.LTD. WiFi0 汉阳天线版权所有Copyright©2014-2024ShenzhenHanyangAntennaDesignCo.,Ltd.Allrightsreserved. WIFI0-2.4G Freq Efficiency_dBEfficiency_PcentGain 2400-2.5755.41.68 2410-2.6354.561.78 2420-2.753.691.86 2430-2.7353.362.04 2440-2.852.432.05 2450-2.8751.652.13 2460-2.9650.632.07 2470-3.0249.882.11 2480-3.0749.372.18 2490-3.1648.312.16 2500-3.2747.152.17 WIFI0-5G FreqEfficiency_dBEfficiency_PcentGain 5150-2.654.961.36 5170-2.5355.871.39 5190-2.4556.921.25 5210-2.3957.621.3 5230-2.3358.541.29 5250-2.358.821.36 5270-2.4257.331.32 5290-2.5455.741.26 5310-2.4756.61.36 5330-2.3158.821.55 5350-2.1161.461.68 5370-1.8864.91.93 5390-1.7267.232.07 5410-1.6468.572.11 5430-1.6468.621.97 5450-1.6568.411.98 5470-1.8465.441.81 5490-1.8964.721.64 5510-1.8165.961.61 5530-1.6867.861.51 5550-1.5769.651.68 5570-1.4571.542.05 5590-1.472.432.31 5610-1.3273.752.64 5630-1.3473.382.95 5650-1.3673.173.11 5670-1.4771.373.15 5690-1.5470.133.2 5710-1.5669.813.33 5730-1.6268.923.35 5750-1.6268.893.44 5770-1.5769.693.45 5790-1.6368.733.47 5810-1.6268.793.53 5830-1.7966.173.45 5850-1.8663.55 深圳汉阳天线设计有限公司 SHENZHEN HANYANG ANTENNA DESIGN CO.LTD. WiFi0 汉阳天线版权所有Copyright©2014-2024ShenzhenHanyangAntennaDesignCo.,Ltd.Allrightsreserved. 深圳汉阳天线设计有限公司 SHENZHEN HANYANG ANTENNA DESIGN CO.LTD. WiFi0 汉阳天线版权所有Copyright©2014-2024ShenzhenHanyangAntennaDesignCo.,Ltd.Allrightsreserved. 深圳汉阳天线设计有限公司 SHENZHEN HANYANG ANTENNA DESIGN CO.LTD. WiFi1 汉阳天线版权所有Copyright©2014-2024ShenzhenHanyangAntennaDesignCo.,Ltd.Allrightsreserved. WIFI1-2.4G FreqEfficiency_dBEfficiency_Pcent Gain 2400-3.5943.760.36 2410-3.4645.050.55 2420-3.3446.30.64 2430-3.2946.840.78 2440-3.2747.060.85 2450-3.2347.550.89 2460-3.2447.451.03 2470-3.2347.511.06 2480-3.2647.211.07 2490-3.3346.481.07 2500-3.3746.081.09 WIFI1-5G FreqEfficiency_dBEfficiency_PcentGain 5150-3.0649.491.91 5170-3.0449.71.91 5190-2.9151.222.13 5210-2.9251.062.22 5230-2.9750.442.12 5250-3.0249.912.06 5270-3.0849.161.96 5290-3.346.731.59 5310-3.4145.551.6 5330-3.4545.211.38 5350-3.3446.361.63 5370-3.1148.891.83 5390-3.0449.622.01 5410-3.0449.642.08 5430-3.0549.52.15 5450-3.1492.12 5470-3.3446.351.99 5490-3.5444.31.71 5510-3.5843.91.79 5530-3.5144.571.98 5550-3.3546.21.98 5570-3.1648.352.11 5590-3.0849.212.19 5610-3.0349.732.18 5630-3.0150.042.08 5650-2.9450.862.18 5670-2.9450.852.16 5690-2.9251.112.26 5710-2.9550.672.28 5730-2.9950.252.22 5750-2.9450.832.35 5770-2.8951.352.26 5790-2.9850.342.2 5810-2.9950.222.07 5830-2.9950.212.07 5850-2.8352.062.06 深圳汉阳天线设计有限公司 SHENZHEN HANYANG ANTENNA DESIGN CO.LTD. WiFi1 汉阳天线版权所有Copyright©2014-2024ShenzhenHanyangAntennaDesignCo.,Ltd.Allrightsreserved. 深圳汉阳天线设计有限公司 SHENZHEN HANYANG ANTENNA DESIGN CO.LTD. WiFi1 汉阳天线版权所有Copyright©2014-2024ShenzhenHanyangAntennaDesignCo.,Ltd.Allrightsreserved. 地址：深圳市宝安区前进路宝运达物流信息大厦12A层. 电话：0755-23069700 SHENZHEN HANYANG ANTENNA DESIGNCO.LTD. Welcome calls consultations, negotiations and guidancecome! Thankyou 汉阳天线版权所有Copyright©2014-2024ShenzhenHanyangAntennaDesignCo.,Ltd.Allrightsreserved.

深圳有力科技有限公司 ShenZhenPowerfulTechnologyCO., Limited 1 / 14 規 格 承 認 書 SPECIFICATIONFOR APPROVAL 客户 CUSTOMER: Guanjie . 客 户 料 号 CUSTOMERNO :368GAAWA1950YL 品 名 PART NAME:Dual-band wifi rubber stick antenna :/L=109mm black housing /SMA male and female pins 供 方 料 号 SUPPLIERNO:YL1389-W-2.4&5G-WIFI 地址：深圳市南山区高新中一道8 号万和医药园1楼 深圳有力科技有限公司 ShenZhenPowerfulTechnologyCO., Limited 2 / 14 实验室测试环境及设备 测试项目（Test Project）： S11 、S12、VSWR、Efficiency、Gain3D RadiationPattern、TRP 、 TIS Laboratory testing environment and equipment 地址：深圳市南山区高新中一道8 号万和医药园1楼 深圳有力科技有限公司 ShenZhenPowerfulTechnologyCO., Limited 3 / 14 規 格 承 認 書 ....................................................................................................................................................3 一 . 技术指标（ TechnicalIndex ） ..................................................................................................................4 二 . 图纸（ Drawings ） ....................................................................................................................................5 三 . 天线线材规格（ Wire specification ） ......................................................................................................6 四 . 天线测试数据（ Antennatest data ） ..................................................................................................7-12 五 . 摇摆测试（ test ） ..................................................................................................................................13 六 . 包装（ package ） ....................................................................................................................................14 地址：深圳市南山区高新中一道8 号万和医药园1楼 深圳有力科技有限公司 ShenZhenPowerfulTechnologyCO., Limited 4 / 14 一.技术指标（TechnicalIndex） 技术要求TechnicalTitle 技术指标TechnicalIndex 频段信息 Frequencybandinformation 2400MHz-2500MHz /5150MHz-5850MHz 天线增益/Antennagain 2.0 -3.0dBi 输入阻抗Inputimpedance 50 Ω 极化方式Polarizationmode 线极化 Linearpolarization 辐射方向Radiationdirection 全向 Omnidirectiona 工作温Operatingtemperature -20 °- +60 ° 连接方式Continuousmode 天线SMA 公头母针 天线颜色Color /规格Specifications 黑色外壳/L=109MM 地址：深圳市南山区高新中一道8 号万和医药园1楼 深圳有力科技有限公司 ShenZhenPowerfulTechnologyCO., Limited 5 / 14 二 . 图纸（ Drawings ） 地址：深圳市南山区高新中一道8 号万和医药园1楼 深圳有力科技有限公司 ShenZhenPowerfulTechnologyCO., Limited 6 / 14 三．线材规格书 产品规格ProductTypeRG178 结构图StructureDrawing 结构特性StructureCharacteristics 结构 Structure项目 Item标准值 StandardValue 内导体 Inner Conductor 材质 Material镀银铜线SilverplatedCopper Wire 结构 Construction(mm)7/0.102 标称外径Nom.Dia(mm)0.306 ±0.02 绝缘层 Insulation 材质 Material聚全氟乙丙烯FEP 标称外径Nom.Dia(mm)0.88 ±0.05 外导体 Outer Conductor 材质 Material镀锡铜线Tinned Copper Wire 16*3/0.10 标称外径Nom.Dia(mm)1.30 ±0.05 编织覆盖率CoverageRatio(%)90 ±5 护套 Jacket 材质 Material聚全氟乙丙烯FEP 标称外径Nom.Dia(mm)1.80 ±0.05 电气性能ElectricalCharacteristics 项目 Item 标准值 StandardValue 项目 Item 频率 Frequency 标准值 StandardValue 阻抗 Impedanc（Ω）50 ±2 衰减 Attenuation@20°C (dB/m) 1GHz1.90 电容 Capacitance(pF/m)962GHz2.80 速率 Velocity(%)703GHz3.70 驻波比 VSWR≤[email protected] 最大工作电压 Max.OperatingVoltage(V) 10005GHz5.00 最大工作频率 Max.OperatingFrequency(GHz) 66GHz5.60 可靠性Dependability 最小弯曲半径(单次 )Min.BendingRadius/Singlemm10 最小弯曲半径（重复）Min.BendingRadius/Repeatedmm40 工作温度范围OperatingTemperature°C-55-+200 包装Packing 包装方式PackingMode纸盘 Papery Reel 包装长度The Length of Each Reel(m)500 每盘段数The Joints of Each Reel≤3 最小段长Min. SegmentLength(m)≥10 使用提示TripsforUse 存储环境StorageEnvironment温度： 30 °C以下，湿度：20-65% 最佳保存周期The Best Save Cycle2个月， 2个月以上上锡效果变差，但电性能不受影响，夏季高温高湿环境开剥后需尽快流转 地址：深圳市南山区高新中一道8号万和医药园1楼 深圳有力科技有限公司 ShenZhenPowerfulTechnologyCO.,Limited 7 / 14 四 . 天线成品测试数据（ Antennatestdata ） 4-1 无源驻波图 . SWR 地址：深圳市南山区高新中一道8号万和医药园1楼 深圳有力科技有限公司 ShenZhenPowerfulTechnologyCO.,Limited 8 / 14 4-2 天线增益 / 效率 . FreqEffiGain (MHz)(%)(dBi) 240071.52.6 241074.012.74 242071.232.59 243074.272.74 244078.742.97 245078.522.99 246077.312.97 247073.922.73 248072.862.7 249073.282.6 250072.212.68 地址：深圳市南山区高新中一道8号万和医药园1楼 深圳有力科技有限公司 ShenZhenPowerfulTechnologyCO.,Limited 9 / 14 PassiveTestFor5G FreqEffiGain (MHz)(%)(dBi) 515071.613.27 520079.263.02 525071.253.04 530084.233.46 535081.083.73 540088.743.37 545080.923.56 550072.583.21 555074.083.12 560072.592.67 565081.822.9 570073.492.28 575076.922.46 580068.691.5 585063.031.32 地址：深圳市南山区高新中一道8号万和医药园1楼 深圳有力科技有限公司 ShenZhenPowerfulTechnologyCO.,Limited 10 / 14 4-3 天线方向图 地址：深圳市南山区高新中一道8号万和医药园1楼 深圳有力科技有限公司 ShenZhenPowerfulTechnologyCO.,Limited 11 / 14 地址：深圳市南山区高新中一道8号万和医药园1楼 深圳有力科技有限公司 ShenZhenPowerfulTechnologyCO.,Limited 12 / 14 地址：深圳市南山区高新中一道8号万和医药园1楼 深圳有力科技有限公司 ShenZhenPowerfulTechnologyCO.,Limited 13 / 14 五 . 天线成品摇摆测试报告 客戶：冠捷天线连接类型：双频胶棒天线编号：YL20231023 试验说明：1.总次数：20000次以上2.荷重：100g类别：█样品 3. 频率 ：35次/分4.治具R值：10mm□IPQC 使用设备：摇摆试验机5 . 摇摆 角度:180 o □其它测 试内容 ： 用 5 条样品测试，分析试验后情况 。 试验次数：20000次以上。 判定： 不能出现短路或断路现象。 测试图示： 测试 结果 一‧ 摆动次数 ／ 线别 ： 编号 测试说明 天线 1 摆动次数21000 同轴线类型 RG1.78 2 摆动次数 21000 同轴线类型RG1.78 3 摆动次数21000 同轴线类型 RG1.78 4 摆动次数21000 同轴线类型 RG1.78 5 摆动次数 21000 同轴线类型RG1.78 试验分析 ：5 条样品无短路 / 断路现象 . 判定：OK 核准：赵旋旋 确认：陈娜 承认：张洋 地址：深圳市南山区高新中一道8号万和医药园1楼 深圳有力科技有限公司 ShenZhenPowerfulTechnologyCO.,Limited 14 / 14 六.包装

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART C ISED RSS-247 Issue 4 TEST REPORT For WIFI+BT Module MODEL NUMBER: WKXT0GM2511 REPORT NUMBER: 4791926059-1-RF-3 ISSUE DATE: November 5, 2025 FCC ID: 2AC23-WKXT0G IC: 12290A- WKXT0G Prepared for Hui Zhou Gaoshengda Technology Co.,LTD No.6,Qiaoguang Road,Chenjiang Street,Zhongkai High-tech Zone,Huizhou,Guangdong,China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Room 101, Building 2, No.4, Information Road, Songshan Lake, Dongguan, Guangdong, China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4791926059-1-RF-3 Page 2 of 193 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 November 5, 2025 Initial Issue REPORT NO.: 4791926059-1-RF-3 Page 3 of 193 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) RSS-GEN Clause 6.8 PASS AC Power Line Conducted Emission ANSI C63.10-2020, Clause 6.2 FCC Part 15.207 RSS-GEN Clause 8.8 PASS Conducted Output Power ANSI C63.10-2020, Clause 11.9.2.3.1 FCC Part 15.247 (b)(3) RSS-247 Clause 6.3.2 PASS 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2020, Clause 11.8.1 FCC Part 15.247 (a)(2) RSS-247 Clause 6.3.1 (a) RSS-Gen Clause 6.7 PASS Power Spectral Density ANSI C63.10-2020, Clause 11.10.5 FCC Part 15.247 (e) RSS-247 Clause 6.3.1 (b) PASS Conducted Band edge and spurious emission ANSI C63.10-2020, Clause 11.11 FCC Part 15.247(d) RSS-247 Clause 6.6 PASS Radiated Band edge and Spurious Emission ANSI C63.10-2020, Clause 11.12 FCC Part 15.247 (d) FCC Part 15.205/15.209 RSS-247 Clause 6.6 RSS-GEN Clause 8.9 PASS Duty Cycle ANSI C63.10-2020, Clause 11.6 None; for reporting purposes only. PASS Note: For ISED, this report is also performed according to ANSI C63.10-2020+Cor.1-2023 standards. *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C ISED RSS-247 Issue 4> when <Simple Acceptance> decision rule is applied. REPORT NO.: 4791926059-1-RF-3 Page 4 of 193 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. CONTENTS 1. ATTESTATION OF TEST RESULTS ...................................................................................... 6 2. TEST METHODOLOGY .......................................................................................................... 7 3. FACILITIES AND ACCREDITATION ...................................................................................... 7 4. CALIBRATION AND UNCERTAINTY ..................................................................................... 8 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................ 8 4.2. MEASUREMENT UNCERTAINTY ............................................................................. 8 5. EQUIPMENT UNDER TEST .................................................................................................... 9 5.1. DESCRIPTION OF EUT ............................................................................................. 9 5.2. CHANNEL LIST .......................................................................................................... 9 5.3. MAXIMUM POWER .................................................................................................... 9 5.4. TEST CHANNEL CONFIGURATION ....................................................................... 10 5.5. THE WORSE CASE POWER SETTING PARAMETER .......................................... 10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS .......................................................... 12 5.7. SUPPORT UNITS FOR SYSTEM TEST .................................................................. 13 6. MEASURING EQUIPMENT AND SOFTWARE USED ......................................................... 14 7. ANTENNA PORT TEST RESULTS ...................................................................................... 17 7.1. CONDUCTED OUTPUT POWER ............................................................................ 17 7.2. 6DB BANDWIDTH AND 99% OCCUPIED BANDWIDTH ........................................ 18 7.3. POWER SPECTRAL DENSITY ............................................................................... 20 7.4. CONDUCTED BAND EDGE AND SPURIOUS EMISSION...................................... 21 7.5. DUTY CYCLE ........................................................................................................... 23 8. RADIATED TEST RESULTS ................................................................................................ 24 8.1. RESTRICTED BANDEDGE-CONDITION 1 ............................................................. 32 8.2. RESTRICTED BANDEDGE-CONDITION 2 ............................................................. 58 8.3. SPURIOUS EMISSIONS(1 GHZ~3 GHZ)-CONDITION 1 ......…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART C ISED RSS-247 Issue 4 TEST REPORT For WIFI+BT Module MODEL NUMBER: WKXT0GM2511 REPORT NUMBER: 4791926059-1-RF-1 ISSUE DATE: November 5, 2025 FCC ID: 2AC23-WKXT0G IC: 12290A- WKXT0G Prepared for Hui Zhou Gaoshengda Technology Co.,LTD No.6,Qiaoguang Road,Chenjiang Street,Zhongkai High-tech Zone,Huizhou,Guangdong,China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Room 101, Building 2, No.4, Information Road, Songshan Lake, Dongguan, Guangdong, China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4791926059-1-RF-1 Page 2 of 107 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 November 5, 2025 Initial Issue REPORT NO.: 4791926059-1-RF-1 Page 3 of 107 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) RSS-GEN Clause 6.8 PASS AC Power Line Conducted Emission ANSI C63.10-2020, Clause 6.2 FCC Part 15.207 RSS-GEN Clause 8.8 PASS Conducted Output Power ANSI C63.10-2020, Clause 11.9.1.2 FCC Part 15.247 (b)(3) RSS-247 Clause 6.3.2 PASS 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2020, Clause 11.8.1 FCC Part 15.247 (a)(2) RSS-247 Clause 6.3.1 (a) RSS-Gen Clause 6.7 PASS Power Spectral Density ANSI C63.10-2020, Clause 11.10.2 FCC Part 15.247 (e) RSS-247 Clause 6.3.1 (b) PASS Conducted Band edge and spurious emission ANSI C63.10-2020, Clause 11.11 FCC Part 15.247(d) RSS-247 Clause 6.6 PASS Radiated Band edge and Spurious Emission ANSI C63.10-2020, Clause 11.12 FCC Part 15.247 (d) FCC Part 15.205/15.209 RSS-247 Clause 6.6 RSS-GEN Clause 8.9 PASS Duty Cycle ANSI C63.10-2020, Clause 11.6 None; for reporting purposes only. PASS Note: For ISED, this report is also performed according to ANSI C63.10-2020+Cor.1-2023 standards. *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C ISED RSS-247 Issue 4> when <Simple Acceptance> decision rule is applied. REPORT NO.: 4791926059-1-RF-1 Page 4 of 107 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. CONTENTS 1. ATTESTATION OF TEST RESULTS ...................................................................................... 6 2. TEST METHODOLOGY .......................................................................................................... 7 3. FACILITIES AND ACCREDITATION ...................................................................................... 7 4. CALIBRATION AND UNCERTAINTY ..................................................................................... 8 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................ 8 4.2. MEASUREMENT UNCERTAINTY ............................................................................. 8 5. EQUIPMENT UNDER TEST .................................................................................................... 9 5.1. DESCRIPTION OF EUT ............................................................................................. 9 5.2. CHANNEL LIST .......................................................................................................... 9 5.3. MAXIMUM POWER .................................................................................................... 9 5.4. TEST CHANNEL CONFIGURATION ......................................................................... 9 5.5. THE WORSE CASE POWER SETTING PARAMETER .......................................... 10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS .......................................................... 10 5.7. SUPPORT UNITS FOR SYSTEM TEST .................................................................. 11 6. MEASURING EQUIPMENT AND SOFTWARE USED ......................................................... 12 7. ANTENNA PORT TEST RESULTS ...................................................................................... 15 7.1. CONDUCTED OUTPUT POWER ............................................................................ 15 7.2. 6DB BANDWIDTH AND 99% OCCUPIED BANDWIDTH ........................................ 16 7.3. POWER SPECTRAL DENSITY ............................................................................... 18 7.4. CONDUCTED BAND EDGE AND SPURIOUS EMISSION...................................... 19 7.5. DUTY CYCLE ........................................................................................................... 21 8. RADIATED TEST RESULTS ................................................................................................ 22 8.1. RESTRICTED BANDEDGE-CONDITION 1 ............................................................. 30 8.2. RESTRICTED BANDEDGE-CONDITION 2 ............................................................. 35 8.3. SPURIOUS EMISSIONS(1 GHZ~3 GHZ)-CONDITION 1 .......…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT For WIFI+BT Module MODEL NUMBER: WKXT0GM2511 REPORT NUMBER: 4791926059-1-RF-5 ISSUE DATE: November 5, 2025 FCC ID: 2AC23-WKXT0G Prepared for Hui Zhou Gaoshengda Technology Co.,LTD No.6,Qiaoguang Road,Chenjiang Street,Zhongkai High-tech Zone,Huizhou,Guangdong,China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Room 101, Building 2, No.4, Information Road, Songshan Lake, Dongguan, Guangdong, China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4791926059-1-RF-5 Page 2 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 November 5, 2025 Initial Issue REPORT NO.: 4791926059-1-RF-5 Page 3 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10…

Text truncated - open the document above for the full version.
