2AC23-WL3HWIFI+BT Module

Hui Zhou Gaoshengda Technology Co., LTD WL3HR1500 PAGE 1 OF 4 Version 1.0 WIFI Module IEEE 802.11 b/g/n 1T/1R Model Number: WL3HR1500 Product Descrition The WL3HR1500 is a 2.4GHz WIFI 1×1 module. This module provides a high level of integration with a IEEE 802.11n MAC/ base band /radio and BLE 4.2.The WLAN operation supports 20MHz channels for data rates up to 72.2Mbps. It fully complies with IEEE 802.11 b/g/n feature rich wireless connectivity at high standards,delivers reliable, cost-effective, throughput from an extended distance. Product Features Product Specification Model WIFI+BT Module Product Name WL3HR1500 Standard 802.11 b/g/n Interface USB Data Transfer Rate 1,2,5.5,6,11,12,18,22,24,30,36,48,54 and a maximum of 72.2Mbps Modulation Method GFSK(BLE) DQPSK,DBPSK,CCK(802.11b) QPSK,BPSK,16QAM,64QAM with OFDM (802.11g) QPSK,BPSK,16QAM,64QAM with OFDM (802.11n) Frequency Band 2412~2462 MHz Operation Mode Infrastructure Security WEP, TKIP, AES, WPA, WPA2 Operating Voltage 3.3V±10% Current Consumption ＜750mA Antenna Type PCB Operating Temperature -20 ~ 85°C ambient temperature Storage Temperature -40 ~ 85°C ambient temperature Humidity 5 to 95 % maximum (non-condensing) NOTICE: ◆please keep this product and accessories attached to the places which children can't touch; ◆do not splash water or other liquid onto this product, otherwise it may cause damage; ◆do not put this product near the heat source or direct sunlight, otherwise it may cause deformation or malfunction; ◆please keep this product away from flammable or naked flame; ◆please do not repair this product by yourself. Only qualified personnel can be repaired. ◆Complies with IEEE 802.11b/g/n for 2.4GHz Wireless LAN. ◆One transmit and One receive path(1T1R) ◆Works with all existing network nfrastructure. ◆Capable of up to 128-Bit WEP Encryption. ◆Freedom to roam while staying connected. ◆UP to 72.2Mbps High-Speed Transfer Rate in 802.11n mode of operation. ◆Operating Systems：Linux,Windows ◆Low power consumption. ◆Easy to install and configure. ◆High speed USB 2.0 interface ◆ROHS compliant Hui Zhou Gaoshengda Technology Co., LTD WL3HR1500 PAGE 2 OF 4 Version 1.0 FCC Statement FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The module is limited to OEM installation ONLY. The OEM integrator is responsible for ensuring that the end user has no manual instruction to remove or install the module. 2.2 This module has been assessed against the following FCC rule parts: CFR 47 FCC Part 15 C (15.247, DTS). It is applicable to the modular transmitter。 2.3 This radio transmitter FCC ID: 2AC23-WL3H has been approved by Federal Communications Commission to operate with the integrated PCB antenna. Use of any other antenna is strictly prohibited without filing an application for a new system-specific FCC ID. 2.4 The module complies with FCC Part 15.247 and applies for Single Module approval. 2.5 Trace antenna designs: Not applicable – the antenna is integrated into the module and cannot be modified. See section 2.3. 2.6 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.7 Antenna type and antenna gain: BT: Antenna Frequency (MHz) Antenna Type MAX Antenna Gain (dBi) 1 2402-2480 PCB Antenna 2.80 Hui Zhou Gaoshengda Technology Co., LTD WL3HR1500 PAGE 3 OF 4 Version 1.0 2.4G WIFI: Antenna Frequency (MHz) Antenna Type MAX Antenna Gain (dBi) 1 2412-2462 PCB Antenna 2.80 Note: The antenna is permanently attached and can’t be replaced. 2.8 Please notice that if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC ID: 2AC23-WL3H” Any similar wording that expresses the same meaning may be used. 2.9 Testing of the host product with all the transmitters installed – referred to as the composite investigation test- is recommended, to verify that the host product meets all the applicable FCC rules. The radio spectrum is to be investigated with all the transmitters in the final host product functioning to determine that no emissions exceed the highest limit permitted for any one individual transmitter as required by Se…

Text truncated - open the document above for the full version.

Hui Zhou Gaoshengda Technology Co.,LTD Date: 6/28/2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(5) Attestation FCC ID: 2AC23-WL3H 1.Hui Zhou Gaoshengda Technology Co.,LTD certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2.Hui Zhou Gaoshengda Technology Co.,LTD certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely yours, Name: Hui Guan Job Title: Manger Company Name: Hui Zhou Gaoshengda Technology Co.,LTD

Hui Zhou Gaoshengda Technology Co.,LTD Date: 6/28/2023 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) Agent Designation Attestation FCC ID: 2AC23-WL3H Grantee FRN: 0023889280 Hui Zhou Gaoshengda Technology Co.,LTD as required by section 2.911(d)(7), designates the following agent, located in the United States, for purposes of acting as the applicant’s agent for service of process. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility under CFR 47 §2.929(c) to inform the FCC whenever the agent information changes. U.S. Agent Information: Contact Person: Mr Alan Graham Company Name: VISHTEC LLC FCC FRN: 0033407131 Company Address: 9888 W Belleview Ave Ste 2142 Denver CO 80123 Email: [email protected] Sincerely yours, Name: Hui Guan Job Title: Manger Company Name: Hui Zhou Gaoshengda Technology Co.,LTD

Date:6/12/2023 FederalCommunicationsCommissions AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 RE:CFR47§2.911(d)(7)FCCUSAgentLetterofAttestation GranteeCode:2AC23 GranteeFRN:0023889280 Towhomitmayconcern: FCCUSAgent AgentCompanyName：VISHTECLLC FCCFRN:0033407131 AgentContactName:AlanGraham AgentUSAddress:9888WBelleviewAveSte2142,Denver,COLORADO80123,USA AgentEmailAddress:[email protected] ThisletteristoconfirmthatwehaveacceptedtheresponsibilitytoactasUSAgentonbehalf ofHuiZhouGaoshengdaTechnologyCo.,LTD(“theapplicant”). Weareawareoftherequirementsandresponsibilitiesoftheapplicant’sagentforserviceof processasoutlinedintheFCCsection2.911(d)(7)andReportandOrderFCC22-84 paragraph63. Sincerely, Signature AuthorizedAgentContactPersonName:AlanGraham AgentcontactJobTitle:Compliancemanager AgentCompanyname:VISHTECLLC

Hui Zhou Gaoshengda Technology Co.,LTD Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AC23-WL3H To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Theory of Operation Block Diagram Schematics Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Hui Zhou Gaoshengda Technology Co.,LTD Contact Name: Hui Guan Title of Person: Manager Address: No.2, Jin-da Road, Huinan High-tech Industrial Park, Huizhou, Guangdong, China Date:06/28/2023

Hui Zhou Gaoshengda Technology Co.,LTD Date:June 7, 2023 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as act s of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Hui Zhou Gaoshengda Technology Co.,LTD Contact Name: Hui Guan Title of Person: Manger Address: No.2,Jin-da Road,Huinan High-tech Industrial Park, Huizhou, Guangdong, China

Modular Approval Request FCC (Per 15.212) FCC ID: 2AC23-WL3H Items to be covered Answer From Applicant 1. The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Yes 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. Yes 3. The modular transmitter must have its own power supply regulation. Yes 4. The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Yes 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in § 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see § 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see § 15.31(i)). Yes 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the Yes module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B)If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 7.The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Yes 8.Radio frequency devices operating under the provisions of this part are subject to the radio frequency radiation exposure requirements specified in §§ 1.1307(b), 1.1310, 2.1091, and 2.1093 of this chapter, as appropriate. Applications for equipment authorization of modular transmitters under this section must contain a statement confirming compliance with these requirements. The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Technical information showing the basis for this statement must be submitted to the Commission upon request. Yes Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Contact Name: Hui Guan Title of Person: Manager Company Name: Hui Zhou Gaoshengda Technology Co.,LTD

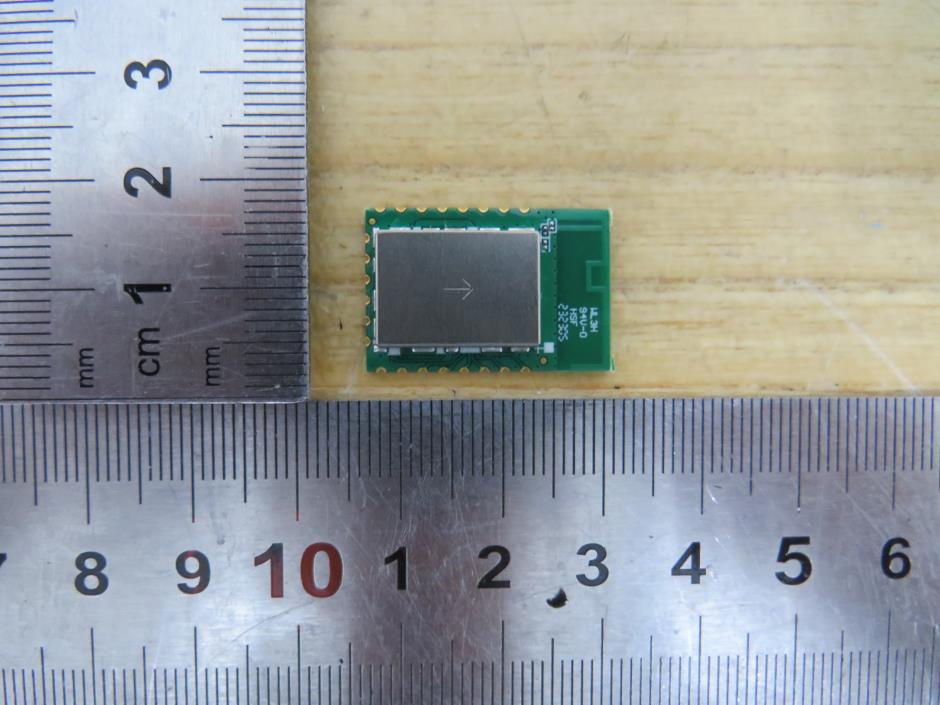

External Photographs Page 2 of 3 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-1 View of EUT-2 Antenna Page 3 of 3 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-3 View of EUT-4
