2AC23-WT2JWIFI Module

Hui Zhou Gaoshengda Technology Co., LTD WT2JM2601B PAGE 1 OF 8 Version 1.0 WIFI Module IEEE 802.11 b/g/n 2T/2R Model Number: WT2JM2601B Product Descrition The WT2JM2601B is a 2.4GHz WIFI 2×2 MIMO module. This module provides a high level of integration with a dual-stream IEEE 802.11n MAC/ base band /radio.The WLAN operation supports 20MHz,40MHz channels for data rates up to 300Mbps. It fully complies with IEEE 802.11 b/g/n feature rich wireless connectivity at high standards,delivers reliable,cost-effective, throughput from an extended distance. Product Features Product Specification Model WIFI Module Product Name WT2JM2601B Standard 802.11 b/g/n Interface USB Data Transfer Rate 1,2,5.5,6,11,12,18,22,24,30,36,48,54,60,90 and maximum of 300Mbps Modulation Method DQPSK,DBPSK,CCK(802.11b) QPSK,BPSK,16QAM,64QAM with OFDM (802.11g) QPSK,BPSK,16QAM,64QAM with OFDM (802.11n) Frequency Band 2412~2462 MHz Operation Mode Infrastructure Security WEP, TKIP, AES, WPA, WPA2 Operating Voltage 3.3V±10% Current Consumption ＜750mA Antenna Type PIFA Operating Temperature 0 ~ 60°C ambient temperature Storage Temperature -40 ~ 80°C ambient temperature Humidity 5 to 95 % maximum (non-condensing) NOTICE: ◆please keep this product and accessories attached to the places which children can't touch; ◆do not splash water or other liquid onto this product, otherwise it may cause damage; ◆do not put this product near the heat source or direct sunlight, otherwise it may cause deformation or malfunction; ◆please keep this product away from flammable or naked flame; ◆please do not repair this product by yourself. Only qualified personnel can be repaired. ◆Complies with IEEE 802.11b/g/n for 2.4GHz Wireless LAN. ◆Two transmit and Two receive path(2T2R) ◆Works with all existing network nfrastructure. ◆Capable of up to 128-Bit WEP Encryption. ◆Freedom to roam while staying connected. ◆UP to 300 Mbps High-Speed Transfer Rate in 802.11n mode of operation. ◆Operating Systems：Linux,Windows ◆Low power consumption. ◆Easy to install and configure. ◆High speed USB 2.0 interface ◆ROHS compliant Hui Zhou Gaoshengda Technology Co., LTD WT2JM2601B PAGE 2 OF 8 Version 1.0 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The module is limited to OEM installation ONLY. The OEM integrator is responsible for ensuring that the end-user has no manual instruction to remove or install module. 2.2 This module has been assessed against the following FCC rule parts: CFR 47 FCC Part 15 C (15.247, DTS). It is applicable to the modular transmitter。 2.3 This radio transmitter FCC ID: 2AC23-WT2J has been approved by Federal Communications Commission to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device. The concrete contents to check are the following three points. １) Must use antenna such as PIFA antenna with gain not exceeding 1.26dBi; ２) Should be installed so that the end user cannot modify the antenna; ３) Feed line should be designed in 50ohm Fine tuning of return loss etc. can be performed using a matching network. The antenna shall not be accessible for modification or change by the end user 2.4 The module complies with FCC Part 15.247 and applies for limited module approval. Hui Zhou Gaoshengda Technology Co., LTD WT2JM2601B PAGE 3 OF 8 Version 1.0 2.5 Trace antenna designs: applicable. Any deviation(s) from the defined parameters of the antenna trace, as described by the instructions, require that the host product manufacturer must notify the module grantee that they wish to change the antenna trace design. In this case, a Class II permissive change application is required to be filed by the grantee, or the host manufacturer can take responsibility through the change in FCC ID (new application) procedure followed by a Class II permissive change application. The device must be professionally installed. The intended use is generally not for the general public. It is generally for industry/commercial use. The connector is within the transmitter enclosure and can only be accessed by disassembly of the transmitter that is not normally required. The user has no access to the connector. Installation must be controlled. Installation requires special training. 2.6 The module is limited to installation in mobile application. Host device must be operated at a minimum of 20cm between people. This equipment complies with …

Text truncated - open the document above for the full version.

User manual Supplementary information a) Trace layout and dimensions including specific designs for each type: 1. Layout of trace design, parts, antenna, connectors, and isolation requirements: Turning 3 Turning 1 Turning 4 Turning 5 Turning 2 Turning 6 Connector 1 Connector 2 2. Boundary limits of size, thickness, length, width, shape(s), dielectric contain, and impedance must be clearly described for each type of antenna: PCB Antenna trace antenna Dimension: : 0.33*0.33mm Note: 1. RF trace between module RF pinout to antenna width is 0.8mm. 2. RF trace between module and antenna impedance is 0ohm. 7.24mm 7.24mm 6.33mm 6.33mm All RF line devices are 0201 in size 0.8m m Width: 0.5mm Length: 1.2mm IPEX connector information: Size: 3. Different antenna length and shapes effect radiated emission and each design should be considered a different type: 2.4G WIFI: Antenna Frequency (MHz) Antenna Type MAX Antenna Gain (dBi) 1 2412-2462 PIFA antenna 1.26 2 2412-2462 PIFA antenna 1.26 b) Appropriate parts of manufacturers and specifications: Information about devices on RF lines: Parts list Parts number Size Manufacturer Tuning 1/0Ω / 0201 varies Tuning 2/0Ω / 0201 varies Tuning 3/NC / 0201 varies Tuning 4/NC / 0201 varies Tuning 5/NC / 0201 varies Tuning 6/NC / 0201 varies 3mm 2mm 2mm 3mm 3mm 3mm 2mm 2mm 1.6mm 1.6mm If customers completely refer to our antenna design for their own design, the antenna performance should also be the same as ours. C) Test procedures and design verifications: d) Production test procedures for ensuring compliance Type line type Impedance Installation Manufacturer Connector 1 IPEX Male pin 50Ω Surface mount varies Connector 2 IPEX Male pin 50Ω Surface mount varies

Hui Zhou Gaoshengda Technology Co.,LTD Date: August 16, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Hui Zhou Gaoshengda Technology Co.,LTD Contact Name: Hui Guan Title of Person: Manger Address: No.2,Jin-da Road,Huinan High-tech Industrial Park, Huizhou, Guangdong, China

Hui Zhou Gaoshengda Technology Co.,LTD Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AC23-WT2J To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Theory of Operation Schematics Block diagram Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Hui Zhou Gaoshengda Technology Co.,LTD Contact Name: Hui Guan Title of Person: Manger Address: No.2,Jin-da Road,Huinan High-tech Industrial Park, Huizhou, Guangdong, China Date: September 29, 2022

Modular Approval Request FCC (Per 15.212) FCC ID: 2AC23-WT2J Items to be covered Answer From Applicant 1.The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Yes 2.The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. Yes 3.The modular transmitter must have its own power supply regulation. Yes 4.The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. No 5.The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in § 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see § 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see § 15.31(i)). Yes 6.The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A)If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment Yes authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 7. The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Yes 8. Radio frequency devices operating under the provisions of this part are subject to the radio frequency radiation exposure requirements specified in §§ 1.1307(b), 1.1310, 2.1091, and 2.1093 of this chapter, as appropriate. Applications for equipment authorization of modular transmitters under this section must contain a statement confirming compliance with these requirements. The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Technical information showing the basis for this statement must be submitted to the Commission upon request. Yes Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). The module transmitter will be a limited module Contact Name: Hui Guan Title of Person: Manger Company Name: Hui Zhou Gaoshengda Technology Co.,LTD

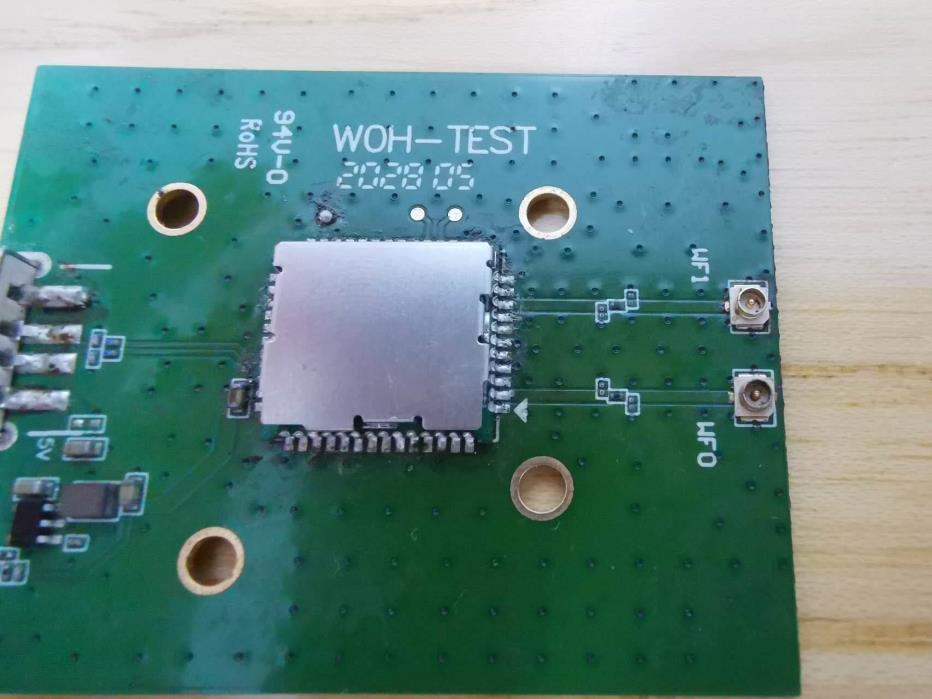

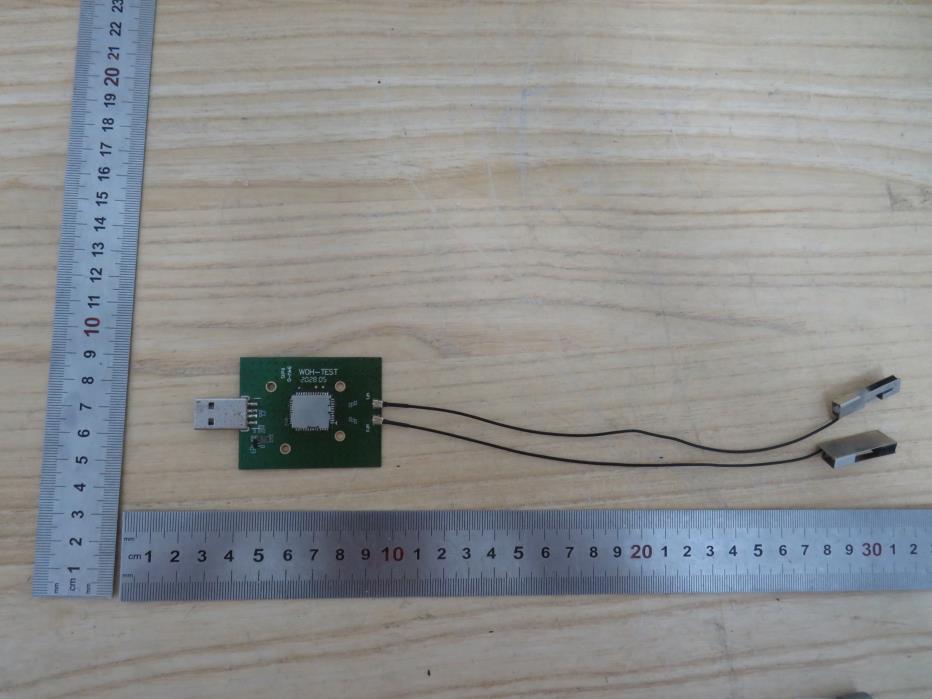

External Photographs Page 2 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-1 View of EUT-2 WIFI ANT 1 Connector WIFI ANT 2 Connector WIFI module Page 3 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-3 View of EUT-4 Page 4 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-5 View of EUT-6 1.2cm 1.2cm 3mm 0.5mm 0.5mm 0.5mm 0.5mm 0.5mm 2mm Page 5 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-7 View of EUT-8 1.4cm 1.4cm 2.5mm 0.5mm 4mm
