2AC23-WT5LWIFI +BT Module

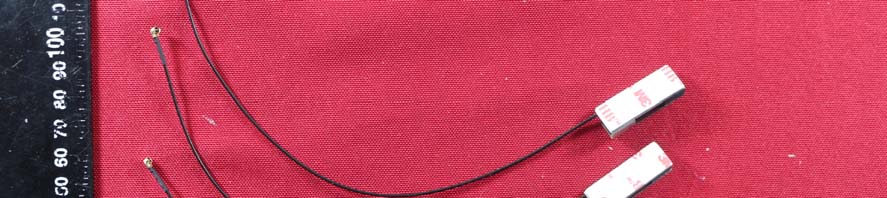

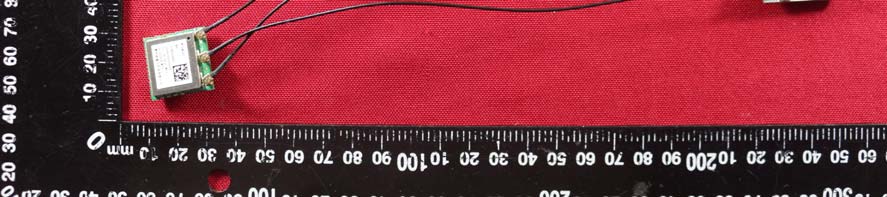

External photos Antenna

Internal photos

RF EXPOSURE REPORT FCC ID: 2AC23-WT5L IC: 12290A-WT5L Applicant’s name ........................ : Hui Zhou Gaoshengda Technology Co., LTD Address ...................................... : NO.75 Zhongkai Development Area, Huizhou, Guangdong,China Manufacturer .............................. : Hui Zhou Gaoshengda Technology Co., LTD Equipment .................................. : WIFI +BT Module Trade Mark ................................. : GSD Model ........................................ : WT5LM2001 Ratings ....................................... : I/P: DC 3.3V Testing Laboratory ...................... : DongGuan ShuoXin Electronic Technology Co., Ltd. Address ...................................... : Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China According ................................... : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector Gain(dBi) Note 1 N/A N/A PIFA N/A 3 2 N/A N/A PIFA N/A 3 TEST RESULTS EUT： WIFI +BT Module Model Name : WT5LM2001 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : DC 3.3V For FCC 2.4G WIFI Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2 1.5849 25.22 332.6596 0.10494 1 Complies 5G Band UNII-1 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3 1.9953 16.78 47.6431 0.01892 1 Complies 5G Band UNII-3 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3 1.9953 18.94 78.3430 0.03111 1 Complies BT Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2 1.5849 6.497 4.4638 0.00141 1 Complies LE Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2 1.5849 4.220 2.6424 0.00083 1 Complies For 2.4G+5G simultaneous transmission MPE: 0.10494/1+0.03111/1=0.13605 Note: the calculated distance is 20 cm.

Report No.: 20EFAS11141 10941 Page 1 of 106 FCC &ISED Radio Test Report FCC ID: 2AC23-WT5L IC: 12290A-WT5L The report concerns: Original Grant Report Reference No. ................ : 20EFAS11141 10941 Date Sample(s) Received .......... : 2020-11-27 Date of Tested ............................ : 2020-11-27 to 2020-12-15 Date of issue .............................. : 2020-12-17 Testing Laboratory ...................... : DongGuan ShuoXin Electronic Technology Co., Ltd. Address ...................................... : Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China Applicant’s name ........................ : Hui Zhou Gaoshengda Technology Co., LTD Address ...................................... : NO.75 Zhongkai Development Area, Huizhou, Guangdong, China Manufacturer .............................. : Hui Zhou Gaoshengda Technology Co., LTD Equipment .................................. : WIFI +BT Module Trade Mark ................................. : GSD Model ........................................ : WT5LM2001 Ratings ....................................... : I/P: DC 3.3V Test Engineer: Blue Qiu Responsible Engineer : Smile Wang Authorized Signatory: King Wang Report No.: 20EFAS11141 10941 Page 2 of 106 Table of Contents Page 1. . TEST REPORT DECLARE 4 2. SUMMARY OF TEST RESULTS 5 2.1. MEASUREMENT UNCERTAINTY 6 3. GENERAL INFORMATION 7 3.1. GENERAL DESCRIPTION OF EUT 7 3.2. TEST MODES 9 3.3. PARAMETERS OF TEST SOFTWARE 11 3.4. BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5. SUPPORT UNITS 12 3.6. TEST ENVIRONMENT CONDITIONS 12 3.7. DUTY CYCLE 13 4. AC POWER LINE CONDUCTED EMISSIONS TEST 14 4.1. LIMIT 14 4.2. TEST PROCEDURE 14 4.3. MEASUREMENT INSTRUMENTS LIST 14 4.4. TESTSETUP 15 4.5. EUT OPERATION CONDITIONS 15 4.6. TEST RESULTS 16 5. RADIATED EMISSIONSTEST 18 5.1. LIMIT 18 5.2. TEST PROCEDURE 19 5.3. MEASUREMENT INSTRUMENTS LIST 19 5.4. TESTSETUP 20 5.5. EUT OPERATION CONDITIONS 20 5.6. TEST RESULTS - 9 KHZ to 30MHZ 21 5.7. TEST RESULTS - 30 MHz TO 1000 MHz 22 5.8. TEST RESULTS - ABOVE1000 MHz(BAND EDGE) 24 5.9. TEST RESULTS - ABOVE1000 MHz (HARMONIC) 52 6. BANDWIDTH TEST 84 6.1. LIMIT 84 6.2. TEST PROCEDURE AND SETTING 84 6.3. MEASUREMENT INSTRUMENTS LIST 84 6.4. TEST SETUP 85 Report No.: 20EFAS11141 10941 Page 3 of 106 Table of Contents Page 6.5. EUT OPERATION CONDITIONS 85 6.6. TEST RESULTS 86 7. MAXIMUM OUTPUT POWER TEST 90 7.1. LIMIT 90 7.2. TEST PROCEDURE AND SETTING 90 7.3. MEASUREMENT INSTRUMENTS LIST 90 7.4. TEST SETUP 90 7.5. EUT OPERATION CONDITIONS 90 7.6. TEST RESULTS 91 8. POWER SPECTRAL DENSITY TEST 97 8.1. LIMIT 97 8.2. TEST PROCEDURE ANS SETTING 97 8.3. MEASUREMENT INSTRUMENTS LIST 97 8.4. TEST SETUP 97 8.5. EUT OPERATION CONDITIONS 97 8.6. TEST RESULTS 98 9. FREQUENCY STABILITY MEASUREMENT 105 9.1. LIMIT 105 9.2. TEST PROCEDURE AND SETTING 105 9.3. MEASUREMENT INSTRUMENTS LIST 105 9.4. TEST SETUP 105 9.5. EUT OPERATION CONDITIONS 105 9.6. TEST RESULTS 106 Report No.: 20EFAS11141 10941 Page 4 of 106 1. TEST REPORT DECLARE Applicant Hui Zhou Gaoshengda Technology Co., LTD Address NO.75 Zhongkai Development Area, Huizhou, Guangdong, China Manufacturer Hui Zhou Gaoshengda Technology Co., LTD Address No.2,Jin-da Road, Huinan High-tech Industrial Park, Hui-ao Avenue, Huizhou City, Guangdong, China Factory Hui Zhou Gaoshengda Technology Co., LTD Address No.2,Jin-da Road, Huinan High-tech Industrial Park, Hui-ao Avenue, Huizhou City, Guangdong, China Equipment WIFI +BT Module Model No. WT5LM2001 Trade Mark GSD Standard FCC Part15, Subpart E(15.407) RSS-247 Issue 2, Feb. 2017 RSS-Gen Issue 5, Apr. 2018 ANSI C63.10-2013 FCC KDB 789033 D02 General UNII Test Procedures New Rules v02r01 We Declare: The equipment described above is tested by DongGuan ShuoXin Electronic Technology Co., Ltd(ATT). and in the configuration tested the equipment complied with the standards specified above. The test results are contained in this test report and DongGuan ShuoXin Electronic Technology Co., Ltd.(ATT) is assumed of full responsibility for the accuracy and completeness of these tests. ATT is not responsible for the sampling stage, so the results only apply to the sample as received. ATT's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. ATT shall have no liability for any declarations, inferences or generalizations drawn by the client or others from ATT issued reports. Report No.: 20EFAS11141 10941 Page 5 of 106 2 SUMMARY OF TEST RESULTS The EUT have been tested according to the applicable standards as referenced below: Standard(s) Section Test Item Judgment Remark FCC IC 15.207 15.407(b) RSS-GEN 8.8 AC Power Line Conducted Emissions PASS ------ 15.407(b) 15.205(a) 15.209(a) RSS-247 6.2.1.2 RSS-247 6.2.4.2 RSS-GEN 8.9 RSS-GEN 8.10 Radiated Emissions PASS ------ 15.407(a) 15.407(e) RSS-247 6.2.1.1 RSS-247 6.2.2.1 RSS-247 6.2.3.1 RSS-247 6.2.4.1 RSS-GEN 6.7 Spectrum Bandwidth PASS ------ 15.407(a) RSS-247 6.2.1.1 RSS-247 6.2.2.1 RSS-247 6.2.3.1 RSS-247 6.2.4.1 Maximum Output Power PASS ------ 15.407(a) RSS-247 6.2.1.1 RSS-247 6.2.2.1 RSS-247 6.2.3.1 RSS-247 6.2.4.1 Power Spectral Density PASS ------ 15.407(g) RSS-GEN 6.11 Frequency Stability PASS ------ 15.203 RSS-247 6.4(a) Antenna Requirements PASS Note(4) 15.407(c) RSS-GEN 8.8 Automatically Discontinue Transmission PASS Note(2) Note: (1) “N/A” denotes test is not applicable in this test report. (2) During no any information transmission, the EUT can automatically discontinue transmission and become standby mode for power saving. the EUT can detect the controlling signal of ACK message transmitting from remote device and verify whether it shall resend or discontinue transmission. (3) For UNII-1 this device was functioned as a Access point device Client device (4) The device what use a perman…

Text truncated - open the document above for the full version.

Radiated Emission Below 1G Test Photo Radiated Emission Above 1G Test Photo Conducted Emission Test Photo
