2AC23-WT5YWIFI+BT Module

Hui Zhou Gaoshengda Technology Co., LTD WT5YM2511 PAGE 1 OF 5 Version 1.0 WIFI+BT Module IEEE 802.11 a/b/g/n 2T/2R Model Number: WT5YM2511 Product Descrition The WT5YM2511 is a complete dual-band(2.4GHz and 5GHz)WIFI 2×2 MIMO module. This module provides a high level of integration with a dual-stream IEEE 802.11n MAC/ base band /radio and Bluetooth 5.0.The WLAN operation supports 20MHz,40MHz channels for data rates up to 300Mbps. It fully complies with IEEE 802.11 a/b/g/n feature rich wireless connectivity at high standards,delivers reliable,cost-effective, throughput from an extended distance. Product Features Product Specification Model WIF+BT Module Product Name WT5YM2511 Standard 802.11 a /b/g/n Interface USB Data Transfer Rate 1,2,5.5,6,11,12,18,22,24,30,36,48,54,60,90,120 and maximum of 300Mbps Modulation Method GFSK,π/4-DQPSK,8DPSK(bluetooth) DQPSK,DBPSK,CCK(802.11b) QPSK,BPSK,16QAM,64QAM with OFDM (802.11g) QPSK,BPSK,16QAM,64QAM with OFDM (802.11n) QPSK,BPSK,16QAM,64QAM with OFDM (802.11a) Frequency Band BLUETOOTH 2402~2480 MHz WIFI 2.4G: 2412~2462 MHz 5G: 5150~5250MHz,5725~5850MHz Operation Mode Infrastructure Security WEP, TKIP, AES, WPA, WPA2 Operating Voltage 5V±10% Current Consumption ＜1000mA Antenna Type PIFA Operating Temperature 0 ~ 70°C ambient temperature Storage Temperature -40 ~ 80°C ambient temperature Humidity 5 to 95 % maximum (non-condensing) ◆ Complies with IEEE 802.11b/g/n for 2.4GHz and IEEE 802.11a/n 5GHz Wireless LAN. ◆ Bluetooth v5.0 ◆ Two transmit and Two receive path(2T2R) ◆ Works with all existing network nfrastructure. ◆ Capable of up to 128-Bit WEP Encryption. ◆ Freedom to roam while staying connected. ◆ UP to 300 Mbps High-Speed Transfer Rate in 802.11n mode of operation. ◆ Operating Systems：Linux,Win7, Win8, Win10,XP ◆ Low power consumption. ◆ Easy to install and configure. ◆ High speed USB 2.0 interface ◆ROHS compliant Hui Zhou Gaoshengda Technology Co., LTD WT5YM2511 PAGE 2 OF 5 Version 1.0 NOTICE: ◆please keep this product and accessories attached to the places which children can't touch; ◆do not splash water or other liquid onto this product, otherwise it may cause damage; ◆do not put this product near the heat source or direct sunlight, otherwise it may cause deformation or malfunction; ◆please keep this product away from flammable or naked flame; ◆please do not repair this product by yourself. Only qualified personnel can be repaired. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Please notice that if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC ID:2AC23-WT5Y” any similar wording that expresses the same meaning may be used. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. CFR 47 FCC Part 15 Subpart C (15.247, DTS ) and FCC Part 15 Subpart E(NII )has been investigated. It is applicable to the modular transmitter. This radio transmitter 2AC23-WT5Y has been approved by Federal Communications Commission to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device. Hui Zhou Gaoshengda Technology Co., LTD WT5YM2511 PAGE 3 OF 5 Version 1.0 Manufacture: Hui Zhou Gaoshengda Technology Co.,LTD BT BLE antenna Antenna Frequency (MHz) Antenna Type MAX Antenna Gain (dBi) 1 2402-2480 External PIFA Antenna 3 2.4G wifi antenna Antenna Frequency (MHz) Antenna Type MAX Antenna Gain (dBi) 1 2412-2462 Inverted F PCB antenna 3 2 2412-2462 Inverted F PCB antenna 3 5G wifi antenna Antenna No. Frequency Band Antenna Type Max Antenna Gain (dBi) Directional Gain (dBi) 1 UNII-1&UNII-2A&UNII-2C&UNII-3 Inverted F PCB antenna 4 7.01 2 UNII-1&UNII-2A&UNII-2C&UNII-3 Inverted F PCB antenna 4 For WIFI antenna is permanently attached, can’t be replaced. EUT has an external BT antenna with antenna connector. Notice to OEM integrator Must use the device only in host devices that meet the FCC/ISED RF exposure category of mobile, which mea…

Text truncated - open the document above for the full version.

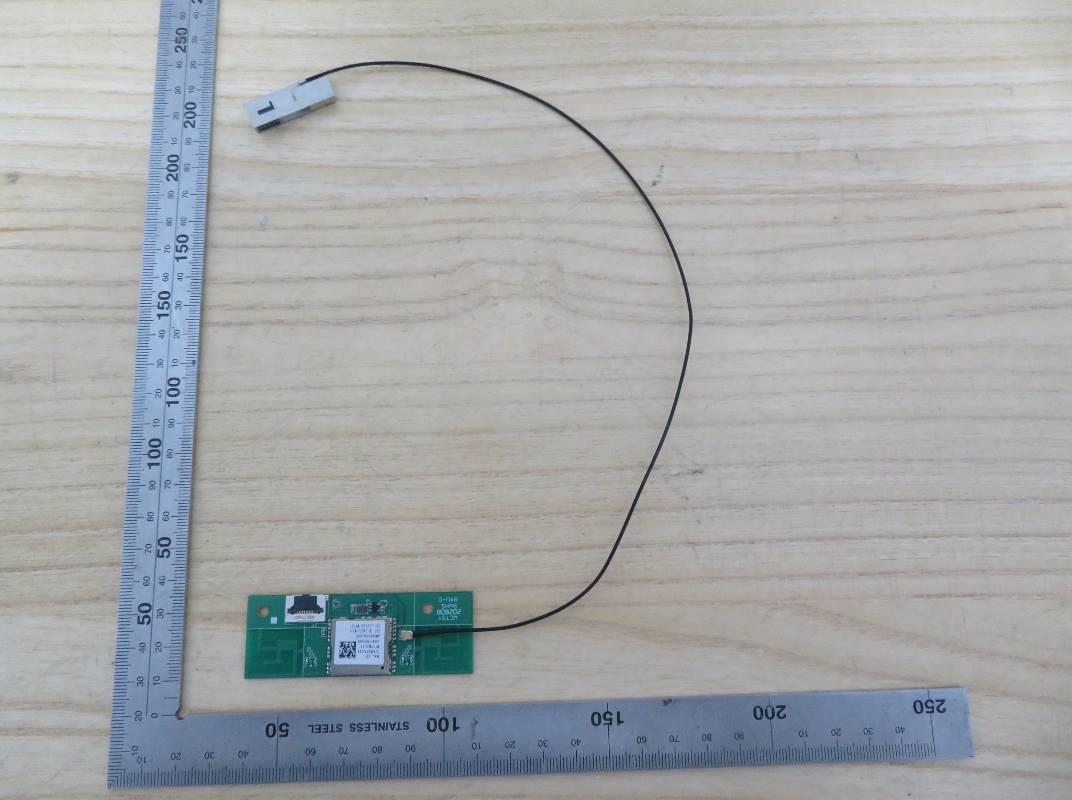

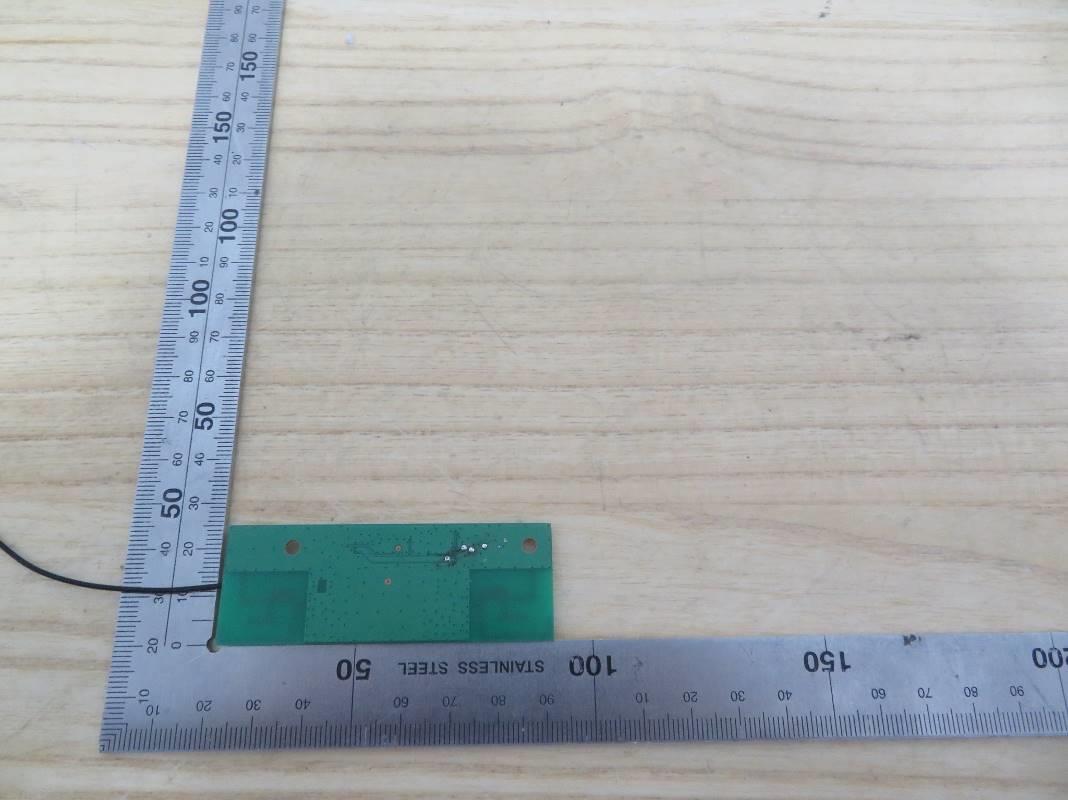

Appendix I External Photographs Page 2 of 3 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-1 View of EUT-2 BT&BLE Antenna Page 3 of 3 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-3

QR code

Appendix I Internal Photographs Page 2 of 2 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-1 WIFI ANTENNA 2 WIFI ANTENNA 1 BT ANTENNA CONNECTOR

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT CERTIFICATION TEST REPORT For WIFI+BT Module MODEL NUMBER: WT5YM2611 FCC ID: 2AC23- WT5Y REPORT NUMBER: 4789769271-5 ISSUE DATE: January 13, 2021 Prepared for Hui Zhou Gaoshengda Technology Co.,LTD NO.75 Zhongkai Development Area Huizhou, Guangdong China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4789769271-5 Page 2 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 01/13/2021 Initial Issue REPORT NO.: 4789769271-5 Page 3 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. REQUIREMENT ................................................................................................................. 6 REPORT NO.: 4789769271-5 Page 4 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Hui Zhou Gaoshengda Technology Co.,LTD Address: NO.75 Zhongkai Development Area Huizhou, Guangdong China Manufacturer Information Company Name: Hui Zhou Gaoshengda Technology Co.,LTD Address: NO.75 Zhongkai Development Area Huizhou, Guangdong China EUT Information EUT Name: WIFI+BT Module Model: WT5YM2611 Brand: GSD Serial Model: Please refer to clause 5.1. Description of EUT Sample Received Date: December 9, 2020 Sample Status: Normal Sample ID: 3547996 Date of Tested: December 9, 2020~ December 25, 2020 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47CFR§2.1091 PASS Prepared By: Checked By: Kebo Zhang Shawn Wen Project Engineer Laboratory Leader Approved By: Stephen Guo Laboratory Manager REPORT NO.: 4789769271-5 Page 5 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4102.01) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1187) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. Has been recognized to perform compliance testing on equipment subject to the Commission's Delcaration of Conformity (DoC) and Certification rules ISED (Company No.: 21320) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been registered and fully described in a report filed with ISED. The Company Number is 21320 and the test lab Conformity Assessment Body Identifier (CABID) is CN0046. VCCI (Registration No.: G-20019, R-20004, C-20012 and T-20011) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with VCCI, the Membership No. is 3793. Facility Name: Chamber D, the VCCI registration No. is G-20019 and R-20004 Shielding Room B , the VCCI registration No. is C-20012 and T-20011 Note: All tests measurement facilities use to collect the measurement data are located at Building 10, Innovation Technology Park, Song Shan Lake Hi tech Development Zone, Dongguan, 523808, China. REPORT NO.: 4789769271-5 Page 6 of 7 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 4. REQUIREMENT LIMIT AND CALCULATION METHOD Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. Limits for General Population/Uncontrolled Exposure RF EXPOSURE LIMIT Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2 )* 30 30 -- 300 27.5 0.073 0.2 30 300 -- …

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART C ISED RSS-247 ISSUE 2 CERTIFICATION TEST REPORT For WIFI+BT Module MODEL NUMBER: WT5YM2611 FCC ID: 2AC23- WT5Y IC: 12290A- WT5Y REPORT NUMBER: 4789769271-2 ISSUE DATE: January 14, 2021 Prepared for Hui Zhou Gaoshengda Technology Co.,LTD NO.75 Zhongkai Development Area Huizhou, Guangdong China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4789769271-2 Page 2 of 94 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0086 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 01/14/2021 Initial Issue REPORT NO.: 4789769271-2 Page 3 of 94 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0086 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Clause Test Items FCC/ISED Rules Test Results 1 20dB Bandwidth and 99% Occupied Bandwidth FCC 15.247 (a) (1) RSS-247 Clause 5.1 (a) RSS-Gen Clause 6.7 Pass 2 Conducted Output Power FCC 15.247 (b) (1) RSS-247 Clause 5.1 (b) Pass 3 Carrier Hopping Channel Separation FCC 15.247 (a) (1) RSS-247 Clause 5.1 (b) Pass 4 Number of Hopping Frequency 15.247 (a) (1) III RSS-247 Clause 5.1 (d) Pass 5 Time of Occupancy (Dwell Time) 15.247 (a) (1) III RSS-247 Clause 5.1 (d) Pass 6 Conducted Bandedge FCC 15.247 (d) RSS-247 Clause 5.5 Pass 7 Radiated Bandedge and Spurious FCC 15.247 (d) FCC 15.209 FCC 15.205 RSS-247 Clause 5.5 RSS-GEN Clause 8.9 RSS-GEN Clause 8.10 Pass 8 Conducted Emission Test for AC Power Port FCC 15.207 RSS-GEN Clause 8.8 Pass 9 Antenna Requirement FCC 15.203 RSS-GEN Clause 6.8 Pass Note: 1. This test report is only published to and used by the applicant, and it is not for evidence purpose in China. 2. The measurement result for the sample received is <Pass> according to < CFR 47 FCC PART 15 SUBPART C >< ISED RSS-247 > when <Accuracy Method> decision rule is applied. REPORT NO.: 4789769271-2 Page 4 of 94 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0086 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 6 2. TEST METHODOLOGY ..................................................................................................... 7 3. FACILITIES AND ACCREDITATION ................................................................................. 7 4. CALIBRATION AND UNCERTAINTY ................................................................................ 8 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 8 4.2. MEASUREMENT UNCERTAINTY ............................................................................... 8 5. EQUIPMENT UNDER TEST ............................................................................................... 9 5.1. DESCRIPTION OF EUT .............................................................................................. 9 5.2. MAXIMUM PEAK OUTPUT POWER ........................................................................... 9 5.3. PACKET TYPE CONFIGURATION ............................................................................. 9 5.4. CHANNEL LIST ..........................................................................................................10 5.5. TEST CHANNEL CONFIGURATION ..........................................................................10 5.6. WORST-CASE CONFIGURATIONS...........................................................................10 5.7. THE WORSE CASE POWER SETTING PARAMETER ..............................................11 5.8. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................11 5.9. DESCRIPTION OF TEST SETUP ...............................................................................12 6. MEASURING INSTRUMENT AND SOFTWARE USED ....................................................13 7. ANTENNA PORT TEST RESULTS ...................................................................................15 7.1. ON TIME AND DUTY CYCLE .....................................................................................15 7.2. 20 dB BANDWIDTH AND 99 % OCCUPIED BANDWIDTH ........................................16 7.3. CONDUCTED OUTPUT POWER ...............................................................................18 7.4. CARRIER FREQUENCY SEPARATION .....................................................................19 7.5. NUMBER OF HOPPING FREQUENCIES ..................................................................21 7.6. TIME OF OCCUPANCY (DWELL TIME) .....................................................................23 7.7. CONDUCTED BANDEDGE AND SPURIOUS EMISSION ..........................................25 8. RADIATED TEST RESULTS .............................................................................................27 8.1. RESTRICTED BANDEDGE ................................................…

Text truncated - open the document above for the full version.

Appendix II Setup Photographs RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) WIFI MEASUREMENT POSITION (X axis) BT MEASUREMENT POSITION (X axis) WIFI MEASUREMENT POSITION (Y axis) BT MEASUREMENT POSITION (Y axis) WIFI MEASUREMENT POSITION (Z axis) BT MEASUREMENT POSITION (Z axis) RADIATED RF MEASUREMENT SETUP (30MHz~1GHz) RADIATED RF MEASUREMENT SETUP (Below 30MHz) AC POWER LINE MEASUREMENT SETUP
