2AC23-WXT2AWIFI+BT Module

Hui Zhou Gaoshengda Technology Co., LTD WXT2AM2101 Host Integration Guide FCC ID: 2AC23-WXT2A IC: 12290A-WXT2A The module is not intended for general public and integrators. It is generally for industry/commercial use and must be professionally installed. The connector is within the transmitter enclosure and can only be accessed by disassembly of the transmitter that is not normally required. Installation must be controlled and requires special training. According to KDB996369 D03 2.0 INTEGRATION INSTRUCTIONS(2.2-2.7) 2.2 This module has been assessed against the following FCC rule parts: CFR 47 FCC Part 15 C (15.247, DTS and DSS) and CFR 47 FCC Part 15 E (NII). It is applicable to the modular transmitter。 2.3 About the Antenna: 1.Antenna type is a PIFA with no more than 2 dBi gain at 2.4 GHz, 3 dBi gain at 5GHz and 4 dBi at 6GHz. 2.Should be installed so that the end user cannot modify the antenna. 3.Feed line should be designed in 50ohm Fine tuning of return loss etc. can be performed using a matching network. The antenna shall not be accessible for modification or change by the end user. 2.4 The module complies with FCC Part 15.247 / Part 15.407 and apply for Single module approval. 2.5 Trace antenna designs: Not applicable. Any deviation(s) from the defined parameters of the antenna trace, as described by the instructions, require that the host product manufacturer must notify the module grantee that they wish to change the antenna trace design. In this case, a Class II permissive change application is required to be filed by the grantee, or the host manufacturer can take responsibility through the change in FCC ID (new application) procedure followed by a Class II permissive change application. Hui Zhou Gaoshengda Technology Co., LTD WXT2AM2101 2.6 The module is limited to installation in mobile application. Host device must be operated a minimum of 20cm between people. Here are two types of instruction for RF exposure: 1;The host product which the module installed shall be mobile application. 2; The end user manual shall be provide additional text from the host product manusfacturer to end users, It shall include FCC compliance statements related to the transmitter or labeling requirements.If RF exposure statements and use conditions are not provided, then the host product manufacturer is required to take responsibility of the module through a change in FCC ID (new application). A separate approval is required for all other operating configurations, including portable configurations with respect to Part 2.1093 and difference antenna configurations. 2.7 About the Antenna: Antenna type is a PIFA with no more than 2 dBi gain at 2.4 GHz, 3 dBi gain at 5GHz and 4 dBi at 6GHz. 2.8 Please notice that if the FCC identification number is not visible when the module is installed inside the host device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label shall use the wording: Contains FCC ID:2AC23- WXT2A. Please notice that if the ISED Canada certification number is not visible when the module is installed inside the host device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label c hall use the wording: Contains IC:12290A- WXT2A 2.9 Testing of the host product with all the transmitters installed – referred to as the composite investigation test- is recommended, to verify that the host product meets all the applicable FCC rules. The radio spectrum is to be investigated with all the transmitters in the final host product functioning to determine that no emissions exceed the highest limit permitted for any one individual transmitter as required by Section 2.947(f). The host manufacturer is responsible to ensure that when their product operates as intended it does not have any emissions present that are out of compliance that were not present when the transmitters were tested individually. If the modular transmitter has been fully tested by the module grantee on the required number of channels, modulation types, and modes, it should not be necessary for the host installer to re-test all the available transmitter modes or settings. It is recommended that the host product manufacturer, installing the modular transmitter, perform some investigative measurements to confirm that the resulting composite system does not exceed the spurious emissions limits or band edge limits (e.g., where a different antenna may be causing additional emissions). Hui Zhou Gaoshengda Technology Co., LTD WXT2AM2101 The testing should check for emissions that may occur due to the intermixing of emissions with the other transmitters, digital circuitry, or due to physical properties of the host product (enclosure). This investigation is especially important when integrating multiple modular transmitters where the certification is based on testing each of them in a stand-alone configuration. 2.10 Any company of the host device which install this modular should perform the test of radiated & condicted emission and spurious emission etc. according to FCC Part 15C: 15.247 and 15.209 & 15.207, 15B class B requirement, only if the test result comply with FCC part 15C: 15.247 and 15.209 & 15.207, 15B class B requirement. Then the host can be sold legally. The host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. If the grantee markets their product as being Part 15 Subpart B compliant (when it also contains unintentional-radiator digital circuity), then the grantee shall provide a notice stating that the final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed. A separate approval is required for all other operating configurations, including portable configurations with respect to Part…

Text truncated - open the document above for the full version.

Hui Zhou Gaoshengda Technology Co., LTD WXT2AM2101 PAGE 1 OF 10 Version 1.0 WIFI+BT Module IEEE 802.11 a/b/g/n/ac/ax 2T/2R Model Number: WXT2AM2101 Product Descrition The WXT2AM2101 is a complete 2.4GHz/5GHz/6GHz WIFI 2×2 MIMO module. This module provides a high level of integration with a dual-stream IEEE 802.11ax MAC/ base band /radio and Bluetooth 5.2.The WLAN operation supports 20MHz,40MHz and 80MHz channels for data rates up to 1201Mbps. It fully complies with IEEE 802.11 a/b/g/n/ac/ax feature rich wireless connectivity at high standards,delivers reliable,cost-effective, throughput from an extended distance. Product Features Product Specification Model WXT2AM2101 Product Name WIF+BT Module Standard 802.11 a/b/g/n/ac/ax Interface USB Data Transfer Rate 1,2,5.5,6,11,12,18,22,24,30,36,48,54,60,90,120 and maximum of 1201Mbps Modulation Method GFSK,π/4-DQPSK,8DPSK(bluetooth) DQPSK,DBPSK,CCK(802.11b) QPSK,BPSK,16QAM,64QAM with OFDM (802.11g) QPSK,BPSK,16QAM,64QAM with OFDM (802.11n) QPSK,BPSK,16QAM,64QAM with OFDM (802.11a) QPSK,BPSK,16QAM,64QAM,256QAM with OFDM (802.11ac) QPSK,BPSK,16QAM,64QAM,256QAM,1024QAM with OFDM (802.11ax) Frequency Band BLUETOOTH 2402~2480 MHz WIFI 2.4G: 2412~2462 MHz 5G: 5150~5350MHz, 5470~5725MHz，5725~5850MHz 6G: 5925~7125MHz Operation Mode Infrastructure Security WEP, TKIP, AES, WPA, WPA2 Operating Voltage 3.3V±10% Current Consumption ＜1000mA Antenna Type PIFA Operating Temperature 0 ~ 70°C ambient temperature Storage Temperature -40 ~ 80°C ambient temperature Humidity 5 to 95 % maximum (non-condensing) ◆ Complies with IEEE 802.11b/g/n/ax for 2.4GHz，IEEE 802.11a/n/ac/ax for 5GHz，IEEE 802.11ax for 6GHz Wireless LAN. ◆ Bluetooth v5.2 ◆ Two transmit and Two receive path(2T2R) ◆ Works with all existing network nfrastructure. ◆ Capable of up to 128-Bit WEP Encryption. ◆ Freedom to roam while staying connected. ◆ UP to 1201 Mbps High-Speed Transfer Rate in 802.11ax mode of operation. ◆ Operating Systems：Linux, Win10, Win11. ◆ Low power consumption. ◆ Easy to install and configure. ◆ High speed usd 2.0 interface. ◆ROHS compliant Hui Zhou Gaoshengda Technology Co., LTD WXT2AM2101 PAGE 2 OF 10 Version 1.0 NOTICE: ◆please keep this product and accessories attached to the places which children can't touch; ◆do not splash water or other liquid onto this product, otherwise it may cause damage; ◆do not put this product near the heat source or direct sunlight, otherwise it may cause deformation or malfunction; ◆please keep this product away from flammable or naked flame; ◆please do not repair this product by yourself. Only qualified personnel can be repaired. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The module is limited to OEM installation ONLY. The OEM integrator is responsible for ensuring that the end-user has no manual instruction to remove or install module. 2.6 The module is limited to installation in mobile application. Host device must be operated a minimum of 20cm between people. Here are two types of instruction for RF exposure: 1;The host product which the module installed shall be mobile application. 2; The end user manual shall be provide additional text from the host product manusfacturer to end users, It shall include FCC compliance statements related to the transmitter or labeling requirements.If RF exposure statements and use conditions are not provided, then the host product manufacturer is required to take responsibility of the module through a change in FCC ID (new application). A separate approval is required for all other operating configurations, including portable configurations with respect to Part 2.1093 and difference antenna configurations. 2.4 The module complies with FCC Part 15.247 / Part 15.407 and apply for Single module approval. Hui Zhou Gaoshengda Technology Co., LTD WXT2AM2101 PAGE 3 OF 10 Version 1.0 2.5 Trace antenna designs: Not applicable. Any deviation(s) from the defined parameters of the antenna trace, as described by the instructions, require that the host product manufacturer must notify the module grantee that they wish to change the antenna trace design. In this case, a Class II permissive change application is required to be filed by the grantee, or the host manufacturer can take responsibility through the change in FCC ID (new application) procedure followed by a Class II permissive change application. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm bet…

Text truncated - open the document above for the full version.

Hui Zhou Gaoshengda Technology Co.,LTD Agent Authorization Company: Hui Zhou Gaoshengda Technology Co.,LTD Address: NO.75 Zhongkai Development Area, Huizhou, Guangdong, China Product Name: WIFI+BT Module Model Number(s): WXT2AM2101 Product Description: WIFI+BT Module We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-03-01 Name: Hui Guan Title: Manager Company: Hui Zhou Gaoshengda Technology Co.,LTD

Hui Zhou Gaoshengda Technology Co.,LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022-03-01 Subject; Request for Confidentiality FCC ID: 2AC23- WXT2A To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Hui Guan Title: Manager

Hui Zhou Gaoshengda Technology Co.,LTD FCC Modular Approval Request Rev 3.0 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Subject; Modular Transmitter Application Company name: Hui Zhou Gaoshengda Technology Co.,LTD FCC ID: 2AC23- WXT2A Dear Sir/Madam, This letter includes the FCC application requirements for Modular Transmitter Approval Request for;- FCC KDB 996369 D01 ‘Module Certification Guide v02; and FCC KDB 996369 D03 OEM Manual v01 In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Equip Auth Guide v02’. FCC ID:2AC23- WXT2A has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. Yes, the radio elements must have the radio frequency circuitry shielded. The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. Yes. The module has buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. The module must contain power supply regulation on the module. Yes. The module contains power supply regulation on the module The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). YES. Device contain a unique antenna connector. The module must demonstrate compliance in a stand-alone configuration. Yes. The demonstrates compliance in a stand- alone configuration The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). Yes. The module is labelled with its permanently affixed FCC ID label. The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. Yes. The module complies with all specific rules applicable to the transmitter including all the conditions Hui Zhou Gaoshengda Technology Co.,LTD FCC Modular Approval Request Rev 3.0 provided in the integration instructions by the grantee. The module must comply with RF exposure requirements Yes. The module complies with RF exposure requirements. Integration Instructions for host product manufacturers The following items are submitted in support of application for Modular Transmitter FCC ID as noted above as required by the FCC KDB 996369 D03 OEM Manual v01. These items are provided as integration instructions for host product manufacturers (e.g., OEM instruction manual) to use when integrating a module in a host product. Any requirements that are not applicable to the Module are as indicated below. Summary of requirements and Checklist. Refer to the KDB for description of the complete requirements; KDB Ref Sect Requirements of KDB 996369 D03 User Manual Page Number reference 2.2 List of applicable FCC rules 2.3 Summarize the specific operational use conditions 2.4 Limited module procedures 2.5 Trace antenna designs 2.6 RF exposure considerations 2.7 Antennas 2.8 Label and compliance information 2.9 Information on test modes and additional testing requirements 2.10 Additional testing, Part 15 Subpart B disclaimer Name: Hui Guan Date: 2022-03-01 Title: Manager Signature of applicant

FCC Software Configuration Control Declaration Rev1.1 Hui Zhou Gaoshengda Technology Co.,LTD FCC Software Configuration Control Declaration Date: March 1, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: WIFI+BT Module / WXT2AM2101 Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Hui Guan Date: 2022-03-01 Title: Manager Signature of applicant

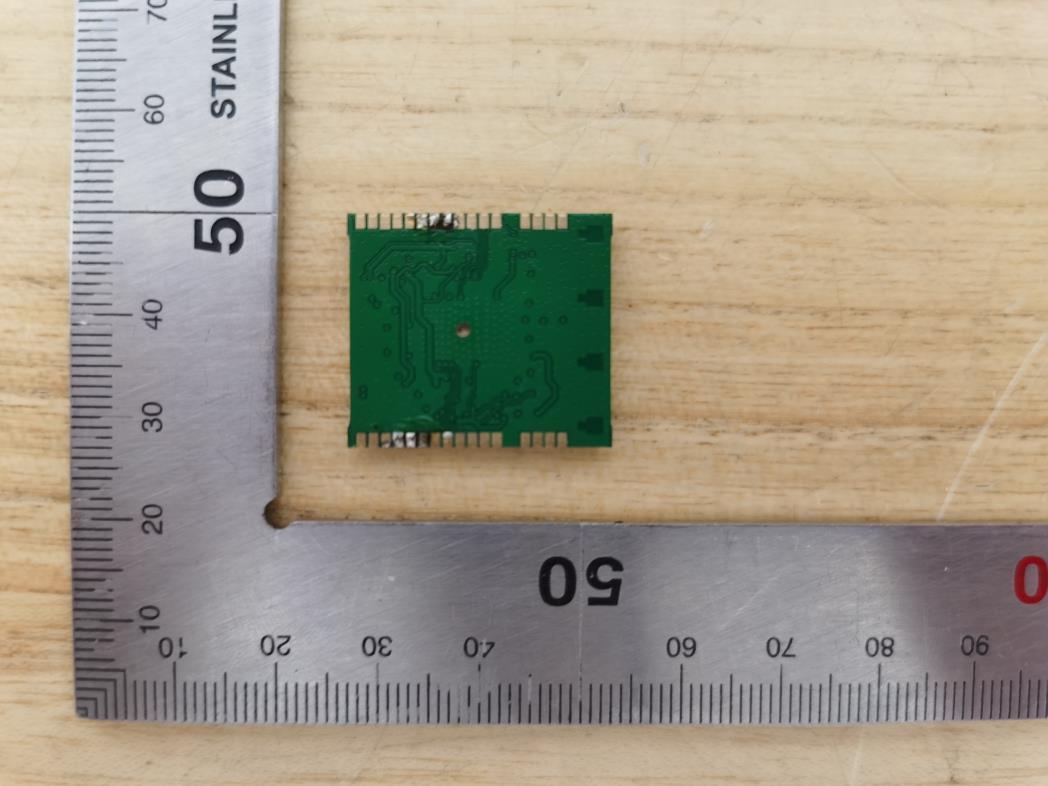

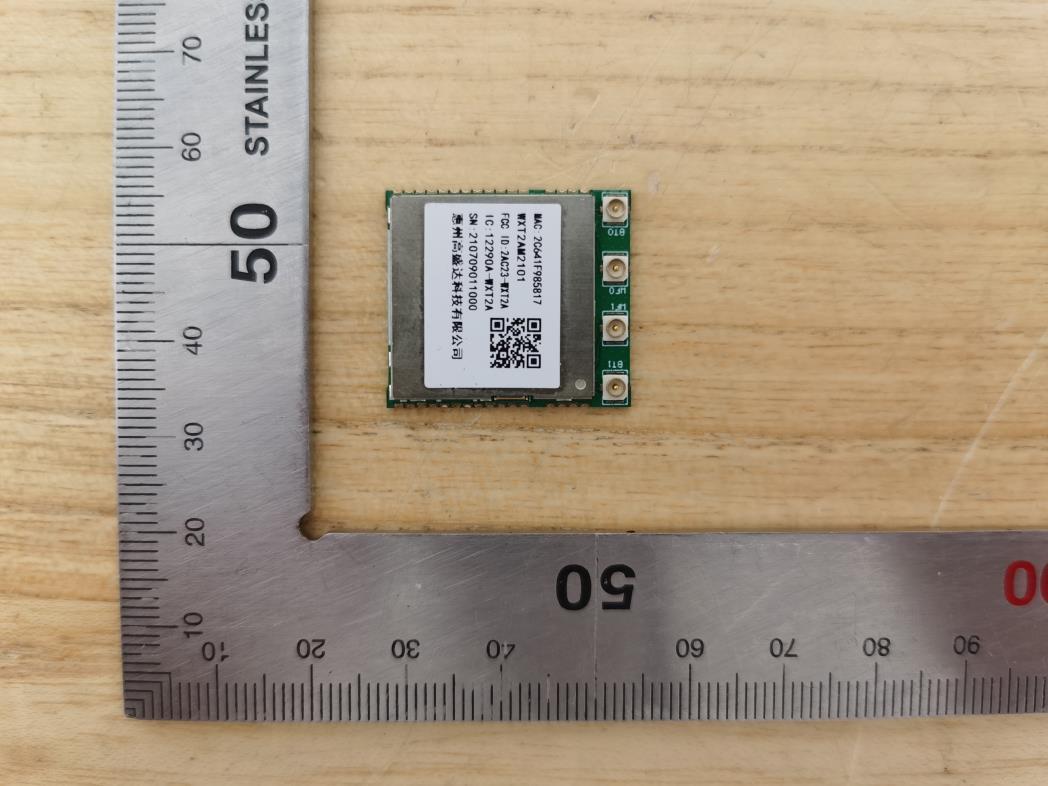

Appendix I External Photographs Page 2 of 3 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. External Photos BT Antenna 1 BT Antenna 2 WiFi Antenna 1 WiFi Antenna 2 Page 3 of 3 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch.

QR CODE GSD label locaiton: label:

Appendix II Internal Photographs Page 2 of 2 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal Photos

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT CERTIFICATION TEST REPORT For WIFI+BT Module MODEL NUMBER: WXT2AM2101 FCC ID: 2AC23-WXT2A REPORT NUMBER: 4790194584-6 ISSUE DATE: February 18, 2022 Prepared for Hui Zhou Gaoshengda Technology Co.,LTD No.2,Jin-da Road,Huinan High-tech Industrial Park,Hui-ao Avenue,Huizhou City,Guangdong,China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4790194584-6 Page 2 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 2/18/2022 Initial Issue REPORT NO.: 4790194584-6 Page 3 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. REQUIREMENT ................................................................................................................. 6 REPORT NO.: 4790194584-6 Page 4 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Hui Zhou Gaoshengda Technology Co.,LTD Address: No.2,Jin-da Road,Huinan High-tech Industrial Park,Hui-ao Avenue,Huizhou City,Guangdong,China Manufacturer Information Company Name: Hui Zhou Gaoshengda Technology Co.,LTD Address: No.2,Jin-da Road,Huinan High-tech Industrial Park,Hui-ao Avenue,Huizhou City,Guangdong,China EUT Information EUT Name: WIFI+BT Module Model: WXT2AM2101 Sample Received Date: November 22, 2021 Sample Status: Normal Sample ID: 4425311 Date of Tested: November 22, 2021 ~ February 18, 2022 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47CFR§2.1091 PASS Prepared By: Checked By: Denny Huang Shawn Wen Project Engineer Laboratory Leader Approved By: Stephen Guo Laboratory Manager REPORT NO.: 4790194584-6 Page 5 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4102.01) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1187) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. Has been recognized to perform compliance testing on equipment subject to the Commission's Delcaration of Conformity (DoC) and Certification rules ISED (Company No.: 21320) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been registered and fully described in a report filed with ISED. The Company Number is 21320 and the test lab Conformity Assessment Body Identifier (CABID) is CN0046. VCCI (Registration No.: G-20019, R-20004, C-20012 and T-20011) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with VCCI, the Membership No. is 3793. Facility Name: Chamber D, the VCCI registration No. is G-20019 and R-20004 Shielding Room B , the VCCI registration No. is C-20012 and T-20011 Note: All tests measurement facilities use to collect the measurement data are located at Building 10, Innovation Technology Park, Song Shan Lake Hi tech Development Zone, Dongguan, 523808, China. REPORT NO.: 4790194584-6 Page 6 of 8 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0112 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 4. REQUIREMENT LIMIT AND CALCULATION METHOD Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. Limits for General Population/Uncontrolled Exposure RF EXPOSURE LIMIT Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (Minutes) 0.3 -- 1.34 614 1.63 (100)* 30 1.34 -- 30 824/f 2.19/f (180/f 2…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART E ISED RSS-247 ISSUE 2 CERTIFICATION TEST REPORT For WIFI+BT Module MODEL NUMBER: WXT2AM2101 FCC ID: 2AC23-WXT2A IC: 12290A-WXT2A REPORT NUMBER: 4790194584-4 ISSUE DATE: February 18, 2022 Prepared for Hui Zhou Gaoshengda Technology Co.,LTD No.2,Jin-da Road,Huinan High-tech Industrial Park,Hui-ao Avenue,Huizhou City,Guangdong,China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4790194584 -4 Page 2 of 497 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 2/18/2021 Initial Issue REPORT NO.: 4790194584 -4 Page 3 of 497 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Clause Test Items FCC/IC Rules Test Results 1 6dB/26dB Bandwidth FCC 15.407 (a)&(e) RSS-247 Clause 6.2 PASS 2 99% Occupied Bandwidth RSS-Gen Clause 6.7 PASS 3 Conducted Output Power FCC 15.407 (a) RSS-247 Clause 6.2 PASS 4 Power Spectral Density FCC 15.407 (a) RSS-247 Clause 6.2 PASS 5 Radiated Bandedge and Spurious Emission FCC 15.407 (b) FCC 15.209 FCC 15.205 RSS-247 Clause 6.2 RSS-GEN Clause 8.9 PASS 6 Conducted Emission Test for AC Power Port FCC 15.207 RSS-GEN Clause 8.8 PASS 7 Frequency Stability FCC 15.407 (g) PASS 8 Dynamic Frequency Selection FCC 15.407 (h) RSS-247 Clause 6.3 PASS 9 Antenna Requirement FCC 15.203 RSS-GEN Clause 6.8 PASS Note: 1.This test report is only published to and used by the applicant, and it is not for evidence purpose in China. 2. The measurement result for the sample received is <Pass> according to < CFR 47 FCC PART 15 SUBPART E >< ISED RSS-247 > when <Accuracy Method> decision rule is applied. REPORT NO.: 4790194584 -4 Page 4 of 497 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No.: 10-SL-F0089 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 8 2. TEST METHODOLOGY ..................................................................................................... 9 3. FACILITIES AND ACCREDITATION ................................................................................. 9 4. CALIBRATION AND UNCERTAINTY ...............................................................................10 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................10 4.2. MEASUREMENT UNCERTAINTY ..............................................................................10 5. EQUIPMENT UNDER TEST ..............................................................................................11 5.1. DESCRIPTION OF EUT ..................................................…

Text truncated - open the document above for the full version.
