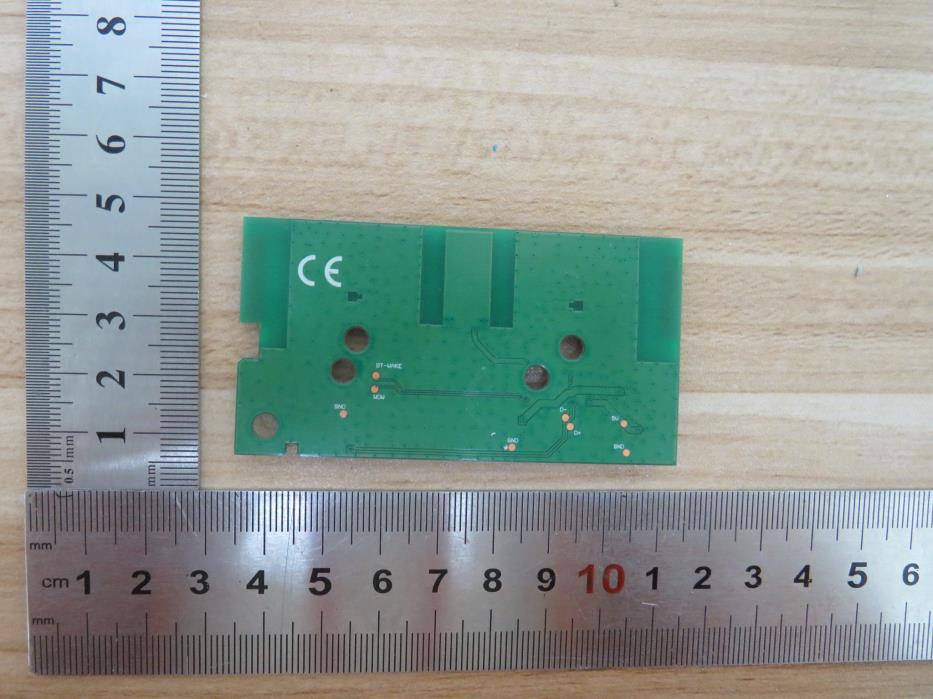

2AC23-WXT52WIFI BT Module

Hui Zhou Gaoshengda Technology Co., LTD WXT52M2511 PAGE 1 Version 1.0 WIFI+BT Module IEEE 802.11 a/b/g/n/ac/ax 2T/2R Model Number: WXT52M2511 Product Descrition The WXT52M2511 is a complete dual-band(2.4GHz and 5GHz)WIFI 2×2 MIMO module. This module provides a high level of integration with a dual-stream IEEE 802.11ax MAC/ base band /radio and Bluetooth 5.4.The WLAN operation supports 20MHz,40MHz and 80MHz channels for data rates up to 1201Mbps. It fully complies with IEEE 802.11 a/b/g/n/ac/ax feature rich wireless connectivity at high standards,delivers reliable,cost-effective, throughput from an extended distance. Product Features ◆ Complies with IEEE 802.11b/g/n/ax for 2.4GHz and IEEE 802.11a/n/ac/ax 5GHz Wireless LAN. ◆ Bluetooth v5.4 ◆ Two transmit and Two receive path(2T2R) ◆ Works with all existing network nfrastructure. ◆ Capable of up to 128-Bit WEP Encryption. ◆ Freedom to roam while staying connected. ◆ UP to 1201 Mbps High-Speed Transfer Rate in 802.11ax mode of operation. ◆ Operating Systems：Linux,Windows ◆ Low power consumption. ◆ Easy to install and configure. ◆ High speed USB interface ◆ ROHS compliant Product Specification Model WIF+BT Module Product Name WXT52M2511 Standard 802.11 a /b/g/n/ac/ax Interface USB Data Transfer Rate UP tO 1201Mbps Modulation Method GFSK,π/4-DQPSK,8DPSK(bluetooth) DQPSK,DBPSK,CCK(802.11b) QPSK,BPSK,16QAM,64QAM with OFDM (802.11g) QPSK,BPSK,16QAM,64QAM with OFDM (802.11n) QPSK,BPSK,16QAM,64QAM with OFDM (802.11a) QPSK,BPSK,16QAM,64QAM,256QAM with OFDM (802.11ac) QPSK,BPSK,16QAM,64QAM,256QAM,1024QAM with OFDM (802.11ax) Frequency Band BLUETOOTH 2402~2480 MHz WIFI 2.4G: 2400~2483.5 MHz 5G: 5150~5350MHz, 5470~5725MHz,5725~5850MHz Operation Mode Infrastructure Security WEP, TKIP, AES, WPA, WPA2 Operating Voltage 5V±10% Current Consumption ＜1000mA Antenna Type PCB Operating Temperature 0 ~ 70°C ambient temperature Storage Temperature -40 ~ 80°C ambient temperature Humidity 5 to 95 % maximum (non-condensing) Hui Zhou Gaoshengda Technology Co., LTD WXT52M2511 PAGE 2 Version 1.0 NOTICE: ◆please keep this product and accessories attached to the places which children can't touch; ◆do not splash water or other liquid onto this product, otherwise it may cause damage; ◆do not put this product near the heat source or direct sunlight, otherwise it may cause deformation or malfunction; ◆please keep this product away from flammable or naked flame; ◆please do not repair this product by yourself. Only qualified personnel can be repaired. FCC Statement FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This module is intended for OEM integrators only. Per FCC KDB 996369 D03 OEM Manual v01r01 guidance, the following conditions must be strictly followed when using this certified module: KDB 996369 D03 OEM Manual v01r01 rule sections: 2.2 List of applicable FCC rules This module has been tested for compliance with CFR 47 FCC Part 15 B, CFR 47 FCC Part 15 C (15.247, DTS and DSS) and CFR 47 FCC Part 15 E (NII). It is applicable to the modular transmitter 2.3 Summarize the specific operational use conditions The module is tested for standalone mobile RF exposure use condition. Any other usage conditions such as co-location with other transmitter(s) will need a separate reassessment through a class II permissive change application or new certification. Further operation restrictions on the host product include: *Prohibited for control of or Communications with unmanned aircraft systems. This radio transmitter FCC ID: 2AC23-WXT52 has been approved by Federal Communications Commission to operate with the integrated PCB antenna. Use of any other antenna is strictly prohibited without filing an application for a new system-specific FCC ID. Hui Zhou Gaoshengda Technology Co., LTD WXT52M2511 PAGE 3 Version 1.0 2.4 The module complies with FCC Part 15.247 / Part 15.407 and applies for Single module approval. 2.5 Trace antenna designs: Not applicable – the antenna is integrated into the module and cannot be modified. See section 2.3. 2.6 RF exposure considerations This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.7 Antennas Note 1: Use of other antenna types or the same type of antenna with higher gain than listed above must perform additional testing and appropriate permissiv…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART E ISED RSS-247 Issue 4 TEST REPORT For WIFI+BT Module MODEL NUMBER: WXT52M2511 REPORT NUMBER: 4791865375.2-RF-4 ISSUE DATE: September 5, 2025 FCC ID: 2AC23-WXT52 IC: 12290A-WXT52 Prepared for Hui Zhou Gaoshengda Technology Co.,LTD No.6 Qiaoguang Road, Chenjiang Street, Zhongkai High-tech Zone, Huizhou City, Guangdong Province, Huizhou, Guangdong, 516227 China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Room 101, Building 2, No.4, Information Road, Songshan Lake, Dongguan, Guangdong, China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4791865375.2-RF-4 Page 2 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 September 5, 2025 Initial Issue REPORT NO.: 4791865375.2-RF-4 Page 3 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Test Item Clause Limit/Requirement Result ON TIME AND DUTY CYCLE ANSI C63.10-2020, Clause 12.2 None; for reporting purposes only. Pass 6dB AND 26dB EMISSION BANDWIDTH AND 99% OCCUPIED BANDWIDTH KDB 789033 D02 v02r01 Section C.1 FCC Part 15.407 (a)/(e), RSS-247 Issue 4, Clause 7.3.5.2 RSS-Gen Clause 6.7 Pass CONDUCTED OUTPUT POWER KDB 789033 D02 v02r01 Section E.3.a (Method PM)/KDB 789033 D02 v02r01 Section E.3.a (Method PM) Section E.2.d (Method SA-2) FCC 15.407 (a) RSS-247 Clause 7.3 Pass POWER SPECTRAL DENSITY KDB 789033 D02 v02r01 Section F FCC 15.407 (a) RSS-247 Clause 7.3 Pass AC Power Line Conducted Emission ANSI C63.10-2020, Clause 6.2. FCC 15.207 RSS-GEN Clause 8.8 Pass Radiated Emissions and Band Edge Measurement KDB 789033 D02 v02r01 Section G.3, G.4, G.5, and G.6 FCC 15.407 (b) FCC 15.209 FCC 15.205 RSS-247 Clause 7.3 RSS-GEN Clause 8.9 Pass FREQUENCY STABILITY ANSI C63.10-2020, Clause 6.8 FCC 15.407 (g) Pass Dynamic Frequency Selection (Slave) KDB 905462 D03 Client Without DFS New Rules v01r02 FCC Part 15.407 (h), RSS-247 Issue 4 Clause 7.3.6 Pass Antenna Requirement N/A FCC 47 CFR Part 15.203/ 15.407(a)(1) (2), RSS-Gen Issue 5, Clause 6.8 Pass Note: 1. N/A: In this whole report not applicable. 2. For ISED, this report is also performed according to ANSI C63.10-2020+Cor.1-2023 standards. *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART E, ISED RSS-247 Issue 4> when <Simple Acceptance> decision rule is applied. REPORT NO.: 4791865375.2-RF-4 Page 4 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 6 2. TEST METHODOLOGY ......................................................................................................... 7 3. FACILITIES AND ACCREDITATION ..................................................................................... 7 4. CALIBRATION AND UNCERTAINTY ................................................................................... 8 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 8 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 8 5. EQUIPMENT UNDER TEST .................................................................................................. 9 5.1. DESCRIPTION OF EUT ........................................................................................... 9 5.2. CHANNEL LIST ........................................................................................................ 9 5.3. MAXIMUM POWER ................................................................................................ 10 5.4. TEST CHANNEL CONFIGURATION ...................................................................... 11 5.5. THE WORSE CASE POWER SETTING PARAMETER .......................................... 13 5.6. WORSE CASE CONFIGURATIONS ....................................................................... 16 5.7. DESCRIPTION OF AVAILABLE ANTENNAS ......................................................... 17 5.8. SUPPORT UNITS FOR SYSTEM TEST ................................................................. 18 6. MEASURING EQUIPMENT AND SOFTWARE USED......................................................... 19 7. ANTENNA PORT TEST RESULTS ..................................................................................... 22 7.1. ON TIME AND DUTY CYCLE ................................................................................. 22 7.2. 6DB AND 26DB EMISSION BANDWIDTH AND 99% OCCUPIED BANDWIDTH ... 23 7.3. CONDUCTED OUTPUT POWER ........................................................................... 25 7.4. POWER SPECTRAL DENSITY .............................................................................. 28 7.5. FREQUENCY STABILITY ..............................................................…

Text truncated - open the document above for the full version.

Appendix II Setup Photographs RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) MEASUREMENT POSITION MEASUREMENT POSITION (X axis) MEASUREMENT POSITION (Y axis) MEASUREMENT POSITION (Z axis) RADIATED RF MEASUREMENT SETUP (30MHz~1GHz) RADIATED RF MEASUREMENT SETUP (Below 30MHz) POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP DFS SETUP

Shenzhen ZTX Communication Technology Co., Ltd WXT52ANT test report Shenzhen ZTX Communication Technology Co., Ltd ❑Test Picture ❑Test Environment ❑Test Program ❑Test Data 目录 Shenzhen ZTX Communication Technology Co., Ltd Test Picture Shenzhen ZTX Communication Technology Co., Ltd Test Environment Shenzhen ZTX Communication Technology Co., Ltd Test Environment：S11 test Shenzhen ZTX Communication Technology Co., Ltd Test EnvironmentPicture Shenzhen ZTX Communication Technology Co., Ltd Test Program Antenna Efficiency、Antenna Gain、Antenna Pattern Test Shenzhen ZTX Communication Technology Co., Ltd Test Data（ANT1-VSWR） Shenzhen ZTX Communication Technology Co., Ltd Test Data（ANT1-Return loss） Shenzhen ZTX Communication Technology Co., Ltd Test Data（ANT1-Efficiency/Gain） FrequencyEfficiencyPeak Gain Directivity Mhz%dBdBdB 5150 55.90 -2.53 3.65 6.18 5200 54.16 -2.66 3.70 6.36 5250 52.80 -2.77 3.62 6.40 5300 50.46 -2.97 3.16 6.13 5350 54.23 -2.66 3.45 6.11 5400 54.12 -2.67 3.33 6.00 5450 55.07 -2.59 3.58 6.17 5500 50.52 -2.97 2.91 5.88 5550 51.15 -2.91 3.00 5.92 5600 54.10 -2.67 3.43 6.10 5650 52.36 -2.81 3.24 6.05 5700 53.81 -2.69 3.30 5.99 5750 50.61 -2.96 3.05 6.00 5800 50.66 -2.95 3.30 6.25 5850 53.35 -2.73 3.93 6.66 FrequencyEfficiencyPeak Gain Directivity Mhz%dBdBdB 2400 54.96 -2.60 2.244.84 2410 57.39 -2.41 2.32 4.73 2420 58.74 -2.31 2.34 4.65 2430 57.61 -2.40 2.44 4.83 2440 59.35 -2.27 2.53 4.79 2450 61.14 -2.14 2.63 4.77 2460 60.07 -2.21 2.76 4.97 2470 60.30 -2.20 2.78 4.98 2480 60.58 -2.18 2.80 4.97 2490 60.77 -2.17 2.91 5.88 2500 60.78 -2.16 2.98 5.16 Shenzhen ZTX Communication Technology Co., Ltd Test Data（ANT1-2.4G Pattern） XOY面XOZ面 YOZ面 Z XY 2450MHz 3D方向图 Shenzhen ZTX Communication Technology Co., Ltd Test Data（ANT1-5G Pattern） XOY面XOZ面 YOZ面 Z XY 5500MHz 3D方向图 Shenzhen ZTX Communication Technology Co., Ltd Test Data（ANT2-VSWR） Shenzhen ZTX Communication Technology Co., Ltd Test Data（ANT2-Return Loss） Shenzhen ZTX Communication Technology Co., Ltd Test Data（ANT2-Efficiency/Gain） FrequencyEfficiencyPeak Gain Directivity Mhz%dBdBdB 5150 59.37 -2.26 3.54 5.81 5200 56.93 -2.45 3.48 5.92 5250 54.89 -2.61 3.66 6.26 5300 54.35 -2.65 3.42 6.07 5350 55.68 -2.54 3.77 6.31 5400 54.04 -2.67 3.67 6.34 5450 56.39 -2.49 3.76 6.25 5500 50.61 -2.96 3.28 6.24 5550 52.87 -2.77 3.45 6.21 5600 57.87 -2.38 3.86 6.24 5650 54.76 -2.62 3.53 6.15 5700 55.07 -2.59 3.71 6.30 5750 54.87 -2.61 3.46 6.06 5800 53.89 -2.69 3.39 6.07 5850 55.37 -2.57 3.87 6.44 FrequencyEfficiencyPeak Gain Directivity Mhz%dBdBdB 2400 50.01 -3.01 2.12 5.13 2410 50.60 -2.96 1.93 4.89 2420 51.43 -2.89 2.11 5.00 2430 50.79 -2.94 2.02 4.96 2440 54.48 -2.64 2.22 4.86 2450 55.02 -2.59 2.25 4.84 2460 58.11 -2.36 2.60 4.96 2470 59.17 -2.28 2.77 5.05 2480 57.91 -2.37 2.78 5.16 2490 58.29 -2.34 2.72 5.06 2500 59.28 -2.27 2.68 4.95 Shenzhen ZTX Communication Technology Co., Ltd Test Data（ANT2-2.4G Pattern） XOY面XOZ面 YOZ面 Z XY 2450MHz 3D方向图 Shenzhen ZTX Communication Technology Co., Ltd Test Data（ANT2-5G Pattern） XOY面XOZ面 YOZ面 Z XY 5500MHz 3D方向图 Shenzhen ZTX Communication Technology Co., Ltd Test Data（BT-VSWR） Shenzhen ZTX Communication Technology Co., Ltd Test Data（BT-Return Loss） Shenzhen ZTX Communication Technology Co., Ltd Test Data（BT-Efficiency/Gain） FrequncyPeak Gain Directivity MhzdBdB 2400 -1.96 6.82 2410 -1.93 6.67 2420 -1.86 6.72 2430 -1.82 6.67 2440 -1.77 6.59 2450 -1.83 6.76 2460 -1.90 6.83 2470 -1.87 7.09 2480 -1.93 7.12 2490 -1.98 7.10 2500 -1.95 7.17 Shenzhen ZTX Communication Technology Co., Ltd Test Data（BT-2.4G Pattern） XOY面XOZ面 YOZ面 Z XY 2450MHz 3D方向图 Shenzhen ZTX Communication Technology Co., Ltd Thank You

REPORT NO.: 4791865375.2-RF-4 Page 495 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AX80MIMO_Ant1_5290 11AX80MIMO_Ant2_5290 11AX80MIMO_Ant1_5530 REPORT NO.: 4791865375.2-RF-4 Page 496 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AX80MIMO_Ant2_5530 11AX80MIMO_Ant1_5610 11AX80MIMO_Ant2_5610 REPORT NO.: 4791865375.2-RF-4 Page 497 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AX80MIMO_Ant1_5690_UNII-2C 11AX80MIMO_Ant2_5690_UNII-2C 11AX80MIMO_Ant1_5690_UNII-3 REPORT NO.: 4791865375.2-RF-4 Page 498 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AX80MIMO_Ant2_5690_UNII-3 11AX80MIMO_Ant1_5775 11AX80MIMO_Ant2_5775 REPORT NO.: 4791865375.2-RF-4 Page 499 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11.6. APPENDIX F: FREQUENCY STABILITY 11.6.1. Test Result Frequency Error vs. Voltage 802.11a:5200MHz Temp. Volt. 0 Minute 2 Minute 5 Minute 10 Minute Freq.Error (MHz) Tolerance (ppm) Freq.Error (MHz) Tolerance (ppm) Freq.Error (MHz) Tolerance (ppm) Freq.Error (MHz) Tolerance (ppm) TN VL 5199.9960 -0.76 5199.9852 -2.85 5200.0074 1.43 5199.9886 0.43 TN VN 5199.9926 -1.42 5200.0181 3.48 5200.0044 0.84 5200.0238 2.49 TN VH 5199.9952 -0.92 5199.9868 -2.53 5200.0093 1.79 5199.9835 3.93 Frequency Error vs. Temperature 802.11a:5180MHz Temp. Volt. 0 Minute 2 Minute 5 Minute 10 Minute Freq.Error (MHz) Tolerance (ppm) Freq.Error (MHz) Tolerance (ppm) Freq.Error (MHz) Tolerance (ppm) Freq.Error (MHz) Tolerance (ppm) 70 VN 5200.0136 2.62 5199.9753 -4.75 5200.0085 1.64 5199.9782 -0.84 60 VN 5200.0073 1.40 5200.0024 0.47 5200.0045 0.87 5200.0249 -3.30 50 VN 5200.0197 3.79 5200.0108 2.08 5200.0084 1.61 5200.0154 -1.69 40 VN 5200.0247 4.75 5199.9781 -4.22 5199.9805 -3.74 5200.0044 -0.85 30 VN 5199.9787 -4.10 5200.0003 0.05 5200.0146 2.82 5199.9941 -2.95 20 VN 5199.9966 -0.66 5200.0015 0.30 5199.9969 -0.59 5199.9913 3.38 10 VN 5199.9770 -4.43 5199.9905 -1.82 5199.9925 -1.45 5199.9795 0.99 0 VN 5200.0081 1.55 5199.9857 -2.75 5200.0149 2.86 5200.0097 3.81 -10 VN 5199.9822 -3.42 5200.0056 1.07 5199.9834 -3.19 5199.9931 -0.31 Note: 1. All antennas, test modes and test channels have been tested, only the worst data record in the report. 2. For the detail Test Conditions, please refer to section 7.5 TEST ENVIRONMENT. REPORT NO.: 4791865375.2-RF-4 Page 500 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11.7. APPENDIX G: DUTY CYCLE 11.7.1. Test Result Test Mode On Time (msec) Period (msec) Duty Cycle x (Linear) Duty Cycle (%) Duty Cycle Correction Factor (dB) 1/T Minimum VBW (kHz) Final setting For VBW (kHz) 11A 1.39 1.43 0.9720 97.20 0.12 0.72 1 11N20MIMO 1.30 1.34 0.9701 97.01 0.13 0.77 1 11N40MIMO 0.65 0.69 0.9420 94.20 0.26 1.54 2 11AC80MIMO 0.18 0.22 0.8182 81.82 0.87 5.56 6 11AX20MIMO 0.55 0.59 0.9322 93.22 0.30 1.82 2 11AX40MIMO 0.20 0.25 0.8000 80.00 0.97 5.00 5 11AX80MIMO 0.19 0.24 0.7917 79.17 1.01 5.26 6 Note: Duty Cycle Correction Factor=10log (1/x). Where: x is Duty Cycle (Linear) Where: T is On Time If that calculated VBW is not available on the analyzer then the next higher value should be used. REPORT NO.: 4791865375.2-RF-4 Page 501 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11.7.2. Test Graphs 11A_Ant1_5180 11N20MIMO_Ant1_5180 11N40MIMO_Ant1_5190 REPORT NO.: 4791865375.2-RF-4 Page 502 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AC80MIMO_Ant1_5210 11AX20MIMO_Ant1_5180 11AX40MIMO_Ant1_5190 REPORT NO.: 4791865375.2-RF-4 Page 503 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AX80MIMO_Ant1_5210 REPORT NO.: 4791865375.2-RF-4 Page 504 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11.8. APPENDIX H: DFS DETECTION THRESHOLDS 11.8.1. Test Result TestMode Frequency[dbm] Radar Type Result Verdict 11AX80 5530 Type0 -62.57 PASS 11.8.2. Test Graphs 11AX80_5530_Type0 REPORT NO.: 4791865375.2-RF-4 Page 505 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Se…

Text truncated - open the document above for the full version.

REPORT NO.: 4791865375.2-RF-4 Page 446 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Ant1 5310 -1.56 ≤11.00 2.37 --- PASS Ant2 5310 -1.83 ≤11.00 2.04 --- PASS total 5310 1.32 ≤10.06 8.26 --- PASS Ant1 5510 -2.89 ≤11.00 1.04 --- PASS Ant2 5510 -1.92 ≤11.00 1.95 --- PASS total 5510 0.63 ≤10.06 7.57 --- PASS Ant1 5550 -2.64 ≤11.00 1.29 --- PASS Ant2 5550 -1.62 ≤11.00 2.25 --- PASS total 5550 0.91 ≤10.06 7.85 --- PASS Ant1 5670 -3.18 ≤11.00 0.75 --- PASS Ant2 5670 -2.21 ≤11.00 1.66 --- PASS total 5670 0.34 ≤10.06 7.28 --- PASS Ant1 5710_UNII-2C -2.83 ≤11.00 1.10 --- PASS Ant2 5710_UNII-2C -2.22 ≤11.00 1.65 --- PASS total 5710_UNII-2C 0.50 ≤10.06 7.44 --- PASS Ant1 5710_UNII-3 -8.22 ≤30.00 -4.29 --- PASS Ant2 5710_UNII-3 -7.42 ≤30.00 -3.55 --- PASS total 5710_UNII-3 -4.79 ≤29.06 2.15 --- PASS Ant1 5755 -5.03 ≤30.00 -1.10 --- PASS Ant2 5755 -4.53 ≤30.00 -0.66 --- PASS total 5755 -1.76 ≤29.06 5.18 --- PASS Ant1 5795 -4.43 ≤30.00 -0.50 --- PASS Ant2 5795 -4.34 ≤30.00 -0.47 --- PASS total 5795 -1.37 ≤29.06 5.57 --- PASS 11AX80MIMO Ant1 5210 -5.58 ≤11.00 -1.65 ≤10.00 PASS Ant2 5210 -5.18 ≤11.00 -1.31 ≤10.00 PASS total 5210 -2.37 ≤10.06 4.57 ≤10.00 PASS Ant1 5290 -5.02 ≤11.00 -1.09 --- PASS Ant2 5290 -4.84 ≤11.00 -0.97 --- PASS total 5290 -1.92 ≤10.06 5.02 --- PASS Ant1 5530 -5.93 ≤11.00 -2.00 --- PASS Ant2 5530 -5.19 ≤11.00 -1.32 --- PASS total 5530 -2.53 ≤10.06 4.41 --- PASS Ant1 5610 -6.20 ≤11.00 -2.27 --- PASS Ant2 5610 -5.25 ≤11.00 -1.38 --- PASS total 5610 -2.69 ≤10.06 4.25 --- PASS Ant1 5690_UNII-2C -5.80 ≤11.00 -1.87 --- PASS Ant2 5690_UNII-2C -5.21 ≤11.00 -1.34 --- PASS total 5690_UNII-2C -2.48 ≤10.06 4.46 --- PASS Ant1 5690_UNII-3 -12.39 ≤30.00 -8.46 --- PASS Ant2 5690_UNII-3 -11.85 ≤30.00 -7.98 --- PASS total 5690_UNII-3 -9.10 ≤29.06 -2.16 --- PASS Ant1 5775 -8.03 ≤30.00 -4.10 --- PASS Ant2 5775 -7.75 ≤30.00 -3.88 --- PASS total 5775 -4.88 ≤29.06 2.06 --- PASS Note：1.The Result and Limit Unit is dBm/500 kHz in the band 5.725−5.85 GHz. 2.The Duty Cycle Factor and RBW Factor is compensated in the graph. REPORT NO.: 4791865375.2-RF-4 Page 447 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11.5.2. Test Graphs 11A_Ant1_5180 11A_Ant2_5180 11A_Ant1_5200 REPORT NO.: 4791865375.2-RF-4 Page 448 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant2_5200 11A_Ant1_5240 11A_Ant2_5240 REPORT NO.: 4791865375.2-RF-4 Page 449 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant1_5260 11A_Ant2_5260 11A_Ant1_5280 REPORT NO.: 4791865375.2-RF-4 Page 450 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant2_5280 11A_Ant1_5320 11A_Ant2_5320 REPORT NO.: 4791865375.2-RF-4 Page 451 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant1_5500 11A_Ant2_5500 11A_Ant1_5580 REPORT NO.: 4791865375.2-RF-4 Page 452 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant2_5580 11A_Ant1_5700 11A_Ant2_5700 REPORT NO.: 4791865375.2-RF-4 Page 453 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant1_5720_UNII-2C 11A_Ant2_5720_UNII-2C 11A_Ant1_5720_UNII-3 REPORT NO.: 4791865375.2-RF-4 Page 454 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant2_5720_UNII-3 11A_Ant1_5745 11A_Ant2_5745 REPORT NO.: 4791865375.2-RF-4 Page 455 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant1_5785 11A_Ant2_5785 11A_Ant1_5825 REPORT NO.: 4791865375.2-RF-4 Page 456 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11A_Ant2_5825 11N20MIMO_Ant1_5180 11N20MIMO_Ant2_5180 REPORT NO.: 4791865375.2-RF-4 Page 457 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11N20MIMO_Ant1_5200 11N20MIMO_Ant2_5200 11N20MIMO_Ant1_5240 REPORT NO.: 4791865375.2-R…

Text truncated - open the document above for the full version.

REPORT NO.: 4791865375.2-RF-4 Page 404 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AX40MIMO_Ant1_5550 11AX40MIMO_Ant2_5550 11AX40MIMO_Ant1_5670 REPORT NO.: 4791865375.2-RF-4 Page 405 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AX40MIMO_Ant2_5670 11AX40MIMO_Ant1_5710 11AX40MIMO_Ant2_5710 REPORT NO.: 4791865375.2-RF-4 Page 406 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AX40MIMO_Ant1_5755 11AX40MIMO_Ant2_5755 11AX40MIMO_Ant1_5795 REPORT NO.: 4791865375.2-RF-4 Page 407 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AX40MIMO_Ant2_5795 11AX80MIMO_Ant1_5210 11AX80MIMO_Ant2_5210 REPORT NO.: 4791865375.2-RF-4 Page 408 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 11AX80MIMO_Ant1_5290 11AX80MIMO_Ant2_5290 11AX80MIMO_Ant1_5530 REPORT NO.: 4791865375.2-RF-4 Page 409 of 506 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Son…

Text truncated - open the document above for the full version.
