2AC23WF7EWiFi Module

PRODUCTS USERMANUAL WIFI Module IEEE 802.11b/g/n 1T/1R Model Number: W F 7 E R L 1 5 0 0 WF7ERL1500 is a high-gain and low power consumption wifi mudule . You can use it on IEEE802.11b/g/n wireless Local Area Networks and USB 2.0 Wi-Fi Dongle.It fully complies with IEEE 802.11n and IEEE 802.11b/g feature rich wireless connectivity at high standards,delivers reliable,cost-effective,throughput from an extended distance. ◆ Complies with IEEE 802.11g; 802.11b; 802.11n standard for 2.4GHz Wireless LAN. ◆ Supp orts Ad-Hoc/Infrastructure modes (This device supports Ad-Hoc mode, however Ad-Hoc is only possible in the channels 2412-2462MHz and 2422-2452MHz as this is fixed in the firmware of the module, it can not operate outside the certified channels as indicated in this FCC certification filing.) ◆ Supports PC Card hot-SWAP and true Plug & Play. ◆ Works with all existing network infrastructure. ◆ Supports Wi-Fi Protected Setup (WPS) configuration function ◆ C apable of up to 128-Bit WEP Encryption. ◆ Freedom to roam while staying connected. ◆ 22-Mbps Packet Binary Convolution Coding (PBCC) (according to the IEEE Std 802.11b high-rate specification ). ◆ UP to 54 Mbps High-Speed Transfer Rate in 802.11g mode of operation. ◆ Integrated Antenna. ◆ Supports Windows 2000, XP32/64,Vista32/64,Linux ◆ Low power consumption. ◆ Easy to install and configure. Product Features Product Description PRODUCTS USERMANUAL FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC Important Notes: (1) FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body and must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The devices must be installed and used in strict accordance with the manufacturer’s instructions as described in the user documentation that comes with the product. Modular could be only used in mobile or fix device, and could not be used in any portable device. Caution! PRODUCTS USERMANUAL The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment. (2) Co-location Warning: This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. (3) Limited Channels fixed for use in the US: IEEE 802.11b or 802.11g or 802.11n(HT20) operation of this product in the U.S. is firmware-limited to Channel 1 through 11. IEEE 802.11n(HT40) operation of this product in the U.S. is firmware-limited to Channel 3 through 9. (4) OEM integration instructions: This device is intended only for OEM integrators under the following conditions: The antenna must be installed such that 20 cm is maintained between the antenna and users, and the transmitter module may not be co-located with any other transmitter or antenna. The module shall be only used with the intergral antenna(s) that has been originally tested and certified with this module. As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). (5) Vali dity of using the module certification: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization for this module in combination with the host equipment is no longer considered valid and the FCC ID of the module cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. (6) End product labeling: This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labele…

Text truncated - open the document above for the full version.

RE FCC ID: 2AC23WF7E To the certification reviewer: We are hereby applying for [full] modular approval of the above-referenced FCC ID, based on compliance with [all] of the criteria as detailed below. Sincerely, Part 15 Unlicensed Single Modular Transmitter Approval Justification per 15.212 Requirement per 15.212 reference (i) The radio elements of the modular transmitter must have their own RF shielding. Yes. Shielding is provided by a metal cover over the circuitry and by a ground plane on the bottom. The holes in the shield is significantly smaller than the wavelength of the radiation that is being blocked. (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided. Yes. The modular data inputs are buffered through log or microcontroller connections. All modulation and data inputs are buffered by circuitry on the transmitter chip. (iii) The modular transmitter must have its own power supply regulation. Yes. Power supply regulation is provided by circuitry on the transmitter chip. (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). Yes The modular with permanently antenna. The antenna is integral antenna. (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 parameters. Yes. The modular during testing with a USB adapter power supply and the distance is greater than 10cm between modular and supporting equipment. (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Yes. (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Yes. Please refer to the modular installation manual. (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Yes.

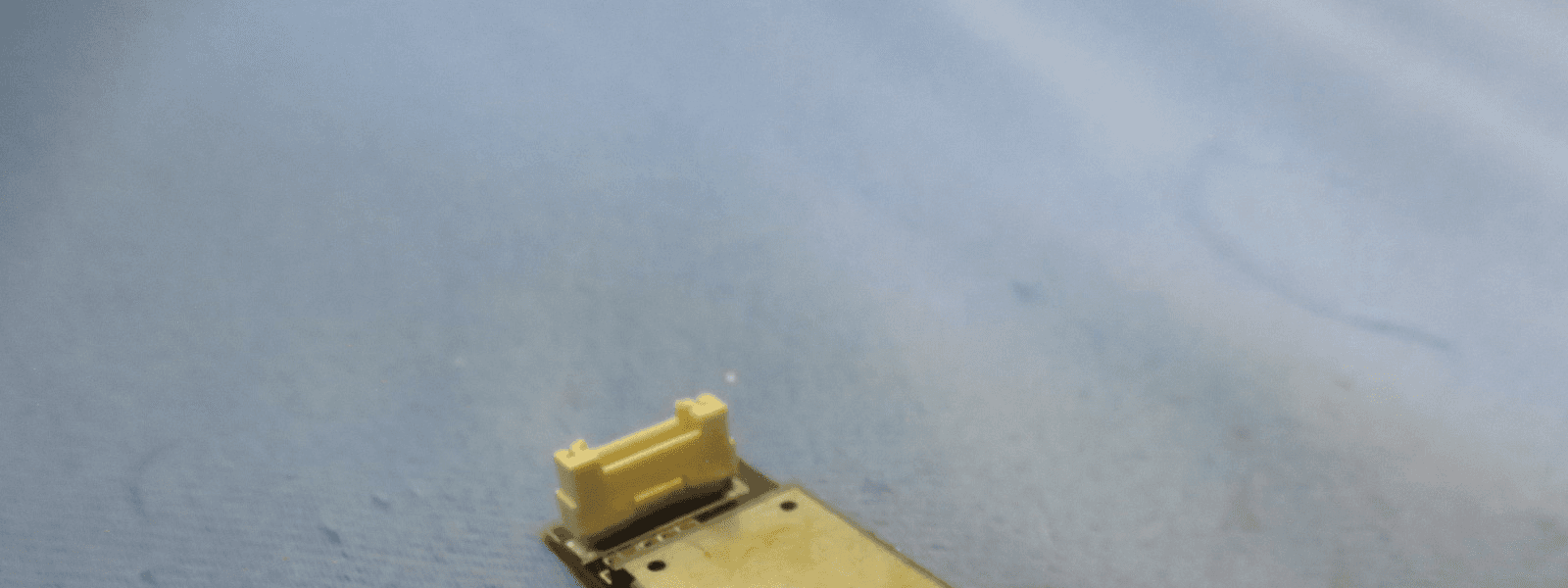

External Photos EUT with USB adaptor

Label Artwork )&&/DEHO  0$& ModelWF7ERL1500 )&&,'$&:)( Size: 12.5mm x 12.5mm ,&:$:)(

Internal Photos

FCC ID: 2AC23WF7E INTERTEK TESTING SERVICES RF Exposure report The Equipment Under Test (EUT) is a WiFi Module with WiFi function operating at 2412-2462MHz for 802.11b/g/n-HT20, 11 channels with 5MHz channel spacing and 2422-2452MHz for 802.11n-HT40, 9 channels with 5MHz channel spacing. The EUT was powered by DC 3.3V, 300mA. For more detailed features description, please refer to the user’s manual. Modulation Type: BPSK, QPSK, 16QAM, 64QAM, CCK, DQPSK, DBPSK. An tenna Type: Integral antenna Antenna Gain: -1.0dBi The nominal conducted output power specified: 10dBm (Tolerance: +/-4dB) The maximum conducted output power for the EUT is 12.8dBm in the frequency 2.412GHz 802.11g mode which is within the production variation. The minimum conducted output power for the EUT is 6.6dBm in the frequency 2.462GHz 802.11b mode which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, According to the KDB 447498 and OET 65, the simple calculation as below: For Maximum Permissible Exposure (MPE) evaluation of the product, the maximum power density at 20 cm from this transmitter shall be less than the General Population / Uncontrolled MPE limit in FCC Part 1.1310. Th e maximum E.I.R.P= 10+4-1=13dBm=19.95mW The source-based time averaged maximum radiated power = 19.95 x Duty Cycle = 19.95mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated as follow: = 19.95 / 4πR^2 = 0.004 mW/cm^2 FCC ID: 2AC23WF7E The MPE limit is 1.0 mWcm-2 for general population and uncontrolled exposure in the WiFi frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. Transmitter Duty Cycle Calculation The EUT transmit continuously during the test, the duty cycle is 1. The following RF exposure statement or similar sentence is proposed to be included in the user manual: “FCC RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons.”

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF no.: FCC 15C_Tx_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com Hui Zhou Gaoshengda Technology Co., LTD. Application For Certification FCC ID: 2AC23WF7E WiFi Module Model: WF7ERL1500 2.4GHz WiFi Transceiver Module Report No.: 140821028SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-13] Prepared and Checked by: Approved by: Sign on file Jenner Liu Assistant Engineer Andy Yan Senior Project Engineer Date: November 18, 2014 INTERTEK TESTING SERVICE TRF no.: FCC 15C_TX_b FCC ID: 2AC23WF7E Report No.: 140821028SZN-001 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: Summary of Tests EXHIBIT 2: General Description EXHIBIT 3: System Test Configuration EXHIBIT 4: Measurement Results EXHIBIT 5: Equipment Photographs EXHIBIT 6: Product Labeling EXHIBIT 7: Technical Specifications EXHIBIT 8: Instruction Manual EXHIBIT 9: Confidentiality Request EXHIBIT 10: Miscellaneous Information EXHIBIT 11: Test Equipment List INTERTEK TESTING SERVICES TRF no.: FCC 15C_TX_b FCC ID: 2AC23WF7E Report No.: 140821028SZN-001 ii MEASUREMENT/TECHNICAL REPORT WiFi Module Model: WF7ERL1500 FCC ID: 2AC23WF7E This report concerns (check one) Original Grant X Class II Change Equipment Type: DTS - Part 15 Digital Transmission Systems (WiFi transmitter portion) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-01-13] Edition] provision. Report prepared by: Jenner Liu Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8614 0639 Fax: (86 755) 8614 6751 INTERTEK TESTING SERVICES TRF no.: FCC 15C_TX_b FCC ID: 2AC23WF7E Report No.: 140821028SZN-001 iii Table of Contents 1.0 Summary of Test results ............................................................................................................................. 2 2.0 General Description ...................................................................................................................................... 4 2.1 Product Description ..................................................................................................................................... 4 2.2 Related Submittal(s) Grants ....................................................................................................................... 5 2.3 Test Methodology ........................................................................................................................................ 5 2.4 Test Facility .................................................................................................................................................. 5 3.0 System Test Configuration ......................................................................................................................... 7 3.1 Justification .................................................................................................................................................. 7 3.2 EUT Exercising Software ........................................................................................................................... 7 3.3 Special Accessories .................................................................................................................................... 7 3.4 Measurement Uncertainty .......................................................................................................................... 8 3.5 Equipment Modification .............................................................................................................................. 8 3.6 Support Equipment List and Description ................................................................................................. 8 4.0 Measurement Results ................................................................................................................................ 10 4.1 Maximum Conducted Output Power at Antenna Terminals ...................................................................... 10 4.2 Minimum 6 dB RF Bandwidth ......................................................................................................…

Text truncated - open the document above for the full version.

Radiated Emission

Conducted Emission
