2AC2A-Q-PICBluetooth Selfie Shooter

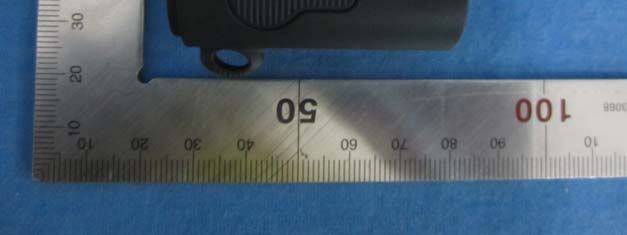

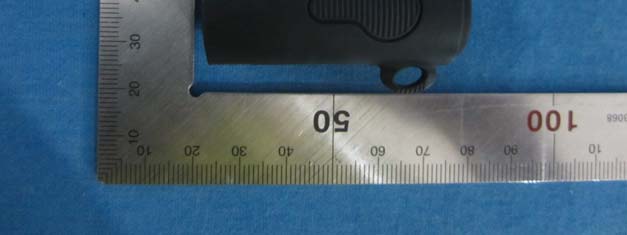

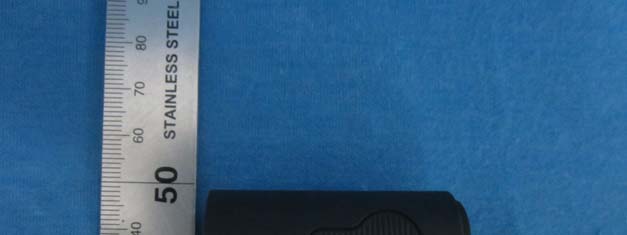

Company Confidential Reso Ltd T/A QDOS Issue N° 1 4 th July 2014 USER MANUAL QDOS Q‐PIC Bluetooth Selfie Shooter Company Confidential Reso Ltd T/A QDOS Issue N° 1 4 th July 2014 Welcome Congratulations on your purchase. Your QDOS Q‐PIC Selfie Shooter for Bluetooth compatible smartphones and tablets is APP‐free and designed to be your perfect Selfie companion. Once connected via Bluetooth, a simple press of the Q‐PIC button releases the shutter on your smartphone giving you epic Selfies or group portraits. We hope you will take few moments to read this manual and follow all user instructions to get to know your product. System Specifications of the QDOS Q-PIC Bluetooth Selfie Shooter  Product Specifications o Dimensions: 22mm x 49.5mm o Weight: 29 gms o Frequency range: ISM band 2.4Ghz o Approvals: CE, ROHS, FCC o Auto‐off: Smart energy saving mode o Functionality: No APP required o Carry bag: 2.8 gms  Bluetooth Specifications o Version 3.0 o Operation range: 10m  Battery Specifications o Specification: CR1632 coin cell battery Up to 2‐years battery life depending on operation Pre‐installed and user replaceable o Current: Peak working current around 5 mAh Standby current (connected) around 6 uAh Current after auto off around 4uAh Current (when off) around 1uAh  Compatibility o iOS7 or later: iPhone 4s, iPhone 5 & 5s, iPad 4 th Gen, iPad mini, iPod touch 5 th Gen and later models o Android 4.4 or later: Android 4.4 devices where the enter buttons are set up to control the onboard camera and take photos or videos Company Confidential Reso Ltd T/A QDOS Issue N° 1 4 th July 2014 Features & Functions ① Shutter button: press to activate the QDOS Q‐PIC and take photos or videos ② LED light: indicates operation ③ Battery cover: unscrew to reveal coin cell battery for replacement ④ Silicone carry case Features  Wireless remote camera shutter for your Smartphone  Snap pictures or videos from a distance of up to 10m in open space  Perfect for blur‐free selfies or group shots  No additional APP required, just pair to your Smartphone wirelessly via Bluetooth in a few seconds  Lightweight small and compact design, easy to carry and easy to use  Easy operation with one‐click  Auto‐off with smart energy‐saving mode  Battery can take up to 40,000 selfie pictures  Original camera performance intact o Front, self‐portrait, and back camera control o Take photos or videos o Multi, continuous burst shot Company Confidential Reso Ltd T/A QDOS Issue N° 1 4 th July 2014 Operation When you first remove the QDOS Q‐PIC from it’s packaging, you will need to remove the small protective film from the battery cover ③. NB – This small film is used in transit to protect the shelf life of your battery and is no longer required once you are ready to use your product for the first time. Connecting your QDOS Q‐PIC selfie shooter via Bluetooth  Ensure that the film has been removed from the battery cover as per above  Press the shutter button ① to ‘wake‐up’ or ‘activate’ the QDOS Q‐PIC and put it into pairing mode.  Turn on Bluetooth on your device and press the QDOS Q‐PIC shutter button until you see the green light ② flashing.  Search your device for the Q‐PIC pairing name and click connect  The green LED light will turn off when the Q‐PIC has successfully paired NB – There is no on/off switch on the QDOS Q‐PIC so it will remain associated with the last Bluetooth device connected. LED light  Green light flashes to indicate pairing mode  Green light flashes for 30 seconds  Green light turns off when paired successfully NB – There will be no light flashing when using the QDOS Q‐PIC to take your selfie! Using your QDOS Q‐PIC selfie shooter  Now that you are connected and ready for fun, you can choose to use the QDOS Q‐PIC with its handy carry case or on its own with the matching silicone band  First, simply open the camera function on your smartphone or tablet  Select the front facing option on your device for a selfie or use the back camera for regular shots and videos  A simple click on the QDOS Q‐PIC button takes control of the camera for epic selfies, group shots, photos or videos  For continuous shots, simply hold the QDOS Q‐PIC button down  No line of sight is needed and you can even take photos by pressing the shutter button in your pocket NB – QDOS Q‐PIC has an auto‐off function in smart energy saving mode after a short while of inactivity (under one minute). A short press of the QDOS Q‐PIC button will wake up the selfie shooter and you are ready to go again! Company Confidential Reso Ltd T/A QDOS Issue N° 1 4 th July 2014 How to change the battery  The battery is designed to last up to two years but that will depend on your usage patterns  When the battery is low, you can replace it yourself  Press firmly the battery cover ③ and turn it 60° anti‐clockwise to open  Remove the old battery and replace with a new CR1632 cell battery according to the battery manufacturer instructions  Fit the battery cover back into place and turn 60° clockwise to close  Refer to the diagram above ③ to ensure the cover is correctly positioned to secure the battery in place Troubleshooting  Bluetooth is a bi‐directional transmitting protocol; transmitting distance and performance is related to and dependent on the device.  If you experience issues connecting the Bluetooth device, please delete the other Bluetooth devices from the list, re‐activate the QDOS Q‐PIC selfie shooter, re‐search it and re‐pair it.  Ensure that other devices in the vicinity with Bluetooth switched on have also deleted the QDOS Q‐PIC from their lists so that your device can pair with it.  Poor signal environments will affect performance but moving to a better signal area will restore performance.  Low battery capacity may also affect performance.  Check that your iOS or Android device is set up with the volume controls as camera shutters. If your device can operate its own camera using the volume up/down buttons, this is the best…

Text truncated - open the document above for the full version.

Reso Ltd T/A QDOS Suite 1, The Old Stables, Frosbury Farm, Gravetts Lane, Worplesdon, Guildford, Surrey GU3 3JW, UK DATE :2014-08-29 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Hank.Yan of Global United Technology Services Co., Ltd. 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District Shenzhen Guangdong to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Reso Ltd T/A QDOS and Suite 1, The Old Stables, Frosbury Farm, Gravetts Lane, Worplesdon, Guildford, Surrey GU3 3JW, UK Dated this / Day of 08/29/2014 / Agency agreement expiration date: 08/29/2015 By: Susan Lazareff Signature Printed Title: Managing Director On behalf of : Reso Ltd T/A QDOS Telephone: +44 1483 489112

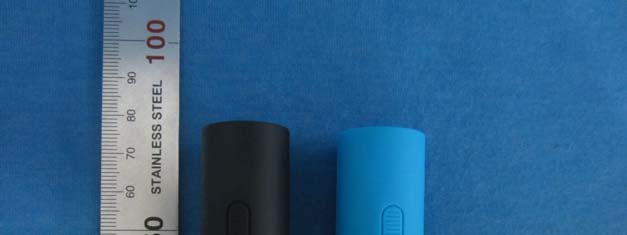

Differences Declaration To whom concern, We co mpany Reso Ltd T/A QDOS hereby declares: The product model(s) QD-P93-B is(or are) identical in the same PCB layout, interior structure and electrical circu its with the model QD-P93-O, QD-P93-P, QD-P93-G, QD-P93-K which tested in Global United Technology Services Co., Ltd., the o nly differences ar e th e model name and appearance color for commercial purpose. Authorized signature: Cynthia Company stamp: Position: Sales Director Date: 2014-9-3

Reso Ltd T/A QDOS Suite 1, The Old Stables, Frosbury Farm, Gravetts Lane, Worplesdon, Guildford, Surrey GU3 3JW, UK 2014-08-29 Equipment Authorization Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AC2A-Q-PIC Product Name: Bluetooth Selfie Shooter Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 08/29/2014 By: Susan Lazareff Signature Printed Title: Managing Director On behalf of : Reso Ltd T/A QDOS Telephone: +44 1483 489112

Size: 8mm*26mm FCC ID: 2AC2A-Q-PIC

Label location

FCC ID: 2AC2A-Q-PIC According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where --f(GHz) is the RF channel transmit frequency in GHz --Power and distance are rounded to the nearest mW and mm before calculation --The result is rounded to one decimal place for comparison EIRP = pt x gt = (EXd) 2 /30 Where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unit less), E = electric field strength in V/m, ---10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m) ---3m So pt = (Exd) 2 / 30 x gt Field strength = 97.78 dBuV/m @3m Ant gain =0dBi, so Ant numeric gain= 1.00 So pt={ [10 (97.78/20) /10 6 x 3] 2 / 30 x 1.00 } x 1000 mW = 1.799mW So (1.799mW /5mm) x √2.441 = 0.562<3 Then SAR evaluation is not required

Global United Technology Services Co., Ltd. Report No.: GTSE14080140101 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS or testing done by GTS in connection with, distribution or use of the product described in this report must be approved by GTS in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. FCC REPORT Applicant: Reso Ltd T/A QDOS Address of Applicant: Suite 1, The Old Stables, Frosbury Farm, Gravetts Lane, Worplesdon, Guildford, Surrey GU3 3JW, UK Equipment Under Test (EUT) Product Name: Bluetooth Selfie Shooter Model No.: QD-P93-B, QD-P93-O, QD-P93-P, QD-P93-G, QD-P93-K Trade Mark: QDOS Q-PIC FCC ID: 2AC2A-Q-PIC Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249:2013 Date of sample receipt: August 12, 2014 Date of Test: August 12-20, 2014 Date of report issued: August 22, 2014 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSE14080140101 Global United Technology Services Co., Ltd. Project No.: GTSE14080140101 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 26 2 Version Version No. Date Description 00August 22, 2014 Original Prepared By: Date: August 22, 2014 Project Engineer Check By: Date: August 22, 2014 Reviewer Report No.: GTSE14080140101 Global United Technology Services Co., Ltd. Project No.: GTSE14080140101 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 26 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 VERSION .................................................................................................................................................. 2 3CONTENTS .............................................................................................................................................. 3 4TEST SUMMARY ..................................................................................................................................... 4 5GENERAL INFORMATION ...................................................................................................................... 5 5.1CLIENT INFORMATION ......................................................................................................................... 5 5.2GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3TEST MODE ........................................................................................................................................ 7 5.4DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.5TEST FACILITY .................................................................................................................................... 7 5.6TEST LOCATION ................................................................................................................................. 7 5.7OTHER INFORMATION REQUESTED BY THE CUSTOMER ......................................................................... 7 6TEST INSTRUMENTS LIST ..................................................................................................................... 8 7TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 9 7.1ANTENNA REQUIREMENT: .................................................................................................................... 9 7.2RADIATED EMISSION METHOD ........................................................................................................... 10 7.2.1Field Strength of The Fundamental Signal ................................................................................ 12 7.2.2Spurious emissions .................................................................................................................... 13 7.2.3Bandedge emissions.................................................................................................................. 17 7.320DB OCCUPY BANDWIDTH .............................................................................................................. 18 8TEST SETUP PHOTO ............................................................................................................................ 20 EUT CONSTRUCTIONAL DETAILS .............................................................................................................. 21 Report No.: GTSE14080140101 Global United Technology Services Co., Ltd. Project No.: GTSE14080140101 2nd Floor, Block No.2, Laodong Industrial Z…

Text truncated - open the document above for the full version.

Radiated Emission
