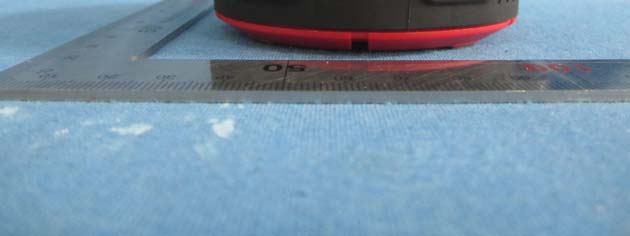

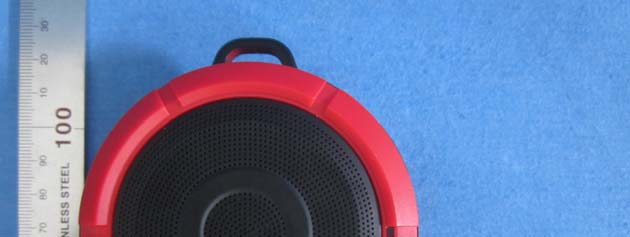

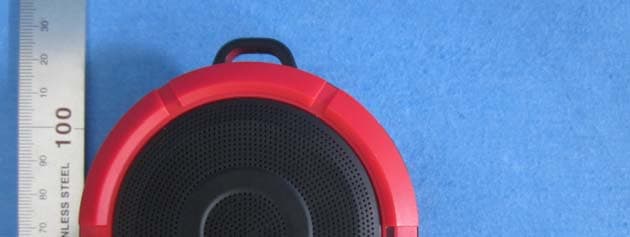

Company Confidential Reso Ltd T/A QDOS Issue N° 1 16 th June 2014 USER MANUAL QDOS Q‐PUK Bluetooth Waterproof Speaker Company Confidential Reso Ltd T/A QDOS Issue N° 1 16 th June 2014 Welcome Congratulations on your purchase. Your QDOS Q‐PUK Bluetooth Waterproof Speaker for all Bluetooth compatible iProducts, smartphones, tablets, PCs and other devices capable of streaming Bluetooth audio is designed to deliver a superior audio experience as an ultra light‐weight mini portable speaker system. This compact, rugged speaker built for outdoor use easily connects wirelessly to your music device, in seconds...no cables, no hassles! Robust and durable with its unique protective, waterproof silicone skin, it will provide hours of crystal clear audio on the go. We hope you will take few moments to read this manual and follow all user instructions to get to know your product. System Specifications of the QDOS Q-PUK Bluetooth Waterproof Speaker  Product Specifications o Dimensions: 85mm x 87mm x 34mm o Rated Power: DC power o Weight : 130gms o Interface : Micro-USB o Communication : NFC, Bluetooth 4.0 o Approvals: CE, FCC, RoHS (attached in Appendix B) o Waterproof : IPX67 rated, up to 1m depth o LED : LED light indicates power on  Speaker Driver Specifications o Dimensions: 50mm o Channel Mono channel o Speaker rated power: 4Ω3W o RMS: 1.5W*1 o THD: ≤10% o Frequency 200Hz-20KHz o S/N Ratio: ≥75dB  Bluetooth Specifications o Version 4.0 o Operation frequency: 2.402 -2.48GHz o Receiving Sensitivity: -91dBm @ 0.1% BER o Operation range: up to 10m  Battery Specifications o Specification: built-in Polymer battery o Capacity: 500mAh, 3.7v o Charging standard: DC 5V, 500mA  Miscellaneous Specifications o Music playback time: 6-8 hours at 70% volume o Charging time: 1 ½ to 2 hours o Auto off: device will shut down after 5 minutes of inactivity Company Confidential Reso Ltd T/A QDOS Issue N° 1 16 th June 2014 Features & Functions ① Carabiner • Convenient carry solution for fixing to backpack, belt etc.. ② + Volume Up / Next song • short press for next song • long press for volume up ③ NFC: approach any NFC‐enabled mobile phone to this position and the speaker and mobile will pair automatically ④ ‐ Volume Down / Previous song • short press for previous song • long press for volume down ⑤ LED indicator – built‐in battery status • Blue LED flashing ‐ pairing. After pairing successfully, it will remain blue • Blue LED on ‐ playing • Red LED on ‐ charging, when charging is finished, it will turn off ⑥ Power switch On/Off • Press for 3 seconds to power on/off • The unit will turn off automatically after 5 minutes if no audio devices are paired ⑦ Pause/Play button • Press for pause, press again for play music under Bluetooth playing mode. ⑧ Micro USB charging port underneath a waterproof and dustproof cover ⑨ Silicone band • 85mm length. Soft, lightweight and waterproof, ideal for hanging the QDOS Q‐PUK on your wrist or even around your neck. Company Confidential Reso Ltd T/A QDOS Issue N° 1 16 th June 2014 Operation First, turn on the QDOS Q‐PUK Bluetooth Waterproof speaker using the On/Off button on the side of the device ⑥. Press the button for 3 seconds to power on or power off. When powered on, the blue LED light will flash and you will hear a sound. Your QDOS Q‐ PUK Bluetooth speaker is ready for use. When you are ready to turn off the Q‐PUK speaker, simply hold the power button down for 3 seconds. You will hear a sound and the blue LED light will turn off. NB ‐ to preserve battery power and ensure uninterrupted fun when out and about, the QDOS Q‐PUK is designed to turn off after 5 minutes when not in use, or when no device is paired! Connecting your QDOS Q‐PUK waterproof speaker for playback via Bluetooth  Activate the Bluetooth function of your device (smartphone, PC or tablet)  Make sure the QDOS Q‐PUK is turned on  Search for QDOS  Find QDOS Pairing  Select QDOS to connect and play  When finished playing do remember to turn off the QDOS Q‐PUK using the power button Connecting your QDOS Q‐PUK waterproof speaker for playback via NFC*  Search your mobile device and, if applicable, turn on/select the option ‘allow data exchange when close to other devices’  Make sure the QDOS Q‐PUK is turned on  Bring the mobile phone close to the NFC zone on the Q‐PUK for 3 seconds  You will hear a prompt voice which means the NFC connection has been successful  You may disconnect with NFC by simply bringing the phone close to the NFC zone when you are finished using the device but do remember to turn off the QDOS Q‐PUK using the power button *when choosing this method, please ensure your mobile phone supports the NFC function NB – If you are unable to connect with your device by either method, you may need to delete other Bluetooth devices from your device list. See TROUBLESHOOTING for more information. Company Confidential Reso Ltd T/A QDOS Issue N° 1 16 th June 2014 Using your QDOS Q‐PUK device  Now that you are connected and ready for play, you can control the volume either directly on the QDOS Q‐PUK using the volume buttons ② ④, or via the volume control on your paired device  When making or receiving a call, the audio will pause during the call and restart when the call has ended NB ‐ sound performance can be affected by transmitting distance, poor signal and other factors. See TROUBLESHOOTING for more information. Waterproof details for your QDOS Q‐PUK Bluetooth speaker  Your QDOS Q‐PUK is tested and certified submersible up to 1 metre  Please note that playback may be momentarily affected due to water pressure and interference  It is recommended to shake off any excess surface water and dry your QDOS Q‐PUK before re‐use to get back to optimal performance NB ‐ the QDOS Q ‐PUK is a waterproof speaker and is protected against accidental water ingress for a rugged outdoor or indoor use. It is not designed for use as an underwater speaker. Charging your QDOS Q‐PUK device  When the battery is low, t…

Text truncated - open the document above for the full version.

Reso Ltd T/A QDOS Suite 1, The Old Stables, Frosbury Farm, Gravetts Lane, Worplesdon, Guildford, Surrey GU3 3JW, UK DATE :2014-09-01 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Hank.Yan of Global United Technology Services Co., Ltd. 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District Shenzhen Guangdong to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Reso Ltd T/A QDOS and Suite 1, The Old Stables, Frosbury Farm, Gravetts Lane, Worplesdon, Guildford, Surrey GU3 3JW, UK Dated this / Day of 09/01/2014 / Agency agreement expiration date: 09/01/2015 By: Susan Lazareff Signature Printed Title: Managing Director On behalf of : Reso Ltd T/A QDOS Telephone: +44 1483 489112

Differences Declaration To whom concern, We co mpany Reso Ltd T/A QDOS hereby declares: The product model(s) QD-H2015-K i s(or ar e) identical in th e same PC B layout, interior structure and electrical circuits with the model QD-H2015-AG, QD-H2015-G, QD-H2015-R, QD-H2015-B which tested in Global United Technology Services Co., Ltd., th e only differences are the model name and appearance color for commercial purpose. Authorized signature: Cynthia Company stamp: Position: Sales Director Date: 2014-9-3

Reso Ltd T/A QDOS Suite 1, The Old Stables, Frosbury Farm, Gravetts Lane, Worplesdon, Guildford, Surrey GU3 3JW, UK 2014-09-01 Equipment Authorization Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AC2A-Q-PUK Product Name: Bluetooth Waterproof Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 09/01/2014 By: Susan Lazareff Signature Printed Title: Managing Director On behalf of : Reso Ltd T/A QDOS Telephone: +44 1483 489112 Schematics and Bom

Size: 7mm*30mm FCC ID: 2AC2A-Q-PUK

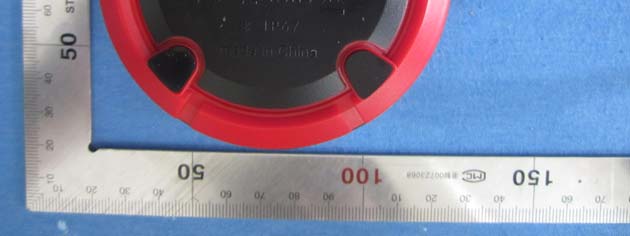

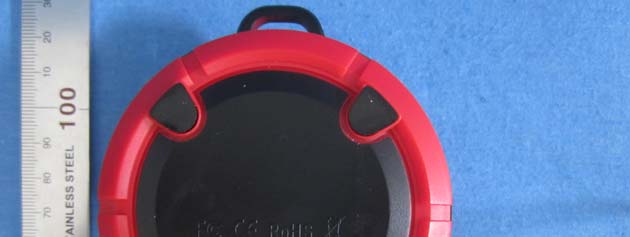

Label location

FCC ID: 2AC2A-Q-PUK According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where --f(GHz) is the RF channel transmit frequency in GHz --Power and distance are rounded to the nearest mW and mm before calculation --The result is rounded to one decimal place for comparison EIRP = pt x gt = (EXd) 2 /30 Where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unit less), E = electric field strength in V/m, ---10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m) ---3m So pt = (Exd) 2 / 30 x gt Field strength = 97.60 dBuV/m @3m Ant gain =1dBi, so Ant numeric gain= 1.26 So pt={ [10 (97.60/20) /10 6 x 3] 2 / 30 x 1.26 } x 1000 mW = 1.371mW So (1.371mW /5mm) x √2.48 = 0.432<3 Then SAR evaluation is not required

Global United Technology Services Co., Ltd. Report No.: GTSE14080139902 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS or testing done by GTS in connection with, distribution or use of the product described in this report must be approved by GTS in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. FCC REPORT Applicant: Reso Ltd T/A QDOS Address of Applicant: Suite 1, The Old Stables, Frosbury Farm, Gravetts Lane, Worplesdon, Guildford, Surrey GU3 3JW, UK Equipment Under Test (EUT) Product Name: Bluetooth Waterproof Speaker Model No.: QD-H2015-K, QD-H2015-AG, QD-H2015-G, QD-H2015-R, QD-H2015-B Trade Mark: QDOS Q-PUK FCC ID: 2AC2A-Q-PUK Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249:2013 Date of sample receipt: August 07, 2014 Date of Test: August 07-19, 2014 Date of report issued: August 19, 2014 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSE14080139902 Global United Technology Services Co., Ltd. Project No.: GTSE140801399RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 24 2 Version Version No. Date Description 00 August 19, 2014 Original Prepared By: Date: August 19, 2014 Project Engineer Check By: Date: August 19, 2014 Reviewer Report No.: GTSE14080139902 Global United Technology Services Co., Ltd. Project No.: GTSE140801399RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 24 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 VERSION .................................................................................................................................................. 2 3CONTENTS .............................................................................................................................................. 3 4TEST SUMMARY ..................................................................................................................................... 4 5GENERAL INFORMATION ...................................................................................................................... 5 5.1CLIENT INFORMATION ......................................................................................................................... 5 5.2GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3TEST MODE ........................................................................................................................................ 7 5.4DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.5TEST FACILITY .................................................................................................................................... 7 5.6TEST LOCATION ................................................................................................................................. 7 5.7OTHER INFORMATION REQUESTED BY THE CUSTOMER ......................................................................... 7 6TEST INSTRUMENTS LIST ..................................................................................................................... 8 7TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 9 7.1ANTENNA REQUIREMENT: .................................................................................................................... 9 7.2CONDUCTED EMISSIONS ................................................................................................................... 10 7.3RADIATED EMISSION METHOD ........................................................................................................... 13 7.3.1Field Strength of The Fundamental Signal ................................................................................ 15 7.3.2Spurious emissions .................................................................................................................... 16 7.3.3Bandedge emissions.................................................................................................................. 20 7.420DB OCCUPY BANDWIDTH .............................................................................................................. 21 8TEST SETUP PHOTO ............................................................................................................................ 23 9EUT CONSTRUCTIONAL DETAILS ..................................................................................................…
