2AC2CDR-009Remote control transmitter

Letter of Agency I appoint Intertek Testing Services NA Inc. to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under the FCC rules until further notice. I further certify that no party (as defined in 1.2002 of CFR 47, 1995) to this application, including myself, is subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862A. Equipment: Remote control transmitter Type/Model: GS606-TX FCC ID: 2AC2CDR009 Dated this 03 day Sep of 2014 _______________________ Signature _Yangjinxian____________ Name _General Manager_________ Title _ Ningbo Diya Electric Appliance Co.,Ltd __Company __86-574-62162137___________ Telephone

1(1) Attention: Application Examiner Re: Request for confidentiality Applicant: Ningbo Diya Electric Appliance Co.,Ltd FCC ID: 2AC2CDR009 To whom it may concern, Request is hereby submitted by Ningbo Diya Electric Appliance Co.,Ltd.to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate] Schematics Detailed Block diagrams Detailed Operational/Functional Description Tune up procedure Parts list Internal photos NOTE : Requires additional justification such as: (1) Circuit board covered with epoxy. Show photo with and without epoxy. (2) Device is not sold to end user. (3) Non-consumrer device inaccessible to general public, such as a device mounted on top of a large tower or in a fenced or locked location that is only serviceable by the licensee or designated technicians. NOTE : Scanning receiving internal photos are always held permanently confidential. User Manual NOTE : Only with added justification, such as professional installation and the manual is very technical and is not provided to the consumer since the consumer cannot service the device. Rationale for request for confidentiality: Ningbo Diya Electric Appliance Co.,Ltd. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Sincerely, Signature Title General Manager Ningbo Diya Electric Appliance Co.,Ltd

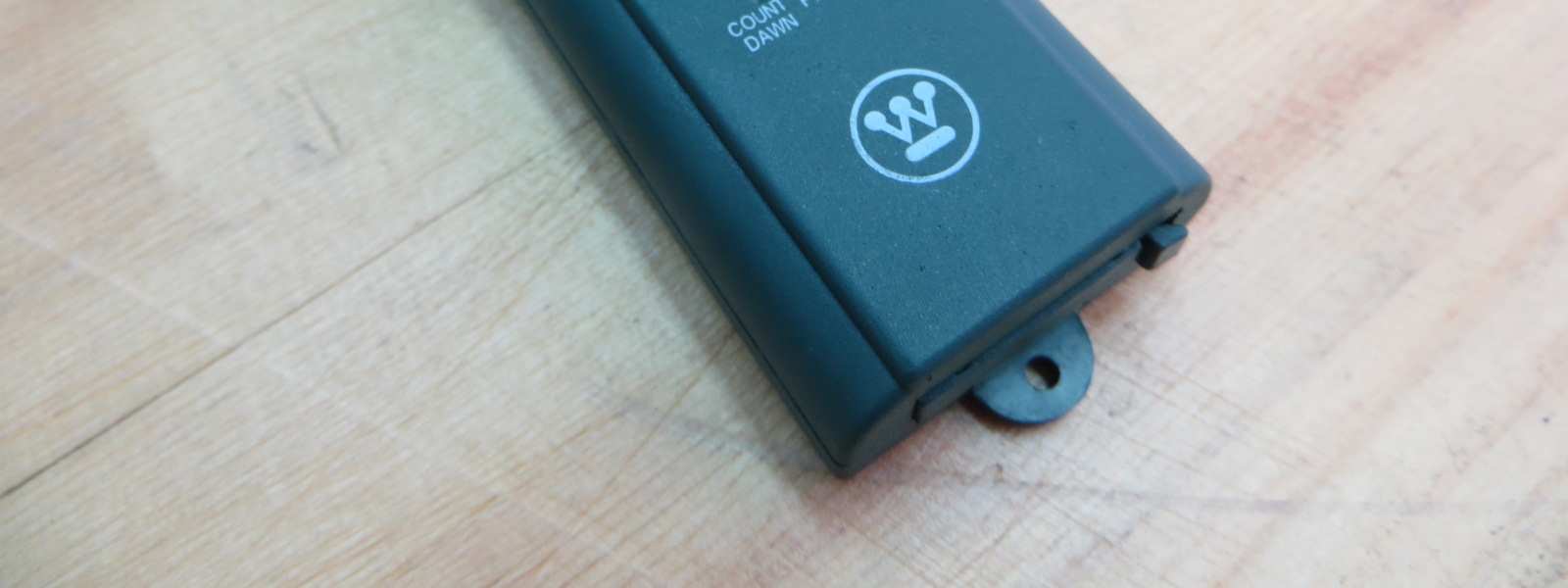

FCC ID: 2AC2CDR-009 Page 1 of 1 External Picture

Emission frequency: 433.92 MHZ Made in China Replacement Battery: CR2032 3V Lithium Battery This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. GS606-TX FCC ID:2AC2C DR-009 R BROOKLYN, NY PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

FCC ID: 2AC2CDR-009 Page 1 of 1 Internal Picture

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a transmitter for Remote Key Finder operating at 433.92MHz. The EUT is powered by DC 3V battery. The EUT has six control Keys, press the corresponding control key on the EUT in order to locate the desired receiver. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna Antenna Gain: 1.0dBi The nominal conducted output power specified: -34dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -35.15dBm (+/- 3dB) Modulation Type: OOK According to the KDB 447498: The worst-case peak radiated emission for the EUT is 61.10dBμV/m at 3m in the frequency 433.92MHz The EIRP = [(FS*D) ^2 / 30] mW= -34.13dBm The ERP=EIRP-2.15=-36.28dBm which is within the production variation. The maximun conducted output power specified is -31dBm = 0.0008mW The source- based time-averaging conducted output power = 0.0008 * Duty Cycle mW= 0.00027mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (0.43392) mW = 22.77 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. The duration of one cycle = 60.42ms Effective period of the cycle = 6*1.4+ 21*0.56=20.16ms DC = 20.16 / 60.42ms = 0.33 or 33% FCC ID: 2AC2CDR-009

FCC ID: 2AC2CDR-009 Page 1 of 19 EMC TEST REPORT No. 140800497SHA-001 Applicant : Ningbo Diya Electric Appliance Co.,Ltd Simen Town, Yuyao City, Zhejiang Province, China Manufacturer : Ningbo Diya Electric Appliance Co.,Ltd Simen Town, Yuyao City, Zhejiang Province, China Equipment : Remote control transmitter Type/Model : GS606-TX SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2013): Radio Frequency Devices ANSI C63.4 (2009): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz RSS-210 Issue 8 (December 2010): Low-power Licence-exempt Radio communication Devices (All Frequency Bands): Category I Equipment RSS-Gen Issue 3 (December 2010): General Requirements and Information for the Certification of Radio communication Equipment Date of issue: Sep 24, 2014 Prepared by: Reviewed by: Jesse Xu (Project Engineer) Daniel Zhao (Reviewer) FCC ID: 2AC2CDR-009 Page 2 of 19 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2042B-1 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 FCC ID: 2AC2CDR-009 Page 3 of 19 Content SUMMARY .......................................................................................................................................................... 1 DESCRIPTION OF TEST FACILITY ......................................................................................................................... 2 1. GENERAL INFORMATION ............................................................................................................................ 4 1.1 Applicant Information ..................................................................................................... 4 1.2 Identification of the EUT ................................................................................................ 4 1.3 Technical specification ................................................................................................... 5 1.4 Mode of operation during the test / Test peripherals used .............................................. 5 2. TEST SPECIFICATION .................................................................................................................................. 6 2.1 Instrument list ................................................................................................................. 6 2.2 Test Standard .................................................................................................................. 6 3. FUNDAMENTAL & SPURIOUS EMISSION & RESTRICT BAND RADIATED EMISSION ................................... 7 3.1 Test limit ......................................................................................................................... 7 3.2 Test Configuration .......................................................................................................... 8 3.3 Test procedure and test setup .......................................................................................... 8 3.4 Test protocol ................................................................................................................... 9 4. DEACTIVATING TIME ................................................................................................................................ 11 4.1 Test limit ....................................................................................................................... 11 4.2 Test Configuration ........................................................................................................ 12 4.3 Test procedure and test setup ........................................................................................ 12 4.4 Test protocol ................................................................................................................. 12 5. POWER LINE CONDUCTED EMISSION ........................................................................................................ 13 5.1 Limit .............................................................................................................................. 13 5.2 Test configuration ......................................................................................................... 13 5.3 Test procedure and test set up ....................................................................................... 14 5.4 Test protocol ................................................................................................................. 15 6. EMISSION BANDWIDTH ............................................................................................................................. 16 6.1 Test limit ....................................................................................................................... 16 6.2 Test Configuration ........................................................................................................ 16 6.3 Test procedure and test setup ........................................................................................ 16 6.4 Test protocol ................................................................................................................. 17 7. OCCUPIED BANDWIDTH ............................................................................................................................ 18 7.1 Test limit ....................................................................................................................... 18 7.2 Test Configuration ........................................................................................................ 18 7.3 Test procedure and test setup ...................................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2AC2CDR-009 Page 1 of 12 Test Data FCC ID: 2AC2CDR-009 Page 2 of 12 1. Fundamental & Spurious Emission & Restrict band radiated emission Horizontal 30-1000MHz 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 30M50M70M100M 200M300M500M 700M 1G Frequency [Hz] x x x x x MES JX0924H_red MES JX0924H_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: 2AC2CDR-009 Page 3 of 12 Restrict band 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 399.9M402M 404M 406M 408M410M Frequency [Hz] MES ak0529_lH_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: 2AC2CDR-009 Page 4 of 12 Horizontal 1000-6000 MHz 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 1G2G3G4G5G6G Frequency [Hz] x x x x x x x x x x x MES JX0926H-2_red MES JX0926H-2_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: 2AC2CDR-009 Page 5 of 12 Vertical 30-1000MHz 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 30M50M70M100M 200M300M500M 700M 1G Frequency [Hz] x x x x x MES JX0924V_red MES JX0924V_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: 2AC2CDR-009 Page 6 of 12 Restrict band 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 399.9M402M 404M406M 408M 410M Frequency [Hz] LIM FCC 15 F 3 QP Field Strength QP MES ak0529_VL_pre FCC ID: 2AC2CDR-009 Page 7 of 12 Vertical 1000-6000MHz 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 1G2G3G4G5G6G Frequency [Hz] x x x x x x x x x x x MES JX0926V-2_red MES JX0926V-2_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: 2AC2CDR-009 Page 8 of 12 2. Deactivating time FCC ID: 2AC2CDR-009 Page 9 of 12 3. Emission bandwidth FCC ID: 2AC2CDR-009 Page 10 of 12 4. Duty Cycle FCC ID: 2AC2CDR-009 Page 11 of 12 FCC ID: 2AC2CDR-009 Page 12 of 12 All the keys were assessed and the test data with maximum duty cycle was listed above. The worst Duty cycle= (6*1.4+ 21*0.56) / 60.42 = 0.33

FCC ID: 2AC2CDR-009 Page 1 of 2 Test Setup FCC ID: 2AC2CDR-009 Page 2 of 2 1. Radiated Emission
