2AC2H-IR132Wireless activity tracker

IR132User Manual 1、APP Install Down the APP from APPLE STORE or Google play for Android system ,if it is not available ,please reinstall Compliance list ： iPhone4S/5/5S/5C,iPod touch5，ipad3，iPad 4，iPad Mini，iPad Mini with Retina display，iPad Air。 Samsung S3/S4/S5，Note 2，Note 3。 And compatible with I.O.S 6.0 &Android 4.3 above via Bluetooth sync 2、Bluetooth Sync 1. Open you APP to find the setting ,add or delete device ,sync your device via blue tooth 2. After banding the APP, please proceed step 2 while the Bluetooth symbol turns black from Grey . 3. If you would like connect a new device ,open your APP ,find setting menueÆadd or delete the previous device . 4. Notice : All date will be reset after your first sync . 3、Activity 5. Press the button ,the light flash fast two times . 6. The device will change into sport mode if device detect activity fluently or change the mode manually by pressing button two times . 7. After sync APP, you could daily activity status or previous date . You could set up your Goal via APP, then click the steps works . 4、Sleeping Monitor 1. Press the button ,the light illuminated for seconds . 2. Press button twice ,the light illuminated for seconds ,the device change into Sleep Mode . 3. After sync APP, you could sleeping status on last night or previous date . 5、Battery The device powered by a dismantled battery ,kindly please charge your device when the first use ,then sync to your APP . Under charging mode ,the light flash slowly ,the device does not work while charging . The lighted illuminate after full charging . Charging time :5‐7 hours Last days :5‐7 days 6、 ON/OFF Turn on ： Turn on the device ,press and the button for 3 seconds ,the device turn . Under charging mode and turn on mode ,press and hold for 3 seconds ,the lights flash to turn off . 7、Specification Device type：weary Compatible with ：I.O.S 6.0 &Android 4.3 above via Bluetooth sync Water proof：IP67 Modes ：sports/sleeping Track your night Activity for ：24hours，steps, distance and Carlories This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Guangzhou Advansolution Corp. RM 2105, 2nd F,No.30, Wuxian Bridge St., Guangzhou Dadao BeiLu, Tianhe District, Guangzhou, China FCC Confidentiality Request Letter Number: CF303 Version: V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: PHOENIX TESTLAB GmbH 7F., No. 12, Ln. 321, Yangguang St., Neihu Dist., Taipei City 114, Taiwan Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Guangzhou Advansolution Corp. Address RM 2105, 2nd F,No.30, Wuxian Bridge St., Guangzhou Dadao BeiLu, Tianhe District, City Guangzhou Country China request for this certification filing under: Grantee Code Product Number FCC ID: 2AC2H -IR132 to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) Exhibit File Name Description Operational Description Operational Description explaining the functioning of the block diagram Block Diagrams IR132 Block Diagram showing the systematic building blocks of the EUT Schematics Diagrams IR132 Schematic showing components, their values and interconnection Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Guangzhou China 04/07/2015 Rex Chen CEO

Guangzhou Advansolution Corp. RM 2105, 2nd F,No.30, Wuxian Bridge St., Guangzhou Dadao BeiLu, Tianhe District, Guangzhou, China Power of Attorney Number: CF101 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name Guangzhou Advansolution Corp. Addresss RM 2105, 2nd F,No.30, Wuxian Bridge St., Guangzhou Dadao BeiLu, Tianhe District, City Guangzhou Country China declare that the following representative (agent): Name (person) Jackie.deng Function General Manager Company name Asia Institute Technology (DongGuan)limited Address No. 22, JinQianLing Street 3, JiTiGang Village HuangJiang Town, DongGuan, GuangDong, China. City DongGuan, GuangDong Country China is hereby authorized to apply and sign the following equipment for certification, registration or filing on our behalf: Product Description ACTIVITY TRACKER Type or Model(s) IR132/WBF-12/6249 Tradename or Brand(s) Itek/Keeproduct/ADITION FCC ID 2AC2H-IR132 Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Guangzhou China 04/07/2015 Rex Chen CEO

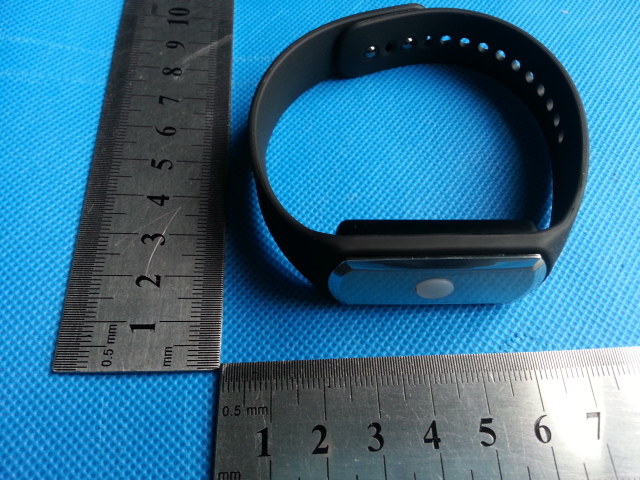

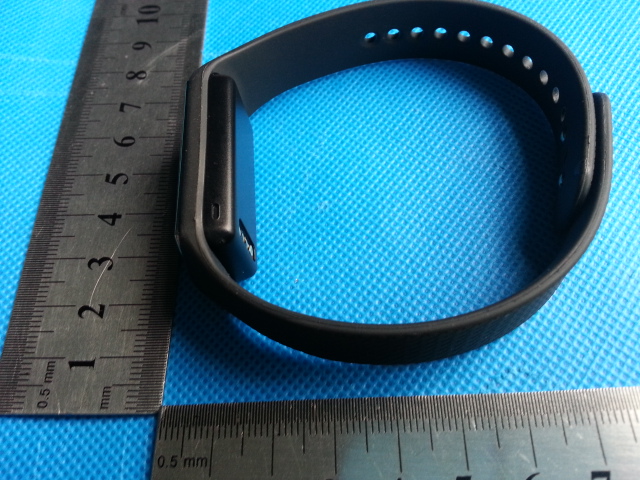

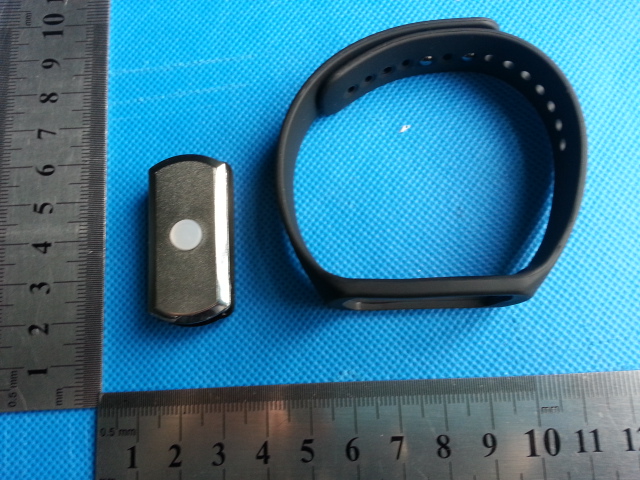

Report No.: E-F1503002 Page 1 of 3 Rev: one Asia Institute Technology (Dongguan) Limited No. 22, JinQianLing Street 3, JiTiGang Village HuangJiang Town, DongGuan, GuangDong, China. External View of EUT Model: IR132 Photo 1 Model: IR132 Photo 2 Report No.: E-F1503002 Page 2 of 3 Rev: one Asia Institute Technology (Dongguan) Limited No. 22, JinQianLing Street 3, JiTiGang Village HuangJiang Town, DongGuan, GuangDong, China. Model: IR132 Photo 3 Model: IR132 Photo 4 Report No.: E-F1503002 Page 3 of 3 Rev: one Asia Institute Technology (Dongguan) Limited No. 22, JinQianLing Street 3, JiTiGang Village HuangJiang Town, DongGuan, GuangDong, China. Model: IR132 Photo 5

Suggested size : around 30 mm X 12.5 mm, with white silkscreen marking on color surface WBF-12/6249 Activity Tracker Input: DC 5V Rechargeable Li-Polymer battery 3.7V 70mAh FCCID: 2AC2H-IR132 Batch no: AA2277 Made in China Suggested location : At the back of the unit as below

Report No.: E-F1503002 Page 1 of 3 Rev: one Asia Institute Technology (Dongguan) Limited No. 22, JinQianLing Street 3, JiTiGang Village HuangJiang Town, DongGuan, GuangDong, China. Internal View of EUT Model: IR132 Photo 1 Model: IR132 Photo 2 Report No.: E-F1503002 Page 2 of 3 Rev: one Asia Institute Technology (Dongguan) Limited No. 22, JinQianLing Street 3, JiTiGang Village HuangJiang Town, DongGuan, GuangDong, China. Model: IR132 Photo 3 Model: IR132 Photo 4 Report No.: E-F1503002 Page 3 of 3 Rev: one Asia Institute Technology (Dongguan) Limited No. 22, JinQianLing Street 3, JiTiGang Village HuangJiang Town, DongGuan, GuangDong, China. Model: IR132 Photo 5 Model: IR132 Photo 6

Report No.: E-F1503002 Page 1 of 43 Rev: one Asia Institute Technology (Dongguan) Limited No. 22, JinQianLing Street 3, JiTiGang Village, HuangJiang Town, DongGuan, GuangDong, China. FCC Test Report Part 15 subpart C Client Information: Applicant : Guangzhou Advansolution Corp. Applicant add.: RM 2105, 2nd F,No.30, Wuxian Bridge St., Guangzhou Dadao BeiLu, Tianhe District, Guangzhou, China EUT Information: EUT Name : ACTIVITY TRACKER Model No. : IR132/WBF-12/6249 Brand Name : Itek/Keeproduct/ADITION FCC ID : 2AC2H-IR132 Prepared By: Asia Institute Technology (Dongguan) Limited Add. : No. 22, JinQianLing Street 3, JiTiGang Village HuangJiang Town, DongGuan, GuangDong, China. Date of Receipt: Mar. 10, 2015 Date of Test: Mar. 12~17, 2015 Date of Issue: Mar. 17, 2015 Te s t R e s u l t : Pass Test procedure used: ANSI C63.4-2009 This device described above has been tested by Asia Institute Technology (Dongguan) Limited, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. *This test report must not be used by the client to claim product endorsement by any agency of the U.S. government. Reviewed by: Approved by: Seal.Chen Jackie.Deng Report No.: E-F1503002 Page 2 of 43 Rev: one Asia Institute Technology (Dongguan) Limited No. 22, JinQianLing Street 3, JiTiGang Village, HuangJiang Town, DongGuan, GuangDong, China. 1 Contents Page COVER PAGE 1 CONTENTS............................................................................................................................................................. 2 2 TEST SUMMARY.................................................................................................................................................... 4 2.1 COMPLIANCE WITH FCC PART 15 SUBPART C ...................................................................................................... 4 2.2 MEASUREMENT UNCERTAINTY............................................................................................................................. 5 3 TEST FACILITY ...................................................................................................................................................... 6 3.1 DEVIATION FROM STANDARD................................................................................................................................6 3.2 ABNORMALITIES FROM STANDARD CONDITIONS..................................................................................................... 6 4 GENERAL INFORMATION .................................................................................................................................... 7 4.1 GENERAL DESCRIPTION OF EUT .......................................................................................................................... 7 4.2 DESCRIPTION OF TEST CONDITIONS..................................................................................................................... 9 4.3 EUT PERIPHERAL LIST...................................................................................................................................... 10 4.4 TEST PERIPHERAL LIST..................................................................................................................................... 10 5 EQUIPMENTS LIST FOR ALL TEST ITEMS ....................................................................................................... 11 6 TEST RESULT ...................................................................................................................................................... 12 6.1 ANTENNA REQUIREMENT................................................................................................................................... 12 6.1.1 Standard requirement.............................................................................................................................. 12 6.1.2 EUT Antenna ........................................................................................................................................... 12 6.2 CONDUCTION EMISSIONS MEASUREMENT........................................................................................................... 13 6.2.1 Applied procedures / Limit....................................................................................................................... 13 6.2.2 Test procedure ........................................................................................................................................ 13 6.2.3 Test results .............................................................................................................................................. 14 6.3 RADIATED EMISSIONS MEASUREMENT................................................................................................................ 16 6.3.1 Applied procedures / Limit....................................................................................................................... 16 6.3.2 Test procedure ........................................................................................................................................ 16 6.3.3 Test Result .............................................................................................................................................. 17 6.3.4 TEST RESULTS (Restricted Bands Requirements) ............................................................................... 22 6.4 BANDWIDTH TEST ........................................................................................................................................ 23 6.4.1 Applied procedures / Limit....................................................................................................................... 23 6.4.2 Test procedure .........................................................................................................…
