2AC2Z-898UVMobile Transveicer

RFRadiationInformation ThisproductmustberestrictedtooperationsinanOccupational/ControlledRFexposure Environments.Usersmustbefullyawareofthehazardsoftheexposureandabletoexercise controlovertheirRFexposuretoqualifyforthehigherexposurelimits. RFRadiationProfile RadioFrequency(RF)isa frequencyofelectromagneticradiationintherangeatwhichradio signalsaretransmitted.RFtechnologyiswidelyusedincommunication,medicine,food processingandotherfields.Itmaygenerateradiationduringuse. RFRadiationSafety Inordertoensureuserhealth,expertsfromrelevantindustriesincludingscience,engineering, medicineand healthworkwithinternationalorganizationstodevelopstandardsforsafe exposuretoRFradiation.Thesestandardsconsistof: ƔUnitedStatesFederalCommunicationsCommission,CodeofFederalRegulations;47CFRpart2 subͲpartJ; ƔAmericanNationalStandardsInstitute(ANSI)/InstituteofElectricalandElectronicEngineers (IEEE)C95.1Ͳ1992; ƔInstituteof ElectricalandElectronicEngineers(IEEE)C95.1Ͳ1999; ƔInternationalCommissiononNonͲIonizingRadiationProtection(ICNIRP)1998. FCCRegulations FederalCommunicationCommission(FCC)requiresthatallradiocommunicationproductsshould meettherequirementssetforthintheabovestandardsbeforetheycanbemarketedintheU.S, andthemanufacturershall postaRFlabelontheproducttoinformusersofoperational instructions,soastoenhancetheiroccupationalhealthagainstexposuretoRFenergy. Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttotheconditionthatthis devicedoesnotcauseharmfulinterference. Themanufacturer isnotresponsibleforanyradioorTVinterferencecausedbyunauthorized modificationstothisequipment.suchmodificationscouldvoidtheuser'sauthoritytooperate thisequipment. ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice, pursuanttopart15of theFCCRules.TheselimitsaredesignedtoproͲvidereasonableprotection againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcan radiateradiofrequencyenergyand,ifnotinͲstalledandusedinaccordancewiththeinstructions, maycauseharmfulinterferencetoradiocommunications.However,thereis noguaranteethat interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmful interferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipment offandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe followingmeasures: ƔReorientorrelocatethereceivingantenna. ƔConnecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected. ƔConsultthedealeroranexperiencedradio/TVtechnicianforhelp. OperationalInstructionsandTrainingGuidelines Toensureoptimalperformanceandcompliancewith theoccupational/controlledenvironment RFenergyexposurelimitsintheabovestandardsandguidelines,usersshouldtransmitnotmore than50%ofthetimeandalwaysadheretothefollowingprocedures: ƔAntennagainmustnotexceed4.1dBi. ƔTheantennainstallationmustcomplywiththerequirementsofmanufacturerorsupplier,andit mustbe1.00meterawayfromhumanbody. ƔToensureoptimalperformanceandcompliancewiththeoccupational/controlled environment RFenergyexposurelimitsintheabovestandardsandguidelines,usersshouldtransmitnomore than50%ofthetimeandalwaysadheretothefollowingprocedures;andshouldtransmitno morethan50%ofthetime,althoughthehardwaresupporttransmissionupto100%ofthetime in analogmodeandupto50%indigitalmode.  ForNorthAmericanusers Duetostrictrules,thisproductisblockedforoperationsbeforesalesandonlydealerscan programtheradiobeforedeliverytoconsumers.Manufacturerisnotawareofdetailsofsuch dealerͲprogrammingthereforepleasekindlycontact your dealerfirstincasetechnicalͲservice maybenecessary.  IMPORTANT:Thismanualiscommontoamateurandcommercialusers. Notallfeaturesareavailabletocommercialusers.CommercialͲuseunitsareprogrammedbythe dealerbeforesalesthereforefeaturesmaybeprohibitedformanualaccessbytheusers. CommercialͲusers shouldcontactthedealerforanytechnicalinquirybecausethedistributorand manufacturerarenotawareofthedetailsofdealerͲprogramming. Featureslikescramblingisnotallowedforamateurradiocommunications.          ThedeviceaccordingtotheregulationinDirective1999/5/ECandcomplieswithstandardsas follow: ETSIEN301489Ͳ1V1.9.2 EMC(Article3.1b) ETSIEN301489Ͳ5V1.3.1 ETSIEN300086Ͳ1V1.4.1 Radio(Article3.2) ETSIEN300086Ͳ2V1.3.1 Safety(Article3.1a)EN60950Ͳ1:2006+A11:2009+A1:2010+A12:2011 Health(Article3.1a)EN62311:2008  WorkTemperature:Ͳ10ć~ˇ25ć I A Note To Users Thank you for purchasing the VV-898 Mobile transceiver. We trust this transceiver will give you convenient and reliable communication for many years. For the best experience, we advise that you read this manual completely before using your new transceiver. Notice Please use the transceiver in compliance with local regulations. II Contents Security Information .................................................. 1 Accessories & Options ............................................... 2 Supplied Accessories.............................................. 2 Optional Accessories .............................................. 2 Installation.................................................................. 3 Connect Power ....................................................... 3 Keeping the Transceiver Cool ................................ 3 Install with Brac…

Text truncated - open the document above for the full version.

Quanzhou Leixen Electronics Co., Ltd No.48, Jinqiao Road, Changtai Street, Quanzhou City, Fujian Province, China Tel: +86-595-22422279 Fax: +86-595-28130701 August 26, 2014 Federal Communications Commission Re: FCC ID: 2AC2Z-898UV Applicant: Quanzhou Leixen Electronics Co., Ltd Subject: Attestation statement regarding the Land Mobile Radio frequency Dear Sir or Madam I attest that the product could program the frequency on computer through interface by manufacturer, is incapable of tuning, or readily being altered, by the end-user. Please contact the undersigned if you have any questions or need any further information. Sincerely, ------------------------------- Lin Yuehong/ Manager

Quanzhou Leixen Electronics Co., Ltd No.48, Jinqiao Road, Changtai Street, Quanzhou City, Fujian Province, China Tel: +86-595-22422279 Fax: +86-595-28130701 Rev 11/20/07 Confidentiality Letter Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AC2Z-898UV. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematics.pdf Operation Description Operation Description.pdf Tune up Procedure Tune up Procedure.pdf Part List Part List.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ------------------------------- Lin Yuehong/ Manager

Quanzhou Leixen Electronics Co., Ltd No.48, Jinqiao Road, Changtai Street, Quanzhou City, Fujian Province, China Tel: +86-595-22422279 Fax: +86-595-28130701 August 26, 2014 Federal Communications Commission Re: FCC ID: 2AC2Z-898UV Applicant: Quanzhou Leixen Electronics Co., Ltd Subject: justification letter for expanded frequency range 136 – 174 MHz and 400-470MHz. You have asked the applicant for justification to have the 136 – 174 MHz and 400-470MHz freq range appear on he face of the FCC Grant of Certification for a Part 90 Certification. This frequency range contains frequencies regarded as usual & customary by United States Federal Government and its various departments, user organizations and the military to appear on the face of the equipment Grant of Certification. (1) The applicant plans to ensure that USA users, other than those specifically identified in this letter, not operate within bands which are not allowed by the Part 90, as controlled by the users’ FCC station license. (2) This device will not be marketed to USA users, other than those identified in the letter, namely the US Government and its various departments & military, for operation in frequency range out of Part 90. Programming of transmitter frequencies can only be performed by the manufacturer or authorized service and maintenance personnel. Sincerely, ------------------------------- Lin Yuehong/ Manager

Quanzhou Leixen Electronics Co., Ltd No.48, Jinqiao Road, Changtai Street, Quanzhou City, Fujian Province, China Tel: +86-595-22422279 Fax: +86-595-28130701 Series Models Description FCC ID: 2AC2Z-898UV To whom concern: The device (Product Name: Mobile Transceiver), Models Name: VV-898, UV-898, UV-898S, UV-998, UV-998S, JT270M, LX-809 have same electrical, PCB and BOM, only the model’s name are different for marketing requirements. Date and Applicant’s Signature: 08-25-2014 Lin Yuehong/Manager

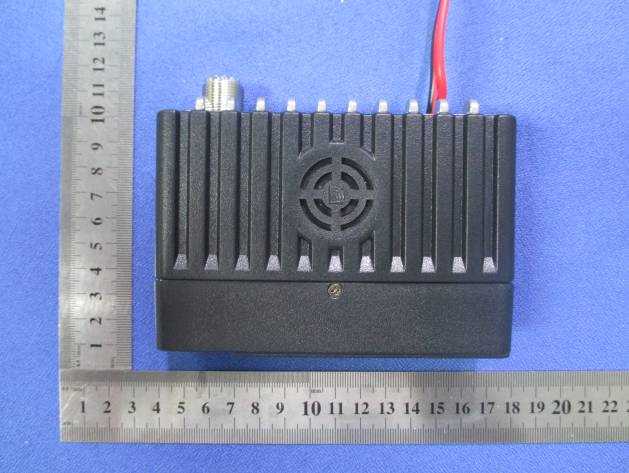

External Photos

Applicant: Quanzhou Leixen Electronics Co., Ltd FCC ID: 2AC2Z-898UV Model Name: VV-898 Mobile Transceiver Model Name: VV-898 FCC ID: 2AC2Z-898UV The FCC identifier is marked in the product label and the RF exposure caution label is attached on the rear side of the cabinet. The user notice and warning statement are described in the user manual. . Proposed Label Location on EUT

Internal Photos

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 MPE TEST REPORT FCC Per 47 CFR 2.1091(b) Report Reference No..................... : CTL1407301819-WM FCC ID.............................................: 2AC2Z-898UV Compiled by ( position+printed name+signature)..: File administrators Jennifer NI Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Jacky Chen Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: Aug. 24, 2014 Test Firm..........................................: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Applicant’s name............................: Quanzhou Leixen Electronics Co., Ltd Address.............................................: No.48, Jinqiao Road, Changtai Street, Quanzhou City, Fujian Province, China Test specification..........................: Standard ...........................................: FCC Per 47 CFR 2.1091(b) TRF Originator ..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader’s interpretation of the reproduced material due to its placement and context. Test item description.................... : Mobile Transceiver Trade Mark .......................................: LEIXEN Model/Type reference.......................: VV-898 Listed Models ..................................: UV-898, UV-898S, UV-998, UV-998S, JT270M, LX-809 Power Supply..............................: DC 13.8V from battery Modulation..................................: FM Channel Separation ........................... 12.5KHz Rated Power..............................: 10W Operating Frequency Range............: 136-174MHz, 400-470MHz Result................................................: Positive V1.0 Page 2 of 7 Report No.: CTL1407301819-WM Test Report Test Report No. : CTL1407301819-WM Aug. 24, 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test : Mobile Transceiver Model /Type : VV-898 Listed Models : UV-898, UV-898S, UV-998, UV-998S, JT270M, LX-809 Difference Description : Only the color and model's name is different. Applicant : Quanzhou Leixen Electronics Co., Ltd Address : No.48, Jinqiao Road, Changtai Street, Quanzhou City, Fujian Province, China Manufacturer : Quanzhou Leixen Electronics Co., Ltd Address : No.48, Jinqiao Road, Changtai Street, Quanzhou City, Fujian Province, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 7 Report No.: CTL1407301819-WM Content 1. SUMMARY............................................................................. 4 1.1. EUT configuration 4 1.2. Equipment Under Test 4 1.3. Description of the test mode 4 2. TEST ENVIRONMENT ............................................................... 5 2.1. Address of the test laboratory 5 2.2. Environmental conditions 5 2.3. Statement of the measurement uncertainty 5 3. METHOD OF MEASUREMENT..................................................... 6 V1.0 Page 4 of 7 Report No.: CTL1407301819-WM 1. SUMMARY 1.1. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer o - supplied by the lab 1.2. Equipment Under Test Power supply system utilised Power supply voltage :o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC „ Other (specified in blank below) DC 13.80V 1.3. Description of the test mode The Mobile Transceiver, Model: VV-898 or the “EUT” as referred to in this report; more general information as follows, for more details, refer to the user’s manual of the EUT. Name of EUT Mobile Transceiver Model Number VV-898 FCC ID 2AC2Z-898UV Rated Output Power 10 Watts(40.00dBm) FM for Analog Voice Modilation Type Analog F3E for 12.5KHz Channel Separation Channel Separation Analog Voice 12.5KHz Antenna Type External Frequency Range 136-174MHz, 400-470MHz Maximum Output Power Analog 10.47W for 12.5 KHz Channel Separation Test frequency list Test Frequency (MHz) Modulation Type Channel Separation (KHz) Test Channel TX A001 136.5000 A002 146.0000 A003 155.5000 A004 164.0000 Frequency Range (MHz) Analog/FM 12.5 A005 173.5000 Test Frequency (MHz) Modulation Type Channel Separation (KHz) Test Channel TX A006 406.5000 A007 418.0000 A008 435.5000 A009 453.0000 Frequency Range (MHz) Analog/FM 12.5 A010 469.5000 V1.0 Page 5 of 7 Report No.: CTL1407301819-WM 2. TEST ENVIRONMENT 2.1. Address of the test laboratory Shenzhen CTL Testing Technology Co., Ltd. Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China There is one 3m semi-anechoic chamber and two line conducted labs for final test. The Test Sites meet the requirements in documents ANSI C63.4 and CISPR 22/EN 55022 requirements. 2.2. Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 950-1050mbar 2.3. Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment…

Text truncated - open the document above for the full version.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 90 Test Report Report Reference No......................: CTL1407301819-WF Compiled by ( position+printed name+signature)..: File administrators Jacky Chen Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Tracy Qi Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: Aug. 24, 2014 Testing Laboratory Name..............: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Applicant’s name............................: Quanzhou Leixen Electronics Co., Ltd Address.............................................: No.48, Jinqiao Road, Changtai Street, Quanzhou City, Fujian Province, China Test specification..........................: Standard ...........................................: FCC Part 90: PRIVATE LAND MOBILE RADIO SERVICES TRF Originator ..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Mobile Transceiver FCC ID............................................. : 2AC2Z-898UV Trade Mark .......................................: LEIXEN Model/Type reference.......................: VV-898, UV-898, UV-898S, UV-998, UV-998S, JT270M, LX-809 Modulation..................................: FM Channel Separation ........................... 12.5KHz Power Supply..............................: 13.8V DC Rated Power..............................: 10W Operating Frequency Range............: 136-174MHz, 400-470MHz Result................................................: Positive V1.0 Page 2 of 65 Report No.: CTL1407301819-WF T E S T R E P O R T Test Report No. : CTL1407301819-WF Aug. 24, 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test : Mobile Transceiver Model /Type : VV-898 Listed Models : UV-898, UV-898S, UV-998, UV-998S, JT270M, LX-809 Difference Description : Only the color and model's name is different. Applicant : Quanzhou Leixen Electronics Co., Ltd Address : No.48, Jinqiao Road, Changtai Street, Quanzhou City, Fujian Province, China Manufacturer : Quanzhou Leixen Electronics Co., Ltd Address : No.48, Jinqiao Road, Changtai Street, Quanzhou City, Fujian Province, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 65 Report No.: CTL1407301819-WF Contents 1. TEST STANDARDS 4 2. SUMMARY 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. Short description of the Equipment under Test (EUT) 6 2.5. EUT operation mode 6 2.6. EUT configuration 6 2.7. Related Submittal(s) / Grant (s) 6 2.8. Modifications 6 2.9. Note 6 3. TEST ENVIRONMENT 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. Configuration of Tested System 7 3.5. Statement of the measurement uncertainty 7 3.6. Equipments Used during the Test 8 3.7. General Technical Requirements and Summary of Test Results 8 4. TEST CONDITIONS AND RESULTS 9 4.1. Conducted Emissions Test 9 4.2. Occupied Bandwidth and Emission Mask 10 4.3. Radiated Spurious Emission Test 22 4.4. Spurious Emission On Antenna Port 29 4.5. Modulation Characteristics 41 4.6. Frequency Stability Measurement 46 4.7. Conducted Output Power 48 4.8. Transmitter Frequency Behavior 54 5. TEST SETUP PHOTOS OF THE EUT 57 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT 58 V1.0 Page 4 of 65 Report No.: CTL1407301819-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Part 90: PRIVATE LAND MOBILE RADIO SERVICES TIA/EIA 603D: Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. 47 CFR FCC Part 15 Subpart B - Unintentional Radiators FCC Part 2: FREQUENCY ALLOCA-TIONS AND RADIO TREATY MAT-TERS; GENERAL RULES AND REG-ULATIONS V1.0 Page 5 of 65 Report No.: CTL1407301819-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Aug. 01, 2014 Testing commenced on : Aug. 01, 2014 Testing concluded on : Aug. 23, 2014 2.2. Equipment Under Test Power supply system utilised Power supply voltage : ○ 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 13.8V 2.3. Short description of the Equipment under Test (EUT) The Mobile Transceiver, Model: VV-898 or the “EUT” as referred to in this report; more general information as follows, for more details, refer to the user’s manual of the EUT. Name of EUT Mobile Transceiver Model Number VV-898 FCC ID 2AC2Z-898UV Rated Output Power 10 Watts(40.00dBm) FM for Analog Voice Modilation Type Analog F3E for 12.5KHz Channel Separation Channel Separation Analog Voice 12.5KHz Antenna Type External Frequency Range 136-174MHz, 400-470MHz Maximum Output Power Analog 10.47W for 12.5 KHz Channel Separation Test Frequency list Test Frequency (MHz) Modulation Type Channel Separation (KHz) Test Channel TX A001 136.5000 A002 146.0000 A003 155.5000 A004 164.0000 Frequency Range (MHz) Analog/FM 12.5 A005 173.5000 Test Frequency (MHz) Modulation Type Chann…

Text truncated - open the document above for the full version.

Test Setup Photos of the EUT
