2AC3GVSMSV5PVehicle Warning System V5.10

Page 1 Vehicle Warning System V5.10 P-tag Instruction Personnel Tag(P-tag) Clip the P-Tag on safety vest, or in pocket, as below picture. Technical Data P-Tag Electrical Power supply:Embedded 1800mah Lithium battery,charge via Input 100-250VAC-DC 50-60Hz,output 5V/1A adapter Mechanical Dimension:100×68×50(mm) Antenna length:105mm Environmental Work temperature:0-60 centigrade Radio & Range 2400.0MHz~2483.5MHz Range:0-15meter Page 2 Tag Operation Notes: 1. Press button for 3 sec to turn on. The LED light will be red and flashing (frequency is 2sec/time). When tag battery is close to off , LED will be green and flashing(frequency is 2sec/time). Long press button for 3 sec to turn off power ,LED will die 2. The tag will turn off power automatically when there is no signal or it does not move within 5 minutes. 3. Charge: Put the P-tag on charge base. The maximum charging time is 4 hours each time. When P- tag is charging,Status LED will be red. After finishing, LED will be green. Page 3 Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

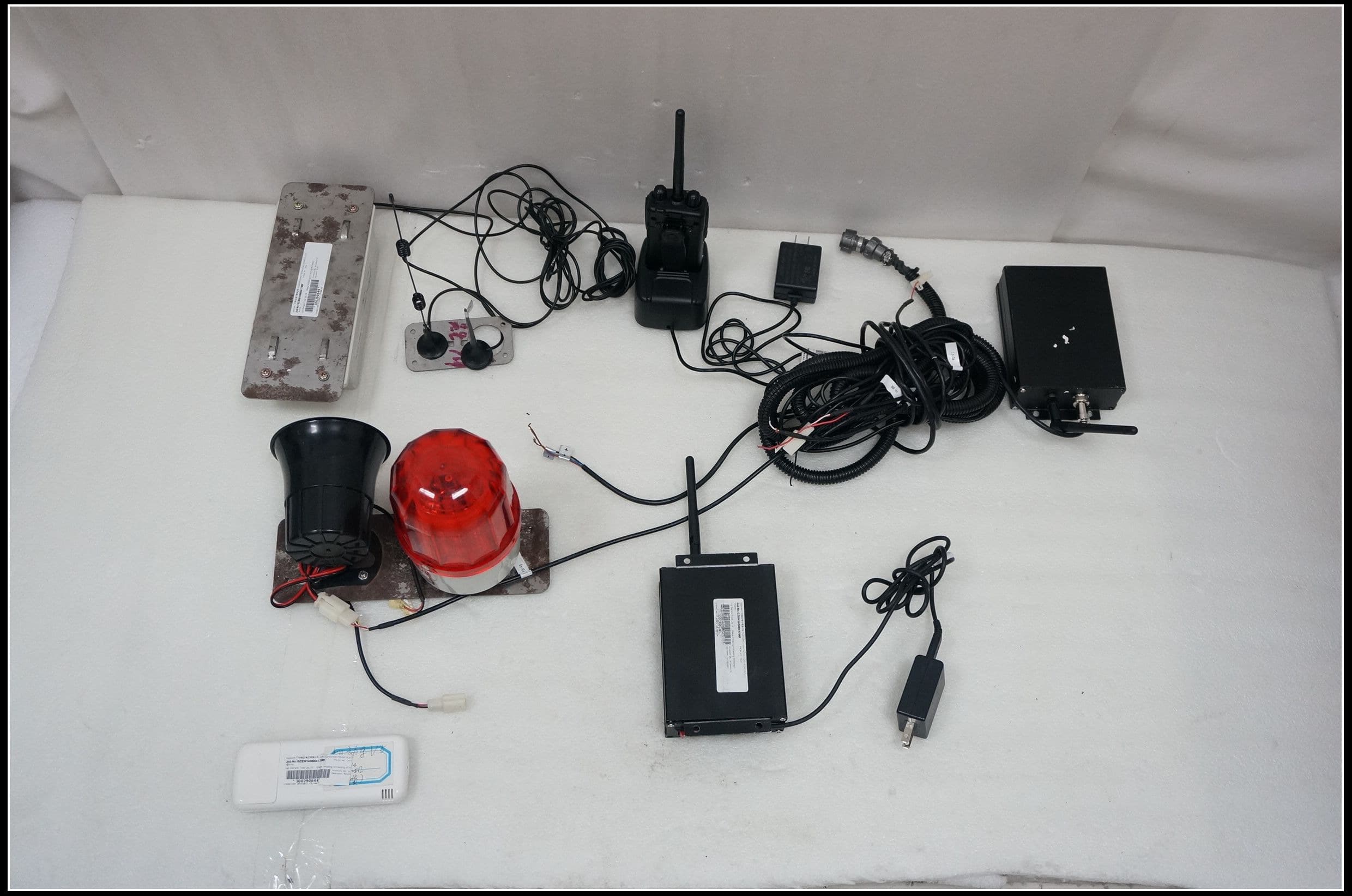

System Photos

External Photos

机动车安全管理系统 FCC ID号位置示意图 FCC ID:2AC3GVSMSV5H This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired FCC ID:2AC3GVSMSV5P This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired FCC ID:2AC3GVSMSV5T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired HOST P ‐ tag Transmitter FCC ID:2AC3GVSMSV5L This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired Log uploader c 4CM 2CM

Internal Photos

SGS-CSTC Standards Technical Services Co., Ltd. 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technological Development District, Guangzhou, China 510663 Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] Report No.: GZEM140800417802 Page: 1 of 19 FCC ID: 2AC3GVSMSV5P Jerry Chan Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 1 Cover Page TEST REPORT Application No.: GZEM1408004178RF Applicant: Guangzhou Waytronic Electronics Co., Ltd. Manufacturer: Same as Applicant Factory: Same as Applicant FCC ID: 2AC3GVSMSV5P Product Name: Vehicle Warning System V5.10 Product Description: Radio transmitter with 2.4GHz as carrier Model No.: P-Tag Standards: CFR 47 PART 15 Subpart C: 2013 section 15.249 Date of Receipt: 2014-08-12 Date of Test: 2014-09-03 to 2014-10-14 Date of Issue: 2015-01-12 Test Result : Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GZEM140800417802 Page: 2 of 19 FCC ID: 2AC3GVSMSV5P This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 2 Version Revision Record Version Chapter Date Modifier Remark 00 2015-01-12 Original Authorized for issue by: Tested By 2014-09-03 to 2014-10-14 (Jack Liang) /Project Engineer Date Prepared By 2014-11-04 (Millie Li) /Clerk Date Checked By 2014-11-24 (Jerry Chan)/Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Report No.: GZEM140800417802 Page: 3 of 19 FCC ID: 2AC3GVSMSV5P This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 3 Test Summary Test Test Requirement Test method Result Field Strength of Fundamental FCC PART 15 C section 15.249 (a) ANSI C63.10: Clause 6.6 PASS Field Strength of Unwanted Emissions FCC PART 15 C section 15.249 (a) section 15.249 (d) ANSI C63.10: Clause 6.4, 6.6 and 6.7 PASS Band Edges FCC PART 15 C section 15.249 (d) ANSI C63.10: Claus…

Text truncated - open the document above for the full version.

Test Setup Photo 1.1 RADIATED EMISSION TEST SETUP Below 1G Above 1G
