2AC47-WG259Wireless Router

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. Specification Model: WG259 Description: Wireless Router Version Date History versions Author V1.0 2019-7-15 First Version Mr.Hu SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. Pictures SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. 1.Simply Description: ZBT-WG259 is used new MT7621 wireless solution, performs better and more functions. Stable wireless performance, stronger scalability , the Max transmission rate could be 1200Mbps (2.4G 300Mbps, 5.8G will be 880M(Max). Provide 1*USB 3.0 interface, 1*Micro slot. It adopts anti-drop 4PIN interface,DC power supply, and supports power supply (9 -36)V voltage. 2.Product Feature:  Support 80.11ac / 802.11a / 802.11n / 802.11g / 802.11b network protocol, the max transmission rate could be 1200Mbps(2.4G 300Mbps+ 5G 867Mbps)  Support 802.113 / 802.11u protocol, 5* 10/100/1000Mbps Auto MDI/MDIX  1 USB 2.0 date interface  1 Micro TF Card Slot  Many kinds of way to protect your data transmission； 3.Specifications: Hardware Main Chipset MT7621A (880MHz) 2.4G Chip set MT7603EN 5.8G Chip set MT7612EN RAM DDR3 256MB （MAX DDR2 512MB） SPI FLASH 16MB （MAX 32MB） Protocol IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,IEEE802.11ac,IEEE802.11a IEEE 802.3,IEEE 802.3u RT Power 11n：17dBm±1dBm 11g: 17dBm±1dBm 11b: 19dBm±1dBm 11a: 16dBm±1dBm 11ac: 16dBm±1dBm Reception Sensitivity 11N HT20 MCS7: -72dBm 11N HT40 MCS7: -69dBm SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. 11G 54Mbps: -74dBm 11B 11Mbps: -86dBm 11A 54Mbps: -73dBm 11AC VHT20 MCS8: -66dBm Work Channel 2.4GHz choose ：1-13 5.8GHz choose ：149,153,157,161,165 Wireless Rate Max 1200Mbps Work Frequency 2.4GHz, 5.8GHz Antenna 2*2.4Ghz Omni Directional 5dBi antenna;2*5.8Ghz Omni Directional 5dBi antenna Interface 1 *USB 3.0 port 1 *Micro TF card slot 1*4PIN DC interface 1 *10/100/1000M WAN port（Auto MDI/MDIX） 3 *10/100/1000M LAN port（Auto MDI/MDIX） LED Power/2.4G/5.8G/SATA/SYS/WAN/LAN1/LNA2/LNA3 Button Reset Button Max Power consumption < 12W Dimension （L*W*H） 164*137*35MM Software WAN Type PPPoE、Dynamic IP、 Static IP Work Mode Router; DHCP Server, Client, DHCP Client List, Address Reservation Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ Firewall Security Dos, SPI Firewall IP Address Filter/MAC Address Filter/ Domain Filter IP and MAC Address Binding DDNS Support VPN Pass-Throu gh PPTP, L2TP, IPSec (ESP Head) Band Ctrl Support Static Router Support System Log Support Other Function Mac clone NTP Synchronize Web firmware upgrade SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. Others Work Environmen ts Operating Temperature：0 ~ 40°C°C； Storage Temperature：-40 ~ 70°C°C； Operating Humidity：10%~90% non-condensing Storage Humidity：10%~90% non-condensing Adapter DC 12V 2A FCCCaution Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothe followingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2) thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay causeundesiredoperation. AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser'sauthoritytooperatetheequipment. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClass Bdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedto providereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation. Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot installedandusedinaccordancewiththeinstructions,maycauseharmfulinterference toradiocommunications.However,thereisnoguaranteethatinterferencewillnot occurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferenceto radioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoff andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe followingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiverisconnected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforan uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwith minimumdistance20cmbetweentheradiator&yourbody.

FCC Software Configuration Control Declaration Rev1.1 SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. FCC Software Configuration Control Declaration Date: 2020/5/18 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: Regarding FCC Country Code Selection guidelines identified in KDB 594280 D01 Software Configuration Control v02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: BENSON MA Date: 2020/5/18 Title: Manager Signatureof applicant

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. Agent Authorization Company: SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. Address: Floor 4, Bldg. A2, Hedian Industrial Park, NO.9 Shijing Rd, Guanlan, Longhua District, Shenzhen, China Product Name: Wireless Router Model Number(s): WG259, WG108, WE1501, WE2416, WE2806, WD323, WE5928, WE5926-WD, WE2802D, WG1608, WG2508, WE1626, L1, L6, WG2302, ZBT-PG005WV-Z, ZBT-PG003WV-Z, OTT905, SAM-4G1G-TT-WW-xx, SAM-4F1F-TT-WW-xx（Where xx can be any character） Trademark: N/A FCC ID: 2AC47-WG259 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020/5/18 Name: BENSON MA Title: Manager Company: SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD.

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. Declaration letter 2020-05-18 EUT NAME: Wireless Router Trademark: N/A FCC ID: 2AC47-WG259 The product does not support 4G functions, there is no 4G module, the 4G port can not be used in practice, just reserved. Regards Sincerely Client’s signature: Client’s name / title : BENSON MA /Manager Contact information / address: Floor 4, Bldg. A2, Hedian Industrial Park, NO.9 Shijing Rd, Guanlan, Longhua District, Shenzhen, China

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020/5/18 Subject; Request for Confidentiality FCC ID: 2AC47-WG259 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: BENSON MA Title: Manager

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. Model Difference 2020-05-18 EUT NAME: Wireless Router Trademark: N/A FCC ID: 2AC47-WG259 MODEL : WG259, WG108, WE1501, WE2416, WE2806, WD323, WE5928, WE5926-WD, WE2802D, WG1608, WG2508, WE1626, L1, L6, WG2302, ZBT- PG005WV-Z, ZBT-PG003WV-Z, OTT905, SAM-4G1G-TT-WW-xx, SAM-4F1F-TT- WW-xx（Where xx can be any character） All the model are the same circuit and RF module, except model names. Regards Sincerely Client’s signature: Client’s name / title : BENSON MA /Manager Contact information / address: Floor 4, Bldg. A2, Hedian Industrial Park, NO.9 Shijing Rd, Guanlan, Longhua District, Shenzhen, China

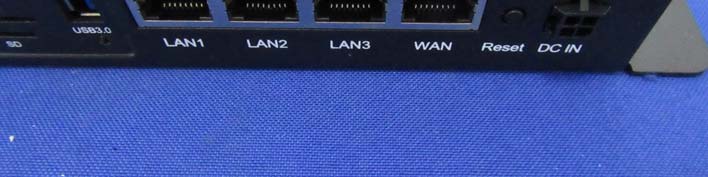

External Photos 2.4g Antenna 5g Antenna

Size:50*20mm FCC ID: 2AC47-WG259 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location

Internal Photos

Shenzhen BCTC Testing Co., Ltd. FCC ID: 2AC47-WG259 RF EXPOSURE EVALUATION 1. Introduction According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b), a device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitting antenna and the body of the user or nearby persons. In this context, the term “fixed location” means that the device is physically secured at one location and is not able to be easily moved to another location. Transmitting devices designed to be used by consumers or workers that can be easily re-located, such as wireless devices associated with a personal computer, are considered to be mobile devices if they meet the 20 cm separation requirement. The limits to be used for MPE evaluation are specified in §1.1310. All unlicensed personal communications service (PCS) devices and unlicensed NII devices shall be subject to the limits for general population/uncontrolled exposure. 2.RF Radiation Exposure Limits According to 47 CFR §1.1310, the criteria listed in below table shall be used to evaluate the environmental impact of human exposure to RF radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093. Notes: 1. f = frequency in MHz 2. Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided they are made aware of the potential for exposure. 3. General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Shenzhen BCTC Testing Co., Ltd. 3.MPE Assessment Method Calculations can be made to predict RF field strength and power density levels around typical RF sources. For example, in the case of a single radiating antenna, a prediction for power density in the far-field of the antenna can be made by use of the general Equations below. This equation is generally accurate in the far-field of an antenna but will over-predict power density in the near field, where they could be used for making a "worst case" or conservative prediction. Where S = Power Density, unit in mW/cm2 P = Power input to the antenna, unit in mW G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna, unit in cm EIRP = Effective isotropically radiated power 4. MPE Calculation for Standalone Operations Operation Frequency: 802.11a/b/g/n/ac: 2412-2462MHz, 5180-5240MHz, 5745-5825MHz Power density limited: 1mW/ cm 2 Antenna Type: External antenna Antenna gain: 5dBi R=20cm mW=10^(dBm/10) =3.1416 2.4g 802.11b/g/n: Modulation Max conducte d power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2) 802.11b18.8219±120.00100.003.160.062871 802.11g17.2617±118.0063.103.160.039671 ModulationANT Max conducte d power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Antenna Gain Numeric Density at R=20cm (mW/cm2) Total Power Density at R=20cm (mW/cm2) Power density Limits (mW/cm2) ANT A16.1716±117.0050.123.160.03151 ANT B16.0416±117.0050.123.160.03151 ANT A15.6515±116.0039.813.160.02503 ANT B15.3815±116.0039.813.160.02503 802.11n40 802.11n201 1 0.06302 0.05006 Shenzhen BCTC Testing Co., Ltd. 5g 802.11a/n/ac: Modulation Max conducte d power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2) 802.11a15.7316±117.0050.123.160.031511 ModulationANT Max conducte d power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Antenna Gain Numeric Density at R=20cm (mW/cm2) Total Power Density at R=20cm (mW/cm2) Power density Limits (mW/cm2) ANT A15.7116±117.0050.123.160.03151 ANT B15.6716±117.0050.123.160.03151 ANT A14.0714±115.0031.623.160.01988 ANT B13.4714±115.0031.623.160.01988 ANT A15.7216±117.0050.123.160.03151 ANT B15.6616±117.0050.123.160.03151 ANT A13.5414±115.0031.623.160.01988 ANT B13.3514±115.0031.623.160.01988 ANT A11.6912±113.0019.953.160.01254 ANT B11.7112±113.0019.953.160.01254 802.11ac20 802.11ac40 802.11ac80 0.063021 0.03976 0.02509 1 1 802.11n40 802.11n201 1 0.06302 0.03976 5.8g 802.11a/n/ac: Modulation Max conducte d power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2) 802.11a15.9716±117.0050.123.160.031511 ModulationANT Max conducte d power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Antenna Gain Numeric Density at R=20cm (mW/cm2) Total Power Density at R=20cm (mW/cm2) Power density Limits (mW/cm2) ANT A15.5116±117.0050.123.160.03151 ANT B15.5216±117.0050.123.160.03151 ANT A13.7913±114.0025.123.160.01579 ANT B13.0913±114.0025.123.160.01579 ANT A15.8216±117.0050.123.160.03151 ANT B15.7216±117.0050.123.160.03151 ANT A13.3313±114.0025.123.160.01579 ANT B13.2513±114.0025.123.160.01579 ANT A11.9512±113.0019.953.160.01254 ANT B11.7912±113.0019.953.160.01254 802.11ac20 802.11ac40 802.11ac80 0.063021 0.03159 0.02509 1 1 802.11n40 802.11n201 1 0.06302 0.03159 Conclusion: For the max result : 0.06302≤ 1.0, compliance with FCC's RF Exposure. …

Text truncated - open the document above for the full version.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004001108E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 1 of 109 FCC Part 15E Test Report FCC ID: 2AC47-WG259 Product Name: Wireless Router Trademark: N/A Model Name : WG259 WG108, WE1501, WE2416, WE2806, WD323, WE5928, WE5926-WD, WE2802D, WG1608, WG2508, WE1626, L1, L6, WG2302, ZBT-PG005WV-Z, ZBT-PG003WV-Z, OTT905, SAM-4G1G-TT-WW-xx, SAM-4F1F-TT-WW-xx（Where xx can be any character） Prepared For : SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. Address : Floor 4, Bldg. A2, Hedian Industrial Park, NO.9 Shijing Rd, Guanlan, Longhua District, Shenzhen, China Prepared By : Shenzhen BCTC Testing Co., Ltd. Address : BCTC Building & 1-2F, East of B Building, Pengzhou Industrial, Fuyuan 1st Road, Qiaotou Community, Fuyong Street, Bao’an District, Shenzhen, China Test Date: Apr. 17, 2020 – Apr. 28, 2020 Date of Report : Apr. 29, 2020 Report No.: BCTC2004001108E Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004001108E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 2 of 109 TEST RESULT CERTIFICATION Applicant’s name ................. : SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. Address ................................. : Floor 4, Bldg. A2, Hedian Industrial Park, NO.9 Shijing Rd, Guanlan, Longhua District, Shenzhen, China Manufacture's Name ............ : SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. Address ................................. : Floor 4, Bldg. A2, Hedian Industrial Park, NO.9 Shijing Rd, Guanlan, Longhua District, Shenzhen, China Product description Product name ........................... : Wireless Router Trademark ................................. : N/A Model and/or type reference : WG259 WG108, WE1501, WE2416, WE2806, WD323, WE5928, WE5926-WD, WE2802D, WG1608, WG2508, WE1626, L1, L6, WG2302, ZBT-PG005WV-Z, ZBT-PG003WV-Z, OTT905, SAM-4G1G-TT-WW-xx, SAM-4F1F-TT-WW-xx（Where xx can be any character） Standards ............................. : FCC Part15 15.407 ANSI C63.10-2013 KDB 662911 D01 v02r01 KDB 789033 D02 v02r01 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Prepared by(Engineer): Cai Fang Zhong Reviewer(Supervisor): Eric Yang Approved(Manager): Zero Zhou Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004001108E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 3 of 109 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 2 . GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 DESCRIPTION OF TEST MODES 10 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 3.1.2 TEST PROCEDURE 15 3.1.3 DEVIATION FROM TEST STANDARD 15 3.1.4 TEST SETUP 15 3.1.5 EUT OPERATING CONDITIONS 15 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 16 3.2.1 APPLICABLE STANDARD 16 3.2.2 CONFORMANCE LIMIT 16 3.2.3 MEASURING INSTRUMENTS 16 3.2.4 TEST CONFIGURATION 17 3.2.5 TEST PROCEDURE 18 3.2.6 TEST RESULTS (9KHZ – 30 MHZ) 19 3.2.7 TEST RESULTS (30MHZ – 1GHZ) 20 3.2.8 TEST RESULTS (1GHZ-40GHZ) 22 4 . POWER SPECTRAL DENSITY TEST 34 4.1 APPLIED PROCEDURES / LIMIT 34 4.2 TEST PROCEDURE 35 4.3 DEVIATION FROM STANDARD 35 4.4 TEST SETUP 35 4.5 EUT OPERATION CONDITIONS 35 4.6 TEST RESULTS 36 5 . 26DB & 6DB & 99% EMISSION BANDWIDTH 50 5.1 APPLIED PROCEDURES / LIMIT 50 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004001108E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 4 of 109 Table of Contents Page 5.2 TEST PROCEDURE 50 5.3 EUT OPERATION CONDITIONS 51 5.4 TEST RESULTS 52 6 . MAXIMUM CONDUCTED OUTPUT POWER 65 6.1 PPLIED PROCEDURES / LIMIT 65 6.2 TEST PROCEDURE 65 6.3 DEVIATION FROM STANDARD 67 6.4 TEST SETUP 67 6.5 EUT OPERATION CONDITIONS 67 6.6 TEST RESULTS 68 7 . OUT OF BAND EMISSIONS 70 7.1 APPLICABLE STANDARD 70 7.2 TEST PROCEDURE 70 7.3 DEVIATION FROM STANDARD 70 7.4 TEST SETUP 70 7.5 EUT OPERATION CONDITIONS 71 7.6 TEST RESULTS 72 8.SPURIOUS RF CONDUCTED EMISSIONS 84 8.1CONFORMANCE LIMIT 84 8.2MEASURING INSTRUMENTS 84 8.3TEST SETUP 84 8.4TEST PROCEDURE 84 8.5TEST RESULTS 84 9. FREQUENCY STABILITY MEASUREMENT 99 9.1 LIMIT 99 9.2 TEST PROCEDURES 99 9.3 TEST SETUP LAYOUT 99 9.4 EUT OPERATION DURING TEST 99 9.5 TEST RESULTS 100 10. ANTENNA REQUIREMENT 106 10.1 STANDARD REQUIREMENT 106 10.2 EUT ANTENNA 106 11. EUT TEST PHOTO 107 12. EUT PHOTO 108 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004001108E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 5 of 109 Revision History Report No. Version Description Issued Date BCTC2004001108E Rev.01 Initial issue of report Apr. 29, 2020 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004001108E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 6 of 109 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.407) , Subpart E Standard Section Test Item Judgment Remark 15.209(a), 15.407 (b)(1) 15.407 (b)(4) 15.407 (b)(6) Spurious Radiated Emissions PASS 15.207 Conducted Emission N/A 15.407 (a)(5) 15.1049 26 dB and 99% Emission Bandwidth PASS 15.407(e) Minimum 6 dB bandwidth PASS 15.407 (a)(1) 15.407 (a)(3) Maximum Conducted Output Power PASS 2.1051, 15.407(b)(1) 15.407(b)(4) Band Edge PASS 15.407 (a)(1) 15.407 (a)(3) Power Spectral Density PASS 2.1051, 15.407(b) Spurious Emissions at Anten…

Text truncated - open the document above for the full version.

Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004001108E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 78 of 109 Antenna A: 5745-58250MHz 5.8G 5.745~5.825 GHz (802.11a) Band Edge, Left Side (802.11a) Band Edge, Right Side Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004001108E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 79 of 109 (802.11 n20) Band Edge, Left Side (802.11n20) Band Edge, Right Side Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004001108E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 80 of 109 5.745~5.825 GHz (802.11n40) Band Edge, Left Side (802.11n40) Band Edge, Right Side Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004001108E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 81 of 109 5.745~5.825 GHz (802.11ac20) Band Edge, Left Side (802.11 ac20) Band Edge, Right Side Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004001108E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 82 of 109 5.745~5.825 GHz (802.11ac40) Band Edge, Left Side (802.11ac40) Band Edge, Right Side Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004001108E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 83 of 109 5.745~5.825 GHz (802.11ac80) Band Edge, Left Side (802.11ac80) Band Edge, Right Side Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004001108E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 84 of 109 8.SPURIOUS RF CONDUCTED EMISSIONS 8.1CONFORMANCE LIMIT Undesirable emission limits. Except as shown in paragraph (b)(7) of this section, the maximum emissions outside of the frequency bands of operation shall be attenuated in accordance with the following limits: (1) For transmitters operating in the 5.15-5.25 GHz band: All emissions outside of the 5.15-5.35 GHz band shall not exceed an e.i.r.p. of −27 dBm/MHz. (2) For transmitters operating in the 5.725-5.85 GHz band(i) All emissions shall be limited to a level of −27 dBm/MHz at 75 MHz or more above or below the band edge increasing linearly to 10 dBm/MHz at 25 MHz above or below the band edge, and from 25 MHz above or below the band edge increasing linearly to a level of 15.6 dBm/MHz at 5 MHz above or below the band edge, and from 5 MHz above or below the band edge increasing linearly to a level of 27 dBm/MHz at the band edge. . 8.2MEASURING INSTRUMENTS The Measuring equipment is listed in the section 6.3 of this test report. 8.3TEST SETUP Please refer to Section 6.1 of this test report. 8.4TEST PROCEDURE 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. Position the EUT without connection to measurement instrument. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set it to any one measured frequency within its operating range, and make sure the instrument is operated in its linear range. 3. Set RBW of spectrum analyzer to 1 MHz with a convenient frequency span. 4. Measure the highest amplitude appearing on spectral display and set it as a reference level. Plot the graph with marking the highest point and edge frequency. 5. Repeat above procedures until all measured frequencies were complete . 8.5TEST RESULTS Remark: The measurement frequency range is from 9KHz to the 10th harmonic of the fundamental frequency. The lowest, middle and highest channels are tested to verify the spurious emissions and bandege measurement data. About:26.5GHz-40GHz, The amplitude of spurious emissions which are attenuated by more than 20dB below the permissible value has no need to be reported. Note: A(B) Represent the value of antenna A and B, The worst data is Antenna A ,only shown Antenna A Plot. Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004001108E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 85 of 109 5.2G 802.11a on channel 36 802.11a on channel 40 802.11a on channel 36 802.11a on channel 40 802.11a on channel 36 802.11a on channel 40 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004001108E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 86 of 109 Test Plot 802.11a on channel 48 802.11n20 on channel 36 802.11a on channel 48 802.11n20 on channel 36 802.11a on channel 48 802.11n20 on channel 36 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004001108E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 87 of 109 Test Plot 802.11n20 on channel 40 802.11n20 on channel 48 802.11n20 on channel 40 802.11n20 on channel 48 802.11n20 on channel 40 802.11n20 on channel 48 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004001108E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 88 of 109 Test Plot 802.11n40 on channel 38 802.11n40 on channel 46 802.11n40 on channel 38 802.11n40 on channel 46 802.11n40 on channel 38 802.11n40 on channel 46 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004001108E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 89 of 109 Test Plot 802.11ac20 on channel 36 802.11ac20 on channel 40 802.11ac20 on channel 36 802.11ac20 on channel 40 802.11ac20 on channel 36 802.11ac20 on channel 40 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004001108E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 90 of 109 Test Plot 802.11ac20 on channel 48 802.11ac40 on channel 38 802.11ac20 on channel 48 802.11ac40 on channel 38 802.11ac20 on channel 48 802.11ac40 on channel 38 Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2004001108E Test Report Tel: 400-788-9558 Web: https://www.bctc-lab.com BCTC/RF-EMC-007 Ver.：A.0 Page 91 of 109 Test Plot 802.11ac40 on…

Text truncated - open the document above for the full version.

Shenzhen BCTC Testing Co., Ltd. Radiated Measurement Photos
