2AC47-Z8105AX5G Wifi Router

2025-12-4 SHENZHENZHIBOTONGELECTRONICCO.,LTD Z8105AX HardwareTechnicalSpecification 1. ProductOverview Z8105AXis a highlyintegratedandhigh-performancewirelesscommunicationmotherboard designedbasedon theMediaTekFilogic830platform.It integratesWi-Fi6 dual-band wirelessaccess,gigabitwiredswitching,anda wealthof expansioninterfaces.It is specifically designedforadvancedapplicationsthatrequirehigh-speed,stable,andscalablenetwork connections.It is an idealcoremoduleforbuildingnext-generationenterprise-levelwireless routers,intelligentIoTgateways,industrialwirelessAPs,andintegratedcommunication devices. 2.CoreFunctionalFeatures High-performance network processing: Equipped with MediaTek MT7981 (Filogic 830) dual-core processor, providing powerful capabilities for network data packet processing and routing forwarding. Wi-Fi 6 dual-band concurrent: Integrated with MT7976C chip, supporting 2.4GHz & 5GHz dual-band 802.11ax (Wi-Fi 6) standards, offering high-speed and low-latency wireless connections. Full gigabit wired network: Built-in 5-port gigabit Ethernet switch chip (MT7531AE), providing 1 WAN port + 4 LAN ports for flexible configuration. High-speed peripheral interfaces: Through USB 3.0 Hub, provides a USB 3.0 Type-A interface, facilitating connection of external storage or peripherals. Complete development support: Reserved standard debugging interfaces (such as UART, JTAG) and multiple GPIOs, facilitating product development, testing, and integration of customized functions. 3.ProductPhotograph 4.HardwareSpecifications CategoryProjectSpecification masterchip SystemSoC MediaTekMT7981(Filogic830) ， Dual-coreARMCortex-A53 Wi-FiChip MediaTekMT7976C ， Support2x2MU-MIMOWi-Fi6 (802.11ax) WCX MediaTekMT7531AE ， 5-portGigabitEthernetswitch Radio characteristics WLANSTANDARDIEEE802.11a/b/g/n/ac/ax(Wi-Fi6) Frequency Dual-bandconcurrentoperation:2.4GHz(802.11b/g/n/ax)& 5GHz(802.11a/n/ac/ax) ANT Supportmultipleantennas ： 2.4GHzx2,5GHzx2 WiredNetworkEthernetport 5 个 10/100/1000MbpsAdaptiveRJ45Port(1WAN+4LAN) Expansion Capability Expansionslotsand connectors M.2Slot(x2),MiniPCIeSlot(x2)(basedonthePCIebus) CategoryProjectSpecification Cellularnetwork support(optional) Supports5G/4Gmodulesthroughexpansionslots,with on-boarddualSIMcardslots(SIM+eSIM) USBportOneUSB3.0Type-Ahostport(viaUSBHub) On-board resources MemoryOn-boardDDR4memory,1GB(16-bitbus) StorageOn-boardSPIFlashisusedforstoringfirmware Clock40MHzsystemmaincrystaloscillator powersupply InputExternalpoweradapter:12V physicalinterfaceUserinterfaceResetbutton,LEDstatusindicatorlight Debuginterface UARTserialport,JTAGinterface,etc.(ledoutthroughpin headers) 5.Typicalapplicationscenarios 1.Enterprise-levelwirelessaccesspoints(aps)androuters:LeveragetheirpowerfulWi-Fi6 performanceandgigabitswitchingtobuildhigh-speedenterpriseintranets. 2.InternetofThingsintelligentgateway:Itconnects5G,LoRa,Zigbeeandothercommunication modulesthroughrichexpansionslots(M.2/MiniPCIe)toachievemulti-protocoldataaggregationand forwarding. 3.Industrialwirelesscommunicationequipment:Wide-temperaturedesign(ifsupported)andstable andreliablearchitecture,suitableforindustrialautomation,remotemonitoringandotherscenarios. 4.ConvergedcommunicationCPEequipment:ByintegratingWi-Fi,GigabitEthernetand5G expansioncapabilities,itprovidesuserswithanintegratedbroadbandaccesssolution. 6.OrderingInformation Product model CoredescriptionRemarks Z8105AX MediaTekMT7981+MT7976Cdual-band Wi-Fi6-coreboard Standardconfiguration,includingall on-boardfunctions 7. DeclarationandSupport This productspecificationsheet is for referenceonly. The hardwaredesignmay be continuously optimizedwithoutfurthernotice.The productimagesmay slightlydiffer from the actual items. Please refer to the actual items. For detailedschematicdiagrams,PCB layoutdiagrams,BOM lists, softwaredevelopmentkits (SDKS),or technicalsupport,pleasecontactour sales or technicalteam. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. p 1 / 2 63_Compliance proof covered list- 2.911 ( d ) ( 5 ) ( i ) and ( ii ) - software_V02 12/31/2025 --- Covered List Software Incapability 1 --- Device (model name): Grantee: FCC ID Z8105AX-M2-T,Z8113AX-B,Z8105AX-M2-H,Z8105AX-M2-C, Z8106AX-M2-T,Z8106AX-M2-H,Z8106AX-M2-S,ODU5001, ODU5201,WE2815,CPE5001,CPE2001,CPE7702,CPE2801, Z8802BE-T,Z8803BE-S,Z8803BE-T,Z8806BE-S,Z8806BE-T, Z8806BE-DS,Z8806BE-DS-T SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. :2AC47-Z8105AX Device features: Operating System (as applicable):NA Storage Capacity (hard drive or other permanent memory storage): N/A Is installation of third-party software possible? YESNO Does the device have an internet connection? YESNO Can the device connect to a PC? YESNO Chipset/module information: Chipset / module part number:Memory size (MB) N/AN/A Minimum system requirements Kaspersky as of December 3, 2024 AndroidMemory: 120 MBDisc space: unknownProcessor speed: unknown MacOSMemory: 2000 MBDisc space: 2200 MHzProcessor speed: unknown WindowsMemory: 1000 MBDisc space: 1000 MBProcessor speed: 1 GHz LinuxMemory: 1000 MBDisc space: 1000 MHzProcessor speed: 1 GHz Based on the review of the above factsheet(s) and device features, the device cannot support installation of any cybersecurity or anti-virus software on the covered list. potentially can operate with any cybersecurity or anti-virus software on the covered list – additional 3 rd party proof is provided to demonstrate compliance with requirements as of 2.911(d)5(i),(ii) – page 2 of this document applies. Signature: 1 List of minimum requirements to implement covered list software – if the EUT does not have capability to install Kaspersky under the given configuration. Page 2 must also be handed in. Note: If the device is capable of running Kaspersky software, at least one document must be provided from a third party showing that the Kaspersky software is not present on the device. This could include the results of a software scan, a screen capture of the device software register or other o bjective evidence that proves the Kaspersky software is not on the device. Please follow options listed on page 2. MT7981 NA SHENZHENZHIBOTONGELECTRONICSCO.,LTD. p 2 / 2 6 3 _ C o m p l i a n c e p r o o f c o v e r e d l i s t - 2 . 9 1 1 ( d ) ( 5 ) ( i ) a n d ( i i ) - s o f t w a r e _ V 0 2 Name: BENSONMA Title/Position: Manager -Optionstoprovideofcompliancewithcoveredlistsoftwarerequirements- Pleasefillinasapplicableandprovideadditionalproofasrequested: 1Hastheclientsignedanattestationstatingthedeviceis incapableofrunningtheKasperskysoftware(page1)? *YES–nomoreproofneeded–2-5donotapply>N/A **NO–moreproofmustbeprovided(item2-5mustbe answered) YES*NO** 2Didthetestlaborother3rdpartyotherthanthe certificationbodyandapplicantprovidealistofsoftware installedonthedeviceandistherenoevidenceof Kasperskysoftwarebeinginstalled? ***YES–please: YES***NON/A InsertFileName: Insert3 rd PartyName: 3Havetheresultsofasoftwarescanbeenprovided showingthatKasperskysoftwareisnotinstalledonthe device? ***YES–please: YES***NON/A InsertFileName: Insert3 rd PartyName: 4HasanyotherobjectiveevidencethatKasperskysoftware isnotinstalledonthedevicebeenprovided? ***YES–please: YES***NON/A InsertFileName: Insert3 rd PartyName: 5Hasatleastoneoftheaboveitemsbeenshownasa YES? ****NO–applicantfailedtoprovidesufficientproof– applicationfilingisrejected. YESNO**** Note: Filescontainingconfidentialoperationaldetailscanbekeptlong-termconfidentialonapplicant’srequest.

SHE NZ HE N ZHI BOTONG ELECT RO NI CS CO .,LTD. 2025/12/31 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for 2AC47-Z8105AX [ SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. ] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, Name: BENSON MA SHE NZ HE N ZHI BOTONG ELECT RO NI CS CO .,LTD. 2025/12/31 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for 2AC47-Z8105AX [ SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. ] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Name: BENSON MA

Declaration on model difference We the undersigned hereby confirm that any of o The following models of units we produce are identical in electrical, mechanical and physical structure; Only the model is different and appearance, the motherboard and the circuit are the same. Production name Trade name Model no. 5G Wifi Router N/A Z8105AX-M2-T(The appearance difference is a black metal case and a white plastic one.) Z8113AX-B,Z8105AX-M2-H,Z8105AX-M2-C,Z8106AX- M2-T,Z8106AX-M2-H,Z8106AX-M2- S,ODU5001,ODU5201,WE2815,CPE5001,CPE2001, CPE7702,CPE2801,Z8802BE-T,Z8803BE-S,Z8803BE-T, Z8806BE-S,Z8806BE-T,Z8806BE-DS,Z8806BE-DS-T (Only the model name is different from the black iron case) Signature: Date: 2025/12/31 Name: BENSON MA Title: Manager Company: SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD.

SHENZHEN ZHIB OTONG ELECTRONIC S CO.,LTD. 2025/12/31 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR Product Name: 5G Wifi Router FCCID: 2AC47-Z8105AX Model(s): Z8105AX-M2-T,Z8113AX-B,Z8105AX-M2-H,Z8105AX-M2-C,Z8106AX-M2- T,Z8106AX-M2-H,Z8106AX-M2-S,ODU5001,ODU5201,WE2815,CPE5001,CPE2001, CPE7702,CPE2801,Z8802BE-T,Z8803BE-S,Z8803BE-T,Z8806BE-S,Z8806BE-T, Z8806BE-DS,Z8806BE-DS-T To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Bloc k Diagr am - Sche matics - Ope rationa l Descript ion -FC C NII Software Secu rity Info requi red to be subm itted with thi s appl ication be pe rmane nt ly withhe ld from publ ic revi ew. The above materials cont ain trade secrets and pr opr ietary inf or mation not cus tom arily released to the publ ic. The publ ic di sclos ur e of the se materials may be ha rmful to the appl icant and pr ovi de unj us tified be ne fits to its com pe titor s. Please cont act me if the re is any inf or mation you may ne ed. Sinc erely, Client’s signature: Client’s name / title : BENSON MA/ Manager Contact information / address: SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. /Floor 4, Bldg. A2, Hedian Industrial Park, NO.9 Shijing Rd, Guanlan, Longhua District, Shenzhen, China

SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. 2025/11/24 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION Product Name: 5G Wifi Router FCCID: 2AC47-Z8105AX Model(s): Z8105AX-M2-T,Z8113AX-B,Z8105AX-M2-H,Z8105AX-M2-C,Z8106AX-M2- T,Z8106AX-M2-H,Z8106AX-M2-S,ODU5001,ODU5201,WE2815,CPE5001,CPE2001, CPE7702,CPE2801,Z8802BE-T,Z8803BE-S,Z8803BE-T,Z8806BE-S,Z8806BE-T, Z8806BE-DS To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen STS Test Services Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : BENSON MA/ Manager Contact information / address: SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. /Floor 4, Bldg. A2, Hedian Industrial Park, NO.9 Shijing Rd, Guanlan, Longhua District, Shenzhen, China

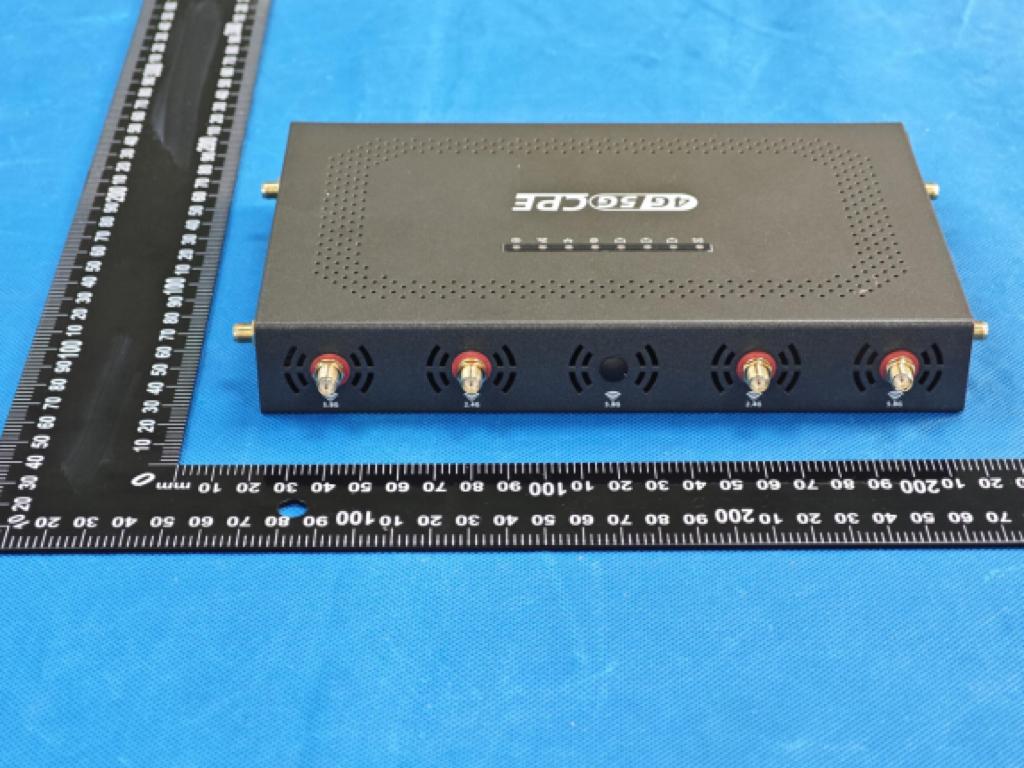

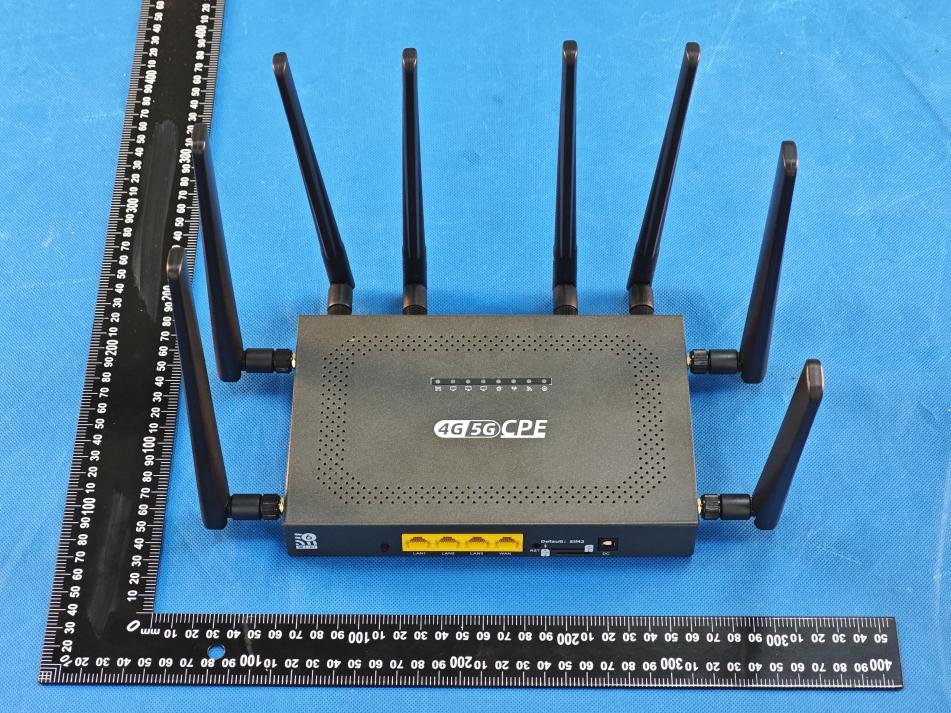

External Photos black metal shell: 2.4GWIFI 5.8GWIFI 5.8GWIFI Decorative anten na Decorative anten na white plastic shell:

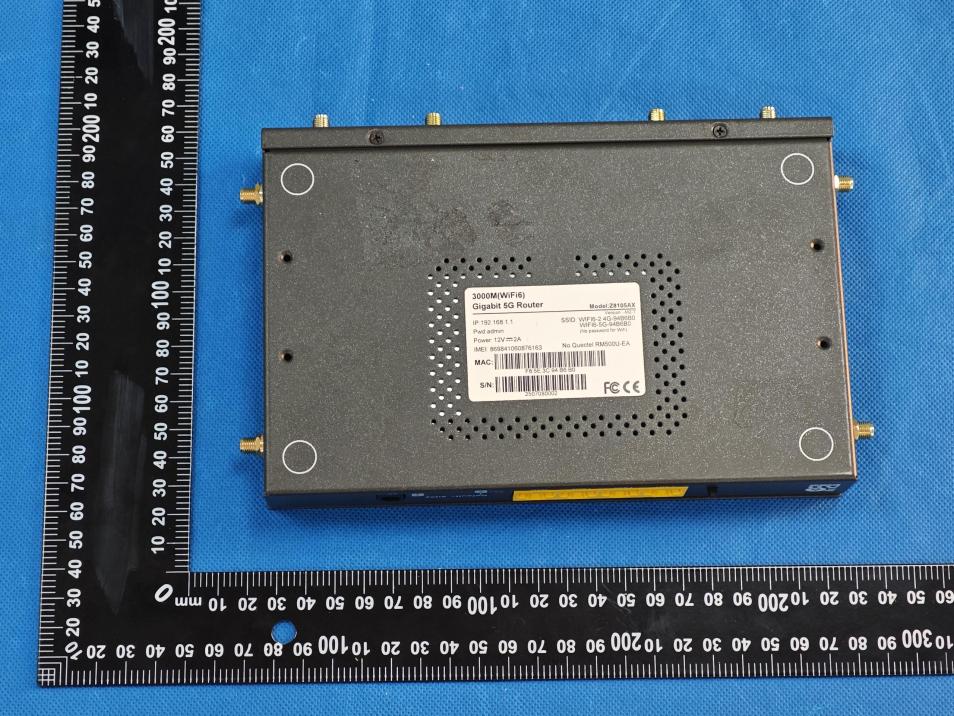

Size:60mm*40mm FCC ID: 2AC47-Z8105AX Size:44mm*44mm FCC ID: 2AC47-Z8105AX Label location Label location

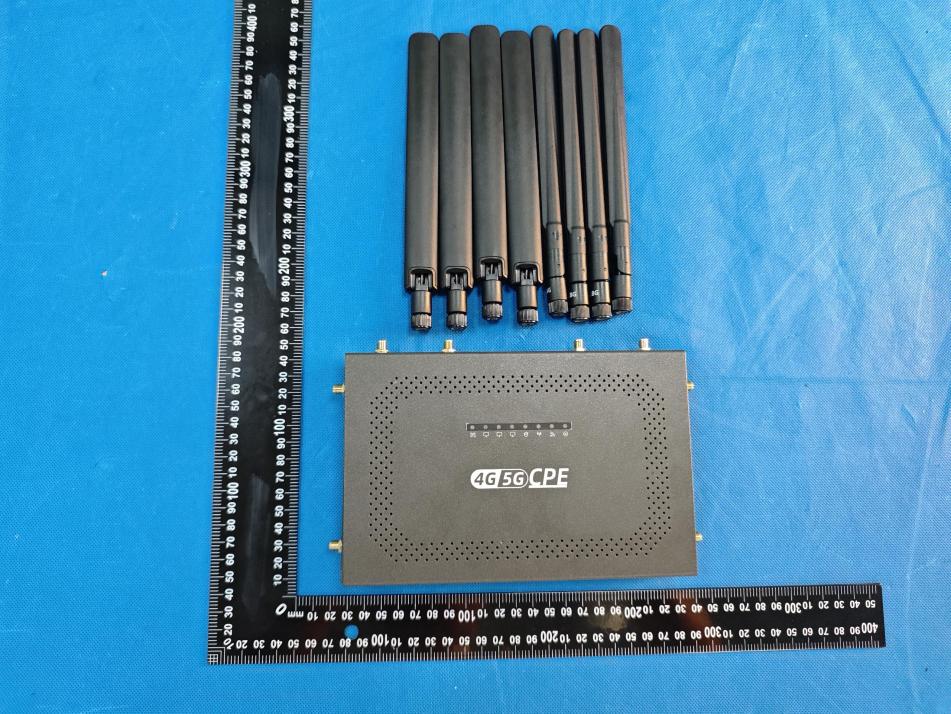

Internal Photos black metal shell: white plastic shell: 2.4GWIFI 2.4GWIFI 5.8GWIFI 5.8GWIFI

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. MPE Report Report No.:STS2512528H01 Issued for SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. Floor 4, Bldg. A2, Hedian Industrial Park, NO.9 Shijing Rd, Guanlan, Longhua District, Shenzhen, China Product Name: 5G Wifi Router Brand Name: N/A Model Name: Z8105AX-M2-T Series Model(s): Z8113AX-B,Z8105AX-M2-H,Z8105AX-M2- C,Z8106AX-M2-T,Z8106AX-M2-H,Z8106A X-M2-S,ODU5001,ODU5201,WE2815,CP E5001,CPE2001,CPE7702,CPE2801,Z880 2BE-T,Z8803BE-S,Z8803BE-T,Z8806BE-S ,Z8806BE-T,Z8806BE-DS,Z8806BE-DS-T FCC ID: 2AC47-Z8105AX Test Standard: FCC 47CFR §2.1091 Page 2 of 7 Report No.: STS2512528H01 TEST REPORT Applicant’s Name ................. : SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. Address ................................. : Floor 4, Bldg. A2, Hedian Industrial Park, NO.9 Shijing Rd, Guanlan, Longhua District, Shenzhen, China Manufacturer's Name ........... : SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. Address ................................. : Floor 4, Bldg. A2, Hedian Industrial Park, NO.9 Shijing Rd, Guanlan, Longhua District, Shenzhen, China Product Description Product Name ........................ : 5G Wifi Router Brand Name ........................... : N/A Model Name .......................... : Z8105AX-M2-T Series Model(s) ...................... : Z8113AX-B,Z8105AX-M2-H,Z8105AX-M2-C,Z8106AX-M2-T, Z8106AX-M2-H,Z8106AX-M2-S,ODU5001,ODU5201,WE2815, CPE5001,CPE2001,CPE7702,CPE2801,Z8802BE-T,Z8803BE-S, Z8803BE-T,Z8806BE-S,Z8806BE-T,Z8806BE-DS,Z8806BE-DS-T Test Standards ..................... : FCC 47CFR §2.1091 447498 D01 Interim General RF Exposure Guidance v06 The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the ShenZhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ...................... : 2025-12-15 Date (s) of performance of tests ........................................................ : 2025-12-15 to 2025-12-27 Date of Issue .......................................... : 2025-12-27 Test Result .............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 7 Report No.: STS2512528H01 TABLE OF CONTENTS 1. GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST FACTORY 6 2. FCC 47CFR §2.1091 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 7 Page 4 of 7 Report No.: STS2512528H01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 2025-12-27 STS2512528H01 ALL Initial Issue Page 5 of 7 Report No.: STS2512528H01 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name 5G Wifi Router Brand Name N/A Model Name Z8105AX-M2-T Series Model(s) Z8113AX-B,Z8105AX-M2-H,Z8105AX-M2-C,Z8106AX-M2-T, Z8106AX-M2-H,Z8106AX-M2-S,ODU5001,ODU5201,WE2815, CPE5001,CPE2001,CPE7702,CPE2801,Z8802BE-T,Z8803BE-S, Z8803BE-T,Z8806BE-S,Z8806BE-T,Z8806BE-DS,Z8806BE-DS-T Model Difference Only the model is different and appearance, the motherboard and the circuit are the same. Product Description The EUT is a 5G Wifi Router Operation Frequency: 802.11b/g/n/ax 20: 2412~2462 MHz 802.11n/ax40:2422~2452MHz Modulation Type: 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11ax(OFDM, OFDMA): BPSK,QPSK,16-QAM,64-QAM,256-QAM, 1024QAM Bit Rate of Transmitter: 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6Mbps 802.11n(20MHz): 65/58.5/52/39/26/19.5/13/6.5Mbps 802.11n(40MHz): 135/121.5/108/81/54/40.5/37/13.5Mbps 802.11ax(HE20): 135/65/58.5/52/39/26/19.5/13/6.5Mbps 802.11ax(HE40): 270/135/121.5/108/81/54/40.5/37/13.5Mbps Number of Channel: 802.11b/g/n/ax20: 11CH 802.11n/ax40: 7CH Antenna Type: External antenna*2 Antenna Gain (dBi): Antenna 1&2: 3.98dBi Operation Frequency: IEEE 802.11a/ n(HT20)/ac(VHT20)/ax(HE20): 5.745GHz-5.825GHz IEEE 802.11n(HT40)/ac(VHT40)/ax(HE20): 5.755GHz-5.795GHz IEEE 802.11ac(VHT80)/ax(HE80): 5.775GHz Modulation Type: 802.11a(OFDM): BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM): BPSK,QPSK,16-QAM,64-QAM 802.11ac(OFDM): BPSK,QPSK,16-QAM,64-QAM,256-QAM 802.11ax(OFDM, OFDMA): BPSK,QPSK,16-QAM,64-QAM,256-QAM, 1024QAM Antenna Type: External antenna*2 Antenna Gain: Antenna 1&2: 3.98dBi Page 6 of 7 Report No.: STS2512528H01 Power Rating DC 12V Adapter N/A Battery N/A Hardware Version N/A Software Version N/A 1.2 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 2. FCC 47CFR §2.1091 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational…

Text truncated - open the document above for the full version.

Declaration of Application Information for Type Approval of Multi-Antenna Wireless Local Area Network Equipment Radio Transmission Equipment Type Approval Application Information Enterprise Name SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. Equipment Model Z8105AX Equipment Type 5G Wireless Data Terminal Supported Technical Standards 1 IEEE802.11a/b/g/n/ac Maximum Antenna Gain ² 2 2.4GHz Antenna 1：3.98dBi、Antenna 2：3.98dBi、 5.8GHz Antenna 1：3.98dBi、Antenna 2：3.98dBi、 Antenna Radiation Pattern ³ 2.4GHz Antenna 1： 2.4GHz Antenna 2： 5.8 GHz Antenna 1： 5.8GHz Antenna 2： Notes ¹: Please list the specific technical standards supported by the equipment, such as 802.11b/g/n/ac/ax, etc. ²: For multi-antenna equipment, the maximum gain of all antennas shall be listed. ³: The provided antenna radiation pattern shall reflect the declared maximum antenna gain.

The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Radio Test Report Report No.:STS2512528W01 Issued for SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. Floor 4, Bldg. A2, Hedian Industrial Park, NO.9 Shijing Rd, Guanlan, Longhua District, Shenzhen, China Product Name: 5G Wifi Router Brand Name: N/A Model Name: Z8105AX-M2-T Series Model(s): Z8113AX-B,Z8105AX-M2-H,Z8105AX-M2 -C,Z8106AX-M2-T,Z8106AX-M2-H,Z8106 AX-M2-S,ODU5001,ODU5201,WE2815,C PE5001,CPE2001,CPE7702,CPE2801,Z 8802BE-T,Z8803BE-S,Z8803BE-T,Z8806 BE-S,Z8806BE-T,Z8806BE-DS,Z8806BE- DS-T FCC ID: 2AC47-Z8105AX Test Standards: FCC Part15.247 Page 2 of 163 Report No.:STS2512528W01 TEST REPORT Applicant’s Name ................. : SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. Address ................................. : Floor 4, Bldg. A2, Hedian Industrial Park, NO.9 Shijing Rd, Guanlan, Longhua District, Shenzhen, China Manufacturer's Name ........... : SHENZHEN ZHIBOTONG ELECTRONICS CO.,LTD. Address ................................. : Floor 4, Bldg. A2, Hedian Industrial Park, NO.9 Shijing Rd, Guanlan, Longhua District, Shenzhen, China Product Description Product Name ........................ : 5G Wifi Router Brand Name ........................... : N/A Model Name .......................... : Z8105AX-M2-T Series Model(s) .................... : Z8113AX-B,Z8105AX-M2-H,Z8105AX-M2-C,Z8106AX-M2-T,Z 8106AX-M2-H,Z8106AX-M2-S,ODU5001,ODU5201,WE2815, CPE5001,CPE2001,CPE7702,CPE2801,Z8802BE-T,Z8803B E-S,Z8803BE-T,Z8806BE-S,Z8806BE-T,Z8806BE-DS,Z8806 BE-DS-T Standards ............................. : FCC Part 15.247 Test Procedure........................: ANSI C63.10-2020 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the Shenzhen STS Test Services Co., Ltd. Date of Test ........................................... : Date of receipt of test item ...................... : 2025-12-15 Date (s) of performance of tests ............. : 2025-12-15 to 2025-12-27 Date of Issue .......................................... : 2025-12-27 Test Result .............................................. : Pass Testing Engineer : (Aaron Bu) Technical Manager : (Skylar Li) Authorized Signatory : (Bovey Yang) Page 3 of 163 Report No.:STS2512528W01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 TEST SOFTWARE AND POWER LEVEL 11 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 13 3. EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.2 RADIATED EMISSION MEASUREMENT 20 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 38 4.1 LIMIT 38 4.2 TEST PROCEDURE 38 4.3 DEVIATION FROM STANDARD 38 4.4 TEST SETUP 38 4.5 EUT OPERATION CONDITIONS 38 4.6 TEST RESULTS 38 5. POWER SPECTRAL DENSITY TEST 39 5.1 LIMIT 39 5.2 TEST PROCEDURE 39 5.3 DEVIATION FROM STANDARD 39 5.4 TEST SETUP 39 5.5 EUT OPERATION CONDITIONS 39 5.6 TEST RESULTS 39 6. BANDWIDTH TEST 40 6.1 LIMIT 40 Page 4 of 163 Report No.:STS2512528W01 Table of Contents Page 6.2 TEST PROCEDURE 40 6.3 DEVIATION FROM STANDARD 40 6.4 TEST SETUP 40 6.5 EUT OPERATION CONDITIONS 40 6.6 TEST RESULTS 40 7. PEAK OUTPUT POWER TEST 41 7.1 LIMIT 41 7.2 TEST PROCEDURE 41 7.3 DEVIATION FROM STANDARD 42 7.4 TEST SETUP 42 7.5 EUT OPERATION CONDITIONS 42 7.6 TEST RESULTS 42 8. ANTENNA REQUIREMENT 43 8.1 STANDARD REQUIREMENT 43 8.2 EUT ANTENNA 43 APPENDIX 1-TEST DATA 44 MAXIMUM CONDUCTED OUTPUT POWER 63 -6DB BANDWIDTH 64 MAXIMUM POWER SPECTRAL DENSITY LEVEL 83 BAND EDGE 102 CONDUCTED RF SPURIOUS EMISSION 127 APPENDIX 2-PHOTOS OF TEST SETUP 163 Page 5 of 163 Report No.:STS2512528W01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 2025-12-27 STS2512528W01 ALL Initial Issue Page 6 of 163 Report No.:STS2512528W01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247 (a)(2) 6dB Bandwidth PASS -- 15.247 (b)(3) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247 (d) Conducted Spurious & Band Edge Emission PASS -- 15.247 (e) Power Spectral Density PASS -- 15.205 Restricted Band Edge Emission PASS -- Part 15.247(d)/ part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020. Page 7 of 163 Report No.:STS2512528W01 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : 101, Building B, Zhuoke Science Park, No.190 Chongqing Road, ZhanChengShequ, Fuhai Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.751dB 2 Unwanted Emissions, conducted ±2.888dB 3 All emissions, radiated 9K-30MHz ±2.48dB 4 All emissions, radiated 30M-1GHz ±2.52dB 5 All emissions, radiated 1G-18GHz ±3.48dB 6 All emissions, radiated>18GHz ±4.18dB 7 Conducted Emission (9KHz-150KHz) ±2.48dB 8 Conducted Emission …

Text truncated - open the document above for the full version.

Page 73 of 163 Report No.:STS2512528W01 -6dB Bandwidth NVNT ax40 2437MHz Ant1 -6dB Bandwidth NVNT ax40 2452MHz Ant1 Page 74 of 163 Report No.:STS2512528W01 Test Graphs -6dB Bandwidth NVNT b 2412MHz Ant2 -6dB Bandwidth NVNT b 2437MHz Ant2 Page 75 of 163 Report No.:STS2512528W01 -6dB Bandwidth NVNT b 2462MHz Ant2 -6dB Bandwidth NVNT g 2412MHz Ant2 Page 76 of 163 Report No.:STS2512528W01 -6dB Bandwidth NVNT g 2437MHz Ant2 -6dB Bandwidth NVNT g 2462MHz Ant2 Page 77 of 163 Report No.:STS2512528W01 -6dB Bandwidth NVNT n20 2412MHz Ant2 -6dB Bandwidth NVNT n20 2437MHz Ant2 Page 78 of 163 Report No.:STS2512528W01 -6dB Bandwidth NVNT n20 2462MHz Ant2 -6dB Bandwidth NVNT n40 2422MHz Ant2 Page 79 of 163 Report No.:STS2512528W01 -6dB Bandwidth NVNT n40 2437MHz Ant2 -6dB Bandwidth NVNT n40 2452MHz Ant2 Page 80 of 163 Report No.:STS2512528W01 -6dB Bandwidth NVNT ax20 2412MHz Ant2 -6dB Bandwidth NVNT ax20 2437MHz Ant2 Page 81 of 163 Report No.:STS2512528W01 -6dB Bandwidth NVNT ax20 2462MHz Ant2 -6dB Bandwidth NVNT ax40 2422MHz Ant2 Page 82 of 163 Report No.:STS2512528W01 -6dB Bandwidth NVNT ax40 2437MHz Ant2 -6dB Bandwidth NVNT ax40 2452MHz Ant2 Page 83 of 163 Report No.:STS2512528W01 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Ant 1 Conducted PSD (dBm/3kHz) Ant 2 Conducted PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT b 2412 -7.76 -7.39 8 Pass NVNT b 2437 -8.22 -8.35 8 Pass NVNT b 2462 -8.59 -8.54 8 Pass NVNT g 2412 -13.91 -13.56 8 Pass NVNT g 2437 -14.15 -14.15 8 Pass NVNT g 2462 -13.53 -13.25 8 Pass NVNT n20 2412 -14.77 -13.59 8 Pass NVNT n20 2437 -14.04 -14.62 8 Pass NVNT n20 2462 -14.61 -14.16 8 Pass NVNT n40 2422 -17.75 -18.88 8 Pass NVNT n40 2437 -17.83 -18.2 8 Pass NVNT n40 2452 -17.96 -17.82 8 Pass NVNT ax20 2412 -15.52 -16.18 8 Pass NVNT ax20 2437 -15.94 -16.58 8 Pass NVNT ax20 2462 -15.46 -15.83 8 Pass NVNT ax40 2422 -19.9 -20.34 8 Pass NVNT ax40 2437 -20.34 -19.7 8 Pass NVNT ax40 2452 -19.82 -20.1 8 Pass Condition Mode Frequency (MHz) MIMO Conducted PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT n20 2412 -11.13 7.01 Pass NVNT n20 2437 -11.31 7.01 Pass NVNT n20 2462 -11.37 7.01 Pass NVNT n40 2422 -15.27 7.01 Pass NVNT n40 2437 -15.00 7.01 Pass NVNT n40 2452 -14.88 7.01 Pass NVNT ax20 2412 -12.83 7.01 Pass NVNT ax20 2437 -13.24 7.01 Pass NVNT ax20 2462 -12.63 7.01 Pass NVNT ax40 2422 -17.10 7.01 Pass NVNT ax40 2437 -17.00 7.01 Pass NVNT ax40 2452 -16.95 7.01 Pass Page 84 of 163 Report No.:STS2512528W01 Test Graphs PSD NVNT b 2412MHz Ant1 PSD NVNT b 2437MHz Ant1 Page 85 of 163 Report No.:STS2512528W01 PSD NVNT b 2462MHz Ant1 PSD NVNT g 2412MHz Ant1 Page 86 of 163 Report No.:STS2512528W01 PSD NVNT g 2437MHz Ant1 PSD NVNT g 2462MHz Ant1 Page 87 of 163 Report No.:STS2512528W01 PSD NVNT n20 2412MHz Ant1 PSD NVNT n20 2437MHz Ant1 Page 88 of 163 Report No.:STS2512528W01 PSD NVNT n20 2462MHz Ant1 PSD NVNT n40 2422MHz Ant1 Page 89 of 163 Report No.:STS2512528W01 PSD NVNT n40 2437MHz Ant1 PSD NVNT n40 2452MHz Ant1 Page 90 of 163 Report No.:STS2512528W01 PSD NVNT ax20 2412MHz Ant1 PSD NVNT ax20…
