2AC4C-AP430001RECRat Telemetry System

Worldwide Forsythe Technologies Worldwide Telemetry System Operating Manual P.818.710.8694 www.forsythetechnologies.com F.818.992.5185 2 *Read prior to implanting and operating your telemetry system * The System measures physiological parameters in laboratory animals and is used exclusively for medical research. It consists of a minimum of two transceiver devices, one implanted (pressure/temperature Transceiver) and one connected to a computer (Base Station Transceiver). The transceiver connected to the computer may communicate with multiple implant devices. In each System, the Base Station sends commands to the implanted device(s), which in turn measures the animal’s physiological parameters and stores the data in memory. When the computer is ready to receive the data, the Base Station sends an upload command to the implant and the implant sends the data. Typically, the command to instruct the implant on what to measure takes about 4.5 milliseconds and the data is uploaded in a few seconds. Both the implant and the Base Station device are in standby mode 99% of the time, with the Base Station device turning on its radio only when needed. Every few seconds the implant turns its receiver on for 4.5ms to listen for commands. P.818.710.8694 www.forsythetechnologies.com F.818.992.5185 3 System consists of following components – Please check your system and report any missing items. Transmitter/implants Receiver/Antenna Software USB Cable Transmitter – The pressure transducer is extremely sensitive! 1. Implant will be supplied with any of the following leads – Pressure catheter, Biopotential leads. 2. Temperature built into implant 3. Antenna – Short clear lead 4. Battery permanently built in into implant housing. Do attempt to remove. 5. Serial number located on outside of implant Receiver- 1. Small white case has a USB and Antenna connection located on both ends 2. Attached to the back of Antenna unit, can be removed (fastened with Velcro for easy removal) 3. USB cable supplied for computer connection 4. Receiver driver software - CD -When attaching or removing tips if the above instructions are not followed the internal load cell can or will become permanently damaged (bent) and will require repair and replacement. - Care and Handling – Extreme caution should be used when handling any implant. Pressure catheter has a small, glass tip which can be broken if mishandled rendering the implant unusable to measure pressure. P.818.710.8694 www.forsythetechnologies.com F.818.992.5185 4 DO NOT – Grab, pinch, squeeze, drop the glass enclosed pressure tip under any circumstances. This applies to surgery also. We recommend only handling the pressure lead approximately 1cm from glass/pressure catheter tip. SET UP – Unpack the system to assure all parts and items are intact and no damage in shipment has occurred. Report any errors in shipping or damage immediately upon inspections of goods. Connecting Receiver to computer - Plug supplied USB cable into the port located on your receiver and into an available USB port on your computer. Once connection has been made, Windows should recognize “a new device” window pops up. If Windows does not auto-install the driver – Point to driver which is located on the supplied software CD. Follow supplied Data Acquisition Software Manual and surgery protocol video and manuals supplied with your system to begin your experiment. RF Exposure – User must maintain a separation distance of 20cm between the device and the body at times when device is operational. P.818.710.8694 www.forsythetechnologies.com F.818.992.5185 5 FCC Notice (for U.S. Customers): This device complies with Part 15 of the FCC Rules: Operation is subject to the following conditions: 1. This device many not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation Changes and Modifications not expressly approved by Forsythe Technologies Ltd. can void your authority to operate this equipment under Federal Communications Commission’s rules. IC Notice: RSS-Gen Issue 3 – Required Notices to the User: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. IC Notice Antenna: Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. P.818.710.8694 www.forsythetechnologies.com F.818.992.5185 6 “These radio transmitters have been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance …

Text truncated - open the document above for the full version.

Forsyhe Technologies Worldwide 23924VictoryBlvd.WoodlandHills,CA.91367 LetterofAgency Date:August30,2014 RE:FCC10:2AC4C-AP430001REC ToWhomIt MayConcern: PleasebeadvisedthatThomasDelahanty,President,ForsytheTechnologiesWorldwideauthorizes LarryStillings,Presidentof ComplianceWorldwide,Inc.to actonourbehalf,untilotherwisenotified, forapplicationssubmittedforthepurposeof obtaininganFCCGrantof EquipmentAuthorization. Wecertifythatwearenotsubjectto denialof federalbenefitsthatincludesFCCbenefits,pursuantto Section5301of theAnti-DrugAbuseACTof 1988,U.S.C.862.Further,noparty,asdefinedin 47 CFR1.2002(b),to theapplicationis subjectto denialof federalbenefits,thatincludesFCCbenefits. Thankyouforyourattentionto thismatter. P. 805.573.6348 F.818.992.5185 www.forsythetechnologies.com

Forsyhe Technologies Worldwide 23924VictoryBlvd.WoodlandHills,CA.91367 Date:August,30,2014 FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationof FCCID:2AC4C-AP430001REC Pursuantto Sections0.457and0.459of theCommission'sRules,weherebyrequestconfidential treatmentof informationaccompanyingthisapplicationasoutlinedbelow: ExhibitType BlockDiagram Schematics OperationalDescription FileName 2AC4C-AP430001RECBlkDia.pdf 2AC4C-AP430001RECSchem.pdf 2AC4C-AP430001RECOpDes.pdf Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureof thesematerialsmaybeharmfulto theapplicantandprovide unjustifiedbenefitsto its competitors. Theapplicantunderstandsthatpursuantto Section0.457of theRules,disclosureof this applicationandallaccompanyingdocumentationwillnotbemadebeforethedateof theGrantfor thisapplication. Pursuantto DA04-1705June15,2004of theCommission'spublicnotice,wealsorequire temporaryconfidentialtreatmentof informationaccompanyingthisapplicationasoutlinedbelow: ExhibitType InternalPhotos FileName 2AC4C-AP430001RECIntPho.pdf Temporaryconfidentialityfrompublicdisclosureis importantforForsytheTechnologies Worldwide.Froma commercialperspective.It enablesthecompanyto completeits development andregulatoryeffortspriorto introducingtheproductto themarketplace.Releasinginformation ontheproductviatheFCCwebsitepriorto formalmarketintroductioncanbeconfusingto our customersandplacesthecompanyat a competitivedisadvantage. Sincerely, P. 805.573.6348 F.818.992.5185 www.forsythetechnologies.com

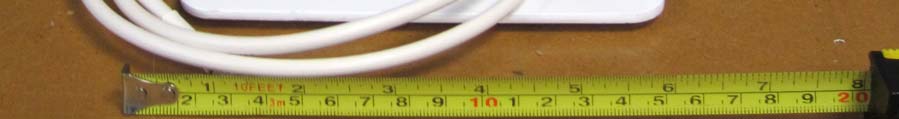

External photos – 2AC4C-AP430001REC and 12302A-AP430001REC Back Front Left Side Right Side Profile Profile Antenna Cable and Transmitter Antenna Front View Antenna Left Side View Antenna Rear View Antenna Right Side View

Stellar Telemetry Model # 43001-REC-01 FCC ID: 2AC4C-AP430001REC IC: 12302A-AP430001REC Made in USA

Internal Photos 2AC4C-AP430001REC and 12302A-AP430001REC Case Open Antenna Antenna Antenna Antenna Case Open Module Front Module Back

Test Number 386-14 Issue Date: 9/11/2014 Page 24 of 30 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com 7. Measurement Data (continued) 7.12. Public Exposure to Radio Frequency Energy Levels (15.247(i) (1.1307 (b)(1)) RSS-GEN 5.5, RSS 102) Requirement: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. Devices are subject to the radio frequency radiation exposure requirements specified in 47CFR 1.1307(b), FCC 47 CFR 2.1091 and 47 CFR 2.1093, as appropriate. All equipment shall be considered to operate in a ‘‘general population/uncontrolled’’ environment. Procedure: The power density is calculated from the peak field strength and device antenna gain: PD Power Density mW/cm 2 OP DUT Output Power dBm AG DUT Antenna Gain dBi d MPE Distance cm Conclusion: The device under test is meets radio frequency radiation exposure requirements specified in 47CFR 1.1307(b), § 2.1091 and § 2.1093. Power Density Power Density MPE Distance (cm) DUT Output Power (dBm) DUT Antenna Gain (dBi) (mW/cm2) (W/m2) Limit (mW/cm2) Freq. (1) (2) (3) (4) (5) Result 916.50 20.0 11.53 8.0 0.01785378 0.17853779 1 Compliant 1. Reference CFR 2.1093(b): For purposes of this section, a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. 2. Taken from column 2 of the table in section 7.4. 3. Data supplied by the client. 4. Power density is calculated using the above formula:. 5. Reference CFR 1.1310, Table 1: Limits for Maximum Permissible Exposure (MPE), Section (B): Limits for General Population/Uncontrolled Exposure. OP + AG (4 x π x d²) PD =

Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.complianceworldwide.com COMPLIANCE WORLDWIDE INC. TEST REPORT 386-14R1 In Accordance with the Requirements of FCC PART 15.247, SUBPART C INDUSTRY CANADA RSS 210, ISSUE 8 Low Power License-Exempt Radio Communication Devices Intentional Radiators Issued to Forsythe Technologies Worldwide 23924 Victory Blvd. Woodland Hills, CA 91367 (818) 710-8694 for the Rat Telemetry System Transceiver Base Station (Rodent Access Point) FCC ID: 2AC4C-AP430001REC IC: 12302A-AP430001REC Report Issued on September 17, 2014 Tested by This test report shall not be reproduced, except in full, without written permission from Compliance Worldwide, Inc. Test Number 386-14R1 Issue Date: 9/17/2014 Page 2 of 34 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com Table of Contents 1. Scope .................................................................................................................................. 3 2 .Product Details.................................................................................................................... 3 2.1 Manufacturer ............................................................................................................................ 3 2.3 Serial Number........................................................................................................................... 3 2.4 Description................................................................................................................................ 3 2.5 Power Source ........................................................................................................................... 3 2.6 Hardware Revision ................................................................................................................... 3 2.7 EMC Modifications.................................................................................................................... 3 3. Product Configuration ......................................................................................................... 3 3.1 Operational Characteristics & Software ................................................................................... 3 3.2 EUT Hardware.......................................................................................................................... 3 3.3 EUT Connected Hardware ....................................................................................................... 3 3.4 EUT Cables/Transducers ......................................................................................................... 3 3.5 Support Equipment................................................................................................................... 4 3.6 Block Diagram .......................................................................................................................... 4 4. Measurements Parameters.................................................................................................4 4.1 Measurement Equipment Used to Perform Test...................................................................... 4 4.2 Measurement & Equipment Setup ........................................................................................... 5 4.3 Measurement Procedures ........................................................................................................ 5 4.4 Duty Cycle ................................................................................................................................ 5 4.4 Measurement Uncertainty ........................................................................................................ 5 5. Choice of Equipment for Test Suits.....................................................................................6 5.1 Choice of Model........................................................................................................................ 6 5.2 Presentation ............................................................................................................................. 6 5.3 Choice of Operating Frequencies.............................................................................................6 5.4 Modes of Operation .................................................................................................................. 7 6. Measurement Summary......................................................................................................7 7. Measurement Data.............................................................................................................. 8 7.1 Antenna Requirement .............................................................................................................. 8 7.2 Minimum 6 dB Bandwidth......................................................................................................... 8 7.3 99% Bandwidth......................................................................................................................... 9 7.4 Maximum Peak Conducted Output Power ............................................................................. 10 7.5 Operation with directional antenna gains greater than 6 dBi ................................................. 11 7.6 Transmitter Spurious Radiated Emissions ............................................................................. 12 7.7 Unwanted Emissions into Non-Restricted Frequency Bands ............................................... 17 7.8 Harmonic Emissions in the Restricted Bands of Operation .................................................. 19 7.9 Band Edge Measurements.....................................................................................................20 7.10 Peak Power Spectral Density...............................................................................................22…

Text truncated - open the document above for the full version.

Test Number 386-14R1 Issue Date: 9/17/2014 Page 27 of 34 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com 8. Test Setup Photographs 8.1. Radiated Emissions - Front: Test Number 386-14R1 Issue Date: 9/17/2014 Page 28 of 34 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com 8. Test Setup Photographs 8.2. Radiated Emissions Rear - Below 30 MHz Test Number 386-14R1 Issue Date: 9/17/2014 Page 29 of 34 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com 8. Test Setup Photographs 8.3. Radiated Emissions Rear – 30 MHz to 1 GHz Test Number 386-14R1 Issue Date: 9/17/2014 Page 30 of 34 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com 8. Test Setup Photographs 8.4. Radiated Emissions Front - Above 1 GHz Test Number 386-14R1 Issue Date: 9/17/2014 Page 31 of 34 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com 8. Test Setup Photographs 8.5. Radiated Emissions Rear - Above 1 GHz Test Number 386-14R1 Issue Date: 9/17/2014 Page 32 of 34 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com 8. Test Setup Photographs 8.6. Conducted Emissions Front Test Number 386-14R1 Issue Date: 9/17/2014 Page 33 of 34 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com 8. Test Setup Photographs 8.6. Conducted Emissions Rear
