2AC67-9605EBT9605E Bluetooth Headset

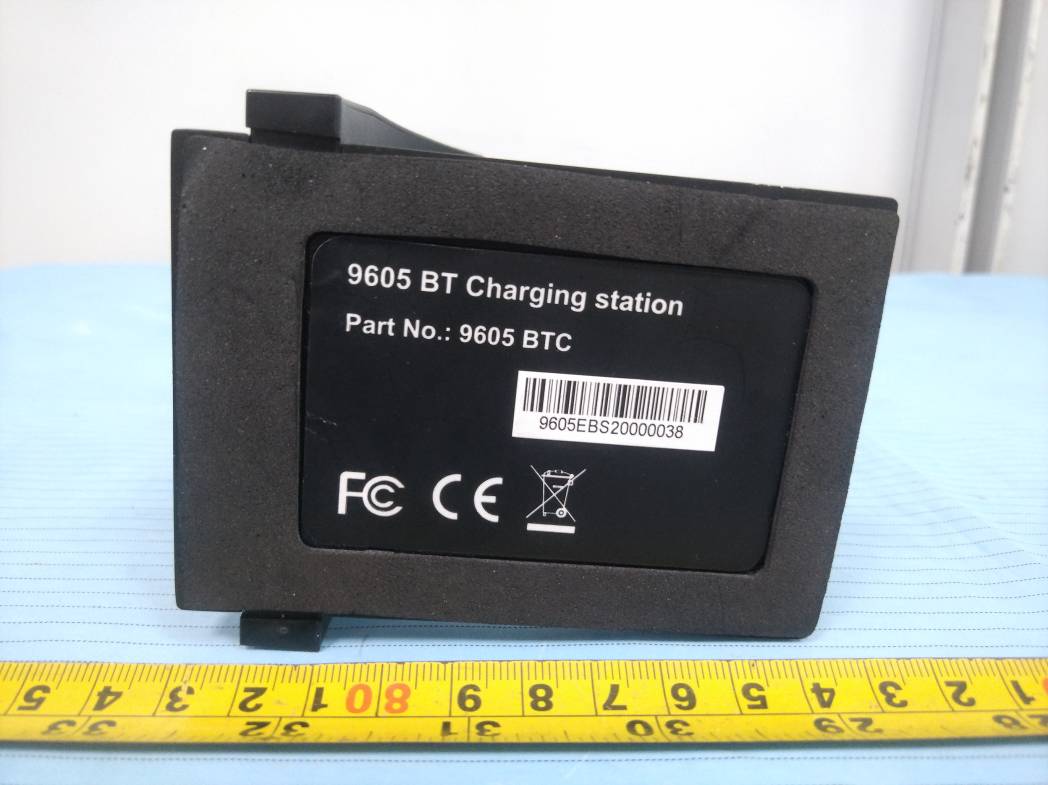

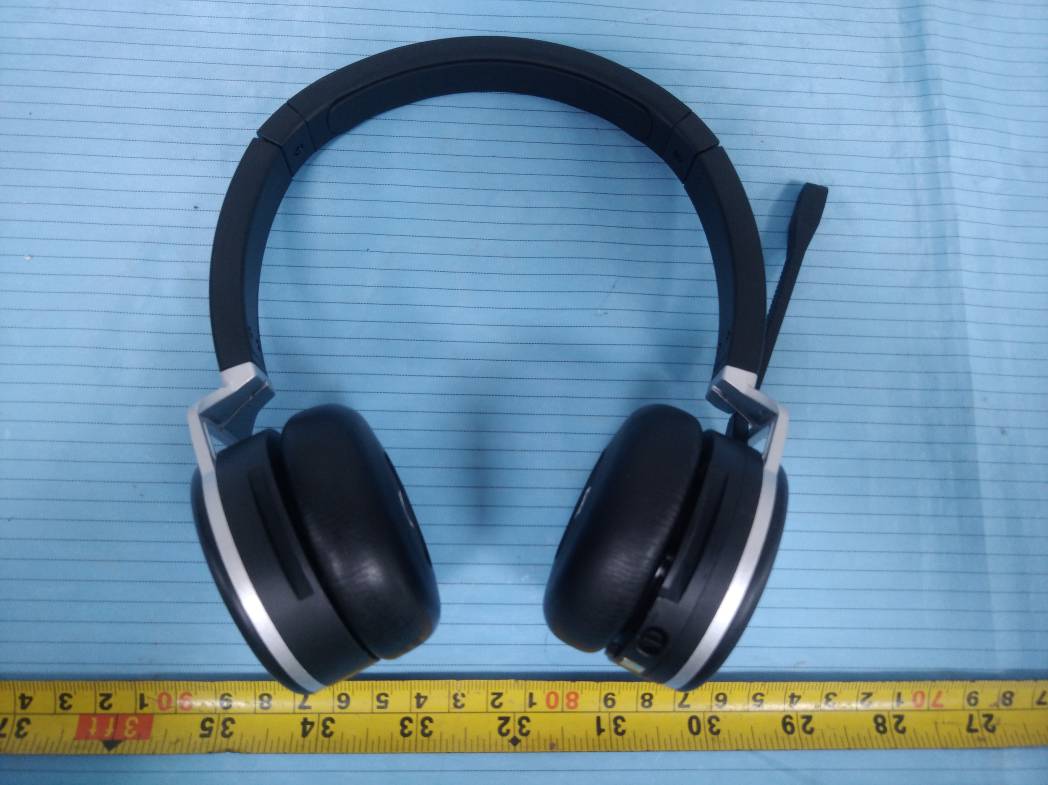

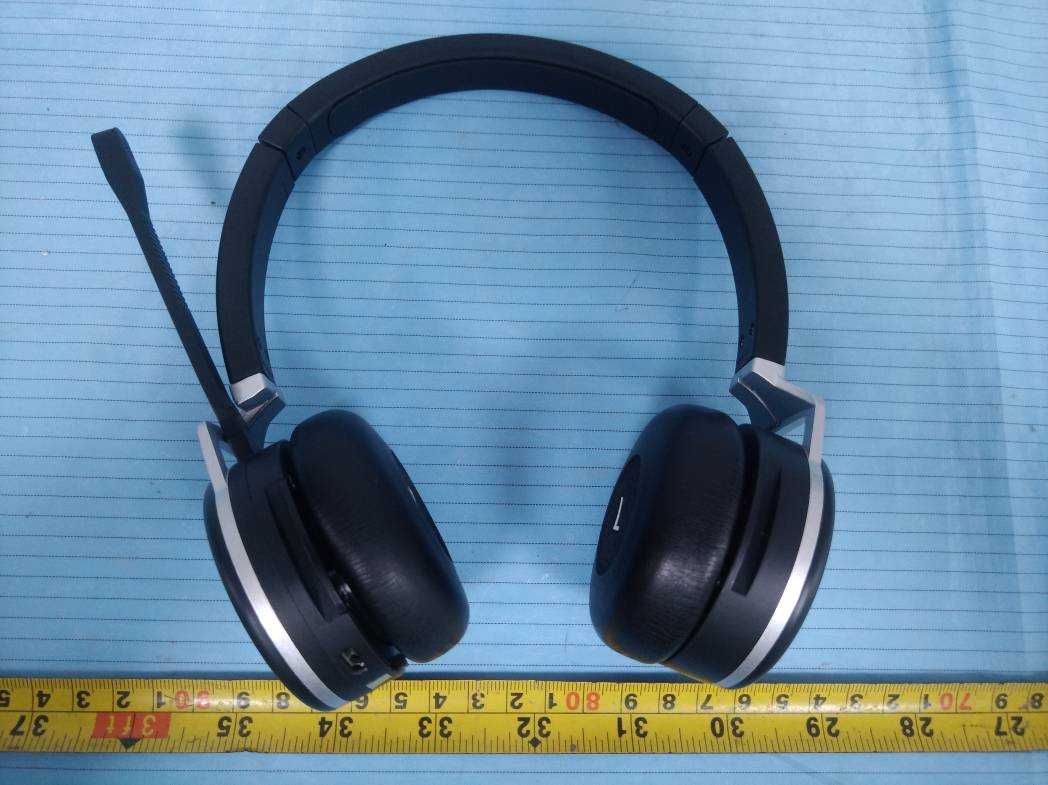

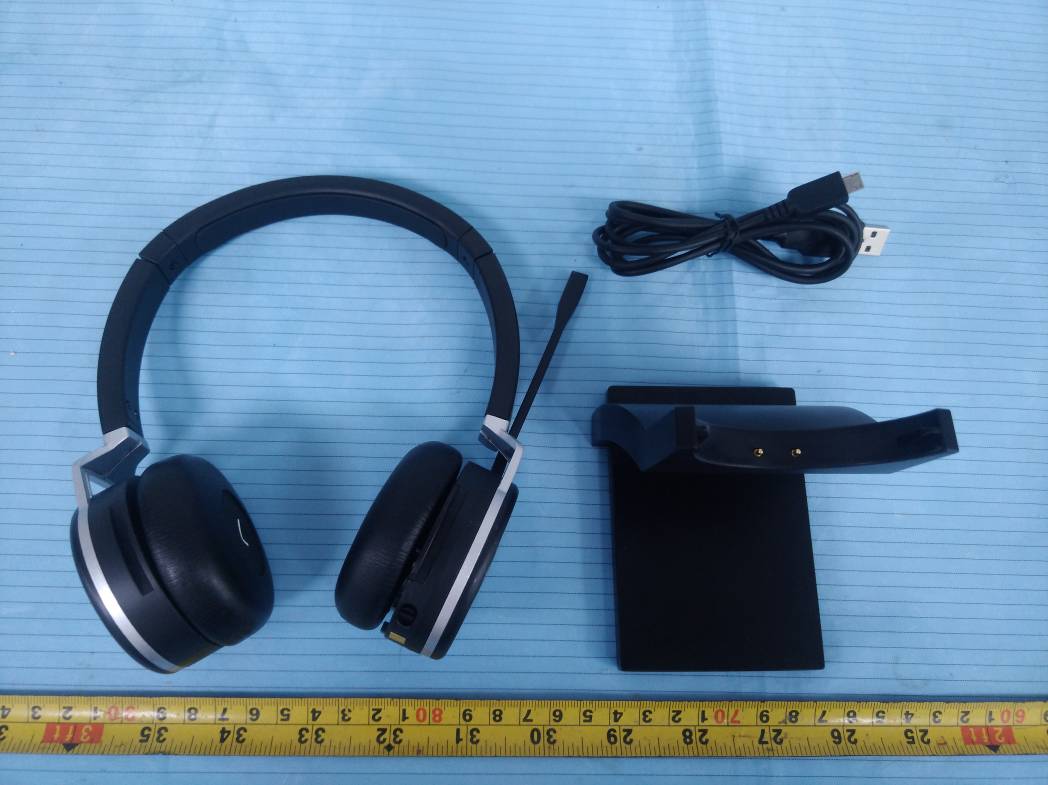

9605E BT User Manual Duo 2.1 HEADSET OVERVIEW 2.2 OPTIONAL ACCESSORIES 3. HOW TO WEAR.......................7 3.1 STEREO 3.2 ADJUST THE HEADBAND 3.3 POSITION THE MICROPHONE 3.4 STORING THE MICROPHONE 4. HOW TO CHARGE THE BATTERY.......10 5. HOW TO CONNECT...................11 6. HOW TO USE.......................13 6.1 CALLS 6.2 MULTIPLE CALL HANDLING WITH MOBILE PHONE 7. SUPPORT..........................16 7.1 FAQ 7.2 HOW TO CARE FOR YOUR HEADSET 8. TECHNICAL SPECIFICATION..........17 9605E BT 3 ENGLISH 1. WELCOME........................... 4 2. 9605E BT Duo OVERVIEW..............5 5.1 CONNECT TO PC (USING BT 100U) 5.2 CONNECT TO PC/MOBILE DEVICE (USING BLUETOOTH) 1. WELCOME Thank you for using the 9605E BT Headset. We hope you will enjoy it! 9605E BT Duo HEADSET FEATURES  Connects to PC via Bluetooth  Connects to mobile devices via Bluetooth  Integrated Busylight  Rotate the microphone boom-arm back to vertical position when not on calls  Superior music and voice capabilities  Hi-Fi Sound 9605E BT 4 ENGLISH 2.1 HEADSET Base Charge Point Bluetooth indicator On/off/connect switch 9605E BT 5 ENGLISH 2. 9605E BT Duo OVERVIEW Adjustable headband Volume up Volume down Multi-function button Power on/Power off/Busylight indicator Microphone boom-arm USB charging port ENGLISH 2.2 INCLUDED ACCESSORIES 9605E BT 6 Charging Base (Optional) USB cable 3. HOW TO WEAR ENGLISH 3.1 RIGHT WEARING STYLE The 9605E BT DUO can be worn only on the right. 9605E BT 7 3.2 ADJUST THE HEADBAND Adjust the headband to find the most comfortable fit. 3.3 POSITION THE MICROPHONE It is recommended to position the microphone close to your mouth . 9605E BT 8 ENGLISH The microphone is bendable for personal preference. 3.4 STORING THE MICROPHONE When listening to music or outdoors, the microphone boom-arm can be rotated back to the vertical position near the headband. 9605E BT 9 ENGLISH 10 ENGLISH 4. HOW TO CHARGE THE BATTERY Option 1: The headset battery will charge when connected to a PC using a USB cable, or when using any USB charger supplied with your mobile device. Option 2: If you have a charging base, you could plug the charging base into a powered USB port and then dock the headset. It takes approx.3 hours to charge the battery. 5. HOW TO CONNECT 5.1 CONNECT TO PC (USING BT 100U) 1. Ensure the headset is switched on. 2. Plug the BT 100U dongle into a USB port on your PC. The headset and BT 100U are already pre-connected. ENGLISH 1. Wear the headset. 2. Hold (2 secs) the On/off/connect switch in the connect position until you hear the voice guided instructions. The Bluetooth indicator will flash blue. 3. Follow the voice guided instructions to connect. 9605E BT 12 ENGLISH 5.2 CONNECT TO PC/MOBILE DEVICE (USING BLUETOOTH) ENGLISH 6. HOW TO USE Volume up Power on/Power off/Busylight indicator Multi-function button Volume down Bluetooth indicator On/off/Connect switch USB charging port Base Charging Point 9605E BT 13 6.1 EVERYDAY USE 9605E BT ENGLISH FUNCTION Headset on ACTION LED STATUS Headset off Slide the off switch Slide the On switch Green Light flash twice in succession Reject call Pairing Successfully Green Light flash twice and blue light flash once in succession Standby Blue Light flash 1 time per 8 secs Pairing Slide the Pair Button Blue Light flash Red Light flash once in succession Answer/End Call Tap the Multi-function button 14 Tap the Volume up or Volume down button Press and hold (2 secs) the Volume down button Double-tap the Multi-function button Adjust volume Mute/unmute microphone 6.2 MULTIPLE CALL HANDLING with Mobile Phone The headset can accept and handle multiple calls at the same time. FUNCTION End current call and answer incoming call ACTION Tap the Multi- function button Press and hold (2 secs) the Multi-function button Press and hold (2 secs) the Multi-function button Double-tap the Multi- function button Switch between held call and active call Put current call on hold and answer incoming call Reject incoming call, when on a call 9605E BT 15 7. SUPPORT 7.1 FAQ View the FAQs on www.Vbet.cn 7.2 HOW TO CARE FOR YOUR HEADSET Always store the headset with the power off and safely protected. Avoid storage at extreme temperatures (above 50°C or below -20°). This can shorten battery life and may adversely affect the headset. 9605E BT 16 ENGLISH 9605E BT Duo HEADSET Headset weight: 158 g Stereo headset: L 155 mm x W 36 mm x H 180 mm Noise cancelling microphone 40 mm 20Hz - 20 kHz Connect to PC for charge: 1500 mm -10°C to 40°C Headset dimensions: Microphones: Speaker Size: Speaker frequency range: Cable length: Operating temperature: 9605E BT 17 ENGLISH Wear Style: 8. TECHNICAL SPECIFICATIONS Charging Time: Talk Time: Charging Base: Headband 10 hours 3 hours Optional Storage temperature: -20°C to 50°C BLUETOOTH ADAPTER (BT 100U) PC connection: Bluetooth version: Bluetooth range: SPECIFICATION USB 2.0 4.2 Up to 30m (100 feet), Class 1 Simultaneous Bluetooth connection: 1 Support Soft Phone: Skype for Business/3CX Phone Bluetooth audio bandwidth: HD voice (wideband), A2DP Visual indicators: Multicolor LED 18 9. Product Disposal Treatment and FCC statement 1. Dispose of in accordance with local regulations as headphones and recycling regulations. Never treated headset as household waste. Do not dispose of the headset in a fire, this battery may explode. If damaged, the battery may explode. 2. FCC statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to p…
