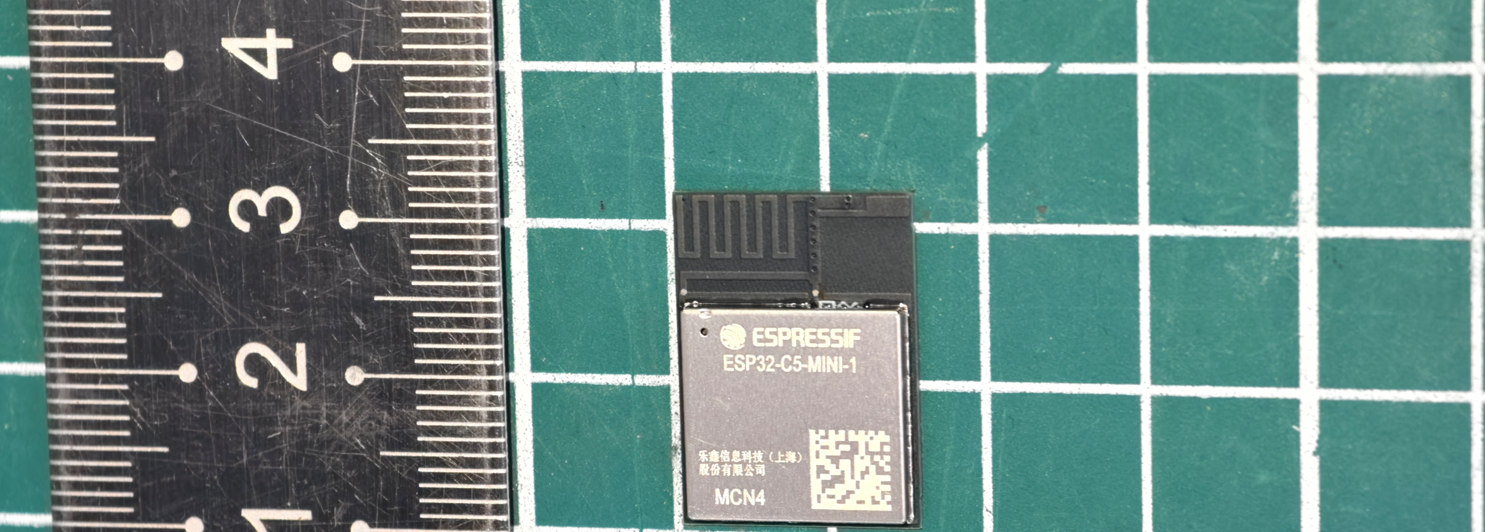

2AC7Z-ESPC5MINI12.4G&5G Wi-Fi & Bluetooth & zigbee & Thread IoT Module

ESP32-C5-MINI-1 User ManualVersion 1.0 Module that supports 2.4 and 5 GHz dual-band Wi-Fi 6 (802.11ax), Bluetooth ® 5 (LE), Zigbee, and Thread (802.15.4) Built around ESP32-C5 series of SoCs, 32-bit RISC-V single-core microprocessor Flash up to 4 MB 22 GPIOs, rich set of peripherals On-board PCB antenna ESP32-C5-MINI-1 www.espressif.com 1 Module Overview 1Module Overview 1.1Features CPU and On-Chip Memory •ESP32-C5 embedded, 32-bit RISC-V single-core microprocessor, up to 240 MHz •ROM: 320 KB •HP SRAM: 384 KB •LP SRAM: 16 KB Wi-Fi •1T1R in 2.4 and 5 GHz dual band •Operating frequency: 2412~2462 MHz, 5150~ 5850 MHz •Max output power ￿16dBm for 2.4G; 19 dBm for 5G •IEEE 802.11ax-compliant –20 MHz-only non-AP mode –Uplink and downlink OFDMA to enhance connectivity and performance in congested environments for IoT applications –Downlink MU-MIMO (multi-user, multiple input, multiple output) to increase network capacity –Beamformee that improves signal quality –Spatial reuse to maximize parallel transmissions –Target wake time (TWT) that optimizes power saving mechanisms •IEEE 802.11ac-compliant –20 MHz bandwidth –Downlink fullband MU-MIMO •Fully compatible with IEEE 802.11b/g/n protocol –20 MHz and 40 MHz bandwidth –Data rate up to 150 Mbps –Wi-Fi Multimedia (WMM) –TX/RX A-MPDU, TX/RX A-MSDU –Immediate Block ACK –Fragmentation and defragmentation –Transmit opportunity (TXOP) –Automatic Beacon monitoring (hardware TSF) –Four virtual Wi-Fi interfaces –Simultaneous support for Infrastructure BSS in Station mode, SoftAP mode, Station + SoftAP mode, and promiscuous mode Note that when ESP32-C5 scans in Station mode, the SoftAP channel will change along with the Station channel –Antenna diversity –802.11mc FTM Bluetooth ® •Bluetooth LE: Bluetooth Core 6.0 certified •Bluetooth mesh 1.1 •Max output power (13 dBm) •Direction finding (AoA/AoD) •Periodic advertising with responses (PAwR) •LE connection subrating •LE power control •Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps •LE advertising extensions and multiple advertising sets •Allow devices to operate in Broadcaster, Observer, Central, and Peripheral roles concurrently Espressif Systems2 Submit Documentation Feedback ESP32-C5-MINI-1 User Manual v1.0 1 Module Overview IEEE 802.15.4 •Compliant with IEEE 802.15.4-2015 protocol •OQPSK PHY in 2.4 GHz band •Data rate: 250 Kbps •Thread 1.4 max output power:6 dBm •Zigbee 3.0 max output power:6 dBm Peripherals •GPIO, SPI, parallel IO interface, UART, I2C, I2S, RMT (TX/RX), pulse counter, LED PWM, USB Serial/JTAG controller, MCPWM, GDMA, CAN FD controller, SDIO slave controller, BitScrambler, event task matrix, ADC, temperature sensor, brownout detector, analog voltage comparator, system timer, general-purpose timers, RTC timer, watchdog timers, etc. Integrated Components on Module •48 MHz crystal oscillator •SPI flash Antenna Options •On-board PCB antenna Operating Conditions •Operating voltage/Power supply: 3.0~3.6 V •Operating ambient temperature: –40~85 °C Certification •RF certification: Seecertificates •Green certification: RoHS/REACH Test •HTOL/HTSL/uHAST/TCT/ESD 1.2Series Comparison ESP32-C5-MINI-1 modules are powerful, generic Wi-Fi MCUs that have a rich set of peripherals. They are an ideal choice for a wide variety of application scenarios related to Internet of Things (IoT), such as embedded systems, smart home, wearable electronics, etc. ESP32-C5-MINI-1 comes with a PCB antenna. The ordering information for the modules is as follows: Table 1: ESP32-C5-MINI-1 (ANT) Series Comparison Ambient Temp. 3 EmbeddedSize 4 Part NumberFlash 1,2 (°C)Chip(mm) ESP32-C5-MINI-1-N44 MB (Quad SPI)–40 ~ 85ESP32-C5NF415.4 × 21.3 × 2.4 At the core of the modules is ESP32-C5 *, an Xtensa® 32-bit LX7 CPU that operates at up to 240 MHz. You can power off the CPU and make use of the low-power coprocessor to constantly monitor the peripherals for changes or crossing of thresholds. Note: For more information on ESP32-C5, please refer toESP32-C5 Series Datasheet. Espressif Systems3 Submit Documentation Feedback ESP32-C5-MINI-1 User Manual v1.0 Contents Contents 1 Module Overview2 1.1 Features2 1.2 Series Comparison3 2 Pin Definitions5 2.1 Pin Layout5 2.2 Pin Description5 3 Get Started7 3.1 What You Need7 3.2 Hardware Connection7 3.3 Set up Development Environment8 3.3.1 Install Prerequisites8 3.3.2 Get ESP-IDF8 3.3.3 Set up Tools9 3.3.4 Set up Environment Variables9 3.4 Create Your First Project9 3.4.1 Start a Project9 3.4.2 Connect Your Device9 3.4.3 Configure9 3.4.4 Build the Project10 3.4.5 Flash onto the Device11 3.4.6 Monitor12 4 U.S. FCC Statement14 Related Documentation and Resources18 Revision History20 Espressif Systems4 Submit Documentation Feedback ESP32-C5-MINI-1 User Manual v1.0 2 Pin Definitions 2Pin Definitions 2.1Pin Layout The pin diagram below shows the approximate location of pins on the module. Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin 9 Pin 10 Pin 11 Pin 12 Pin 13 Pin 14 Pin 15 GND GND 3V3 IO28 NC IO2 IO3 IO4 IO5 IO6 NC NC NC NC NC Pin 63 GND IO0 Pin 16Pin 17Pin 18Pin 19Pin 20 Pin 21 Pin 22 Pin 23Pin 24Pin 25Pin 26Pin 27Pin 28Pin 29Pin 30 Pin 64 GND Pin 31 IO1 NC IO7 IO8IO9 IO10 IO13 IO14 NC IO15 NCNCNCNC Pin 32 Pin 33 Pin 34 Pin 35 Pin 36 Pin 37 Pin 38 Pin 39 Pin 40 Pin 41 Pin 42 Pin 43 Pin 44 Pin 45 Pin 65 GND Pin 62 GND Pin 46Pin 47Pin 48Pin 49Pin 50 Pin 51 Pin 52 Pin 53Pin 54 Pin 55 Pin 56Pin 57Pin 58Pin 59Pin 60 Pin 61 GND GNDGNDGND GNDGND GNDGNDGND IO23 IO24 IO25 IO26 IO27 NC NC NC TX0 RX0 NC GND GND NC EN GNDGNDGNDNCGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGND Keepout Zone Figure 1: Pin Layout (Top View) 2.2Pin Description The module has 65 pins. See pin definitions in Table2Pin Description. For explanations of pin names and function names, as well as configurations of peripheral pins, please refer to ESP32-C5 Series Datasheet. Espressif Systems5 Submit Documentation Feedback ESP32-C5-MINI-1 User Manual v1.0 2 Pin Definitions Table 2: Pin Definitions NameNo.Type 1 Function GND1, 2, 42, 43, 46-48, 50-…
