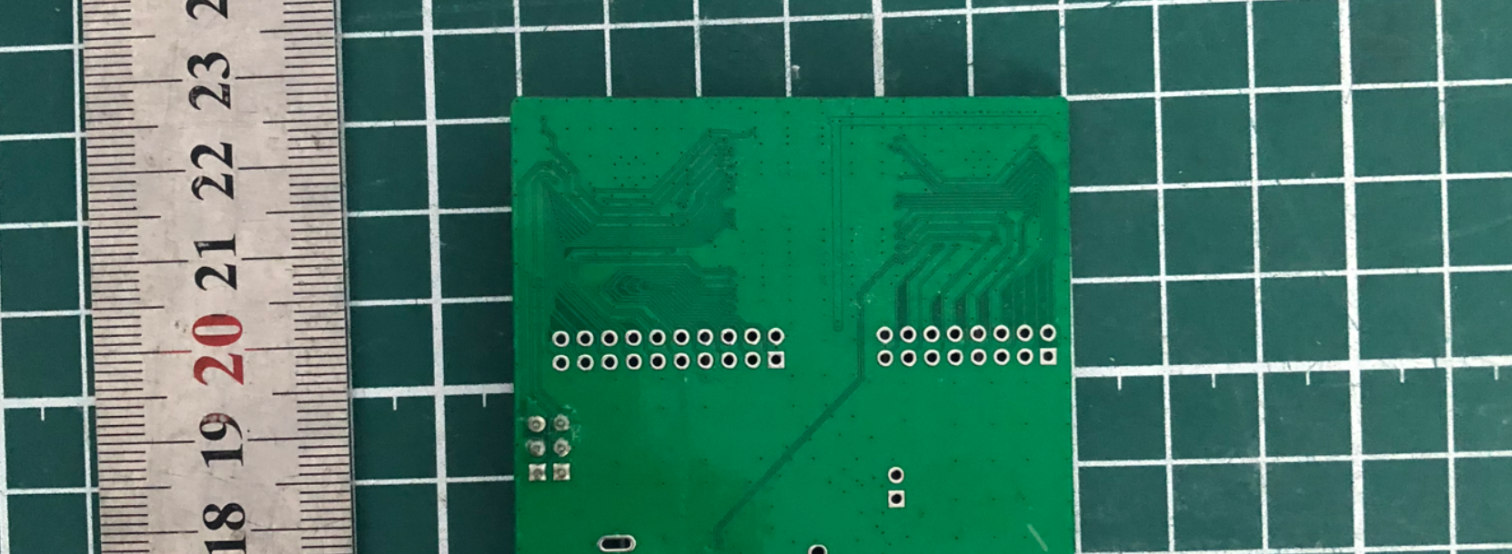

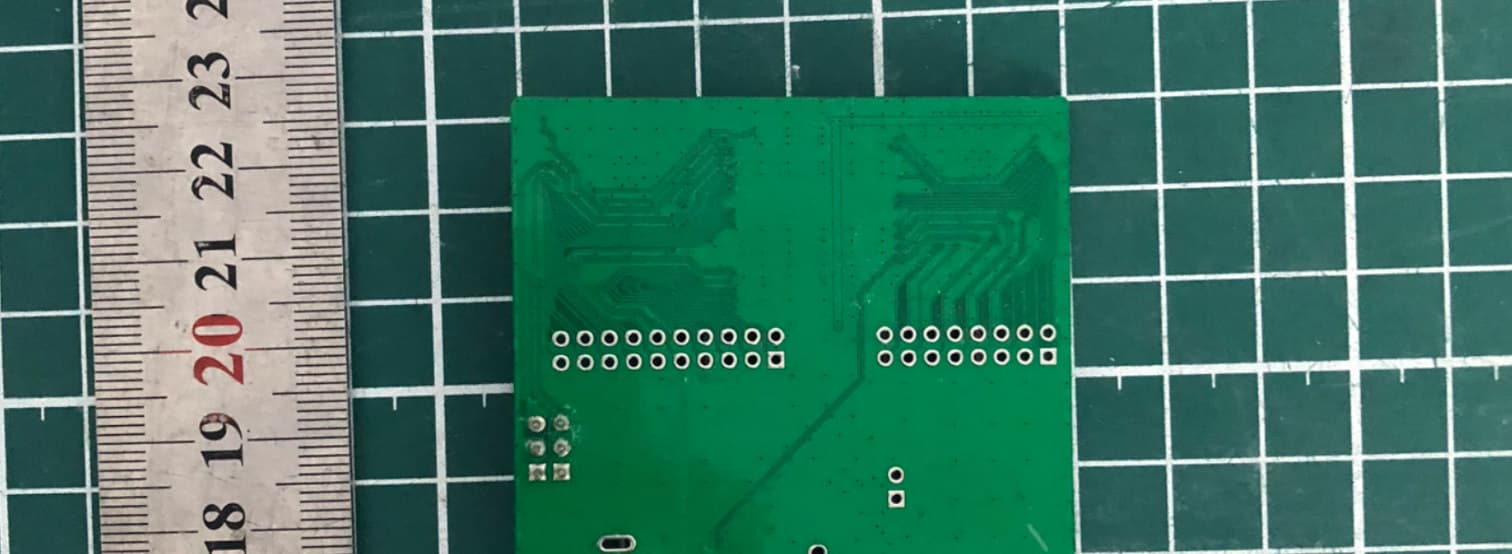

2AC7Z-ESPC61WRM1U2.4G Wi-Fi & BLE Internet of Things Module

PRELIMINARY ESP32-C61-WROOM-1U User ManualPre-release v0.5 Module that supports 2.4 GHz Wi-Fi 6 (802.11ax), Bluetooth ® 5 (LE) Built around ESP32-C61 series of SoCs, 32-bit RISC-V single-core microprocessor Flash up to 8 MB, PSRAM up to 2 MB Up to 23 GPIOs, rich set of peripherals external antenna connector ESP32-C61-WROOM-1U www.espressif.com PRELIMINARY 1 Module Overview 1Module Overview 1.1Features CPU and On-Chip Memory •ESP32-C61 embedded, 32-bit RISC-V single-core microprocessor, up to 160 MHz •ROM: 256 KB •SRAM: 320 KB •Up to 2 MB PSRAM Wi-Fi •1T1R in 2.4 GHz band •Operating frequency: 2412∼2462 MHz •IEEE 802.11ax-compliant –20 MHz-only non-AP mode –MCS0 ~ MCS9 –Uplink and downlink OFDMA to enhance connectivity and performance in congested environments for IoT applications –Downlink MU-MIMO (multi-user, multiple input, multiple output) to increase network capacity –Beamformee that improves signal quality –Spatial reuse to maximize parallel transmissions –Target wake time (TWT) that optimizes power saving mechanisms •Fully compatible with IEEE 802.11b/g/n protocol –20 MHz and 40 MHz bandwidth –Data rate up to 150 Mbps –Wi-Fi Multimedia (WMM) –TX/RX A-MPDU, TX/RX A-MSDU –Immediate Block ACK –Fragmentation and defragmentation –Transmission opportunity (TXOP) –Automatic Beacon monitoring (hardware TSF) –Four virtual Wi-Fi interfaces –Simultaneous support for Infrastructure BSS in Station mode, SoftAP mode, Station + SoftAP mode, and promiscuous mode Note that when ESP32-C61 scans in Station mode, the SoftAP channel will change along with the Station channel –802.11mc FTM Bluetooth ® •Bluetooth LE •Bluetooth mesh •High power mode (20 dBm) •Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps •Advertising extensions •Multiple advertisement sets •Channel selection algorithm #2 •LE power control •Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna Peripherals •GPIO, SPI, UART, I2C, I2S, LED PWM, USB Serial/JTAG controller, GDMA, On-chip debug functionality via JTAG, event task matrix, ADC, temperature sensor, brown-out detector, analog voltage comparator, general-purpose timers, system timer, and watchdog timers Integrated Components on Module •40 MHz crystal oscillator •Up to 8 MB Quad SPI flash Espressif Systems2 Submit Documentation Feedback ESP32-C61-WROOM-1 & WROOM-1U Datasheet v0.5 PRELIMINARY 1 Module Overview Antenna Options •ESP32-C61-WROOM-1U: External antenna via a connector Operating Conditions •Operating voltage/Power supply: 3.0∼3.6 V •Operating ambient temperature: –40∼85 °C 1.2Series Comparison ESP32-C61-WROOM-1U is a powerful, general-purpose Wi-Fi, and Bluetooth LE module. The rich set of peripherals and high performance make the module an ideal choice for smart homes, industrial automation, health care, consumer electronics, etc. ESP32-C61-WROOM-1U comes with a connector for an external antenna. It features 2 MB PSRAM and up to 8 MB SPI flash. The information in this datasheet is applicable to both modules. Table 1: ESP32-C61-WROOM-1U (CONN) Series Comparison Ambient Temp. 1 Size Ordering CodeFlash 2 PSRAMEmbedded Chip (°C)(mm) ESP32-C61-WROOM-1U-N8R28 MB (Quad SPI)2 MBESP32-C61HR2–40∼8518.0 × 19.2 × 3.2 1 Ambient temperature specifies the recommended temperature range of the environment immediately outside the Espressif module. 2 The flash is integrated in the chip’s package. The flash supports: - More than 100,000 program/erase cycles - More than 20 years data retention time 3 By default, ESP32-C61-WROOM-1U uses ANT1, and ANT2 is disabled. To use ANT2, pleasecontactus. At the core of the modules is ESP32-C61 *, a 32-bit RISC-V single-core processor. Note: For more information on ESP32-C61, please refer toESP32-C61 Series Datasheet. Espressif Systems3 Submit Documentation Feedback ESP32-C61-WROOM-1 & WROOM-1U Datasheet v0.5 PRELIMINARY Contents Contents 1 Module Overview2 1.1 Features2 1.2 Series Comparison3 2 Pin Definitions5 2.1 Pin Layout5 2.2 Pin Description5 3 Get Started7 3.1 What You Need7 3.2 Hardware Connection7 3.3 Set up Development Environment8 3.3.1 Install Prerequisites8 3.3.2 Get ESP-IDF8 3.3.3 Set up Tools9 3.3.4 Set up Environment Variables9 3.4 Create Your First Project9 3.4.1 Start a Project9 3.4.2 Connect Your Device9 3.4.3 Configure10 3.4.4 Build the Project10 3.4.5 Flash onto the Device11 3.4.6 Monitor12 4 U.S. FCC Statement14 Related Documentation and Resources18 Revision History19 Espressif Systems4 Submit Documentation Feedback ESP32-C61-WROOM-1 & WROOM-1U Datasheet v0.5 PRELIMINARY 2 Pin Definitions 2Pin Definitions 2.1Pin Layout The pin diagram below shows the approximate location of pins on the module. Pin Layout (Top View) 3V3 EN IO4 IO5 IO6 IO7 IO13 28 27 26 25 24 23 22 21 20 19 18 17 16 15 GND IO2 IO3 TX0 RX0 IO24 NC IO23 IO22 IO28 IO27 IO26 IO25 IO9 29 GND Keepout Zone GND GNDGNDGND GND GNDGNDGND 2 3 4 5 6 7 8 9 10 11 12 13 14 IO0 IO1 IO8 IO29 IO12 NC/IO14 1GND 3V3 EN IO4 IO5 IO6 IO7 IO13 28 27 26 25 24 23 22 21 20 19 18 17 16 15 GND IO2 IO3 TX0 RX0 IO24 NC IO23 IO22 IO28 IO27 IO26 IO25 IO9 29 GND GND GNDGNDGND GND GNDGNDGND 2 3 4 5 6 7 8 9 10 11 12 13 14 IO0 IO1 IO8 IO29 IO12 NC/IO14 1GND ESP32-C61-WROOM-1 ESP32-C61-WROOM-1U 323130 GND ANT2 GND ANT1 Figure 1: Pin Layout (Top View) 2.2Pin Description ESP32-C61-WROOM-1U module has 32 pins. See pin definitions in Table2Pin Description. For peripheral pin configurations, please refer toESP32-C61 Series Datasheet. Table 2: ESP32-C61-WROOM-1U Pin Definitions NameNo.Type 1 Function GND1PGround 3V32PPower supply EN3I High: on, enables the chip. Low: off, the chip powers off. Note: Do not leave the EN pin floating. Cont’d on next page Espressif Systems5 Submit Documentation Feedback ESP32-C61-WROOM-1 & WROOM-1U Datasheet v0.5 PRELIMINARY 2 Pin Definitions Table 2 – cont’d from previous page NameNo.Type 1 Function IO44I/O/TMTDI, GPIO4, LP_GPIO4, ADC1_CH2, FSPIWP IO55I/O/TMTCK, GPIO5, LP_GPIO5, ADC1_CH3 IO66I/O/TMTDO, GPIO6, LP_GPIO6, FSPICLK IO77I/O/TGPIO7, FSPID IO08I/O/TX…
