2AC8CUM565-3GVWireless Infrared Scouting Camera

Page 1 UM565-3GV Instruction Manual Page 2 Table of Contents Camera button control diagram: ............................. 4 Understanding main screen info: ............................. 5 Installing the batteries: ............................................ 6 Installing the SIM card..................................................8 Setup on camera.........................................................14 Setup on a computer (Download Tool)....................17 Send a test photo: .................................................. 24 Customizing the camera settings: .......................... 25 Setting the camera mode: ..................................... 25 Camera mode settings: .......................................... 26 Video mode settings .............................................. 27 PIR tab: ................................................................... 29 NET tab: .................................................................. 34 SYS tab: ................................................................... 36 Formatting the SD card: ......................................... 40 Viewing photos on the color display: ..................... 41 Troubleshooting: .................................................... 43 Tricks and tips on field setup: ................................ 46 Covert Scouting Cameras Warranty: ...................... 47 Covert International Warranty Policy: ................... 49 Code Black Set Up on a MAC: ................................ 56 Network Carrier Suffix List.........................................59 Technical Specifications:............................................68 Page 3 Congratulations on your purchase of the 2015 UM565-3GV Scouting Camera! We truly value your business and will continue to provide you top quality customer service should you ever need help with any of our products. We hope you enjoy hassle free performance from this quality product for years to come. Page 4 Color LCD Navigation arrows Selector switch SIM card slot Aux battery jack Camera Button Control Diagram: Play Antenna Select/OK Menu Delete USB SD card slot Figure 1 IMEI Number Page 5 Understanding main screen info: Figure 2 Camera Mode / Video Mode Icon # of megabytes remaining on card Cellular service indicator Provider Name # of photos taken Battery life indicator Megapixels Chosen Page 6 Installing the batteries: Your Code Black can function short term on 4-AA batteries. Improved battery life on 8-AA, but we suggest you use 12-AA batteries to get the most out of your cameras battery life. Using Covert rechargeable NiMH, 2300mAh, AA batteries will extend the battery life significantly. DISCLAIMER: Do not use external power source (Example: Solar Panel) with non-rechargeable AA battery installed in camera. The Covert AA NiMH battery when used in conjunction with the solar panel extends the time in the field. Install batteries by sliding the top battery into the sleeve, then depressing the spring with the other battery and snapping down in place. Pay attention to the (+) or (-) molded into each sleeve to determine if you insert the positive or negative end into the sleeve first. Negative battery terminal Page 7 always contacts the spring. (Fig. 3) Figure 3 Page 8 Figure 4 Installing your SIM card: Using the SIM card provided in the packaging, open your camera housing to expose the control panel. Make sure your camera mode selector switch is in the OFF position. On the left side of the camera control panel towards the top is a small card slot. See Figures 4 & 5. Press the card in securely, until it clicks in place. To remove the SIM card, simply press in on the card until it clicks and then release it. Figure 5 Page 9 Installing the SD card: Now that you have your SIM card and it has been installed in the camera, you will need to install an SD card in the bottom of the camera, (Covert SD card recommended). See Figure 7 for card orientation. The card installs the same way as the SIM card did. Push in until it clicks and release. To remove, repeat that process, the card will pop out enough to remove. You can use any SD card size up to 32GB. You must have the SD card in the camera to be able to turn the camera on and set it up. The camera will only send the first picture of the 1,2,3 shot burst. Figure 7 NOTE: Every photo taken with this camera will be saved to the SD card even if it is sending the photos wireless. You will have access to the high resolution images on the SD card. Page 10 Setting up the wireless network: 1) Slide selector switch to the right to the SETUP position. Press the MENU button You will see the screen shown below (Figure 8): 2) Press the ► button 2 times to highlight the NET tab in yellow. Press the ▼ button to highlight the Send Mode option. Press the ► button to toggle the option in the white box to INSTANT. Press OK to save this setting. You will then be asked a max number. 0-99. To receive an Figure 8 Page 11 unlimited amount of pictures, enter 0 (zero). This is the number of pictures the camera can send you in a 24-hour period. Press the menu button. This will take you back to the home screen. You will need to be patient as the camera does its initial set-up and looks for cellular service. While finding the network you will see the word checking, Then Search Network in red on the screen. Once you see AT&T at the top right corner, you are ready to move on. Network Mode: You have the option to select AUTO, 3G or 2G. We suggest the AUTO tab so the camera can bounce off all towers in your area. Note: Anytime you switch Network Modes, you must allow your camera time to search for signal again. Page 12 Setup on Camera: 1) Press the Menu button 2) Press the ► button repeatedly until the NET tab is highlighted in yellow. 3) Press the ▼ arrow (3) times to highlight the Edit Phone and press OK. 4) Press the ▲ or ▼ buttons to add the first phone number in the camera. Press OK to save. Then select your personal cell phone provider. (Figure 11) I…

Text truncated - open the document above for the full version.

UOVision Technology (HONGKONG) Co., Ltd UNIT A3, 9/F SILVER INTERNATIONAL TOWER, 707-713 NATHAN ROAD, MONGKOK, KOWLOON, HONGKONG TEL: 86-755- 86528612 FAX: 86-755- 86366095 DOC ATTESTATION LETTER FCC ID: 2AC8CUM565-3GV Date: Mar. 13, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: I, the undersigned, hereby attest to the fact that I will apply the Declaration of Conformity procedure to the computer peripheral. I understand the following FCC requirements: 1. Devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. 3. Pt 2.1077 contains the list of information that must be included in the Declaration of Conformity, which must be supplied with each product sold. The DoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(c)(2), the responsible party is either the Manufacturer or if the product is imported the Importer. Sincerely, Shen Xia /Manager

UOVision Technology (HONGKONG) Co., Ltd UNIT A3, 9/F SILVER INTERNATIONAL TOWER, 707-713 NATHAN ROAD, MONGKOK, KOWLOON, HONGKONG TEL: 86-755- 86528612 FAX: 86-755- 86366095 DATE 03-16-2015 FCC ID: 2AC8CUM565-3GV Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen CTL Testing Technology Co., Ltd.(MR. Tracy Qi) at Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with UOVision Technology (HONGKONG) Co., Ltd at UNIT A3, 9/F SILVER INTERNATIONAL TOWER, 707-713 NATHAN ROAD, MONGKOK, KOWLOON, HONGKONG. Dated this 03-16-2015 Agency agreement expiration date: 03-15-2016 By: Shen Xia Signature Printed Title: Manager On behalf of : UOVision Technology (HONGKONG) Co., Ltd Telephone: 86-755-86528612

UOVision Technology (HONGKONG) Co., Ltd UNIT A3, 9/F SILVER INTERNATIONAL TOWER, 707-713 NATHAN ROAD, MONGKOK, KOWLOON, HONGKONG TEL: 86-755- 86528612 FAX: 86-755- 86366095 DATE 03-16-2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC I D: 2AC8CUM565-3GV Product Name: Wireless Infrared Scouting Camera Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) •Schematics •Block diagram •Operation description •Tune up Procedure These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 03-16-2015 By: Shen Xia Sig nature Printed T itle: Manager On behalf of : UOVision Technology (HONGKONG) Co., Ltd Tel ephone: 86-755-86528612

FCC ID Label Information 1. Label location: 2. FCC ID Label: UOVision Technology (HONGKONG) Co., Ltd Wireless Infrared Scouting Camera Model: Phantom(UM565-3GV) FCC ID: 2AC8CUM565-3GV

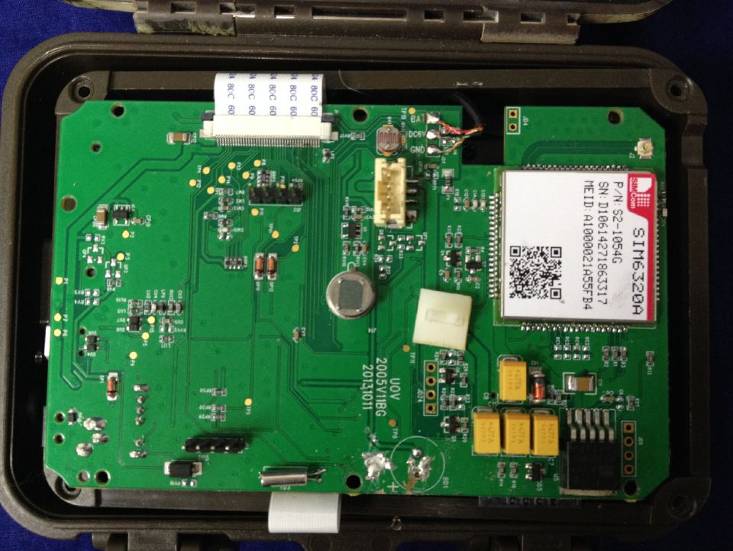

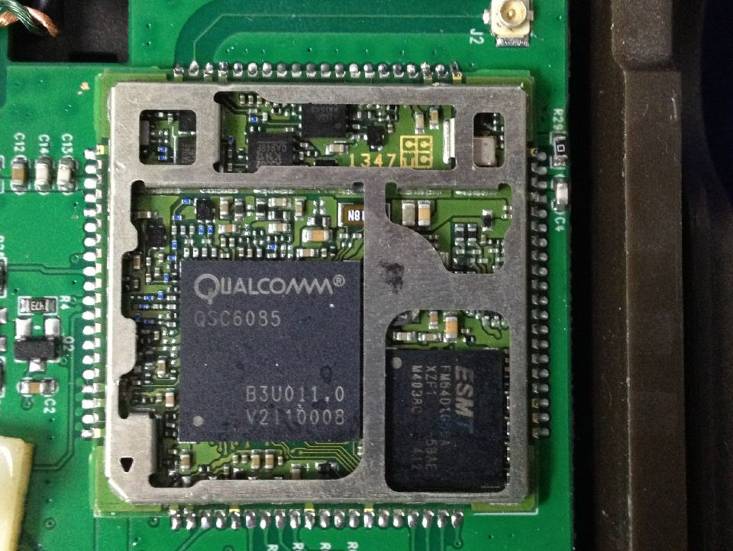

Internal Photos of EUT

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 MPE TEST REPORT FCC Per 47 CFR 2.1091(b) Report Reference No. ..................... : CTL1503020528-WM FCC ID .............................................. : 2AC8CUM565-3GV Compiled by ( position+printed name+signature) .. : File administrators Jennifer NI Name of the organization performing the tests ( position+printed name+signature) .. : Test Engineer Jacky Chen Approved by ( position+printed name+signature) .. : Manager Tracy Qi Date of issue ..................................... : Mar. 11, 2015 Test Firm.......................................... : Shenzhen CTL Testing Technology Co., Ltd. Address ............................................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Applicant’s name ............................ : UOVision Technology (HONGKONG) Co., Ltd Address ............................................. : UNIT A3, 9/F SILVER INTERNATIONAL TOWER, 707-713 NATHAN ROAD, MONGKOK, KOWLOON, HONGKONG Test specification: Standard ........................................... : FCC Per 47 CFR 2.1091(b) TRF Originator .................................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF ....................................... : Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader’s interpretation of the reproduced material due to its placement and context. Test item description .................... : Wireless Infrared Scouting Camera FCC ID.......................................: 2AC8CUM565-3GV Trade Mark ....................................... : UOVision Model/Type reference ....................... : Phantom(UM565-3GV ) CDMA 2000 1X EVDO Release A Transmit ........................................... : BC0: 824~849MHz BC1:1851~1909 MHz Receive ............................................ : BC0: 869~894MHz BC1: 1930-1990 MHz Type of modulation ........................... : QPSK Antenna Gain ................................... : 1.0 dBi Antenna type .................................... : Internal Result ................................................ : Positive V1.0 Page 2 of 7 Report No.: CTL1503020528-WM Test Report Test Report No. : CTL1503020528-WM Mar. 11, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : Wireless Infrared Scouting Camera Model /Type : Phantom(UM565-3GV ) Applicant : UOVision Technology (HONGKONG) Co., Ltd Address : UNIT A3, 9/F SILVER INTERNATIONAL TOWER, 707-713 NATHAN ROAD, MONGKOK, KOWLOON, HONGKONG Manufacturer UOVision Technology（Shenzhen）Co., Ltd. Address 3rd Floor, East Wing,the 4Th Building, ZhongGuan HongHualing Industrial Zone, 1268# Liuxian BLVD, Nanshan District, Shenzhen, CHN 518055 Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 7 Report No.: CTL1503020528-WM Content 1. S U M M A R Y ............................................................................. 4 1.1. EUT configuration 4 1.2. Equipment Under Test 4 1.3. Description of the test mode 4 1.4. NOTE Error! Bookmark not defined. 2. T E S T E N V I R O N M E N T ............................................................... 5 2.1. Address of the test laboratory 5 2.2. Environmental conditions 5 2.3. Statement of the measurement uncertainty 5 3. M E T H O D O F M E A S U R E M E NT ..................................................... 6 V1.0 Page 4 of 7 Report No.: CTL1503020528-WM 1. S U M M A R Y 1.1. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer o - supplied by the lab 1.2. Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC  Other (specified in blank below) DC 6V from battery 1.3. Description of the test mode CTL has verified the construction and function in typical operation. All the test modes were carried out with the EUT in normal operation, which was shown in this test report and defined as: Test Mode Channel Frequency(MHz) BC0 (850MHz) 1013 824.70 384 836.52 777 848.31 BC1 (1900MHz) 25 1851.25 600 1880.00 1175 1908.75 Note: 1. Regards to the frequency band operation: the lowest､middle and highest frequency of channel were selected to perform the test, then shown on this report. 2. For the ERP/EIRP and radiated emission test, every axis (X, Y, Z) was verified, and show the worst result on this report. V1.0 Page 5 of 7 Report No.: CTL1503020528-WM 2. T E S T E N V I R O N M E N T 2.1. Address of the test laboratory Shenzhen CTL Testing Technology Co., Ltd. Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 The sites are constructed in conformance with the requirements of ANSI C6230, ANSI C63.4 (2009) and CISPR Publication 22. 2.2. Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 950-1050mbar 2.3. Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report acc. to CISPR 16 - 4 „Specification for radio disturbance and …

Text truncated - open the document above for the full version.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 22 AND PART 24 TEST REPORT FCC Part 22 Subpart H / Part 24 Subpart E Report Reference No. ..................... : CTL1503020528-WU Compiled by ( position+printed name+signature) .. : File administrators Jacky Chen Name of the organization performing the tests ( position+printed name+signature) .. : Test Engineer Tracy Qi Approved by ( position+printed name+signature) .. : Manager Tracy Qi Date of issue ..................................... : Mar. 11, 2015 Test Firm.......................................... : Shenzhen CTL Testing Technology Co., Ltd. Address ............................................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Applicant’s name ............................ : UOVision Technology (HONGKONG) Co., Ltd Address ............................................. : UNIT A3, 9/F SILVER INTERNATIONAL TOWER, 707-713 NATHAN ROAD, MONGKOK, KOWLOON, HONGKONG Test specification: Standard ........................................... : FCC CFR Title 47 Part 2, Part 22H and Part 24E EIA/TIA 603-C: 2004 Master TRF ....................................... : Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Wireless Infrared Scouting Camera FCC ID.......................................: 2AC8CUM565-3GV Trade Mark ....................................... : UOVision Model/Type reference ....................... : Phantom(UM565-3GV ) CDMA 2000 1X EVDO Release A Transmit ........................................... : BC0: 824~849MHz BC1:1851~1909 MHz Receive ............................................ : BC0: 869~894MHz BC1: 1930-1990 MHz Type of modulation ........................... : QPSK Antenna Gain ................................... : 1.0 dBi Antenna type .................................... : Internal IMEI .................................................. : A1000021A55FB4 Result ................................................ : Positive V1.0 Page 2 of 75 Report No.: CTL1503020528-WU T E S T R E P O R T Test Report No. : CTL1503020528-WU Mar. 11, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : Wireless Infrared Scouting Camera Model /Type : Phantom(UM565-3GV ) Applicant : UOVision Technology (HONGKONG) Co., Ltd Address : UNIT A3, 9/F SILVER INTERNATIONAL TOWER, 707-713 NATHAN ROAD, MONGKOK, KOWLOON, HONGKONG Manufacturer UOVision Technology（Shenzhen）Co., Ltd. Address 3rd Floor, East Wing,the 4Th Building, ZhongGuan HongHualing Industrial Zone, 1268# Liuxian BLVD, Nanshan District, Shenzhen, CHN 518055 Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 75 Report No.: CTL1503020528-WU Contents 1. T E S T S T A N D A R D S 4 2. S U M M A R Y 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT operation mode 5 2.5. EUT configuration 6 2.6. Related Submittal(s) / Grant (s) 6 2.7. Modifications 6 3. T E S T E N V I R O N M E N T 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. Configuration of Tested System 7 3.5. EUT Exercise Software 8 3.6. Statement of the measurement uncertainty 8 3.7. Equipments Used during the Test 9 3.8. Summary of Test Result 10 4. T E S T C O N D I T I O N S A N D R E S U L T S 11 4.1. Peak Output Power 11 4.2. Occupied Bandwidth 16 4.3. Spurious Emission At Antenna Terminals (+/- 1MHz) 29 4.4. Spurious Emission 36 4.5. Frequency Stability under Temperature & Voltage Variations 62 5. T E S T S E T U P P H O T O S O F T H E E U T 69 6. E X T E R N A L A N D I N T E R N AL P H O T O S O F T H E E U T 70 V1.0 Page 4 of 75 Report No.: CTL1503020528-WU 1. T E S T S T A N D A R D S The tests were performed according to following standards: FCC Part 22 Subpart H: Public Mobile Services FCC Part 24 Subpart E: Personal Communications Services EIA/TIA 603-C: 2004 FCC CFR Title 47 Part 2 V1.0 Page 5 of 75 Report No.: CTL1503020528-WU 2. S U M M A R Y 2.1. General Remarks Date of receipt of test sample : Mar. 02, 2015 Testing commenced on : Mar. 02, 2015 Testing concluded on : Mar. 11, 2015 2.2. Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ● Other (specified in blank below) DC 6.0V from battery 2.3. Short description of the Equipment under Test (EUT) A Wireless Infrared Scouting Camera with CDMA2000 function. For more details, refer to the user’s manual of the EUT. Serial number: Prototype 2.4. EUT operation mode CTL has verified the construction and function in typical operation. All the test modes were carried out with the EUT in normal operation, which was shown in this test report and defined as: Test Mode Channel Frequency(MHz) BC0 (850MHz) 1013 824.70 384 836.52 777 848.31 BC1 (1900MHz) 25 1851.25 600 1880.00 1175 1908.75 Note: 1. Regards to the frequency band operation: the lowest､middle and highest frequency of channel were selected to perform the test, then shown on this report. 2. For the ERP/EIRP and radiated emission test, every axis (X, Y, Z) was verified, and show the worst result on this report. V1.0 Page 6 of 75 Report No.: CTL1503020528-WU 2.5. EUT configurat…

Text truncated - open the document above for the full version.

Test Setup Photos of the EUT
