2AC9LHB022ABluetooth keyboard

HB022A BluetoothKeyboardforAndroid/Windows/IOStablets&laptops Packingcontents: 1.Cordlesskeyboard 2.USBpowerchargingcable 3.Usermanual BluetoothKeyboardSpecification 1.Built-inBroadcomBluetooth3.0keyboard. 2.Modernslimkeyboardbacksidewithbrushedsteel. 3.Chocolatekeycapwithscissorsstructure,goodtouchfeeling. 4.SuitableforAndroid/Windows/IOStablets,laptops,desktops,andallsmartphones. 5.Built-inrechargeablelithiumbattery,lastforapproximately60hourspercharge. 6.Lightweight,quietkeystrokes,water-proof,dust-proof. 7.Energysavingkeyboardsleepmode. 8.Keyboardsize:281.7*135*4.3MM BluetoothKeyboardSpecificationandPairingInstruction： BluetoothKeyboardSpecification 1.Bluetooth3.0interfacestandard 2.OperatingDistanceto10meters 3.ModulatingSystem:GFSK 4.OperationVoltage:3.0-4.2V 5.WorkingCurrent:<2.5mA 6.StandbyCurrent:0.3-0.5mA 7.SleepingCurrent：<40uA 8.ChargingCurrent:>200uA 9.StandbyTime:>100days 10.ChargingTime:>2hours 11.LithiumBatteryCapacity:110mAH 12.UninterruptedWorkingTime:>64hours 13.LithiumBatteryLife:3year 14.LithiumBatterySpecification:38*20*35mm 15.KeyStrength:50g~80g 16.Keylife:<3millionstrokes 17.OperatingTemperature:-10-+55C BluetoothKeyboardPairing Step1:Turnonthepowertoggleswitch.Thestateindicatorlightwillbeonfor10seconds,and thenthelightwillgooff. Step2:Presson“FN+C”buttontogetheronkeyboard,theindicatorlightwillbeblinking. Step3:TurnonBluetoothsettinginyourdevice,yourdevicewillautomaticallyfind“Bluetooth 3.0Keyboard”,thenconnectit. Step4:DeviceshowedBluetoothhadconnected,keyboardstateindicatorlightwillturnoff. FCC ID:2AC9LHB022A SpecialNote: ForotherBluetoothenableddevice,pleaseverifytheBluetoothStandard&compatibilitybefore attemptingtoconnecttothekeyboard. Battery Thelong-lastingrechargeablebatterycanserviceyouforseveralweeks Withnomemoryeffect,thelithiumbatterycanbechargedatanytime. Inordertoextendservicelife,werecommendyouturnthekeyboardoffwhenthereislongtime withnointeractive. Charging Whenthebatterypowerislow,the[power]indicatorlightwillstartblinking,itistimetorecharge thekeyboard. Step1:ConnectUSB-BofthenativeUSBpowercabletothekeyboardcharginginterface. Step2:ConnectUSB-Atothepoweradapterorcomputer'sUSBinterface. Step3:theredindicatorlightwillstayonwhenthekeyboardischarging.Onceitfinishedcharging theindicatorlightwillturngreencolor. EnergySavingSleepMode Thekeyboardwillkickintosleepmodewhenitisinactivefor10minutesandthekeyboard [power]indicatororlightwillgooff.Toactivatefromsleepmode,justpressanykeyandwait 3seconds,thekeyboardwillcomebackon. SafetyCaution 1.Keeptheitemawayfromsharpobjects. 2.Donotplaceheavyobjectontopofthekeyboard. 3.DonotMicrowavetheitem. 4.Donotforceordistortedthekeyboard 5.Keepawayfromoil.chemicaloranyotherorganicliquid. Cleaning Cleanthesiliconekeyboardwithwater,alcoholoralcoholbaseddisinfectant Troubleshooting A,Unabletoconnect 1.Makesurethepowerswitchison. 2.Makesurethekeyboardiswithintheoperatingdistance. 3.Makesurethebatteryischarged. 4.MakesureyourdeviceBluetoothsettingison. 5.Makesurewirelesskeyboardisconnectedtoyourdevice. 6.Makesurewirelesskeyboardhasbeenpairedwithyourdevice. B.UnabletoChargeKeyboard 1.MakesuretheUSBpowercableisconnectedproperlytothekeyboardandthepowersource. 2.Makesurethewallchargerisplugintothepoweroutlet. SpecialKeysDescription LongpressFnandcombinationwithF1-F12andinsertkeystotheshiftmultimediakeys,and mainlybeusedintheoperationofAndroidsystemmultimedia. SpecialFeaturesandOptions PleasenotethattheKeyboardCaseismadefromsteelwithahighgradefinishsimilartothefinish onmanypopulardevices Options:Asetoffourrubberfeethadpastedonthefourcorners,whichcanhelpprevent scratchinghigh-gradefinishoftheKeyboardCase. WhatdoyouthinkaboutourBluetoothkeyboard Pleasetakeaminutetotellus. Thanksforpurchasingourproduct. http://www.bow.cn ProductEndofLife: Keyboardbatterydisposal 1.Insertscrewdriverbetweenplastictopandmetalcaseatkeyboardtoporbottom 2.Pryupplastictopandremoveitcompletely.Thisactiondestroyskeyboard 3.Turntopoverandremovetapefrombattery. 4.Separatebatteryfromcircuitboard 5.Disposeofbatteryaccordingtolocallaws.Recycleremainingkeyboardparts. TableofToxicandHazardousSubstance/ElementsandTheirContent Ingredients（Pb）（Hg）（Cd）（Cr(VI)）（PBB）（PBDE） CableXOOOOO PWAsXOOOOO PlasticpartsOOOOOO MembraneOOOOOO MeterpartsXOOOOO RubberdomeOOOOOO Ostandsforthistoxicandhazardouscontentinhomogeneousmaterialisunderthe SJ/T11363-2006Standardslimits Xstandsforthistoxicandhazardouscontentinhomogeneousmaterialisbeyondthe SJ/T11363-2006Standardslimits Undertheingredientswith'X'intheformallareuptoROHS; “on27January2003t heEuropeanparliamentandthecouncilannounceelectronicequipmentin limitingtheuseofcertainhazardoussubstancesdirective2002/95/EC” Note:theenvironmentalprotectionusingperiodreferencestandarddependsontheproductof theregularworktemperatureandhumidityconditions。 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Sep.18, 2014 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2AC9LHB022A Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Circuit Diagram 2: Parts List 3.Black Diagram 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Shenzhen Hastech industries Co., Ltd Contact person: Jiang Wei Title: Manager

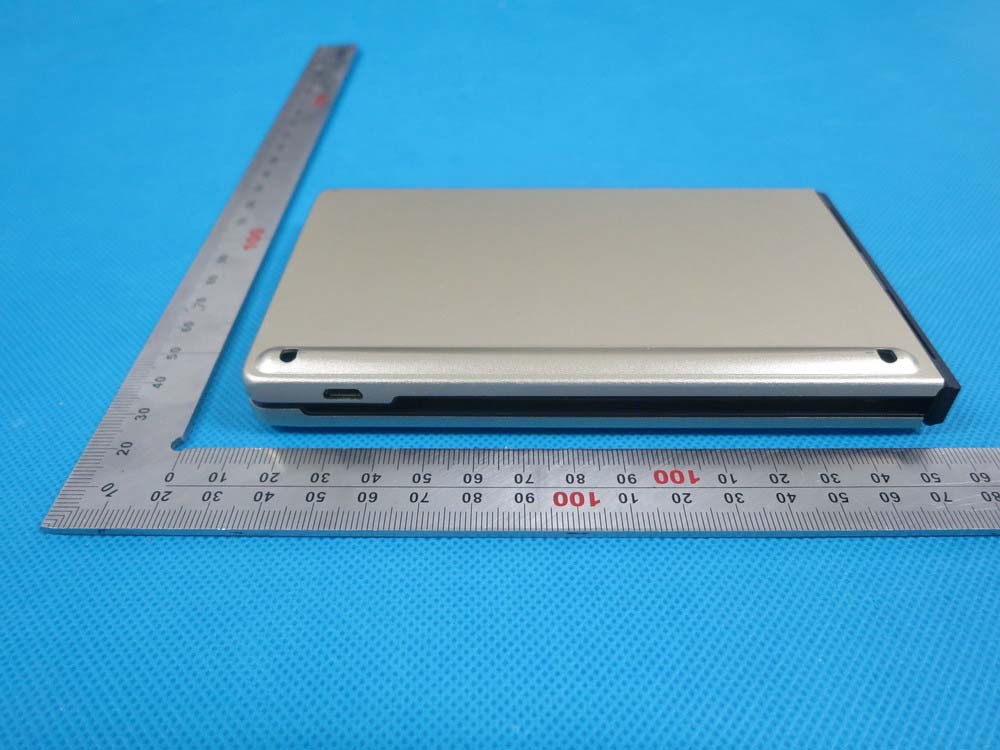

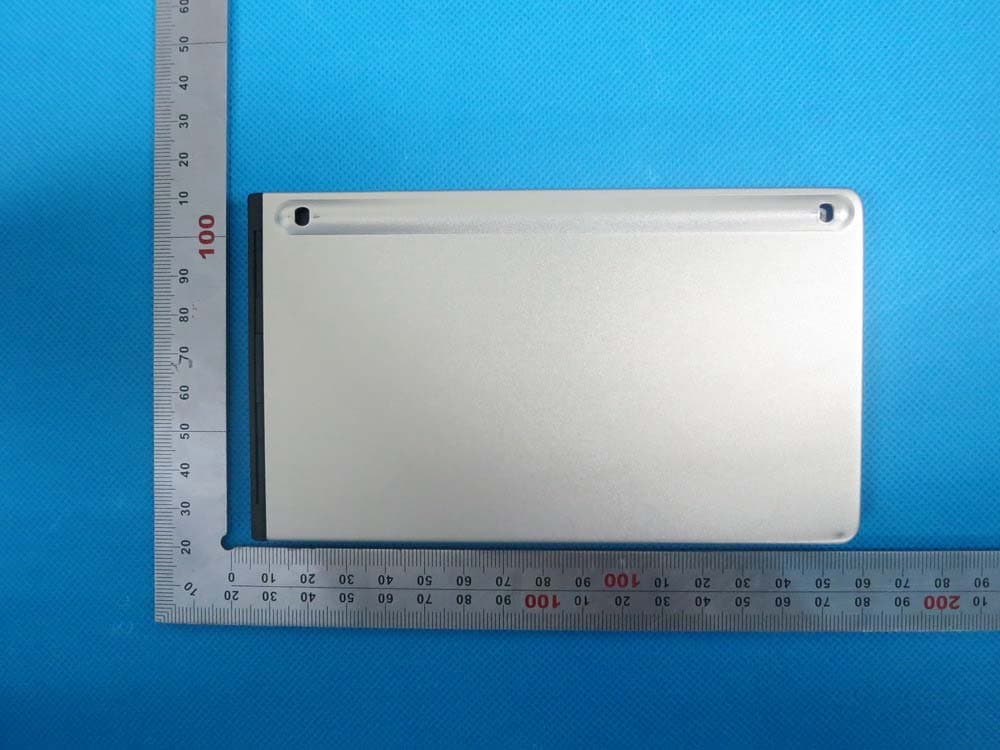

External Photos TOPVIEW OFEUT BOTTOM VIEW OFEUT FRONT VIEW OFEUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT EXPANDED VIEWOF EUT-1 EXPANDED VIEWOF EUT-2

FCC ID Label Location FCC ID:2AC9LHB022A

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna

FCC ID APPLI PROD U BRAND MODE CLIEN DATE O STAND REPOR A CAUTI This re test lab D CATION P U UCT DESIG D NAME EL NAME T OF ISSUE DARD(S) RT VERSIO Attestat ION: eport shall boratory an FC Rep URPOSE GNATION ON tion of G not be repr nd shall no C Te port No.: : 2AC9 : Origi : Bluet : N/A : HB02 : Shen : Sep.1 : FCC P : V1.0 Global C roduced ex t be quoted est R AGC0061 9LHB022A inal Equipm tooth Keyb 22A nzhen Haste 17,2014 Part 15 Rul Complia xcept in full d out of con Rep 10140901 ment board ech industr les ance(Sh l without th ntext. port 1FE03 ries Co., Ltd henzhen he written t d n) Co., L permission Page 1 of Ltd n of the f 59 Report No.: AGC00610140901FE03 Page 2 of 59 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Sep.17,2014Valid Original Report Report No.: AGC00610140901FE03 Page 3 of 59 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 5 2. GENERAL INFORMATION .................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ........................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ............................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................... 8 2.7. TEST METHODOLOGY ................................................................................................................ 8 2.8. SPECIAL ACCESSORIES ............................................................................................................ 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................... 8 3. MEASUREMENT UNCERTAINTY........................................................................................ 9 4. DESCRIPTION OF TEST MODES ........................................................................................ 9 5. SYSTEM TEST CONFIGURATION .................................................................................... 10 5.1. CONFIGURATION OF EUT SYSTEM ........................................................................................ 10 5.2. EQUIPMENT USED IN EUT SYSTEM ....................................................................................... 10 5.3. SUMMARY OF TEST RESULTS ................................................................................................ 10 6. TEST FACILITY .................................................................................................................. 11 7. PEAK OUTPUT POWER .................................................................................................... 12 7.1. MEASUREMENT PROCEDURE ................................................................................................ 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................... 13 8. 20DB BANDWIDTH ............................................................................................................ 15 8.1. MEASUREMENT PROCEDURE ................................................................................................ 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 15 8.3. LIMITS AND MEASUREMENT RESULTS .................................................................................. 15 9. CONDUCTED SPURIOUS EMISSION ............................................................................... 18 9.1. MEASUREMENT PROCEDURE ................................................................................................ 18 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 18 9.3. MEASUREMENT EQUIPMENT USED ....................................................................................... 18 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................... 18 10. RADIATED EMISSION ..................................................................................................... 22 10.1. MEASUREMENT PROCEDURE .............................................................................................. 22 10.2. TEST SETUP ............................................................................................................................ 24 10.3. TEST RESULT .......................................................................................................................... 24 Report No.: AGC00610140901FE03 Page 4 of 59 11. BAND EDGE EMISSION .................................................................................................. 31 11.1. MEASUREMENT PROCEDURE .............................................................................................. 37 11.2. TEST SET-UP ........................................................................................................................... 37 11.3. TEST RESULT .......................................................................................................................... 38 12. NUMBER OF HOPPING FREQUENCY ............................................................................ 42 12.1. MEASUREMENT PROCEDURE ........................................................…

Text truncated - open the document above for the full version.

Test Setup Photos FCCLINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
