2AC9LHB087Bluetooth Keyboard

HB087 BluetoothKeyboardforAndroid/Windows/IOStablets&laptops Packingcontents: 1.Bluetoothkeyboard 2. Usermanual BluetoothKeyboardSpecification 1.Built-inBroadcomBluetooth3.0keyboard. 2.Modernslimkeyboardbacksidewithbrushedsteel. 3.Chocolatekeycapwithscissorsstructure,goodtouchfeeling. 4.SuitableforAndroid/Windows/IOStablets,laptops,desktops,andallsmartphones. 5. 6. Lightweight,quietkeystrokes,water-proof,dust-proof. Keyboardsize:281.7*135*4.3MM BluetoothKeyboardSpecificationandPairingInstruction： BluetoothKeyboardSpecification 1.Bluetooth3.0interfacestandard 2.OperatingDistanceto10meters 3.ModulatingSystem:GFSK 4. 5. WorkingCurrent:<2.5mA 6. StandbyCurrent:0.3-0.5mA 7. SleepingCurrent：<40uA 8. 9. StandbyTime:>100days 10. 11. UninterruptedWorkingTime:>64hours KeyStrength:50g~80g Keylife:<3millionstrokes OperatingTemperature:-10-+55C BluetoothKeyboardPairing Step1:Turnonthepowertoggleswitch.Thestateindicatorlightwillbeonfor10seconds,and thenthelightwillgooff. Step2:Presson“FN+C”buttontogetheronkeyboard,theindicatorlightwillbeblinking. Step3:TurnonBluetoothsettinginyourdevice,yourdevicewillautomaticallyfind“Bluetooth 3.0Keyboard”,thenconnectit. Step4:DeviceshowedBluetoothhadconnected,keyboardstateindicatorlightwillturnoff. FCC ID:2AC9LHB087 SpecialNote: ForotherBluetoothenableddevice,pleaseverifytheBluetoothStandard&compatibilitybefore attemptingtoconnecttothekeyboard. EnergySavingSleepMode Thekeyboardwillkickintosleepmodewhenitisinactivefor10minutesandthekeyboard [power]indicatororlightwillgooff.Toactivatefromsleepmode,justpressanykeyandwait 3seconds,thekeyboardwillcomebackon. SafetyCaution 1.Keeptheitemawayfromsharpobjects. 2.Donotplaceheavyobjectontopofthekeyboard. 3.DonotMicrowavetheitem. 4.Donotforceordistortedthekeyboard 5.Keepawayfromoil.chemicaloranyotherorganicliquid. Cleaning Cleanthesiliconekeyboardwithwater,alcoholoralcoholbaseddisinfectant Troubleshooting A,Unabletoconnect 1.Makesurethepowerswitchison. 2.Makesurethekeyboardiswithintheoperatingdistance. 3. 4. MakesureyourdeviceBluetoothsettingison. 5. Makesurewirelesskeyboardisconnectedtoyourdevice. Makesurewirelesskeyboardhasbeenpairedwithyourdevice. SpecialKeysDescription LongpressFnandcombinationwithF1-F12andinsertkeystotheshiftmultimediakeys,and mainlybeusedintheoperationofAndroidsystemmultimedia. SpecialFeaturesandOptions PleasenotethattheKeyboardCaseismadefromsteelwithahighgradefinishsimilartothefinish onmanypopulardevices Options:Asetoffourrubberfeethadpastedonthefourcorners,whichcanhelpprevent scratchinghigh-gradefinishoftheKeyboardCase. WhatdoyouthinkaboutourBluetoothkeyboard Pleasetakeaminutetotellus. Thanksforpurchasingourproduct. http://www.bow.cn ProductEndofLife: Keyboardbatterydisposal 1.Insertscrewdriverbetweenplastictopandmetalcaseatkeyboardtoporbottom 2.Pryupplastictopandremoveitcompletely.Thisactiondestroyskeyboard 3.Turntopoverandremovetapefrombattery. 4.Separatebatteryfromcircuitboard 5.Disposeofbatteryaccordingtolocallaws.Recycleremainingkeyboardparts. TableofToxicandHazardousSubstance/ElementsandTheirContent Ingredients（Pb）（Hg）（Cd）（Cr(VI)）（PBB）（PBDE） CableXOOOOO PWAsXOOOOO PlasticpartsOOOOOO MembraneOOOOOO MeterpartsXOOOOO RubberdomeOOOOOO Ostandsforthistoxicandhazardouscontentinhomogeneousmaterialisunderthe SJ/T11363-2006Standardslimits Xstandsforthistoxicandhazardouscontentinhomogeneousmaterialisbeyondthe SJ/T11363-2006Standardslimits Undertheingredientswith'X'intheformallareuptoROHS; “on27January2003t heEuropeanparliamentandthecouncilannounceelectronicequipmentin limitingtheuseofcertainhazardoussubstancesdirective2002/95/EC” Note:theenvironmentalprotectionusingperiodreferencestandarddependsontheproductof theregularworktemperatureandhumidityconditions。 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

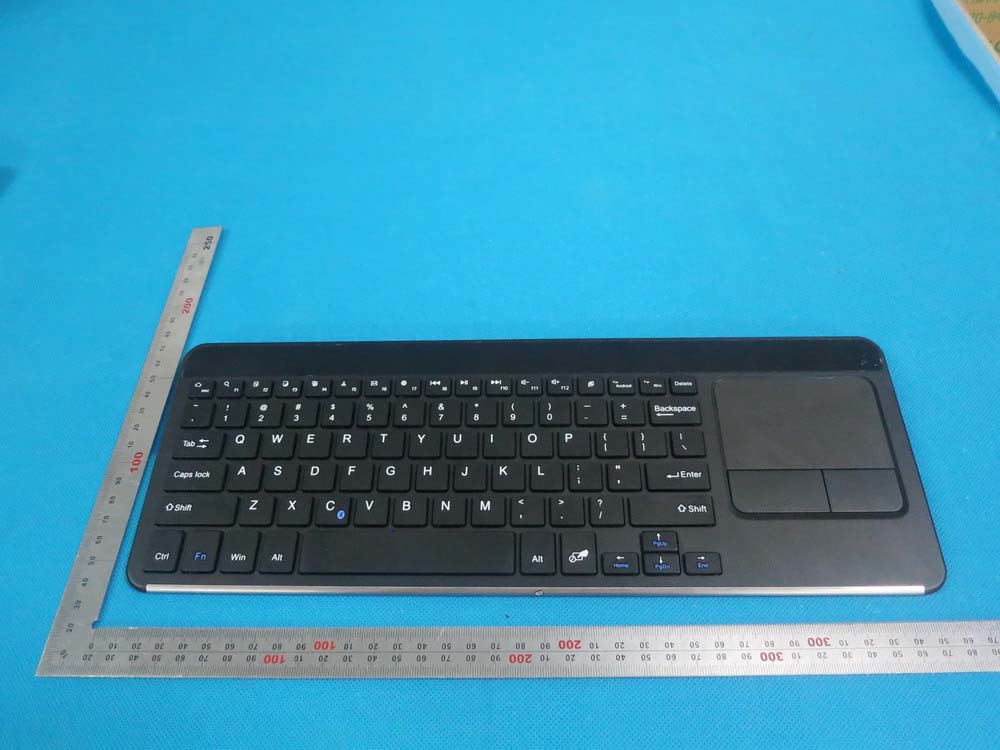

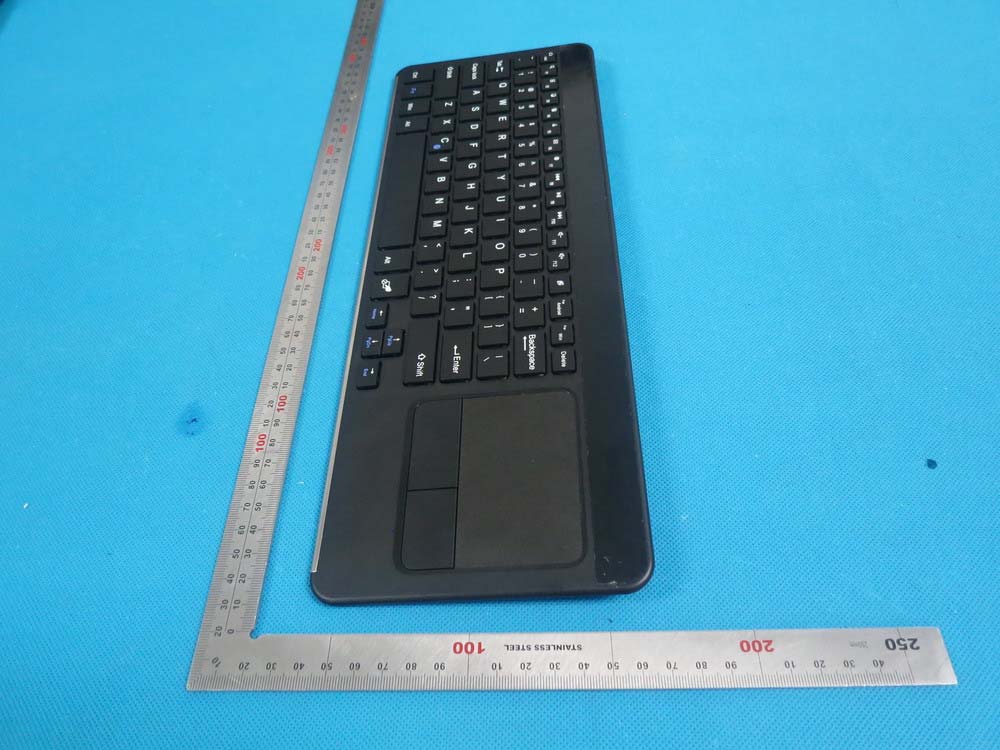

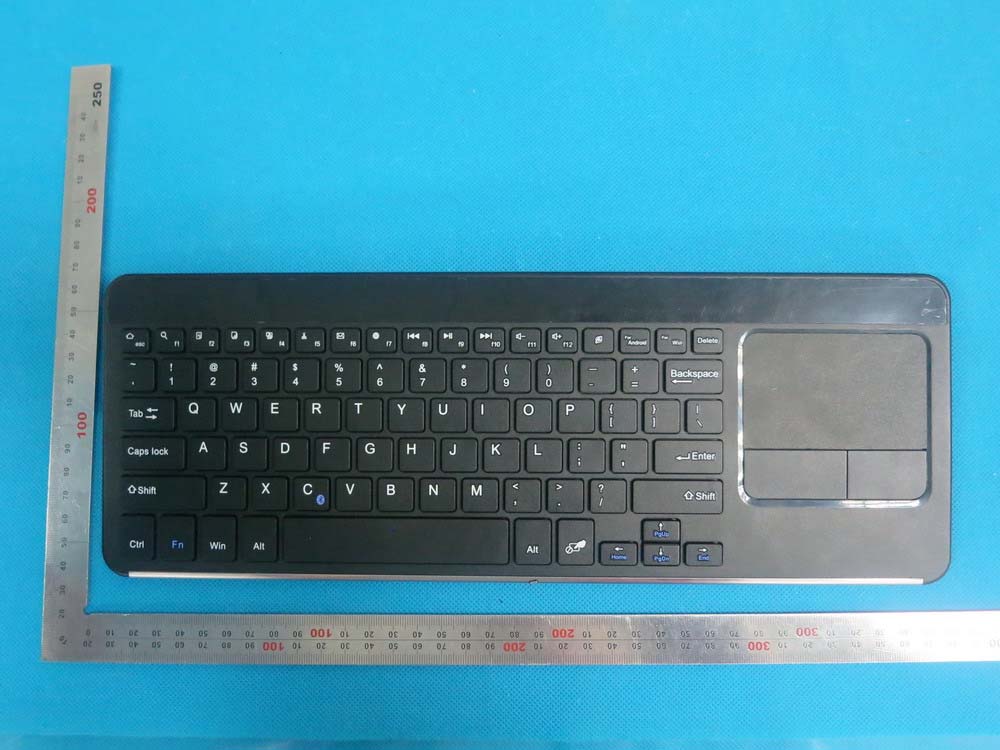

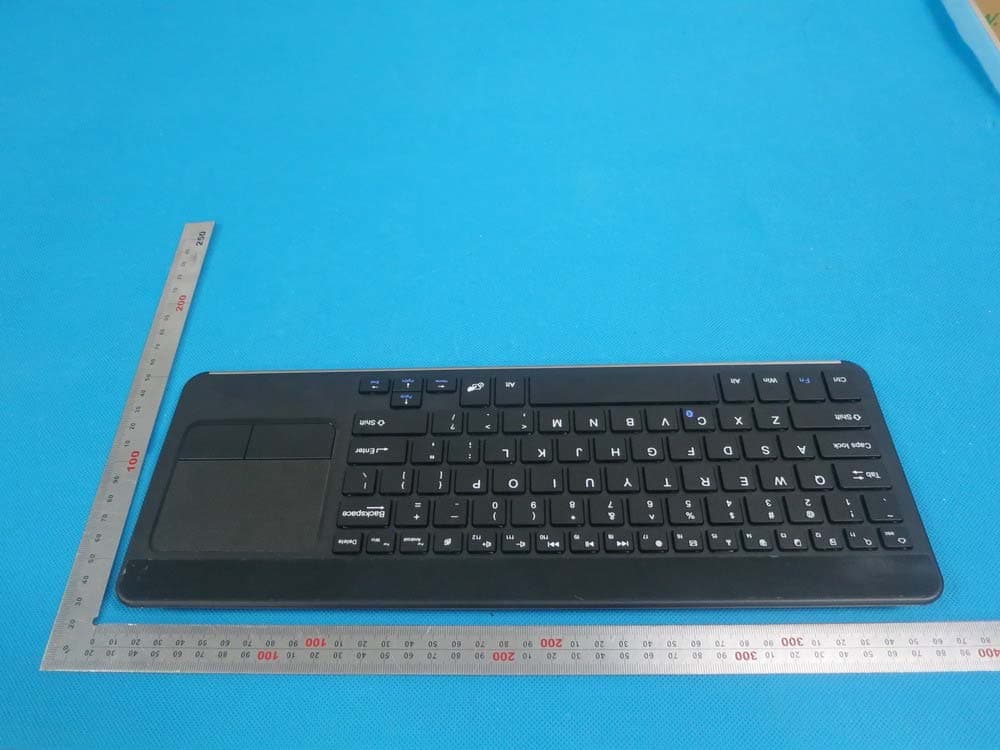

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID:2AC9LHB087

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 Antenna

Page 1 of 57 FCC Test Report Report No.: AGC00610141205FE03 FCC ID : 2AC9LHB087 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Keyboard BRAND NAME : N/A MODEL NAME : HB087 CLIENT : Shenzhen Hastech industries Co., Ltd. DATE OF ISSUE : Dec.22,2014 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00610141205FE03 Page 2 of 57 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Dec.22,2014 Valid Original Report Report No.: AGC00610141205FE03 Page 3 of 57 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 5 2. GENERAL INFORMATION .................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ........................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ............................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................... 8 2.7. TEST METHODOLOGY................................................................................................................ 8 2.8. SPECIAL ACCESSORIES ............................................................................................................ 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................... 8 3. MEASUREMENT UNCERTAINTY........................................................................................ 9 4. DESCRIPTION OF TEST MODES ........................................................................................ 9 5. SYSTEM TEST CONFIGURATION .................................................................................... 10 5.1. CONFIGURATION OF EUT SYSTEM ........................................................................................ 10 5.2. EQUIPMENT USED IN EUT SYSTEM ....................................................................................... 10 5.3. SUMMARY OF TEST RESULTS ................................................................................................ 10 6. TEST FACILITY .................................................................................................................. 11 7. PEAK OUTPUT POWER .................................................................................................... 12 7.1. MEASUREMENT PROCEDURE ................................................................................................ 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................... 13 8. 20DB BANDWIDTH ............................................................................................................ 15 8.1. MEASUREMENT PROCEDURE ................................................................................................ 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 15 8.3. LIMITS AND MEASUREMENT RESULTS .................................................................................. 15 9. CONDUCTED SPURIOUS EMISSION ............................................................................... 18 9.1. MEASUREMENT PROCEDURE ................................................................................................ 18 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 18 9.3. MEASUREMENT EQUIPMENT USED ....................................................................................... 18 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................... 18 10. RADIATED EMISSION ..................................................................................................... 22 10.1. MEASUREMENT PROCEDURE .............................................................................................. 22 10.2. TEST SETUP ............................................................................................................................ 24 10.3. TEST RESULT .......................................................................................................................... 24 Report No.: AGC00610141205FE03 Page 4 of 57 11. BAND EDGE EMISSION .................................................................................................. 31 11.1. MEASUREMENT PROCEDURE .............................................................................................. 37 11.2. TEST SET-UP ........................................................................................................................... 37 11.3. TEST RESULT .......................................................................................................................... 38 12. NUMBER OF HOPPING FREQUENCY ............................................................................ 42 12.1. MEASUREMENT PROCEDURE .............................................................................................. 42 12.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) ..............…

Text truncated - open the document above for the full version.

Test Setup Photos FCC RADIATED EMISSION TEST SETUP
